SANY SY215C SY215C9 SY215C9C5KL EXCAVATOR parts catalog 15
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-131-41 |
41 |
60153240 |
1 |
Thermistor AS |
2-131-42 |
42 |
60049968 |
1 |
Transistor AS, air conditioner |
2-131-43 |
43 |
60049952 |
1 |
Bracket, thermo-bulb parts |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

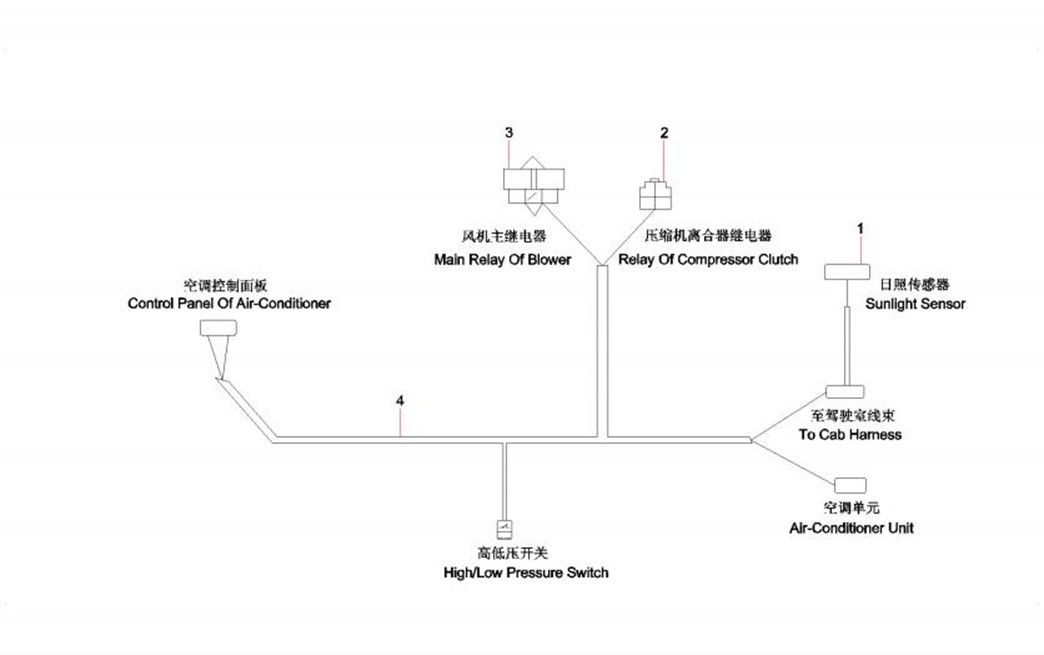

2-133-1 |
1 |
B240600000334 |
1 |
Sensor, sunlight |
2-133-2 |
2 |
B240700000473 |
1 |
Relay |
2-133-3 |
3 |
B240700000472 |
1 |
Relay |
2-133-4 |
4 |
10448933 |
1 |
Wire, connecting, air conditioner |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

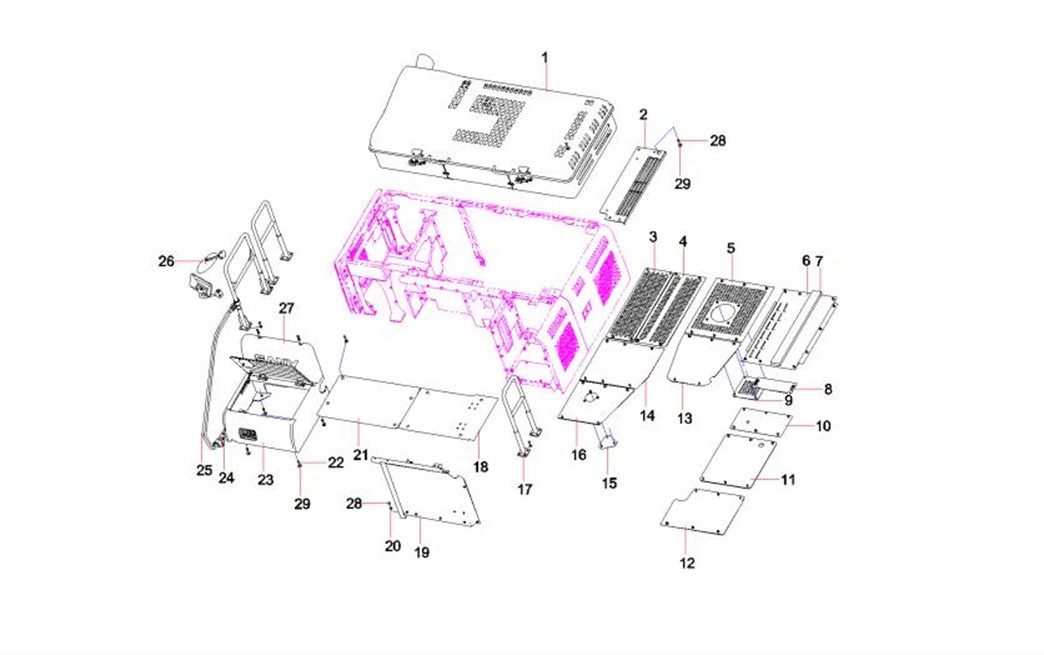

2-135-1 |
1 |
13602963 |
1 |
Bonnet SY215C9C5KL.1.6.6A |
2-135-2 |
2 |
13353620 |
1 |
Left Upper Rear Cover Plate |
2-135-3 |
3 |
11868234 |
1 |
Coverplate, bottom, right |
2-135-4 |
4 |
13460563 |
1 |
cover plate(R) SY215C9C5KL.1.6- |
2-135-5 |
5 |
13425229 |
1 |
Cover Plate |
2-135-6 |
6 |
13355322 |
1 |
Cover plate SY215C9C5KL.1.6-3 |
2-135-7 |
7 |
13460483 |
1 |
Bottom sponge SY215C9C5KL.1.6 |
2-135-8 |
8 |
12119218 |
1 |
Coverplate, adapter |
2-135-9 |
9 |
A820101357570 |
1 |
Cover |
2-135-10 |
10 |
11868253 |
1 |
Coverplate, bottom |
2-135-11 |
11 |
11868256 |
1 |
Coverplate, rear middle |
2-135-12 |
12 |
11868263 |
1 |
Coverplate, bottom front, cab |
2-135-13 |
13 |
11867683 |
1 |
Coverplate, bottom, main valve |
2-135-14 |
14 |
11868245 |
1 |
Coverplate, bottom, hydraulic tank |
2-135-15 |
15 |
10186779 |
1 |
Coverplate |
2-135-16 |
16 |
11868432 |
1 |
Coverplate AS, bottom, fuel tank |
2-135-17 |
17 |
13355963 |
1 |
Main hand rail body(Ⅱ) |
2-135-18 |
18 |
13353614 |
1 |
Left front upper cover plate |
2-135-19 |
19 |
13349692 |
1 |
left front spacing plate assembly |
2-135-20 |
20 |
60262512 |
114 |
Washer |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-137-21 |
21 |
13353672 |
1 |
Intermediate Cover Plate |
2-137-22 |
22 |
A210111000199 |
15 |
Bolt M12×20GB5783 10.9 |
2-137-23 |
23 |
13348809 |
1 |
Tool Box Assy |
2-137-24 |
24 |
24000300 |
2 |
Bolt |
2-137-25 |
25 |
13533193 |
1 |
Handrail SY215C9C5KL.1.6.15A.1 |
2-137-26 |
26 |
13314057 |
1 |
upper right rearview mirror |
2-137-27 |
27 |
12908471 |
1 |
Trim cover SY200E.1.6.11 |
2-137-28 |
28 |
60262507 |
179 |
Bolt |
2-137-29 |
29 |
60262511 |
105 |
Washer |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

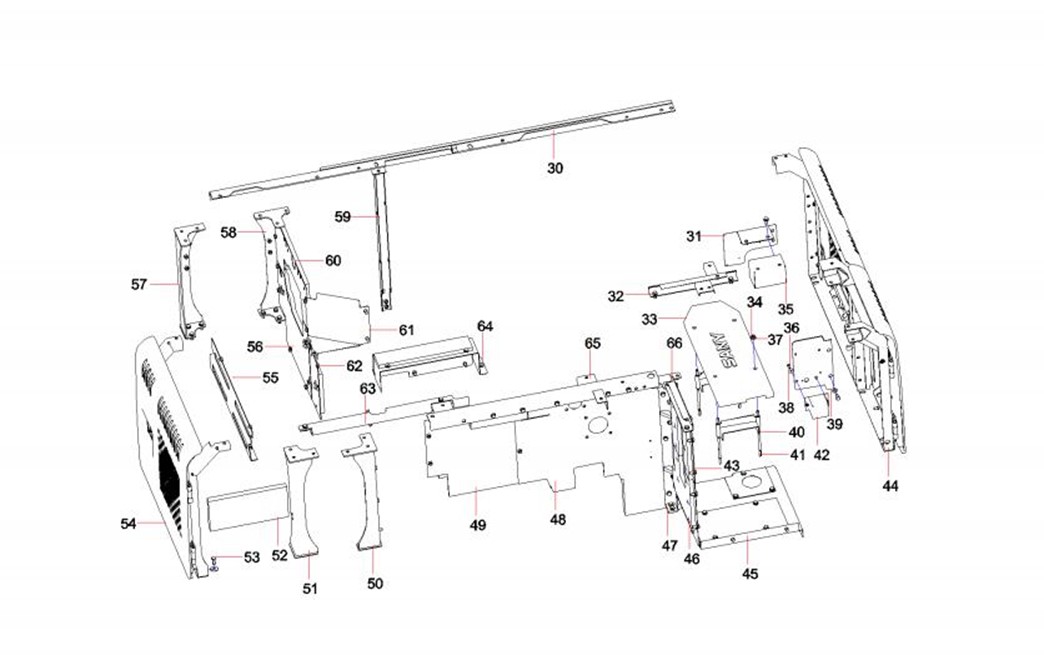

2-139-30 |
30 |
Modification or other |
1 |
back bracket |
2-139-31 |
31 |
Modification or other |
1 |
Plate, mounting, relay |
2-139-32 |
32 |
13349876 |
1 |
left central bridging beam |
2-139-33 |
33 |
13347245 |
1 |
battery cover plate SY245C9.1.6- |
2-139-34 |
34 |
Modification or other |
4 |
Nut M10GB6170 |
2-139-35 |
35 |
11673094 |
1 |
Cover, start relay |
2-139-36 |
36 |
60262506 |
2 |
Bolt |
2-139-37 |
37 |
Modification or other |
4 |
Washer 10GB1230 |
2-139-38 |
38 |
60262510 |
2 |
Washer |
2-139-39 |
39 |
13353674 |
1 |
Rinser mounting support |
2-139-40 |
40 |
12738866 |
2 |
battery supportSY215C9.1.6.6A |
2-139-41 |
41 |
11592968 |
4 |
Stud |
2-139-42 |
42 |
13588742 |
1 |
cover SY215C9C5KL.1.6.40 |
2-139-43 |
43 |
Modification or other |
1 |
air filter up clapboard |
2-139-44 |
44 |
13349399 |
1 |
Left Door Assy |
2-139-45 |
45 |
13428292 |
1 |
Cover Plate SY215C9C5KL.1.6.7A |
2-139-46 |
46 |
Modification or other |
1 |
air filter down clapboard |
2-139-47 |
47 |
13432986 |
1 |
Air Cleaner Clapboard |
2-139-48 |
48 |
Modification or other |
1 |
left spacing plate combination |
2-139-49 |
49 |
Modification or other |
1 |
Right clapboard of diesel engine |
