SANY SY215C SY215C9 SY215C9C5KL EXCAVATOR parts catalog 20
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-181-21 |
21 |
13584759 |
1 |
Side Sponge Of Left |

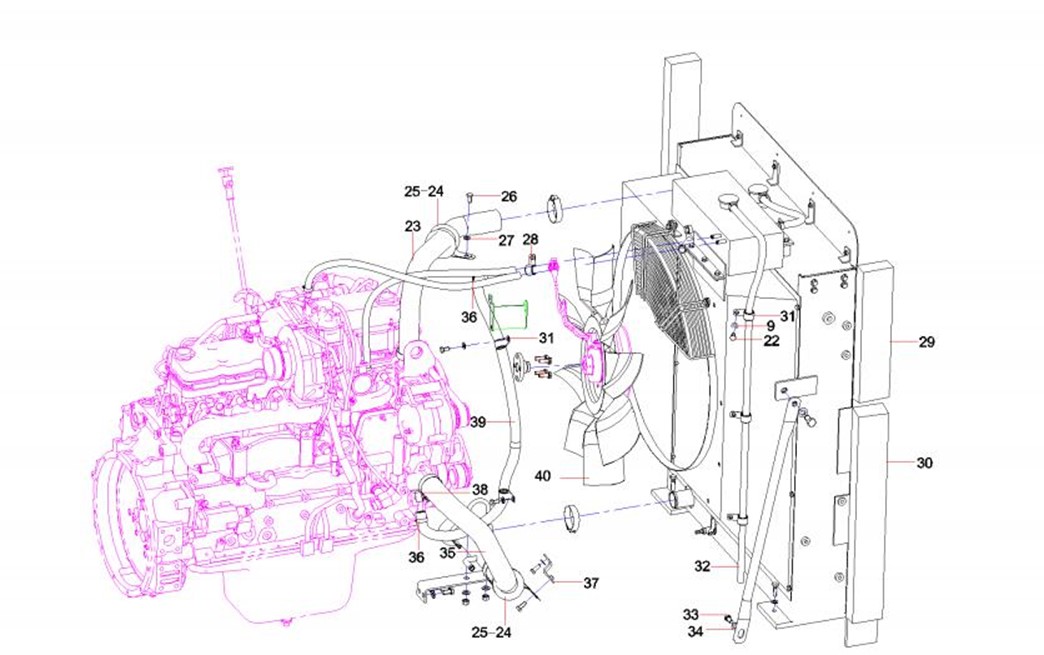

IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-183-23 |
23 |
13349921 |
1 |
engine outlet pipe |
2-183-24 |
24 |
12290771 |
2 |
bush |
2-183-25 |
25 |
12290781 |
2 |
clamp |
2-183-26 |
26 |
A210111000343 |
1 |
Bolt M8×20GB5783 10.9 |
2-183-27 |
27 |
24000633 |
1 |
Washer |
2-183-28 |
28 |
Modification or other |
1 |
Clamp, harness |
2-183-29 |
29 |
13584762 |
1 |
Side Sponge Of Left |
2-183-30 |
30 |
13584761 |
1 |
Side Sponge Of Left |
2-183-31 |
31 |
Modification or other |
4 |
Clamp, harness |
2-183-32 |
32 |
13349925 |
1 |
Exhaust Tube of Water Tank |
2-183-33 |
33 |
Modification or other |
2 |
Bolt M16×30GB5783 |
2-183-34 |
34 |
Modification or other |
2 |
Washer 16GB97.1 |
2-183-35 |
35 |
13351086 |
1 |
Water Inlet Pipe |
2-183-36 |
36 |
Modification or other |
2 |
Hoop, hose |
2-183-37 |
37 |
A820101213069 |
1 |
Bracket |
2-183-38 |
38 |
60285275 |
1 |
fixing dice |
2-183-39 |
39 |
13349924 |
1 |
Affusion Tube SY215C9C5KL.1.3.3 |
2-183-40 |
40 |
60266237 |
1 |
clutch |

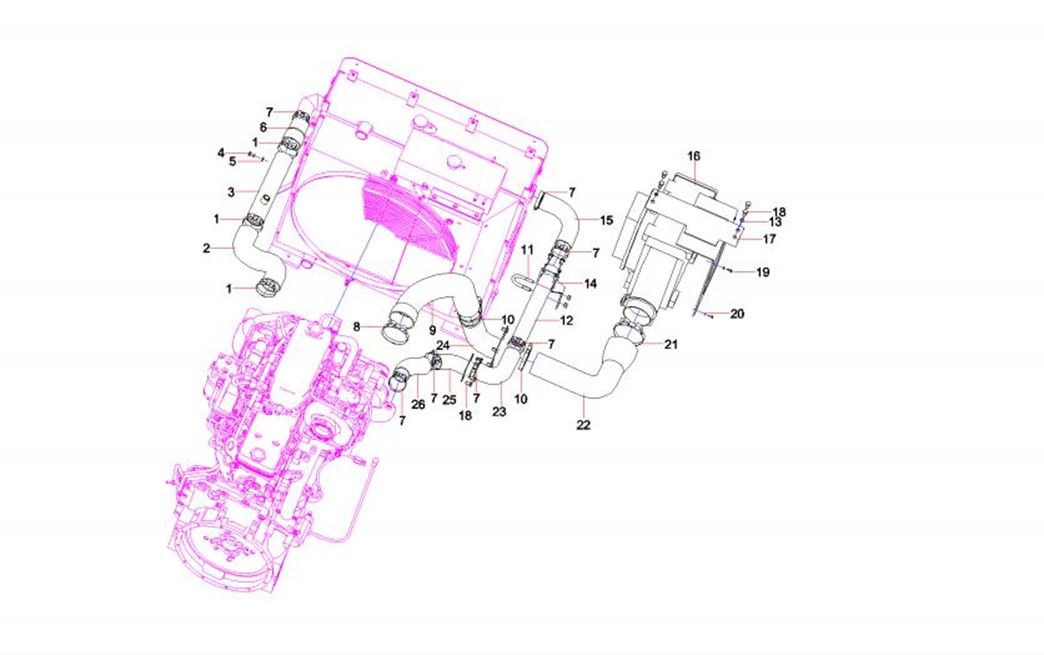

IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-185-1 |
1 |
A229900003759 |
3 |
Anchor ear, T-type |
2-185-2 |
2 |
13385908 |
1 |
PiPe SY215C9C5KL.1.3.4-7 |
2-185-3 |
3 |
13694390 |
1 |
Intercooler outlet steel pipe |
2-185-4 |
4 |
A210111000011 |
1 |
Bolt M10×20GB5783 |
2-185-5 |
5 |
A210405000011 |
1 |
Washer 10GB97.1 |
2-185-6 |
6 |
10201103 |
1 |
Hose, rubber, outlet |
2-185-7 |
7 |
B229900001059 |
7 |
Anchor ear, T-type |
2-185-8 |
8 |
A229900002263 |
1 |
Anchor ear, T-type |
2-185-9 |
9 |
13350086 |
1 |
Hose SY215C9C5KL.1.3.4-4 |
2-185-10 |
10 |
A229900003898 |
2 |
Anchor ear, T-type |
2-185-11 |
11 |
12331544 |
1 |
U type boltSY215C9C3K.1.3.4-12 |
2-185-12 |
12 |
13350093 |
1 |
Steel Pipe SY215C9C5KL.1.3.4.3 |
2-185-13 |
13 |
24000639 |
12 |
Washer |
2-185-14 |
14 |
13351586 |
1 |
fixed bracket SY215C9C5KL.1.3.4 |
2-185-15 |
15 |
13350083 |
1 |
Rubber Hose |
2-185-16 |
16 |
60254051 |
1 |
Air Cleaner |
2-185-17 |
17 |
13350091 |
1 |
Air cleaner support |
2-185-18 |
18 |
A210111000101 |
12 |
Bolt M12×25GB5783 10.9 |
2-185-19 |
19 |
A210111000079 |
4 |
Bolt M6×16GB5783 |
2-185-20 |
20 |
A210405000006 |
4 |
Washer 6GB97.1 |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-187-21 |
21 |
A229900002220 |
1 |
Clamp, T-type |
2-187-22 |
22 |
13350084 |
1 |
Hose For Air Filter OUT |
2-187-23 |
23 |
13350085 |
1 |
Rubber Hose |
2-187-24 |
24 |
13351590 |
1 |
steel pipe assembly |
2-187-25 |
25 |
13351604 |
1 |
steel pipe assembly |
2-187-26 |
26 |
13350088 |
1 |
Hose SY215C9C5KL.1.3.4-5 |

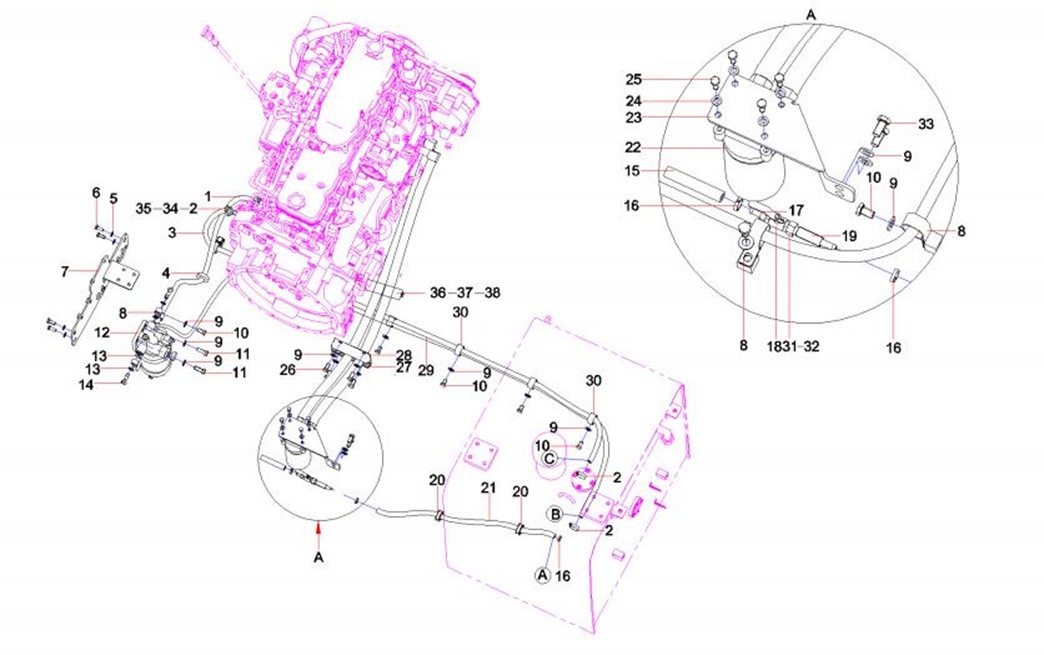

IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-189-1 |
1 |
13350077 |
1 |
Fuel hose SY215C9C5KL.1.3.5-4 |
2-189-2 |
2 |
A210855000003 |
1 |
Hoop |
2-189-3 |
3 |
13350078 |
1 |
Fuel hose SY215C9C5KL.1.3.5-5 |
2-189-4 |
4 |
13351679 |
1 |
Hole Protecting Ring |
2-189-5 |
5 |
24000637 |
8 |
Washer |
2-189-6 |
6 |
Modification or other |
4 |
Bolt M10×25GB5783 |
2-189-7 |
7 |
13350081 |
1 |
fix shutter SY215C9C5KL.1.3.5.1 |
2-189-8 |
8 |
Modification or other |
9 |
Clamp, harness |
2-189-9 |
9 |
24000639 |
20 |
Washer |
2-189-10 |
10 |
24000639 |
20 |
Washer |
2-189-11 |
11 |
Modification or other |
12 |
Bolt M12×20(GB5783) |
2-189-12 |
12 |
Modification or other |
2 |
Bolt M12×35GB5783 |
2-189-13 |
13 |
60254054 |
1 |
Check Valve |
2-189-14 |
14 |
A210434000007 |
8 |
Washer 14JB982 |
2-189-15 |
15 |
Modification or other |
4 |
Articulating Bolt |
2-189-16 |
16 |
11273607 |
1 |
Hose |
2-189-17 |
17 |
A229900001345 |
3 |
Clamp, hose |
2-189-18 |
18 |
11331654 |
1 |
Adapter |
2-189-19 |
19 |
60046622 |
1 |
Switch, fuel |
2-189-20 |
20 |
11251714 |
1 |
Adapter |
