SANY SY215C SY215C9 SY215C9C5KL EXCAVATOR parts catalog 19
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-171-1 |
1 |
13659126 |
1 |
Hose SY215C9C5KL.1.3.2-22 |
2-171-2 |
2 |
Modification or other |
3 |
Clamp, harness |
2-171-3 |
3 |
24000639 |
36 |
Washer |
2-171-4 |
4 |
A210111000101 |
36 |
Bolt M12×25GB5783 10.9 |
2-171-5 |
5 |
11348391 |
1 |
Grommet |
2-171-6 |
6 |
Modification or other |
10 |
Hoop |
2-171-7 |
7 |
13590614 |
1 |
Exhaust Tail Pipe |
2-171-8 |
8 |
13344371 |
1 |
Hose SY215C9C5KL.1.3.2-11 |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

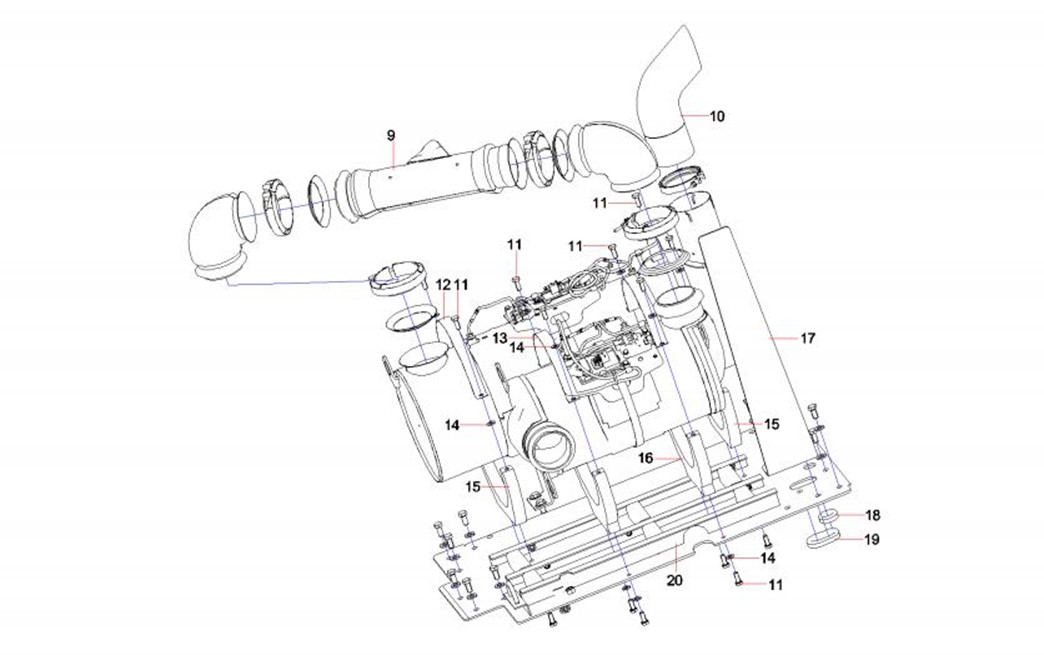

2-173-9 |
9 |
60271112 |
1 |
DOC-SCR-215 |
2-173-10 |
10 |
13359280 |
1 |
exhaust pipe |
2-173-11 |
11 |
Modification or other |
29 |
Bolt M10×25GB5783 |
2-173-12 |
12 |
13344369 |
2 |
circle SY215C9C5KL.1.3.2-7 |
2-173-13 |
13 |
13344364 |
2 |
DOC Upper Fixing Ring |
2-173-14 |
14 |
24000637 |
18 |
Washer |
2-173-15 |
15 |
13344370 |
2 |
SCR Fixing Mount |
2-173-16 |
16 |
13344365 |
2 |
DOC Fixing Mount |
2-173-17 |
17 |
13351685 |
1 |
Fixing Bracket |
2-173-18 |
18 |
13351679 |
1 |
Hole Protecting Ring |
2-173-19 |
19 |
13294399 |
1 |
rubber ring SY335C9C5K.1.3.2-14 |
2-173-20 |
20 |
13344430 |
1 |
Supporting Plate |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

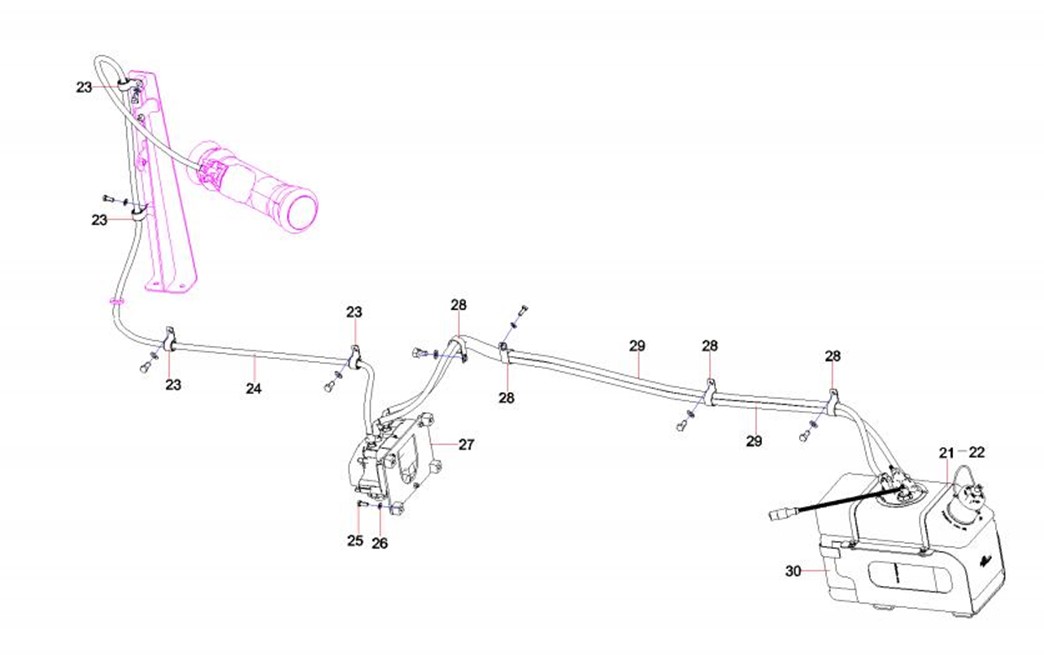

2-175-21 |
21 |
13506674 |
2 |
Upper Fixing Bracket |
2-175-22 |
22 |
13506676 |
2 |
Rubber Belt SY335C9C5K.1.3.2B.5 |
2-175-23 |
23 |
Modification or other |
4 |
Clamp, harness |
2-175-24 |
24 |
60252872 |
1 |
Heated DEF Pressure Line |
2-175-25 |
25 |
A210111000098 |
3 |
Bolt M8×90(GB5783) |
2-175-26 |
26 |
24000633 |
3 |
Washer |
2-175-27 |
27 |
13351650 |
1 |
board SY215C9C5KL.1.3.2.3 |
2-175-28 |
28 |
60149606 |
4 |
Clamp, harness |
2-175-29 |
29 |
60252873 |
2 |
Heated DEF Suction Line |
2-175-30 |
30 |
60251662 |
1 |
DEF Tank |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

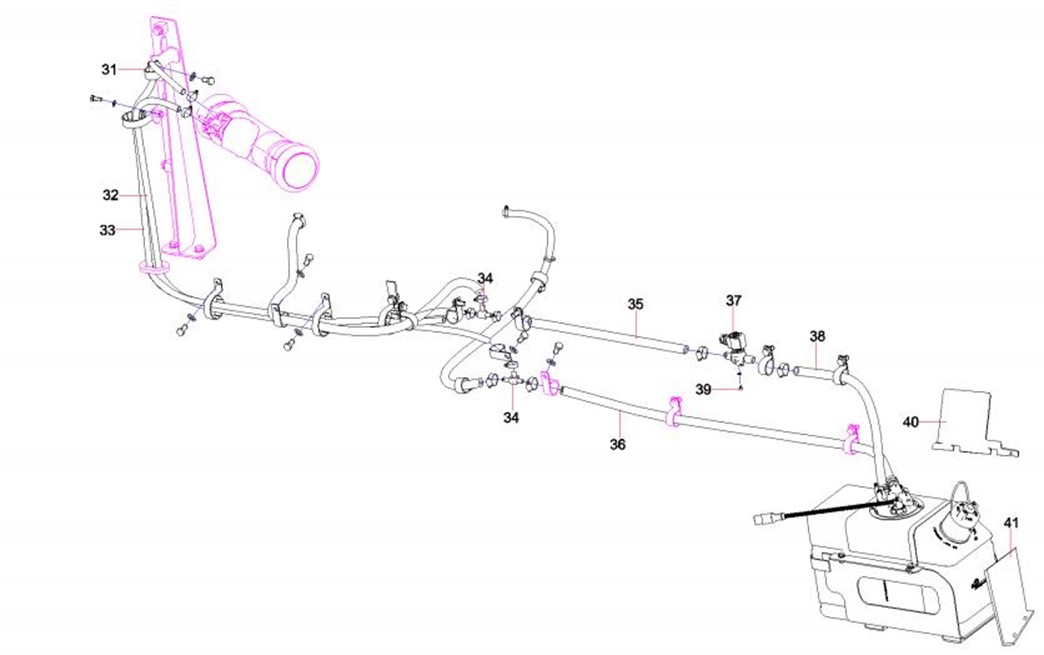

2-177-31 |
31 |
Modification or other |
1 |
Clamp, harness |
2-177-32 |
32 |
13585636 |
1 |
Hose SY215C9C5KL.1.3.2-18 |
2-177-33 |
33 |
13585637 |
1 |
Hose SY215C9C5KL.1.3.2-19 |
2-177-34 |
34 |
60251666 |
2 |
Coolant Supply Line Tee |
2-177-35 |
35 |
13344375 |
1 |
Hose SY215C9C5KL.1.3.2-13 |
2-177-36 |
36 |
13344374 |
1 |
Hose SY215C9C5KL.1.3.2-14 |
2-177-37 |
37 |
60251665 |
1 |
Coolant Flow Valve |
2-177-38 |
38 |
13344376 |
1 |
Hose SY215C9C5KL.1.3.2-15 |
2-177-39 |
39 |
Modification or other |
2 |
Screw M5×10GB70.1 |
2-177-40 |
40 |
13584769 |
1 |
plate SY215C9C5KL.1.3.2-17 |
2-177-41 |
41 |
13584768 |
1 |
plate SY215C9C5KL.1.1.2-12 |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

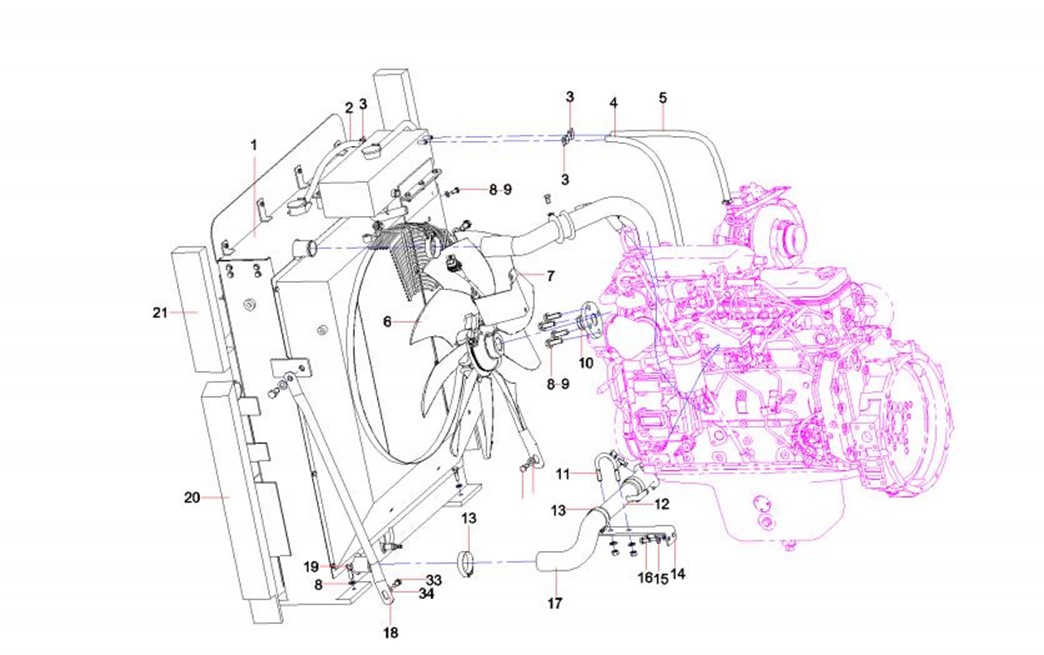

2-179-1 |
1 |
60305474 |
1 |
Radiator Assy |
2-179-2 |
2 |
13349920 |
1 |
Connection Rubber of Radiator |
2-179-3 |
3 |
A229900001347 |
8 |
Hoop, hose |
2-179-4 |
4 |
13349922 |
1 |
Exhaust Tube of Cylinder Shell |
2-179-5 |
5 |
13349923 |
1 |
Exhaust Tube of Turbocharger |
2-179-6 |
6 |
60266517 |
1 |
fan |
2-179-7 |
7 |
13695688 |
1 |
bracket SY215C9C5KL.1.3.3A.1 |
2-179-8 |
8 |
A210204000354 |
4 |
Screw M10×30GB70.1 10.9 |
2-179-9 |
9 |
24000637 |
23 |
Washer |
2-179-10 |
10 |
13445885 |
1 |
Spacer Sleeve |
2-179-11 |
11 |
13351106 |
1 |
U type bolt SY215C9C5KL.1.3.4- |
2-179-12 |
12 |
13351185 |
1 |
Engine coolant inlet tube |
2-179-13 |
13 |
A229900003104 |
6 |
Clamp, T-type |
2-179-14 |
14 |
13351097 |
1 |
Air-intake pipe support of |
2-179-15 |
15 |
24000639 |
5 |
Washer |
2-179-16 |
16 |
Modification or other |
5 |
Bolt M12×25GB5783 |
2-179-17 |
17 |
13351580 |
1 |
Inflow PiPe SY215C9C5KL.1.3.3- |
2-179-18 |
18 |
A820301016727 |
2 |
Brace |
2-179-19 |
19 |
Modification or other |
4 |
Bolt M10×35GB5783 10.9 |
2-179-20 |
20 |
13584760 |
1 |
Side Sponge Of Left |
