SANY SY215C SY215C9 SY215C9C5KL EXCAVATOR parts catalog 18
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-161-1 |
1 |
13344860 |
1 |
Main counterweight body |
2-161-2 |
2 |
12946894 |
1 |
Camera guardSY215CAI4K.1.9A.2 |
2-161-3 |
3 |
Modification or other |
4 |
Washer |
2-161-4 |
4 |
Modification or other |
4 |
Screw M8×16GB70.1 |
2-161-5 |
5 |
A820606030358 |
2 |
Cover |
2-161-6 |
6 |
A820699000611 |
1 |
Foam |
2-161-7 |
7 |
A820699000612 |
1 |
Foam |
2-161-8 |
8 |
A820699000613 |
1 |
Foam |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

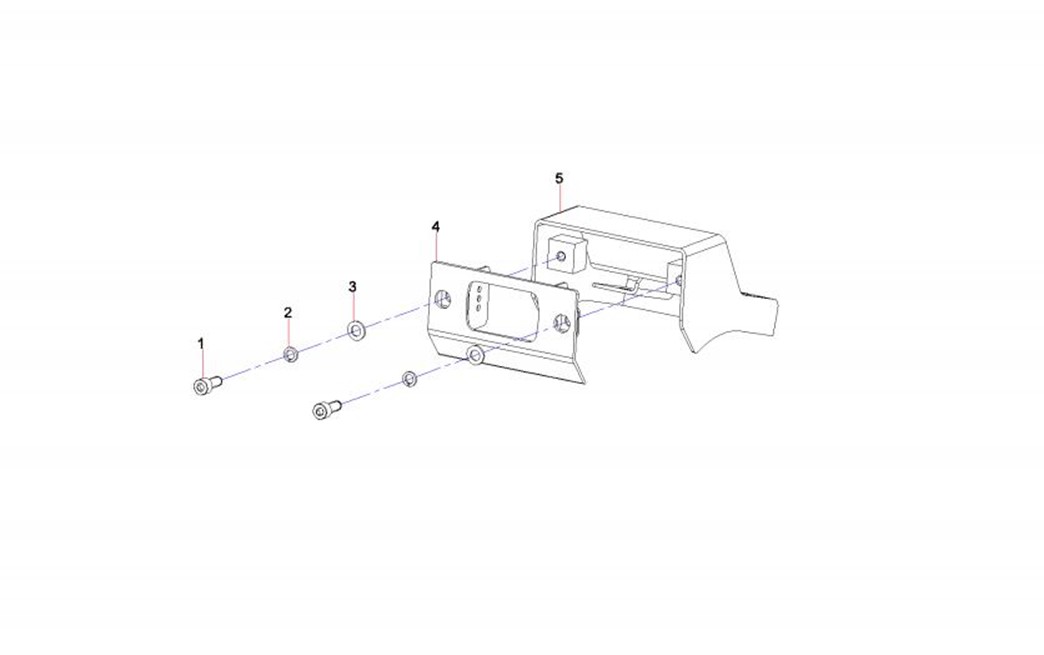

2-163-1 |
1 |
A210204000147 |
2 |
Screw M8×20GB70.1 |
2-163-2 |
2 |
A210401000017 |
2 |
Washer 8GB93 |
2-163-3 |
3 |
A210405000007 |
2 |
Washer 8GB97.1 |
2-163-4 |
4 |
12946885 |
1 |
Front cover plate |
2-163-5 |
5 |
12946823 |
1 |
Upper cover |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

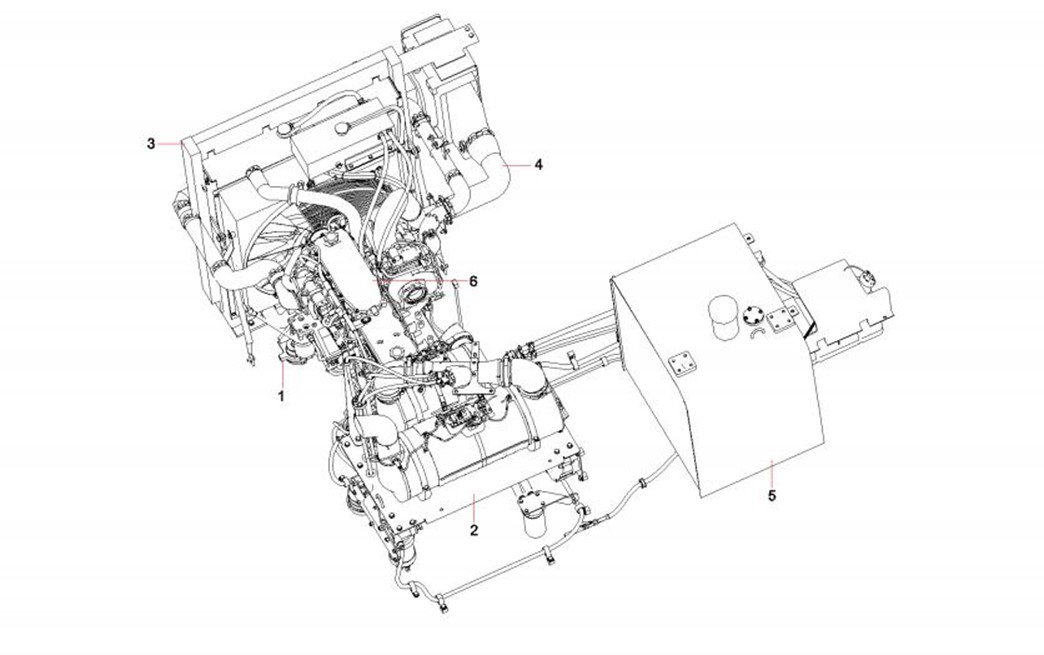

2-165-1 |
1 |
11707433 |
1 |
Engine mount system |
2-165-2 |
2 |
13366326 |
1 |
Exhaust System |
2-165-3 |
3 |
13700551 |
1 |
Cooling System |
2-165-4 |
4 |
13711993 |
1 |
Intake System |
2-165-5 |
5 |
13366364 |
1 |
Fuel System SY215C9C5KL.1.3.5 |
2-165-6 |
6 |
60252862 |
1 |
Engine |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

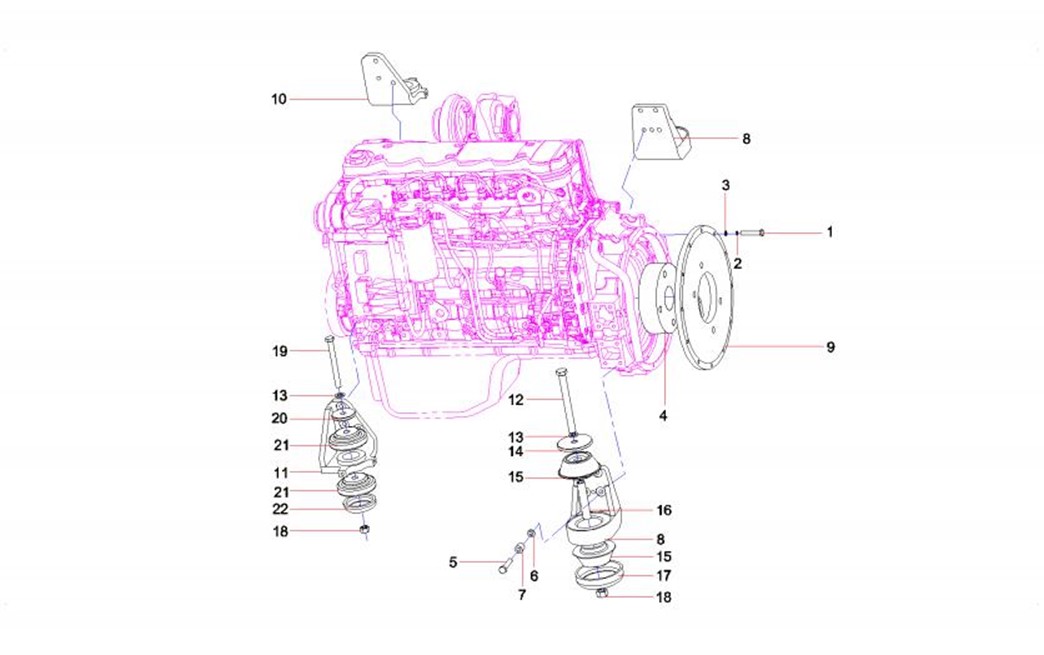

2-167-1 |
1 |
A210204000355 |
12 |
Screw M10×40GB70.1 10.9 |
2-167-2 |
2 |
Modification or other |
20 |
Washer 10GB93 |
2-167-3 |
3 |
Modification or other |
12 |
Washer 10GB97.1 |
2-167-4 |
4 |
60109969 |
1 |
Coupling, shaft |
2-167-5 |
5 |
Modification or other |
14 |
Bolt M12×65GB5782 10.9 |
2-167-6 |
6 |
A210491000121 |
14 |
Washer 12GB1230 |
2-167-7 |
7 |
A820202002103 |
14 |
Sleeve |
2-167-8 |
8 |
13031255 |
2 |
Bracket |
2-167-9 |
9 |
A820101342107 |
1 |
Cover, End |
2-167-10 |
10 |
13030687 |
1 |
Left Bracket |
2-167-11 |
11 |
13031345 |
1 |
Right bracket |
2-167-12 |
12 |
Modification or other |
2 |
Bolt |
2-167-13 |
13 |
A210491000118 |
4 |
Washer 16GB1230 |
2-167-14 |
14 |
A820101118173 |
2 |
Coaster |
2-167-15 |
15 |
60047806 |
4 |
Damper |
2-167-16 |
16 |
A820202002104 |
2 |
Spacer |
2-167-17 |
17 |
A820403000406 |
2 |
Coaster, bowl |
2-167-18 |
18 |
A229900000862 |
3 |
Nut |
2-167-19 |
19 |
Modification or other |
2 |
Bolt M16×140GB5782 10.9 grade |
2-167-20 |
20 |
A820101118175 |
2 |
Coaster |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-169-21 |
21 |
A229900000860 |
4 |
Damper |
2-169-22 |
22 |
A820403000407 |
2 |
Coaster, bowl |
