SANY SY215C SY215C9 SY215C9C5KL EXCAVATOR parts catalog 17
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-151-1 |
1 |
Modification or other |
1 |
fixed clamp SY485C1I3KH.1.6.3C- |
2-151-2 |
2 |
Modification or other |
1 |
rubber sleeve |
2-151-3 |
3 |
13526857 |
1 |
Lower hand rail |
2-151-4 |
4 |
13517157 |
1 |
Fore fixed clamp |
2-151-5 |
5 |
Modification or other |
2 |
Bolt M12×50GB5783 |
2-151-6 |
6 |
Modification or other |
2 |
Washer |
2-151-8 |
8 |
13517178 |
1 |
Rear fixed clamp assembly |
2-151-9 |
9 |
13516330 |
1 |
sleeve SY215CAM3K.1A.6.15.1A- |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

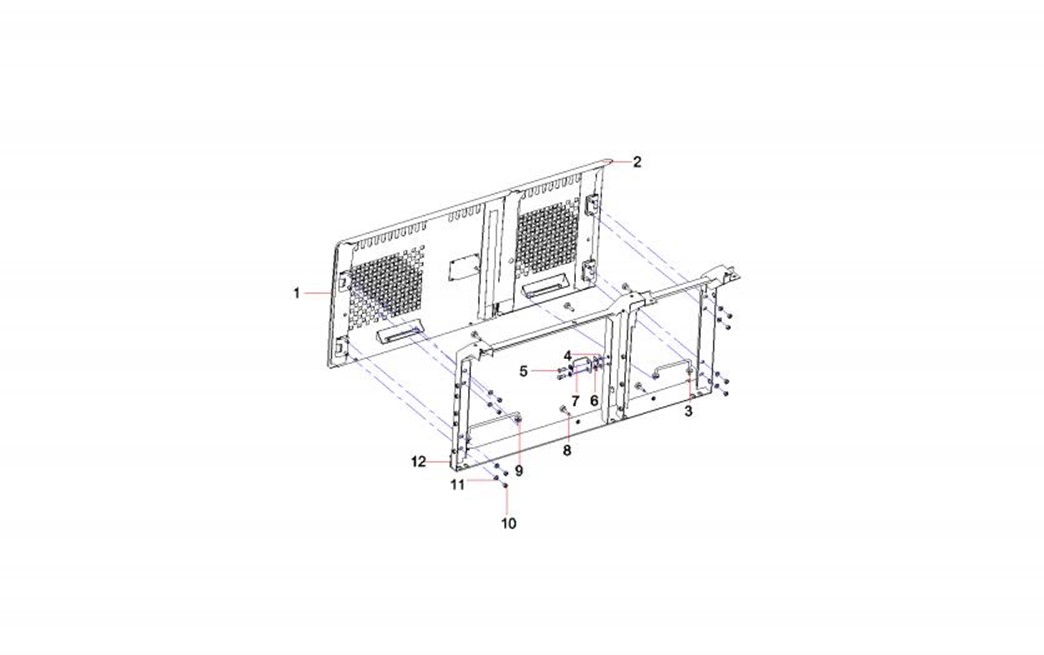

2-153-1 |
1 |
12677408 |
1 |
Door, right |
2-153-2 |
2 |
12759255 |
1 |
small doorSY235C9I4KL.1.4.54.2 |
2-153-3 |
3 |
12898634 |
1 |
Wind hookSY265C9.1.6B.1B.2 |
2-153-4 |
4 |
12669836 |
1 |
Gasket |
2-153-5 |
5 |
12669837 |
1 |
Gasket |
2-153-6 |
6 |
A210111000038 |
2 |
Bolt M12×30GB5783 |
2-153-7 |
7 |
12669838 |
1 |
Plate, locking |
2-153-8 |
8 |
A810502019056 |
5 |
Setscrew |
2-153-9 |
9 |
12196084 |
1 |
Catch |
2-153-10 |
10 |
A210307000001 |
8 |
Nut M12GB6170 |
2-153-11 |
11 |
A210405000001 |
10 |
Washer 12GB97.1 |
2-153-12 |
12 |
13349401 |
1 |
Left door mounting frame |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

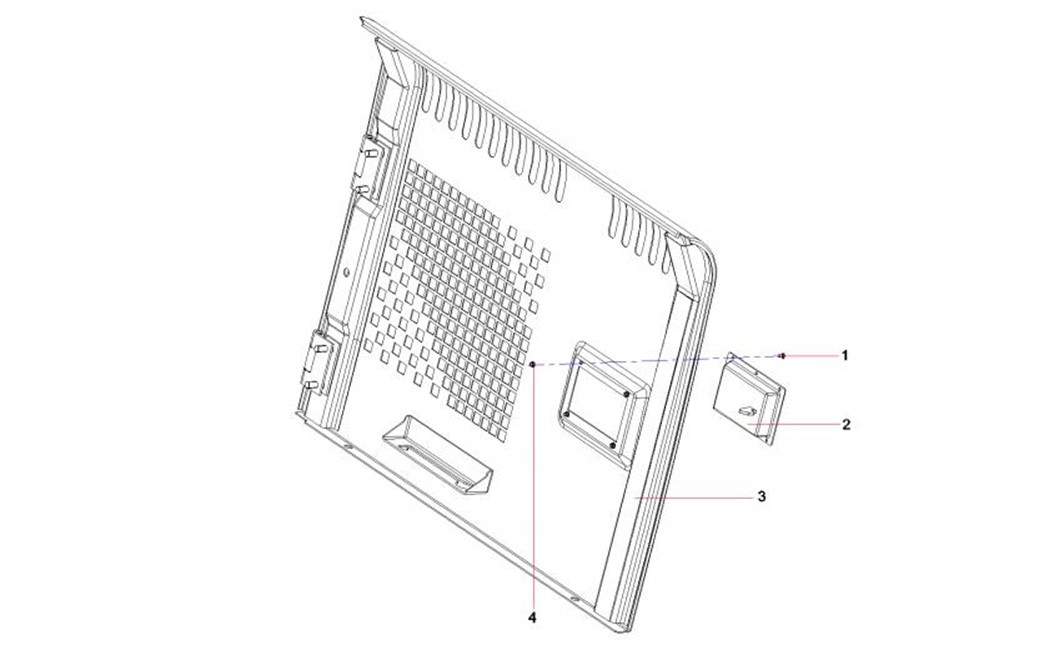

2-155-1 |
1 |
11817247 |
4 |
Anchor, clamp |
2-155-2 |
2 |
A222200000012 |
1 |
Lock, door |
2-155-3 |
3 |
12735024 |
1 |
Gasket, rubber |
2-155-4 |
4 |
11817218 |
4 |
Nut |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

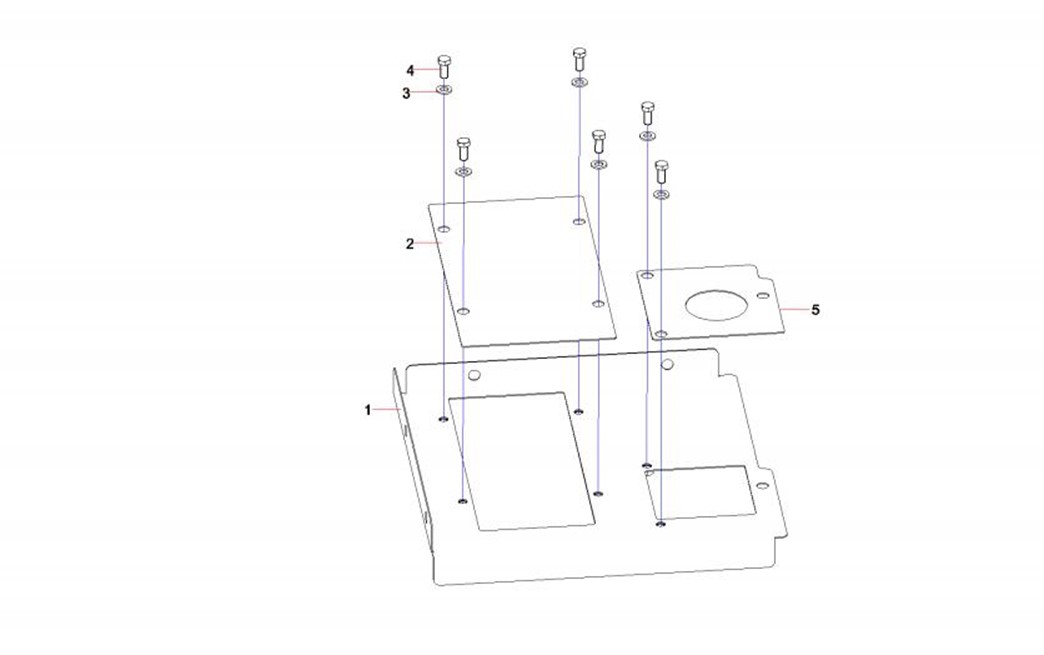

2-157-1 |
1 |
13428291 |
1 |
Cover Ⅱ SY215C9C5KL.1.6.7A-2 |
2-157-2 |
2 |
13430664 |
1 |
Cover Ⅰ SY215C9C5KL.1.6.7A-1 |
2-157-3 |
3 |
A210111000101 |
6 |
Bolt M12×25GB5783 10.9 |
2-157-4 |
4 |
24000639 |
6 |
Washer |
2-157-5 |
5 |
13428294 |
1 |
Cover Plate combination weldment |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

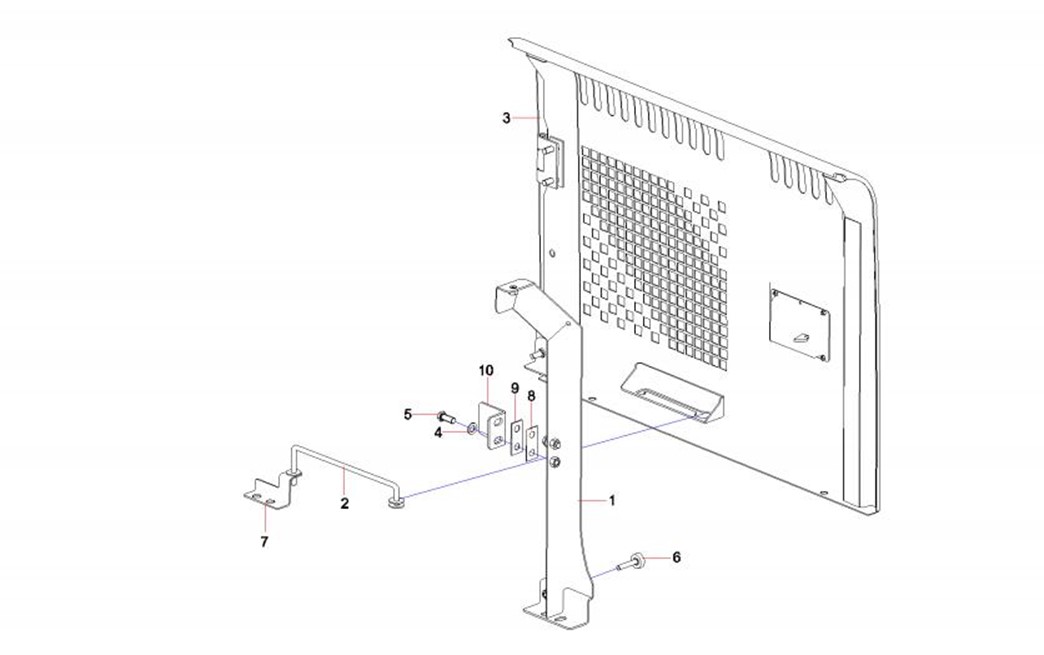

2-159-1 |
1 |
13353665 |
1 |
door bracket |
2-159-2 |
2 |
12196084 |
1 |
Catch |
2-159-3 |
3 |
12677408 |
1 |
Door, right |
2-159-4 |
4 |
A210405000001 |
2 |
Washer 12GB97.1 |
2-159-5 |
5 |
A210111000202 |
2 |
Bolt M12×30GB578310.9 |
2-159-6 |
6 |
A810502019056 |
2 |
Setscrew |
2-159-7 |
7 |
13353661 |
1 |
Fixed seat of cabin hook |
2-159-8 |
8 |
12669836 |
1 |
Gasket |
2-159-9 |
9 |
12669837 |
1 |
Gasket |
2-159-10 |
10 |
12669838 |
1 |
Plate, locking |
