SANY SY215C SY215C9 SY215C9C5KL EXCAVATOR parts catalog 29
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
4-39-1 |
1 |
11594975 |
1 |
Tube, grease |
4-39-2 |
2 |
11594962 |
1 |
Tube, grease |
4-39-3 |
3 |
11102369 |
2 |
Connector |
4-39-4 |
4 |
11102367 |
2 |
Connector |
4-39-5 |
5 |
A210434000005 |
2 |
Washer 10JB982 |
4-39-6 |
6 |
11102368 |
6 |
Connector |
4-39-7 |
7 |
A210434000007 |
3 |
Washer 14JB982 |
4-39-8 |
8 |
B229900000379 |
5 |
Fitting, grease |
4-39-9 |
9 |
24000637 |
5 |
Washer |
4-39-10 |
10 |
A210111000195 |
5 |
Bolt M10×16GB5783 10.9 |
4-39-11 |
11 |
A820101216696 |
2 |
Clamp, 3-pipe |
4-39-12 |
12 |
11595301 |
1 |
Tube, grease |
4-39-13 |
13 |
11595233 |
1 |
Tube, grease |
4-39-14 |
14 |
11594983 |
1 |
Tube, grease |
4-39-15 |
15 |
A820101216692 |
3 |
Clip |
4-39-16 |
16 |
A820205000858 |
3 |
Connector |
4-39-17 |
17 |
B230103000815 |
3 |
Hose, rubber |
Chapter 5
Electrical system SY215C9C5KL(EU).5
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
5-3-1 |
1 |
A240700000302 |
1 |
Contactor, direct-current |
5-3-2 |
2 |
A241300000059 |
1 |
Box, fuse |
5-3-3 |
3 |
A241300000031 |
1 |
Fuse |
5-3-4 |
4 |
60190637 |
2 |
Battery |
5-3-5 |
5 |
13590934 |
1 |
Power Supply Line |
5-3-6 |
6 |
60012792 |
1 |
Wire, power supply |
5-3-7 |
7 |
60013322 |
2 |
Connector GP, anode, battery, A- |
5-3-8 |
8 |
60013321 |
2 |
Connector GP, cathode, battery, A |
5-3-9 |
9 |
60012803 |
2 |
Wire, power supply |
5-3-10 |
10 |
60125384 |
1 |
Switch, power |
5-3-11 |
11 |
A810201058132 |
1 |
Wire, power supply |
5-3-12 |
12 |
A820606030059 |
1 |
Grommet |
5-3-13 |
13 |
60201125 |
1 |
eaner Sensor |
5-3-14 |
14 |
60217141 |
9 |
Pressure Sensor |
5-3-15 |
15 |
Modification or other |
7 |
Clamp, harness |
5-3-16 |
16 |
A210111000199 |
20 |
Bolt M12×20GB5783 10.9 |
5-3-17 |
17 |
13712921 |
1 |
Vehicle Body Harness |
5-3-18 |
18 |
11779657 |
2 |
Sleeve, rubber |
5-3-19 |
19 |
60260625 |
1 |
Electrical Horn |
5-3-20 |
20 |
Modification or other |
1 |
Clamp, harness |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
5-5-21 |
21 |
Modification or other |
12 |
Bolt M8×16GB5783 |
5-5-22 |
22 |
11779657 |
2 |
Sleeve, rubber |
5-5-23 |
23 |
13585341 |
1 |
Power Supply Line |
5-5-24 |
24 |
Modification or other |
1 |
Cable,power supply |
5-5-25 |
25 |
60201126 |
1 |
Sensor, liquid level |
5-5-26 |
26 |
12049464 |
1 |
The fixed bracket for the |
5-5-27 |
27 |
Modification or other |
3 |
Clamp, harness |
5-5-28 |
28 |
Modification or other |
2 |
Bolt M10×20GB5783 |
5-5-29 |
29 |
60276054 |
1 |
Camera |
5-5-30 |
30 |
13357271 |
1 |
U type bolt SY215C9C5K.5-1 |
5-5-31 |
31 |
13358092 |
1 |
harness plate weld |
5-5-32 |
32 |
60222806 |
1 |
alarm |
5-5-33 |
33 |
60217140 |
2 |
Pressure Sensor |
5-5-34 |
34 |
60086356 |
10 |
Clamp, harness |
5-5-35 |
35 |
A230200000170 |
4 |
Clamp |
5-5-36 |
36 |
Modification or other |
1 |
Fuel Adding Harness |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

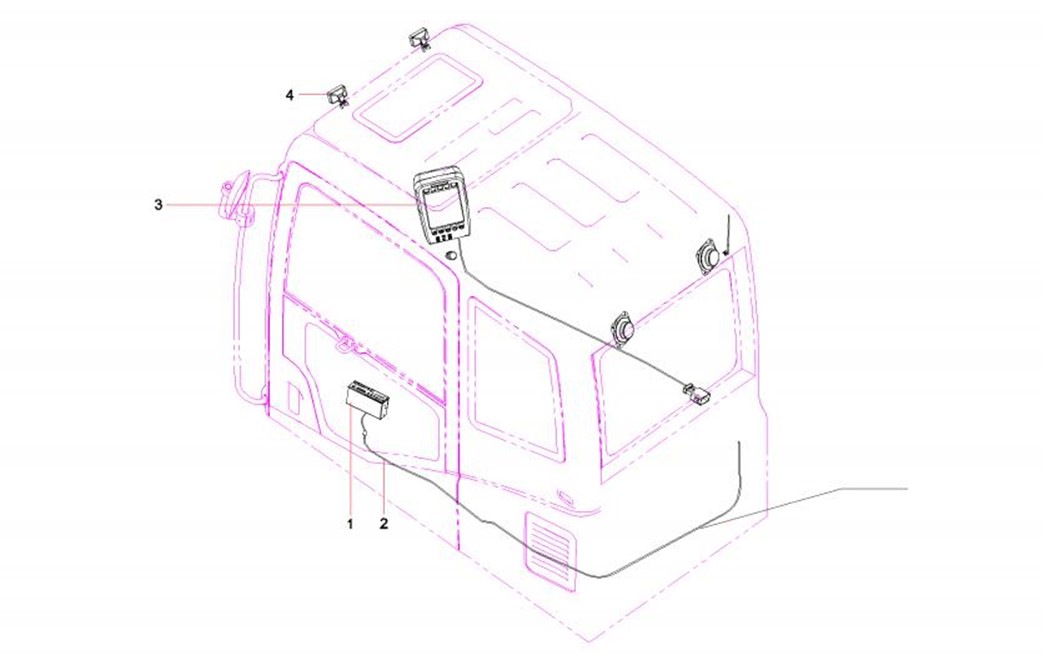

5-7-1 |
1 |
60205002 |
1 |
Radio |
5-7-2 |
2 |
60060300 |
1 |
Extension, antenna |
5-7-3 |
3 |
Modification or other |
1 |
Display SECD-7I0F- |
5-7-4 |
4 |
B241100000391 |
2 |
Lamp, working |
