SANY SY215C SY215C9 SY215C9C5KL EXCAVATOR parts catalog 30
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
5-9-1 |
1 |
60245361 |
11 |
Intermediate Relay |
5-9-2 |
2 |
A210210000030 |
9 |
Screw M4×12GB818 |
5-9-3 |
3 |
60222546 |
1 |
converter |
5-9-4 |
4 |
13712919 |
1 |
Driver’s Cab Harness |
5-9-5 |
5 |
A240700000339 |
1 |
Contactor |
5-9-6 |
6 |
13580135 |
1 |
Sany Encourage Hydraulic Control |
5-9-7 |
7 |
Modification or other |
4 |
Screw M8×16GB70.1 |
5-9-8 |
8 |
60061433 |
1 |
Switch,toggle |
5-9-9 |
9 |
60041443 |
1 |
Cover, protection, switch |
5-9-10 |
10 |
60063150 |
1 |
Switch, rocker |
5-9-11 |
11 |
60063151 |
1 |
Switch, rocker |
5-9-12 |
12 |
60117463 |
1 |
Switch, fuel control |
5-9-13 |
13 |
A241200001217 |
1 |
Switch, ignition |
5-9-14 |
14 |
13712922 |
1 |
Control Switch Harness |
5-9-17 |
17 |
60167365 |
1 |
Audible and visual alarm |
5-9-18 |
18 |
60222807 |
1 |
Charger |
5-9-19 |
19 |
B240700000255 |
1 |
Relay, pressure |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
5-11-1 |
1 |
60083322 |
3 |
Clip, wire |
5-11-2 |
2 |
12252560 |
1 |
Boom lamp harness |
5-11-3 |
3 |
60149356 |
6 |
Clamp, wire, ellipse |
5-11-4 |
4 |
60114255 |
3 |
Lamp, work |

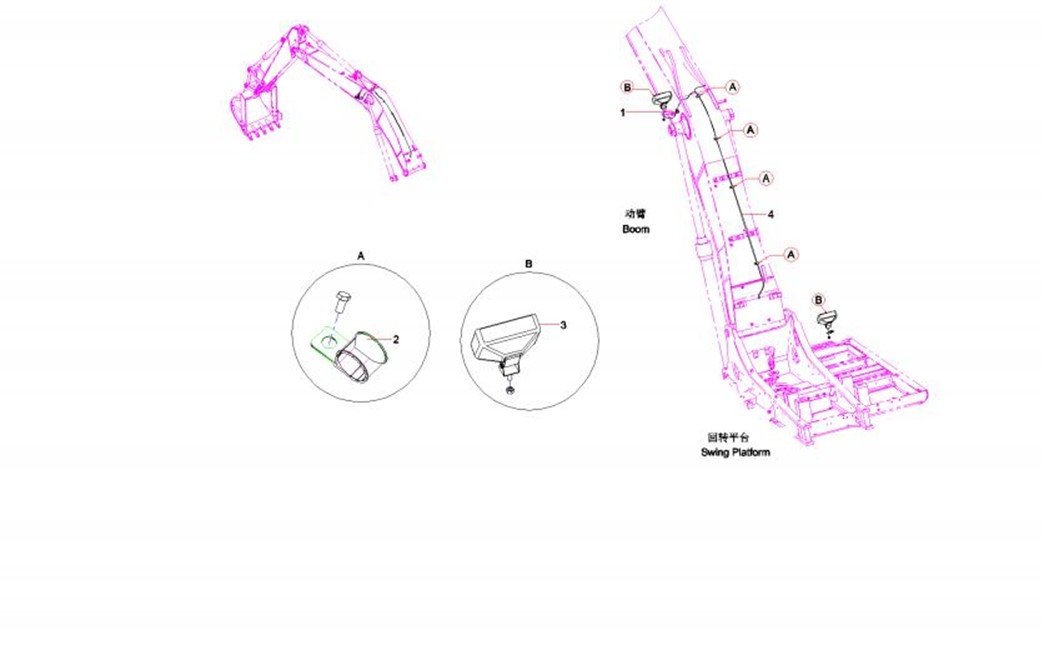

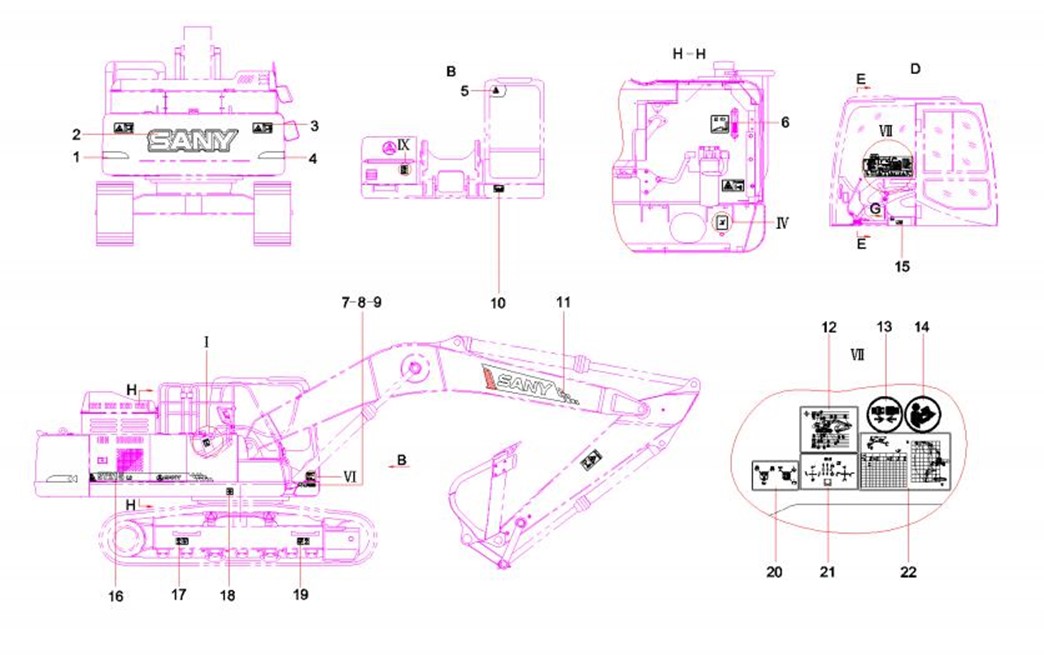

Chapter 6
Coating SY215C9C5KL(EU)-TZ
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
6-3-1 |
1 |
12727593 |
1 |
Film, reflective, counterweight |
6-3-2 |
2 |
12722067 |
1 |
Decal, counterweight |
6-3-3 |
3 |
13333248 |
2 |
Counterweight warning board |
6-3-4 |
4 |
12727594 |
1 |
Film, reflective, counterweight |
6-3-5 |
5 |
Modification or other |
1 |
Overhead Obstacle |
6-3-6 |
6 |
13129585 |
1 |
Oil level label |
6-3-7 |
7 |
13150987 |
1 |
nameplateSY135C8I3K-TZ-4 |
6-3-8 |
8 |
13064651 |
1 |
NameplateSY335C9I4K-TZ-6 |
6-3-9 |
9 |
A210510000007 |
8 |
Rivet |
6-3-10 |
10 |
13156487 |
1 |
Fixed loading spot layout |
6-3-11 |
11 |
12722074 |
1 |
Decal, boom, right |
6-3-12 |
12 |
13666304 |
1 |
Lubrication table SY215CAI4K-TZ |
6-3-13 |
13 |
13166390 |
1 |
Safety belt cautionSY215CAI4K- |
6-3-14 |
14 |
13166372 |
1 |
Read User’s Manual |
6-3-15 |
15 |
13166512 |
1 |
Seat adjustment |
6-3-16 |
16 |
Modification or other |
1 |
Machine Body Right Marking |
6-3-17 |
17 |
A820101990552 |
4 |
Diagram, hoisting point |
6-3-18 |
18 |
12033801 |
2 |
Decal, center of gravity |
6-3-19 |
19 |
A820601990934 |
4 |
Decal,tie-down,shipment |
6-3-20 |
20 |
13336548 |
1 |
Button marking SY215C9C5KL-TZ |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
6-5-21 |
21 |
13334332 |
1 |
Control map SY215C9C5KL-TZ- |
6-5-22 |
22 |
Modification or other |
1 |
Lift capability meter SY215C9C5KL |
