SANY SY215C SY215C9 SY215C9C5KL EXCAVATOR parts catalog 31
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
6-7-23 |
23 |
12057746 |
2 |
Decal, instruction, forward |
6-7-24 |
24 |
13166425 |
1 |
Fuel tank indicatorSY215CAI4K- |
6-7-25 |
25 |
Modification or other |
1 |
Hydraulic oil tank indicator |
6-7-26 |
26 |
Modification or other |
2 |
Hanging pieces |
6-7-27 |
27 |
12722073 |
1 |
Decal, boom, left |
6-7-28 |
28 |
12842974 |
1 |
Label, power socket |
6-7-29 |
29 |
Modification or other |
1 |
Machine Body Left Marking |
6-7-30 |
30 |
A820699000369 |
6 |
Anti-skid, long |
6-7-31 |
31 |
Modification or other |
1 |
Antiskid cautionSY215CAI4K-TZ- |
6-7-32 |
32 |
A820699000370 |
1 |
Anti-skid, short |
6-7-33 |
33 |
Modification or other |
3 |
High temperature |
6-7-34 |
34 |
Modification or other |
1 |
Exhaust cautionSY215CAI4K-TZ- |
6-7-35 |
35 |
Modification or other |
2 |
Anti-drop caution |
6-7-36 |
36 |
13309285 |
1 |
No seat warning board |
6-7-37 |
37 |
12033810 |
1 |
No trample Nameplate |
6-7-38 |
38 |
A820101050797 |
1 |
Label, no smoke or fire |
6-7-39 |
39 |
Modification or other |
1 |
Protective Glasses |
6-7-40 |
40 |
Modification or other |
1 |
Gloves lableSY215CAI4K-TZ-9 |
6-7-41 |
41 |
Modification or other |
1 |
Caution board of belt security |
6-7-42 |
42 |
Modification or other |
1 |
fan cautionSY135C8I3K-TZ-10 |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
6-9-43 |
43 |
13166557 |
1 |
Rotary bearing caution |
6-9-44 |
44 |
Modification or other |
1 |
Oil-water separator drain |
6-9-45 |
45 |
Modification or other |
1 |
Accumulator decalSY215CAI4K- |
6-9-46 |
46 |
13336869 |
1 |
Battery Disconnect Switch |
6-9-47 |
47 |
13334289 |
1 |
Flow Indication Decal of Three- |
6-9-48 |
48 |
13336538 |
1 |
Jerk switch indicator SY335C9C5K |
6-9-49 |
49 |
Modification or other |
1 |
Label, noise |
6-9-50 |
50 |
A820601990929 |
1 |
Label, drain, fuel tank |
6-9-51 |
51 |
13585416 |
1 |
Refill DEF decal |
6-9-52 |
52 |
Modification or other |
1 |
Battery cautionSY215CAI4K-TZ- |
6-9-53 |
53 |
A820601990972 |
1 |
Label, power supply |
6-9-54 |
54 |
13166419 |
1 |
Safety exit lableSY215CAI4K-TZ- |
6-9-55 |
55 |
12033806 |
1 |
Label, preventing fire disaster |
6-9-56 |
56 |
11316630 |
1 |
Label, UNLOCK |
Chapter 7

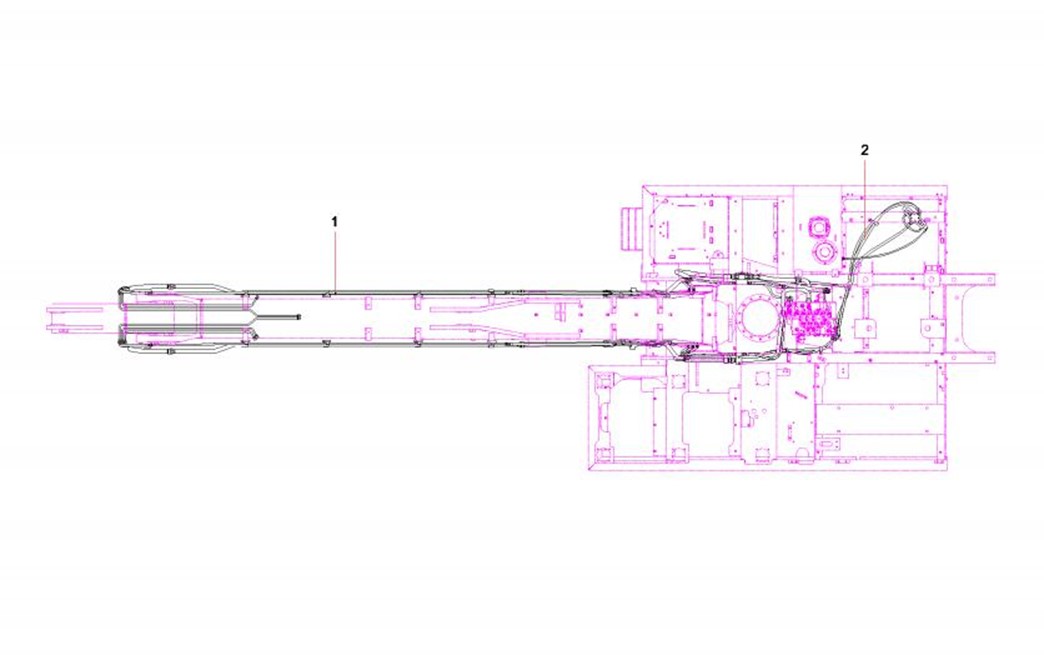

Twp-way flow work pipeline SY215C9C5
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
7-3-1 |
1 |
13020568 |
1 |
Quartering hammer and Crusher |
7-3-2 |
2 |
13711994 |
1 |
platform pipe laying |

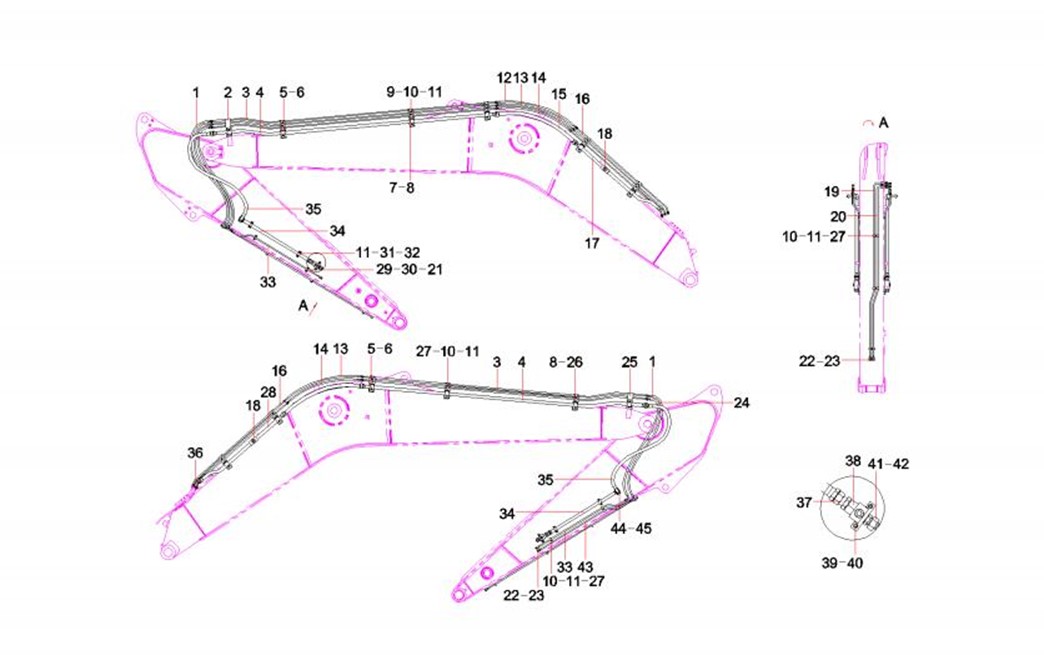

IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
7-5-1 |
1 |
60222649 |
4 |
Rubber Hose |
7-5-2 |
2 |
12942020 |
1 |
Pipe ClampSY335C9I4K.9B.2A.11 |
7-5-3 |
3 |
12978302 |
5 |
Steel Pipe |
7-5-4 |
4 |
12978300 |
2 |
Front Pipe |
7-5-5 |
5 |
11881917 |
12 |
Clamp, pipe |
7-5-6 |
6 |
Modification or other |
12 |
Screw |
7-5-7 |
7 |
12679037 |
5 |
Pipe ClampSY220A.10H.5 |
7-5-8 |
8 |
A210204000466 |
24 |
Screw M14×35GB70.1 10.9 |
7-5-9 |
9 |
10806840 |
6 |
Clamp,pipe,upper |
7-5-10 |
10 |
Modification or other |
24 |
Screw M10×30GB70.1 10.9 |
7-5-11 |
11 |
24000512 |
28 |
Washer |
7-5-12 |
12 |
B230103000308 |
1 |
Hose, rubber |
7-5-13 |
13 |
B230103005296 |
2 |
Hose, rubber |
7-5-14 |
14 |
B230103000332 |
2 |
Hose, rubber |
7-5-15 |
15 |
21029473 |
2 |
Hose |
7-5-16 |
16 |
12942026 |
5 |
steel pipe |
7-5-17 |
17 |
12941917 |
1 |
Steel Pipe |
7-5-18 |
18 |
A229900002384 |
2 |
Plug |
7-5-19 |
19 |
12976156 |
1 |
Steel Pipe |
7-5-20 |
20 |
12976049 |
1 |
Steel Pipe |
