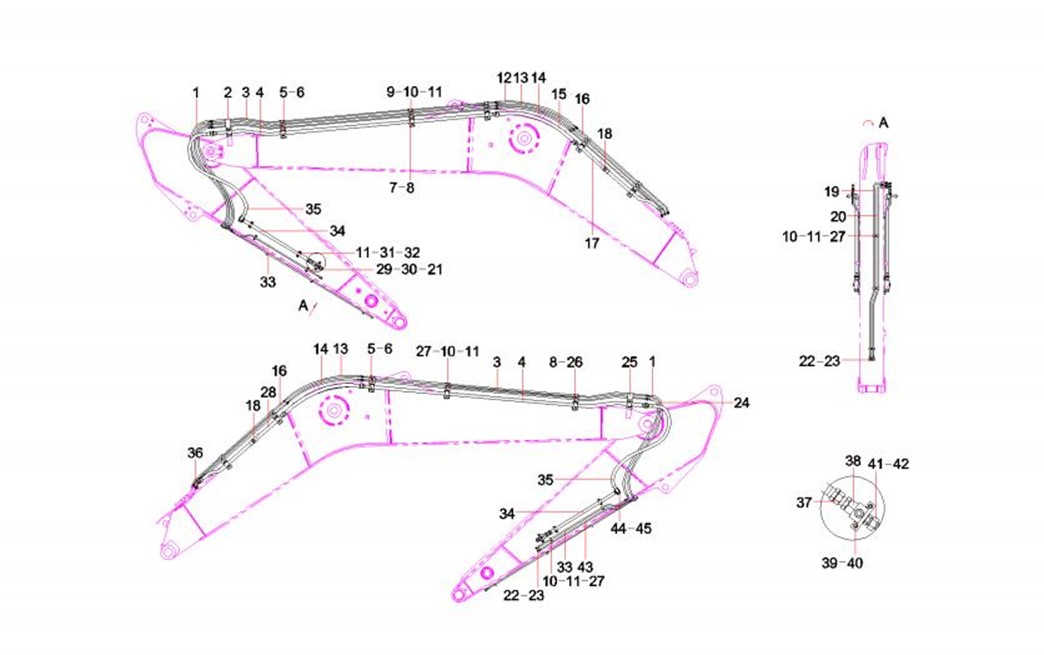

SANY SY215C SY215C9 SY215C9C5KL EXCAVATOR parts catalog 32
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
7-7-21 |
21 |
A210204000341 |
4 |
Screw M8×25GB70.1 10.9 |
7-7-22 |
22 |
B230101000049 |
5 |
O-ring 13.8×2.4JISB2401 |
7-7-23 |
23 |
A820205000947 |
5 |
Plug |
7-7-24 |
24 |
60222648 |
1 |
Hose, rubber |
7-7-25 |
25 |
12942022 |
1 |
Pipe ClampSY335C9I4K.9B.2A.12 |
7-7-26 |
26 |
12942023 |
5 |
Pipe ClampSY335C9I4K.9B.2A.13 |
7-7-27 |
27 |
12942739 |
12 |
Tube clamp |
7-7-28 |
28 |
12942024 |
1 |
Steel Pipe |
7-7-29 |
29 |
10457139 |
2 |
Upper single tube clamp- |
7-7-30 |
30 |
24000511 |
4 |
Washer |
7-7-31 |
31 |
A820101219653 |
4 |
Clamp |
7-7-32 |
32 |
A210204000356 |
8 |
Screw M10×50GB70.1 10.9 |
7-7-33 |
33 |
12978304 |
2 |
Steel tube assembly of bucket rod |
7-7-34 |
34 |
13103325 |
2 |
Steel Pipe |
7-7-35 |
35 |
60224951 |
2 |
Rubber Hose |
7-7-36 |
36 |
B210780000827 |
1 |
Connector, pipe |
7-7-37 |
37 |
B210780001703 |
2 |
Connector, pipe |
7-7-38 |
38 |
Modification or other |
2 |
High pressure ball valve |
7-7-39 |
39 |
Modification or other |
2 |
pressure plateSY335C9I4K.9A.2- |
7-7-40 |
40 |
A210204000362 |
4 |
Screw M12×70GB70.1 10.9 |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
7-9-41 |
41 |
A229900002390 |
2 |
Plug, pipe |
7-9-42 |
42 |
24001376 |
2 |
Connector, pipe |
7-9-43 |
43 |
12978306 |
1 |
Steel Pipe |
7-9-44 |
44 |
B210780000244 |
4 |
Flange, split |
7-9-45 |
45 |
A210204000355 |
8 |
Screw M10×40GB70.1 10.9 |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

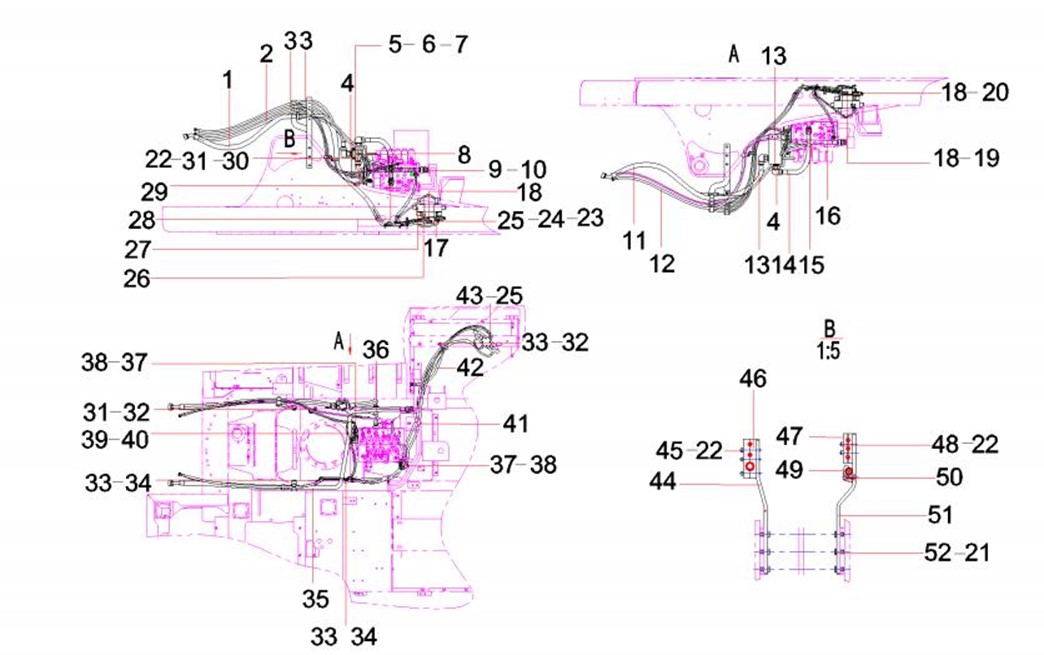

7-11-1 |
1 |
B230103006222 |
1 |
Hose |
7-11-2 |
2 |
21023381 |
1 |
Hose, rubber |
7-11-3 |
3 |
B230103003711 |
2 |
Hose |
7-11-4 |
4 |
24001376 |
2 |
Connector, pipe |
7-11-5 |
5 |
13586748 |
1 |
Ball vale frame SY230C8E.9.2.2A |
7-11-6 |
6 |
24000513 |
2 |
Washer |
7-11-7 |
7 |
A210204000337 |
2 |
Screw M12×30GB70.110.9 |
7-11-8 |
8 |
60233860 |
1 |
3-way ball valve |
7-11-9 |
9 |
A820205002468 |
1 |
Connector |
7-11-10 |
10 |
B230101000050 |
1 |
O-ring 28.7×3.5JISB2401 |
7-11-11 |
11 |
60119710 |
1 |
Hose,rubber |
7-11-12 |
12 |
B230103004116 |
1 |
Hose, rubber |
7-11-13 |
13 |
B210780001241 |
2 |
Connector, pipe |
7-11-14 |
14 |
B230103002632 |
1 |
Hose, rubber |
7-11-15 |
15 |
A210204000215 |
12 |
Screw M10×35GB70.1 10.9 |
7-11-16 |
16 |
B230103001587 |
1 |
Hose, rubber |
7-11-17 |
17 |
B230103000619 |
1 |
Hose, rubber |
7-11-18 |
18 |
B210780000180 |
5 |
Connector, pipe |
7-11-19 |
19 |
B210780000024 |
1 |
Connector, pipe |
7-11-20 |
20 |
B210780000016 |
1 |
Connector, pipe |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
7-13-21 |
21 |
A210491000118 |
6 |
Washer 16GB1230 |
7-13-22 |
22 |
24000512 |
13 |
Washer |
7-13-23 |
23 |
10184460 |
1 |
Block – Connecting (Solenoid |
7-13-24 |
24 |
Modification or other |
4 |
Screw M6×12GB70.1 |
7-13-25 |
25 |
24000632 |
8 |
Washer |
7-13-26 |
26 |
60007946 |
1 |
Valve – Relief |
7-13-27 |
27 |
60010160 |
1 |
Valve – Solenoid (Directional) |
7-13-28 |
28 |
B230101000456 |
2 |
O-ring |
7-13-29 |
29 |
B210780001005 |
1 |
Connector, pipe |
7-13-30 |
30 |
10184264 |
1 |
Clamp, pipe, upper |
7-13-31 |
31 |
A210204000335 |
2 |
Screw M10×55GB70.1 10.9 |
7-13-32 |
32 |
Modification or other |
3 |
Clamp, harness |
7-13-33 |
33 |
A210111000199 |
5 |
Bolt M12×20GB5783 10.9 |
7-13-34 |
34 |
Modification or other |
2 |
Clamp, harness |
7-13-35 |
35 |
13711645 |
1 |
Pipe SY215C9C5KLEU.9.1.1 |
7-13-36 |
36 |
11455270 |
1 |
Pipe GP, steel |
7-13-37 |
37 |
11454532 |
3 |
Connector |
7-13-38 |
38 |
B230101000356 |
3 |
O-ring 23.7×3.5JISB2401 |
7-13-39 |
39 |
60104996 |
1 |
Valve GP |
7-13-40 |
40 |
A210204000464 |
4 |
Screw M12×90GB70.1 10.9 |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
7-15-41 |
41 |
B230103004618 |
1 |
Hose, rubber |
7-15-42 |
42 |
B230103004806 |
1 |
Hose, rubber |
7-15-43 |
43 |
A210204000182 |
4 |
Screw M6×90GB70.1 |
7-15-44 |
44 |
13061939 |
1 |
Right Supporting |
7-15-45 |
45 |
A210204000358 |
3 |
Screw M10×80GB70.1 10.9 |
7-15-46 |
46 |
12940099 |
2 |
Clamp, pipeSY335C9I4K.9B.1-3 |
7-15-47 |
47 |
12940098 |
2 |
Clamp, pipeSY335C9I4K.9B.1-2 |
7-15-48 |
48 |
A210204000335 |
2 |
Screw M10×55GB70.1 10.9 |
7-15-49 |
49 |
11881917 |
1 |
Clamp, pipe |
7-15-50 |
50 |
A210204000462 |
1 |
Screw M12×45GB70.1 10.9 |
7-15-51 |
51 |
13061941 |
1 |
Left Supporting |
7-15-52 |
52 |
Modification or other |
6 |
Bolt M16×30GB5783 10.9 |
