SANY SY215C SY215C9 SY215C9C5KL EXCAVATOR parts catalog 34
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

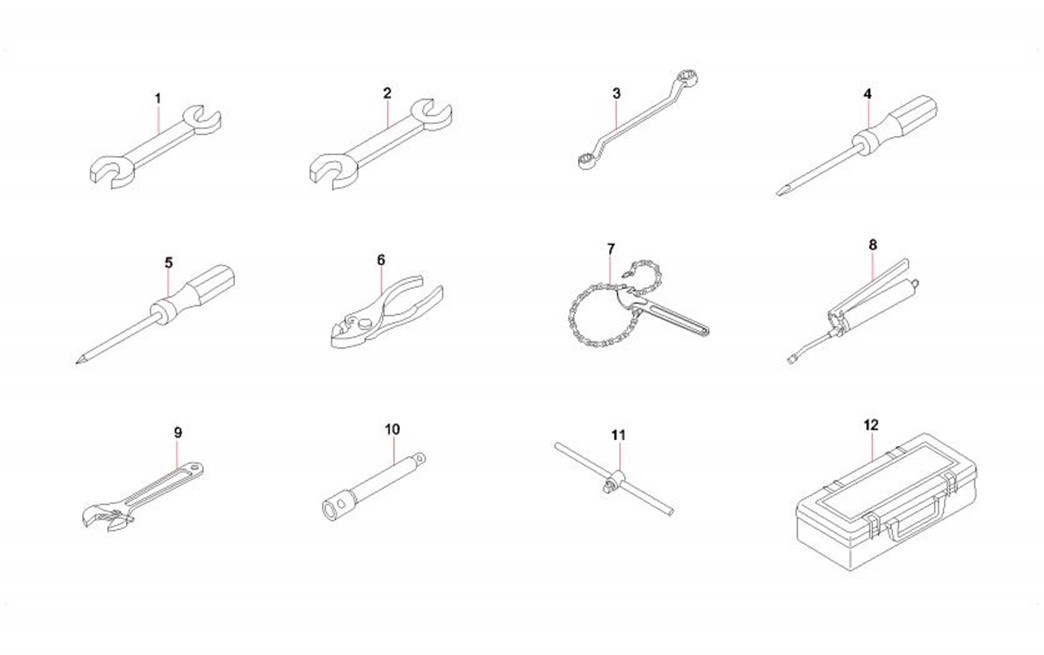

8-11-1 |
1 |
A260401020014 |
1 |
Wrench, Allen 2.5RGB5356 |
8-11-2 |
2 |
A260401020015 |
1 |
Wrench, Allen 3RGB5356 |
8-11-3 |
3 |
A260401020008 |
1 |
Wrench, Allen 4RGB5356 |
8-11-4 |
4 |
A260401020009 |
1 |
Wrench, Allen 5RGB5356 |
8-11-5 |
5 |
A260401020010 |
1 |
Wrench, Allen 6RGB5356 |
8-11-6 |
6 |
A260401020011 |
1 |
Wrench, Allen 8RGB5356 |
8-11-7 |
7 |
A260401020004 |
1 |
Wrench, Allen 10RGB5356 |
8-11-8 |
8 |
B260401020048 |
1 |
Wrench, Allen 14RGB5356 |
8-11-9 |
9 |
B260401020049 |
1 |
Wrench, Allen 17RGB5356 |
8-11-10 |
10 |
A260401030002 |
1 |
Wrench, open-end 8×10GB4388 |
8-11-11 |
11 |
A260401030001 |
1 |
Wrench, open-end 12×14GB4388 |
8-11-12 |
12 |
A260401030027 |
1 |
Wrench, open-end 13×16GB4388 |
8-11-13 |
13 |
A260401030005 |
1 |
Wrench, open-end 17×19GB4388 |
8-11-14 |
14 |
A260401030029 |
1 |
Wrench, open-end 18×21GB4388 |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
8-13-1 |
1 |
A260401030007 |
1 |
Wrench, open-end 22×24GB4388 |
8-13-2 |
2 |
A260401030008 |
1 |
Double-ended spanner |
8-13-3 |
3 |
A260401030100 |
1 |
Wrench, box-end 16×18GB4388 |
8-13-4 |
4 |
A260402010022 |
1 |
Screwdriver, flat-blade |
8-13-5 |
5 |
A260402020026 |
1 |
Screwdriver, Phillips head |
8-13-6 |
6 |
A260404000002 |
1 |
Cutter, wire |
8-13-7 |
7 |
60001296 |
1 |
Wrench, chain |
8-13-8 |
8 |
B260409000015 |
1 |
Gun, grease, high pressure |
8-13-9 |
9 |
A260401040004 |
1 |
Spanner, adjustable |
8-13-10 |
10 |
A260401010021 |
1 |
Rod, extension |
8-13-11 |
11 |
60001294 |
1 |
T-tool |
8-13-12 |
12 |
A290000000155 |
1 |
Toolbox, portable |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

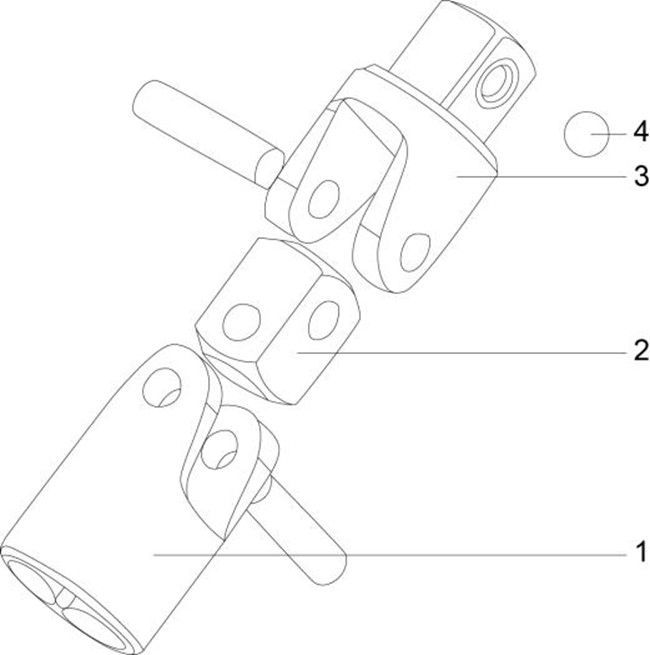

8-15-1 |
1 |
60153627 |
1 |
Metalwork |
8-15-2 |
2 |
60153628 |
1 |
Metalwork |
8-15-3 |
3 |
60153629 |
1 |
Metalwork |
8-15-4 |
4 |
60153630 |
1 |
Metal ball |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

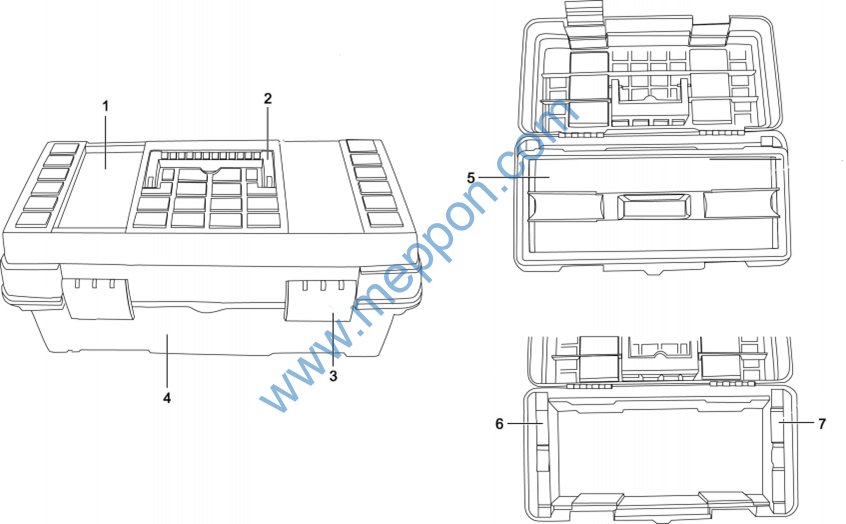

8-17-1 |
1 |
60153777 |
1 |
Cover, upper |
8-17-2 |
2 |
60153697 |
1 |
Handle |
8-17-3 |
3 |
60153693 |
2 |
Lock catch |
8-17-4 |
4 |
60153713 |
1 |
Base |
8-17-5 |
5 |
60153827 |
1 |
Pallet |
8-17-6 |
6 |
60153665 |
1 |
Support, left |
8-17-7 |
7 |
60153654 |
1 |
Support, right |
Chapter 9
Other Fittings
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
9-2-1 |
1 |
13581026 |
1 |
Display SECD-7I0F- |
9-2-2 |
2 |
12321857 |
1 |
relay mounting |
9-2-3 |
3 |
13432699 |
1 |
Rear beam |
9-2-4 |
4 |
A820699000192 |
1 |
Plate, sealing |
9-2-5 |
5 |
13349899 |
1 |
air filter up clapboard sponge |
9-2-6 |
6 |
13432731 |
1 |
air filter up clapboard combination |
9-2-7 |
7 |
13433172 |
1 |
front right clapboard |
9-2-8 |
8 |
13353684 |
2 |
Thermal insulation sponge |
9-2-9 |
9 |
13353655 |
1 |
Main pump lower partition plate |
9-2-10 |
10 |
13353678 |
1 |
Sponge SY215C9C5KL.1.6.22-1 |
9-2-11 |
11 |
13372458 |
2 |
sponge SY215C9C5KL.1.6-10 |
9-2-12 |
12 |
13432743 |
1 |
left spacing plate combination |
9-2-13 |
13 |
13353688 |
1 |
Rotated angle plate |
9-2-14 |
14 |
13353689 |
1 |
sponge SY215C9C5KL.1.6.6.26-2 |
9-2-15 |
15 |
13353680 |
1 |
clapboard sponge |
9-2-16 |
16 |
13353683 |
1 |
clapboard combination weldment |
9-2-17 |
17 |
13353666 |
1 |
Central sponge |
9-2-18 |
18 |
13353667 |
1 |
Upper sponge |
9-2-19 |
19 |
13353670 |
1 |
Right partition plate |
9-2-20 |
20 |
13354570 |
1 |
air filter down clapboard sponge |
