IC

INDEX

PART NUMBER

QTY

PART NAME

2-157-1

1

B241200000834

1

Switch (Starting Motor)

2-157-2

2

B229900004319

2

Sleeve, Wire

2-157-3

3

B229900004321

4

Sleeve, Wire

2-157-4

4

B229900004323

3

Sleeve, Wire

2-157-5

5

B229900004454

1

Key

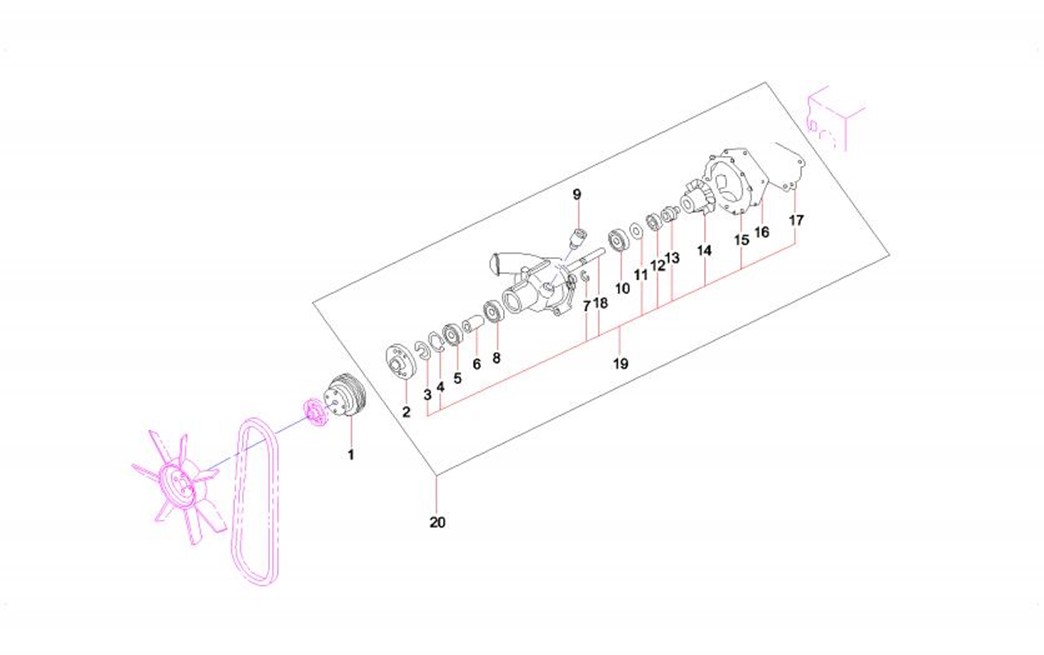

IC

INDEX

PART NUMBER

QTY

PART NAME

2-159-1

1

60113947

1

Pulley, water pump

2-159-2

2

B229900004481

1

Seat

2-159-3

3

B229900004328

1

Ring

2-159-4

4

B229900004355

1

Ring, snap

2-159-5

5

B221500000493

1

Bearing

2-159-6

6

B229900004702

1

Spacer

2-159-7

7

B229900004356

1

Ring, snap

2-159-8

8

B221500000492

1

Bearing

2-159-9

9

B229900004744

1

Connector

2-159-10

10

60113812

1

Bearing, water pump

2-159-11

11

60113946

1

Washer

2-159-12

12

B230101001794

1

Seal, oil

2-159-13

13

B229900004383

1

Seal

2-159-14

14

B229900004444

1

Impeller

2-159-15

15

B229900004566

1

Shim

2-159-16

16

B229900004260

1

Cover

2-159-17

17

B230101001231

1

Shim

2-159-18

18

B229900004469

1

Shaft

2-159-19

19

60113797

1

Maintenance kit, water pump

2-159-20

20

B220302000010

1

Pump, water

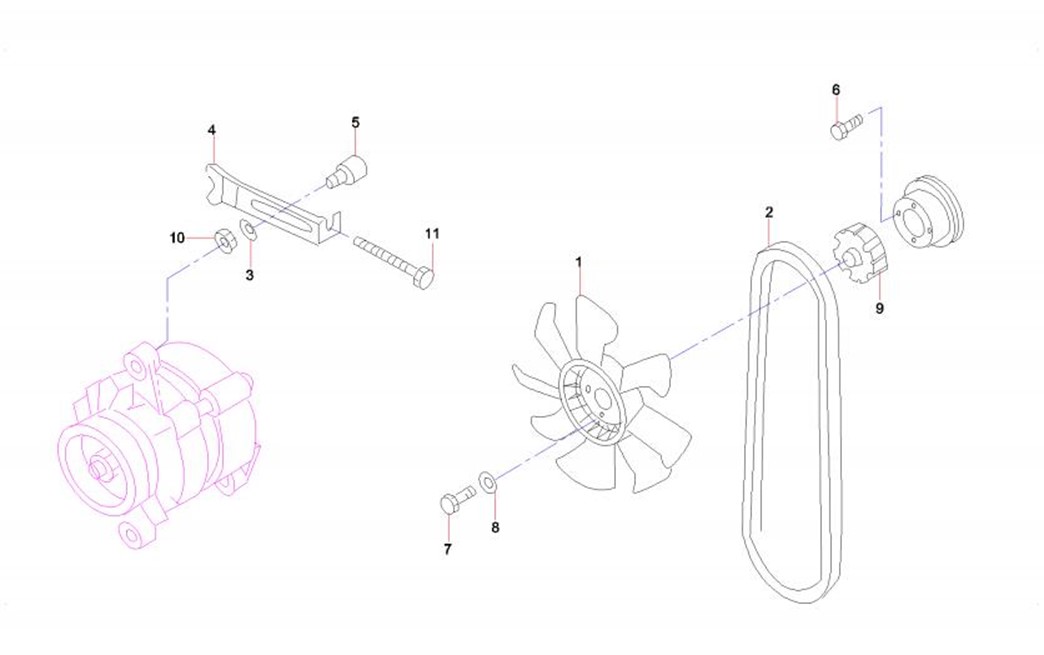

IC

INDEX

PART NUMBER

QTY

PART NAME

2-161-1

1

B229900003127

1

Fan

2-161-2

2

B230106000099

1

Belt, fan

2-161-3

3

B229900004625

1

Washer

2-161-4

4

60007886

1

Plate

2-161-5

5

B229900004786

1

Bolt

2-161-6

6

60007916

4

Bolt

2-161-7

7

60113887

4

Bolt

2-161-8

8

60113866

4

Washer

2-161-9

9

60113853

1

Spacer

2-161-10

10

60113873

1

Nut

2-161-11

11

60113888

1

Bolt

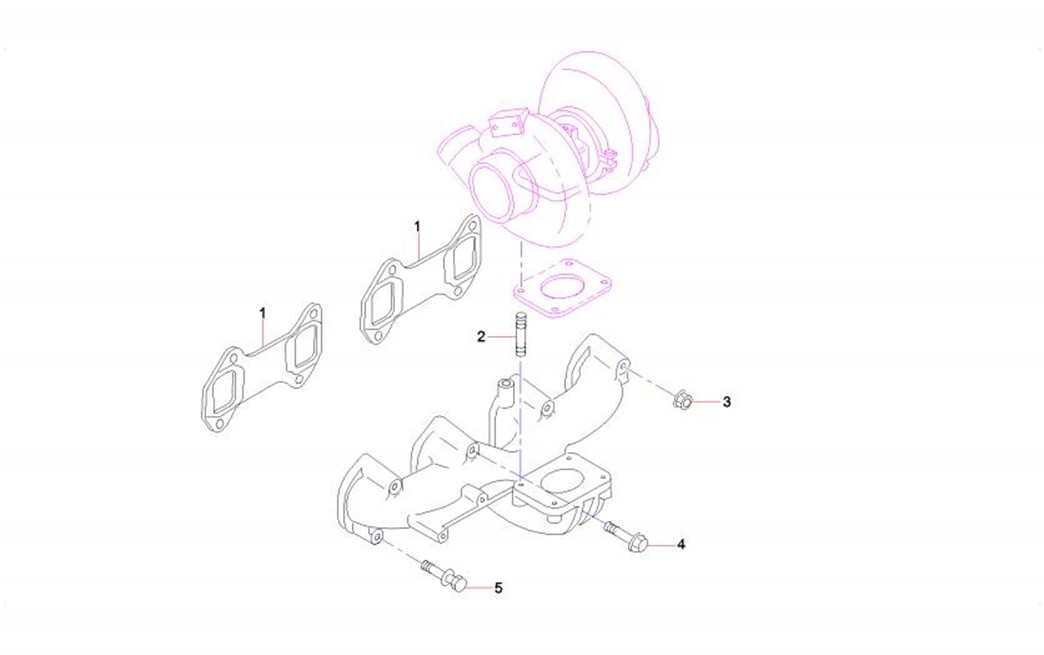

IC

INDEX

PART NUMBER

QTY

PART NAME

2-163-1

1

B230101001227

2

Shim

2-163-2

2

B229900003129

4

Stud

2-163-3

3

60093237

4

Nut

2-163-4

4

60113893

2

Bolt

2-163-5

5

60113894

2

Bolt

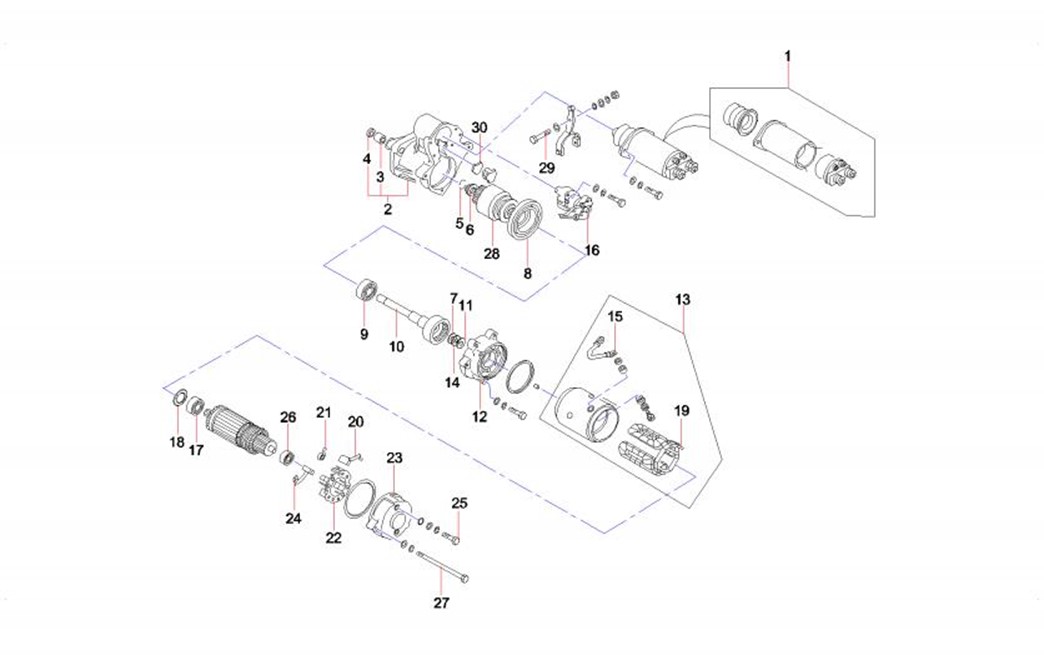

IC

INDEX

PART NUMBER

QTY

PART NAME

2-165-1

1

60009168

1

Switch, starting

2-165-2

2

60113929

1

Housing, pinion

2-165-3

3

60113932

1

Spacer, pinion housing

2-165-4

4

60113931

1

Cover, pinion housing

2-165-5

5

60113819

2

Lock, retainer, pinion

2-165-6

6

60113818

1

Baffle, pinion

2-165-7

7

60113923

1

Washer, shaft, gear

2-165-8

8

60113934

1

Bracket, middle, motor, starting

2-165-9

9

60113808

1

Bearing, shaft, gear

2-165-10

10

60113924

1

Shaft, gear

2-165-11

11

60113921

1

Washer, shaft, gear

2-165-12

12

60113933

1

Bracket, rear, motor, starting

2-165-13

13

60113803

1

Yoke, motor, starting

2-165-14

14

60113922

1

Washer, shaft, gear

2-165-15

15

60113805

1

Wire, lead, motor, starting

2-165-16

16

60113963

1

Relay, motor, starting

2-165-17

17

60113811

1

Bearing, armature

2-165-18

18

60113829

1

Washer, armature

2-165-19

19

60113978

1

Field coil, motor, starting

2-165-20

20

60009172

2

Brush, carbon

IC

INDEX

PART NUMBER

QTY

PART NAME

2-167-21

21

60113927

4

Spring, brush seat

2-167-22

22

60113925

1

Seat, brush

2-167-23

23

60113928

1

Cover, rear, motor, starting

2-167-24

24

60009169

2

Brush, carbon, negative

2-167-25

25

60113868

2

Bolt

2-167-26

26

60113810

1

Bearing, armature

2-167-27

27

60113897

2

Bolt

2-167-28

28

60113817

1

Pinion, clutch, motor, starting

2-167-29

29

60113920

1

Pin, shift lever

2-167-30

30

60113930

1

Gasket
