SANY SY135C SY135C9 SY135C9I2K BR EXCAVATOR parts catalog 16
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-169-1 |
1 |
60113890 |
1 |
Bolt |
2-169-2 |
2 |
60113802 |
1 |
Cover GP, front, alternator |
2-169-3 |
3 |
60113877 |
1 |
Nut |
2-169-4 |
4 |
60113842 |
1 |
Pulley, alternator |
2-169-5 |
5 |
60113869 |
4 |
Bolt |
2-169-6 |
6 |
60113807 |
1 |
Bearing, rotor, alternator |
2-169-7 |
7 |
60113982 |
1 |
Rotor, alternator |
2-169-8 |
8 |
60113806 |
1 |
Bearing, rotor, alternator |
2-169-9 |
9 |
60113972 |
1 |
Coil, rotor, alternator |
2-169-10 |
10 |
60113981 |
1 |
Stator, alternator |
2-169-11 |
11 |
60113841 |
1 |
Cover GP, rear, alternator |
2-169-12 |
12 |
B249900001150 |
1 |
Regulator, voltage |
2-169-13 |
13 |
B240500000014 |
1 |
Rectifier |
2-169-14 |
14 |
60113871 |
1 |
Bolt |
2-169-15 |
15 |
60113872 |
1 |
Bolt |
2-169-16 |
16 |
60113870 |
1 |
Bolt |
2-169-17 |
17 |
60113968 |
1 |
Amperite terminal GP, alternator |
2-169-18 |
18 |
60113875 |
1 |
Nut |
2-169-19 |
19 |
60113971 |
1 |
Clip, wire, alternator |
2-169-20 |
20 |
60113967 |
1 |
Brush terminal, alternator |

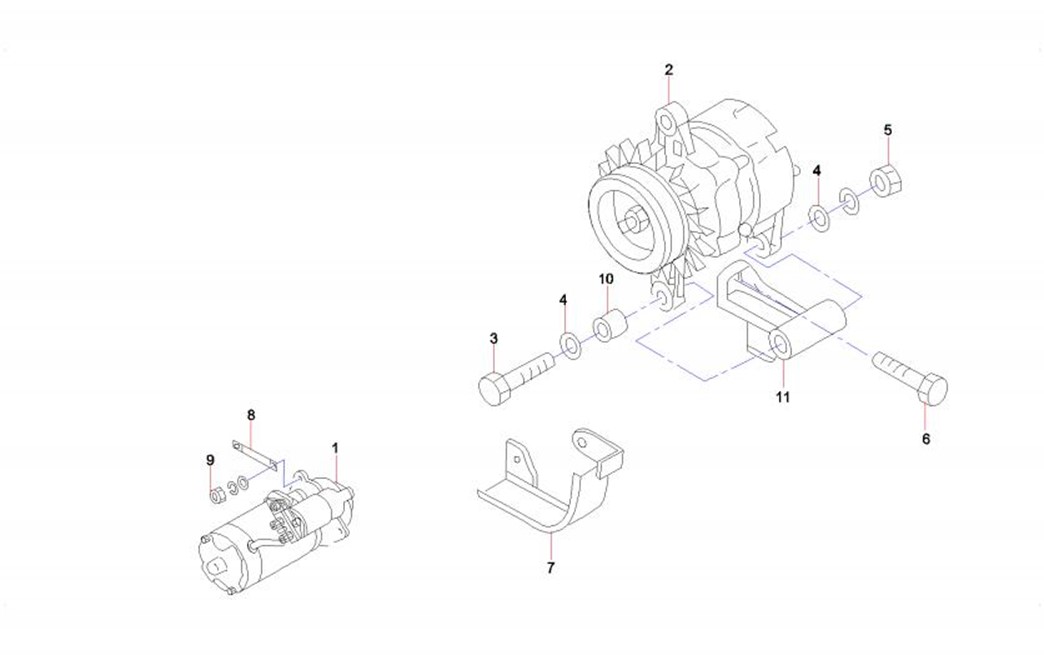

IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-171-1 |
1 |
B221000000086 |
1 |
Motor, starting |
2-171-2 |
2 |
B221000000085 |
1 |
Alternator |
2-171-3 |
3 |
B229900004921 |
1 |
Bolt |
2-171-4 |
4 |
B229900004618 |
2 |
Washer |
2-171-5 |
5 |
B229900004797 |
1 |
Nut |
2-171-6 |
6 |
B229900004881 |
1 |
Bolt |
2-171-7 |
7 |
60009106 |
1 |
Guard, alternator |
2-171-8 |
8 |
60003717 |
1 |
Wire |
2-171-9 |
9 |
60113874 |
2 |
Nut |
2-171-10 |
10 |
60113801 |
1 |
Spacer, alternator |
2-171-11 |
11 |
60113843 |
1 |
Bracket, alternator |

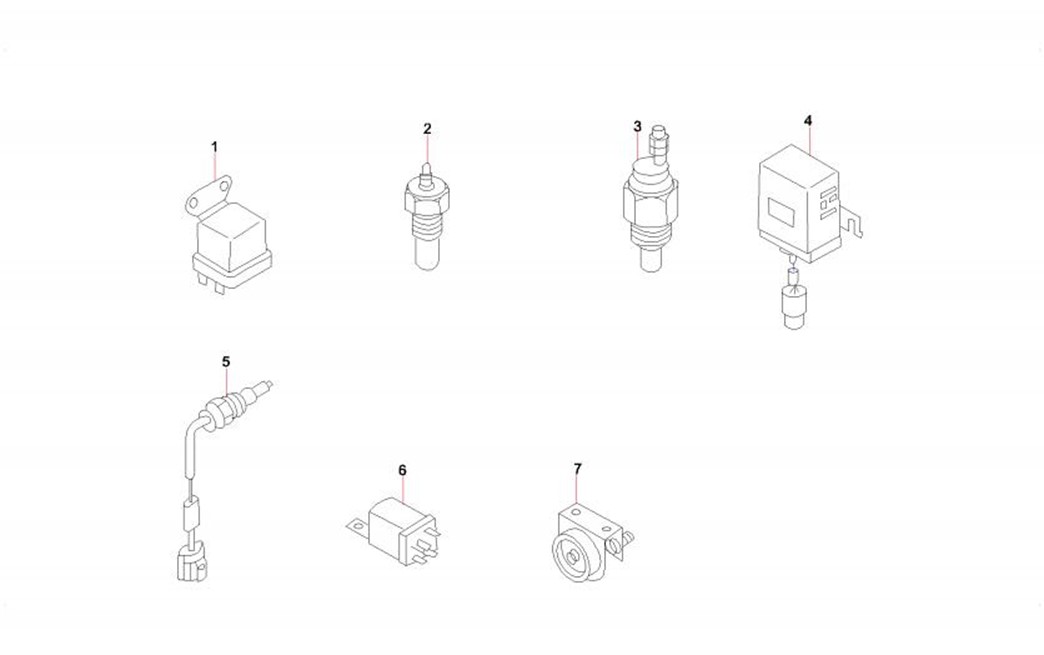

IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-173-1 |
1 |
B249900001038 |
1 |
Relay, Preheat Plug |
2-173-2 |
2 |
B240600000267 |
1 |
Sensor, temperature |
2-173-3 |
3 |
B241200001054 |
1 |
Switch, water temperature |
2-173-4 |
4 |
B229900002661 |
1 |
Controller, Preheater (Rapid) |
2-173-5 |
5 |
B241200001055 |
1 |
Sensor, water temperature |
2-173-6 |
6 |
B249900001039 |
1 |
Relay, Stopper (Engine) |
2-173-7 |
7 |
B250299000034 |
1 |
Indicator |

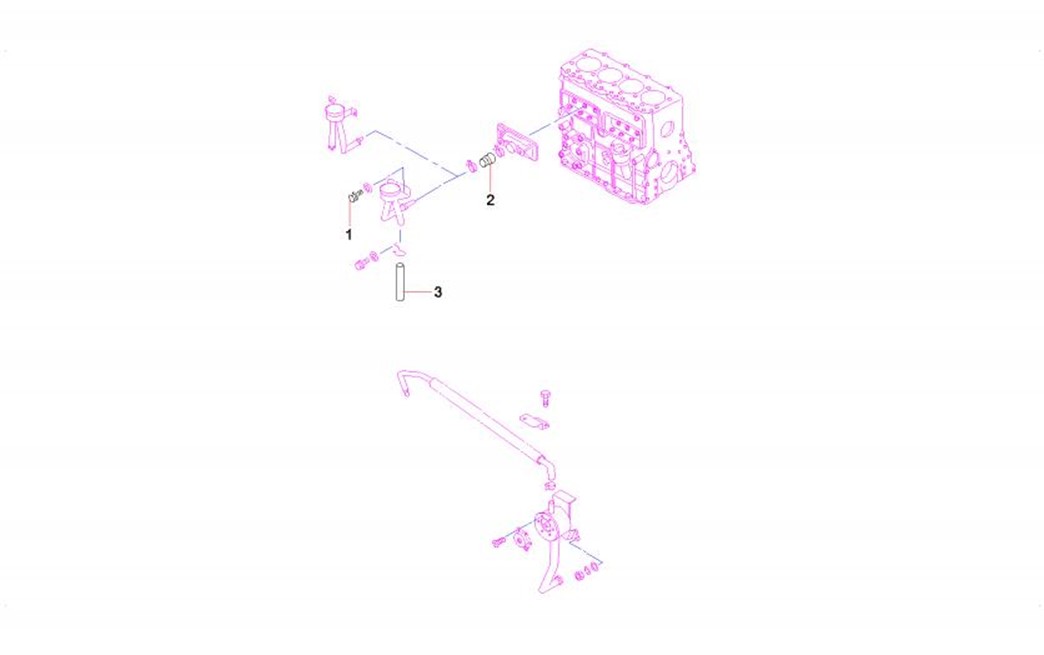

IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-175-1 |
1 |
B229900004868 |
2 |
Bolt |
2-175-2 |
2 |
B229900004409 |
1 |
Hose |
2-175-3 |
3 |
B229900004407 |
1 |
Hose |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-177-1 |
1 |
60003601 |
6 |
Bolt |
2-177-2 |
2 |
60003329 |
1 |
Gasket |
2-177-3 |
3 |
60003602 |
4 |
Bolt |
2-177-4 |
4 |
60003330 |
1 |
Gasket |
2-177-5 |
5 |
60003494 |
1 |
Flywheel |
2-177-6 |
6 |
60003517 |
1 |
Key |
2-177-7 |
7 |
60003658 |
1 |
Lock, retainer |
2-177-8 |
8 |
60003561 |
1 |
Nut |
2-177-9 |
9 |
60003423 |
1 |
Shim |
2-177-10 |
10 |
60003532 |
1 |
Plate, chain |
2-177-11 |
11 |
60003526 |
1 |
Lock, retainer |
2-177-12 |
12 |
60003559 |
1 |
Nut |
2-177-13 |
13 |
60003378 |
1 |
Shim |
2-177-14 |
14 |
60003708 |
1 |
Seal, Oil |
2-177-15 |
15 |
60003345 |
1 |
Sleeve |
2-177-16 |
16 |
60003624 |
1 |
Bolt |
2-177-17 |
17 |
60003286 |
2 |
Plug |
2-177-18 |
18 |
60003464 |
2 |
Washer |
2-177-19 |
19 |
60003548 |
1 |
Nut |
2-177-20 |
20 |
60003270 |
1 |
Cover |

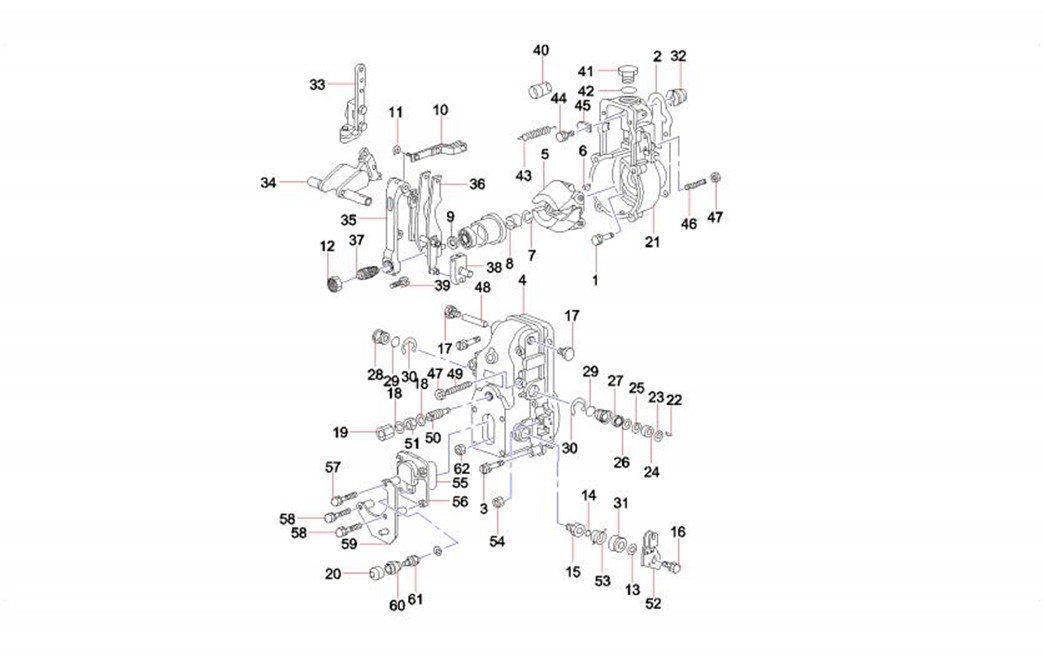

IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-179-21 |
21 |
60113914 |
1 |
Housing, regulator |
2-179-22 |
22 |
60003520 |
1 |
Key |
2-179-23 |
23 |
60003473 |
1 |
Washer |
2-179-24 |
24 |
60003514 |
1 |
Ring, retaining |
2-179-25 |
25 |
60003377 |
1 |
Shim |
2-179-26 |
26 |
60003457 |
1 |
Shim |
2-179-27 |
27 |
60003709 |
1 |
Seal, oil |
2-179-28 |
28 |
60003342 |
2 |
Sleeve |
2-179-29 |
29 |
60003462 |
2 |
Washer |
2-179-30 |
30 |
60003489 |
2 |
Lock, retainer |
2-179-31 |
31 |
60003276 |
1 |
Cover |
2-179-32 |
32 |
60003510 |
1 |
Connector |
2-179-33 |
33 |
60113839 |
1 |
Bar, regulator, speed |
2-179-34 |
34 |
60113974 |
1 |
Rod GP, regulator |
2-179-35 |
35 |
60113835 |
1 |
Pullrod GP, regulator |
2-179-36 |
36 |
60113832 |
1 |
Bar GP, guide, regulator |
2-179-37 |
37 |
60113831 |
1 |
Housing, spring, regulator |
2-179-38 |
38 |
60113837 |
1 |
Bar, support, regulator |
2-179-39 |
39 |
60113867 |
1 |
Bolt |
2-179-40 |
40 |
60113970 |
1 |
limiter, regulator |
