SANY SY135C SY135C9 SY135C9I2K BR EXCAVATOR parts catalog 23

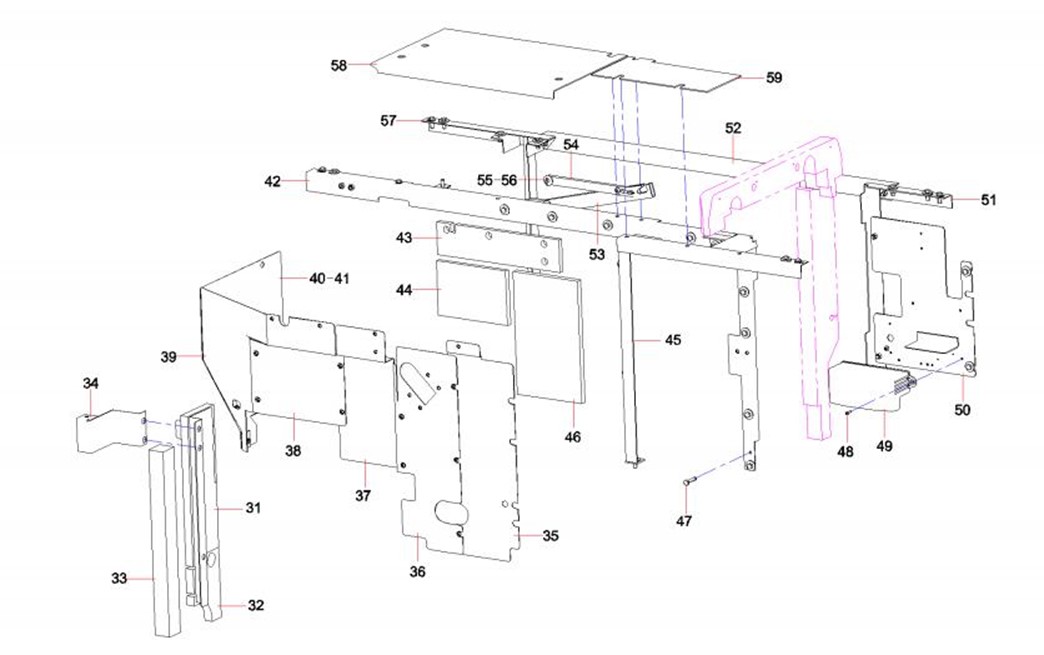

IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-253-31 |
31 |
12150627 |
1 |
Partition, middle |
2-253-32 |
32 |
12150705 |
1 |
Sponge, partition, middle |
2-253-33 |
33 |
11756388 |
1 |
Sponge, partition |
2-253-34 |
34 |
11463987 |
1 |
Bracket, front coverplate |
2-253-35 |
35 |
12151342 |
1 |
Partition, left |
2-253-36 |
36 |
12151217 |
1 |
Partition, left |
2-253-37 |
37 |
12151205 |
1 |
Partition, middle |
2-253-38 |
38 |
12151020 |
1 |
Partition, right |
2-253-39 |
39 |
12150756 |
1 |
Baffle, front, right |
2-253-40 |
40 |
A820101351600 |
1 |
Plate, fixing, side partition |
2-253-41 |
41 |
12150835 |
1 |
Partition, side |
2-253-42 |
42 |
A810502015255 |
1 |
Beam, cross, front |
2-253-43 |
43 |
11827108 |
1 |
Sponge, partition |
2-253-44 |
44 |
11827070 |
1 |
Sponge, partition |
2-253-45 |
45 |
12148296 |
1 |
Bracket, front, left |
2-253-46 |
46 |
11826921 |
1 |
Sponge, partition |
2-253-47 |
47 |
A210111000199 |
5 |
Bolt M12×20GB5783 10.9 |
2-253-48 |
48 |
A210204000131 |
2 |
Screw M6×20GB70.1 |
2-253-49 |
49 |
13011029 |
1 |
Electric boxSY135C9I2K.1.6-11 |
2-253-50 |
50 |
11775433 |
1 |
Plate, Mounting |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-255-51 |
51 |
11692989 |
1 |
Bracket, rear, left |
2-255-52 |
52 |
10072949 |
1 |
Beam, cross, rear |
2-255-53 |
53 |
A810502015323 |
1 |
Bar, support |
2-255-54 |
54 |
A820302010101 |
1 |
Rod, bearing |
2-255-55 |
55 |
A210491000014 |
3 |
Pin 3.2×20GB91 |
2-255-56 |
56 |
A210508000009 |
3 |
Roll, pin |
2-255-57 |
57 |
A810502015256 |
1 |
Bracket, rear, right |
2-255-58 |
58 |
11769240 |
1 |
Coverplate, front |
2-255-59 |
59 |
11464041 |
1 |
Cover plate, side |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

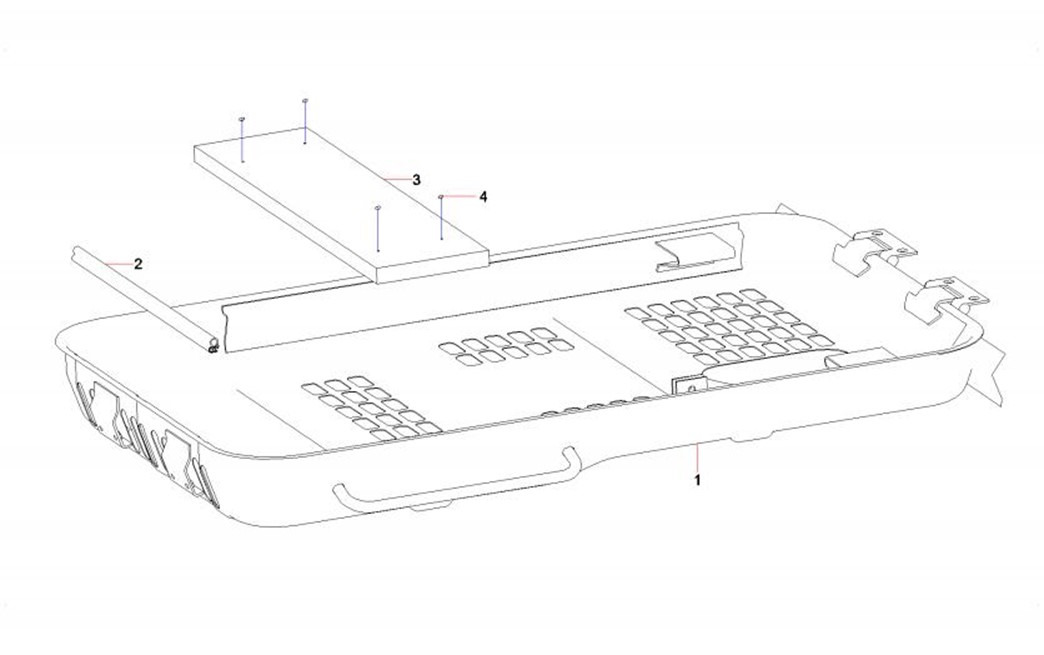

2-257-1 |
1 |
12233605 |
1 |
Hood, engine, front |
2-257-2 |
2 |
12233075 |
1 |
Hood, engine, front |
2-257-3 |
3 |
12232977 |
1 |
Shade, lamp |
2-257-4 |
4 |
A810502990125 |
1 |
Rod, bearing |
2-257-5 |
5 |
A210491000007 |
2 |
Pin 2.5×20GB91 |
2-257-6 |
6 |
A210404000009 |
2 |
Washer 6GB96.1 |
2-257-7 |
7 |
A210401000017 |
4 |
Washer 8GB93 |
2-257-8 |
8 |
A210405000007 |
8 |
Washer 8GB97.1 |
2-257-9 |
9 |
A210405000011 |
4 |
Washer 10GB97.1 |
2-257-10 |
10 |
A222200000012 |
1 |
Lock, door |
2-257-11 |
11 |
A210111000011 |
4 |
Bolt M10×20GB5783 |
2-257-12 |
12 |
11817218 |
4 |
Nut |
2-257-13 |
13 |
A210307000012 |
4 |
Nut M8GB6170 |
2-257-14 |
14 |
A210111000089 |
8 |
Bolt M8×20GB5783 |
2-257-15 |
15 |
12233329 |
1 |
Strip, sealing |
2-257-16 |
16 |
12233429 |
2 |
Hoop |
2-257-17 |
17 |
10911866 |
4 |
Anchor, clamp |
2-257-18 |
18 |
A820606030559 |
1 |
Cushion |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

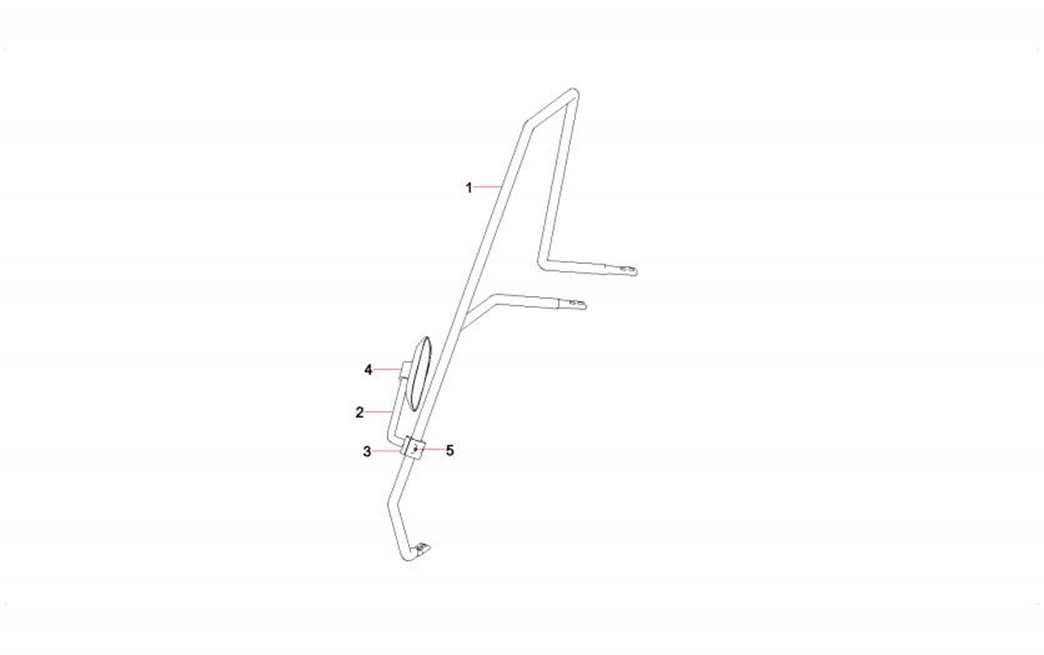

2-259-1 |
1 |
11593380 |
1 |
Bar, handhold |
2-259-2 |
2 |
A229900001399 |
1 |
Bracket, mounting |
2-259-3 |
3 |
A229900001400 |
1 |
Base, MTG |
2-259-4 |
4 |
A229900001398 |
1 |
Bracket, rear view mirror |
2-259-5 |
5 |
A210204000132 |
2 |
Screw M6×25GB70.1 |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

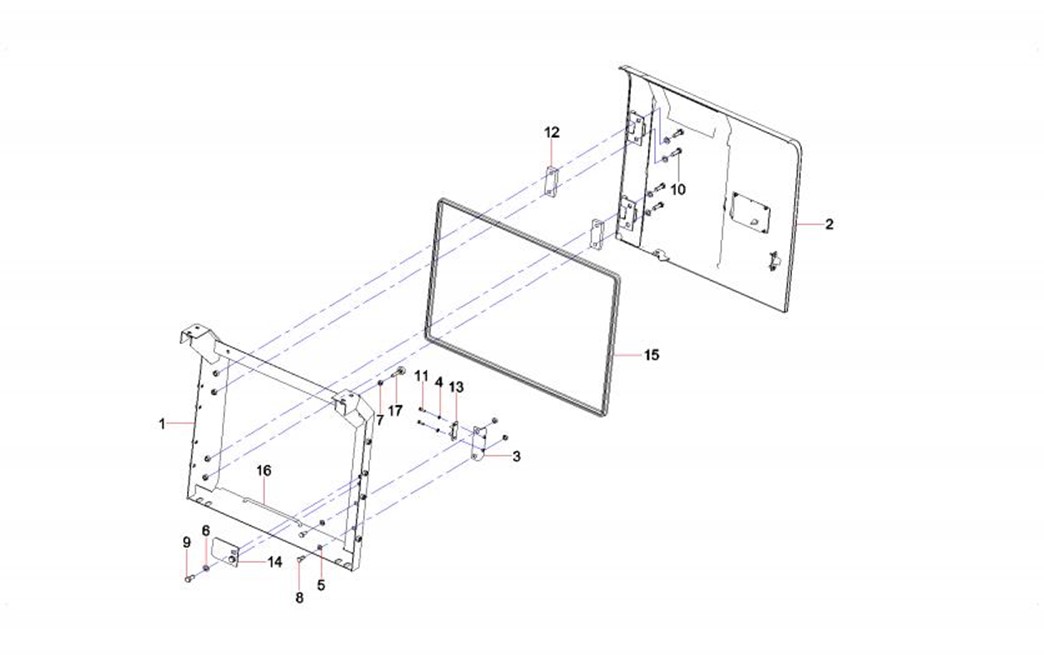

2-261-1 |
1 |
12110361 |
1 |
Frame, mounting, right door |
2-261-2 |
2 |
12110645 |
1 |
Door, right |
2-261-3 |
3 |
A810502015054 |
1 |
Block, fixing |
2-261-4 |
4 |
A210405000006 |
2 |
Washer 6GB97.1 |
2-261-5 |
5 |
A210405000011 |
2 |
Washer 10GB97.1 |
2-261-6 |
6 |
A210405000001 |
6 |
Washer 12GB97.1 |
2-261-7 |
7 |
A210307000017 |
3 |
Nut M10GB6170 |
2-261-8 |
8 |
A210111000018 |
2 |
Bolt M10×25GB5783 |
2-261-9 |
9 |
A210111000038 |
2 |
Bolt M12×30GB5783 |
2-261-10 |
10 |
A210111000040 |
4 |
Bolt M12×40GB5783 |
2-261-11 |
11 |
A210111000080 |
2 |
Bolt M6×20GB5783 |
2-261-12 |
12 |
12107734 |
2 |
Retainer GP |
2-261-13 |
13 |
A820405000009 |
1 |
Holder |
2-261-14 |
14 |
A820101118440 |
1 |
Plate, locking |
2-261-15 |
15 |
A820606030378 |
1 |
Strip, sealing |
2-261-16 |
16 |
A820301012423 |
1 |
Catch |
2-261-17 |
17 |
A810502019056 |
1 |
Setscrew |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-263-1 |
1 |
A829900002715 |
1 |
Spring, rear |
2-263-2 |
2 |
A829900002716 |
1 |
Spring, front |
2-263-3 |
3 |
10217480 |
1 |
Bracket |
