IC

INDEX

PART NUMBER

QTY

PART NAME

2-265-1

1

12148709

1

Body, engine hood

2-265-2

2

11397738

1

Strip, sealing

2-265-3

3

11229575

1

Sponge, noise absorbing

2-265-4

4

11961759

4

Pintle

IC

INDEX

PART NUMBER

QTY

PART NAME

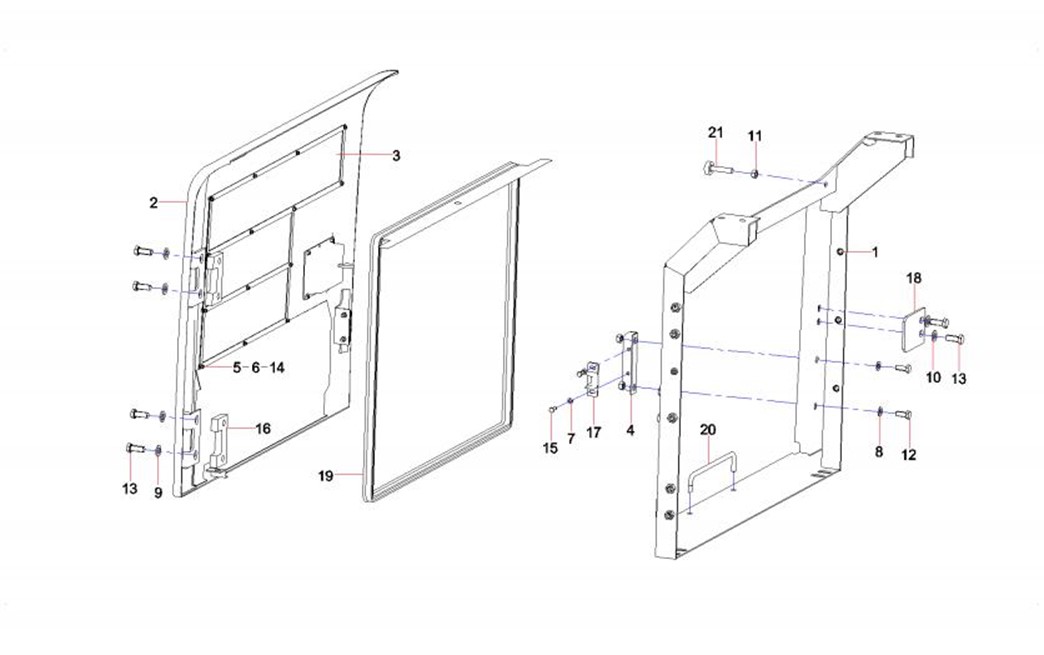

2-267-1

1

12111145

1

Frame, mounting, left door

2-267-2

2

12186108

1

Door, left

2-267-3

3

12345551

1

Ring, dust

2-267-4

4

A810502015054

1

Block, fixing

2-267-5

5

A210401000013

14

Washer 4GB93

2-267-6

6

A210405000004

14

Washer 4GB97.1

2-267-7

7

A210405000006

2

Washer 6GB97.1

2-267-8

8

A210405000011

2

Washer 10GB97.1

2-267-9

9

A210401000002

4

Washer 12GB93

2-267-10

10

A210405000001

6

Washer 12GB97.1

2-267-11

11

A210307000017

3

Nut M10GB6170

2-267-12

12

A210111000018

2

Bolt M10×25GB5783

2-267-13

13

A210111000038

6

Bolt M12×30GB5783

2-267-14

14

A210307000014

14

Nut M4GB6170

2-267-15

15

A210111000080

2

Bolt M6×20GB5783

2-267-16

16

12107734

2

Retainer GP

2-267-17

17

A820405000009

1

Holder

2-267-18

18

A820101118440

1

Plate, locking

2-267-19

19

A820606030378

1

Strip, sealing

2-267-20

20

A820301012423

1

Catch

IC

INDEX

PART NUMBER

QTY

PART NAME

2-269-21

21

A810502019056

1

Setscrew

IC

INDEX

PART NUMBER

QTY

PART NAME

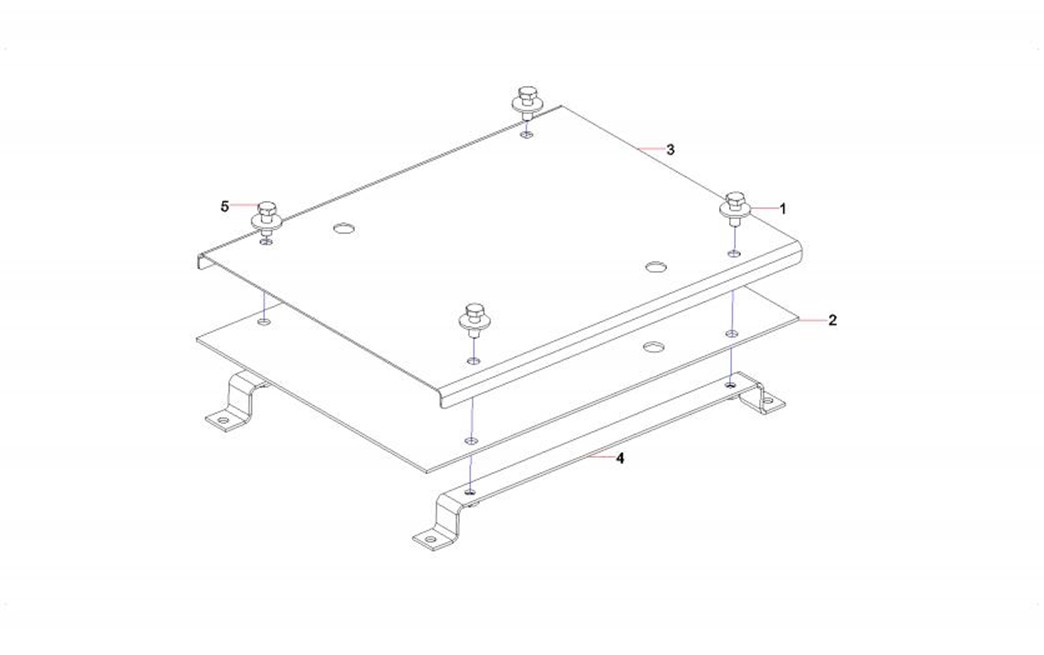

2-271-1

1

A210404000003

4

Washer 10GB96.1

2-271-2

2

11991709

1

Gasket, rubber

2-271-3

3

11991708

1

Coverplate

2-271-4

4

11991712

2

Bracket, coverplate

2-271-5

5

A210111000197

4

Bolt M10×25GB5783 10.9

IC

INDEX

PART NUMBER

QTY

PART NAME

2-273-1

1

A311141609016

1

Bolt M16×90GB5782 Grade 10.9

2-273-2

2

A210307000028

1

Nut M16GB617010

2-273-3

3

A210111000097

4

Bolt M8×80GB5783

2-273-4

4

24000633

16

Washer

2-273-5

5

12440056

2

reducer tubeSY60C1I2R.1.8-9

2-273-6

6

A230106000292

1

V-belt

2-273-7

7

A210111000054

2

Bolt M16×55GB5783 10.9

2-273-8

8

24000642

2

Washer

2-273-9

9

10179456

1

Plate, adjusting

2-273-10

10

A810406012731

1

Bracket

2-273-11

11

21086590

2

Bolt

2-273-12

12

A210111000083

2

Bolt M6×35GB5783

2-273-13

13

60060564

7

Washer

2-273-14

14

24000632

7

Washer

2-273-15

15

A210113000266

2

Bolt

2-273-16

16

60060546

8

Washer 10GB96.1

2-273-17

17

A210111000343

6

Bolt M8×20GB5783 10.9

2-273-18

18

A220700000028

1

Assembly, condenser

2-273-19

19

A210111000082

3

Bolt M6×30GB5783

2-273-20

20

60030341

1

Hose AS, condenser to dehydrator

IC

INDEX

PART NUMBER

QTY

PART NAME

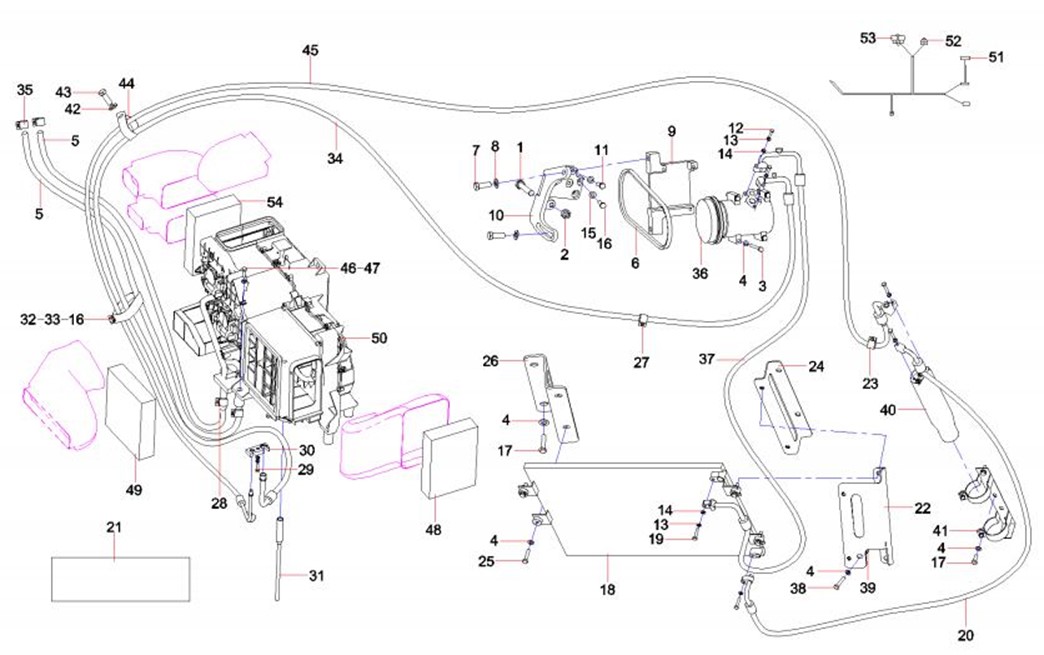

2-275-21

21

60240844

1

Panel control

2-275-22

22

12295713

1

drying bottle

2-275-23

23

60086354

1

Clamp, harness

2-275-24

24

10254232

1

Bracket, right

2-275-25

25

A210111000293

4

Bolt M8×30GB5783 10.9

2-275-26

26

10254231

1

Bracket, left

2-275-27

27

60086355

3

Clamp, harness

2-275-28

28

60166393

2

Clamp, pipe

2-275-29

29

A210111000081

2

Bolt M6×25GB5783

2-275-30

30

60250668

1

Connected plate

2-275-31

31

60213359

1

Drainage pipe

2-275-32

32

A230200000178

4

Clamp

2-275-33

33

A210111000012

4

Bolt M10×20GB5783 10.9

2-275-34

34

60004375

1

Hose, air intake

2-275-35

35

60187695

2

Split Flow Gear Pump

2-275-36

36

B220203000007

1

Compressor

2-275-37

37

60001232

1

Hose, exhaust

2-275-38

38

A210111000342

1

Bolt M8×16GB5783 10.9

2-275-39

39

A210307000012

1

Nut M8GB6170

2-275-40

40

B229900005141

1

Container, liquid storage
