SANY SY135C SY135C9 SY135C9I2K BR EXCAVATOR parts catalog 25
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-277-41 |
41 |
A229900008784 |
1 |
Support, container, liquid storage |
2-277-42 |
42 |
24000639 |
5 |
Washer |
2-277-43 |
43 |
A210111000199 |
5 |
Bolt M12×20GB5783 10.9 |
2-277-44 |
44 |
60083322 |
2 |
Clip, wire |
2-277-45 |
45 |
60237084 |
1 |
reservoir to HVAC hose assembly |
2-277-45 |
45 |
Modification or other |
1 |
Reservior-HVAC Hose |
2-277-46 |
46 |
A210204000164 |
7 |
Screw M8×30GB70.1 |
2-277-47 |
47 |
60060565 |
7 |
Washer |
2-277-48 |
48 |
60250669 |
1 |
Filter |
2-277-49 |
49 |
B222100000711 |
1 |
Filter, air, inner |
2-277-50 |
50 |
60168171 |
1 |
Assembly, air conditioner unit |
2-277-51 |
51 |
B240600000334 |
1 |
Sensor, sunlight |
2-277-52 |
52 |
B240700000473 |
1 |
Relay |
2-277-53 |
53 |
B240700000472 |
1 |
Relay |
2-277-54 |
54 |
13034851 |
2 |
sponge of air |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

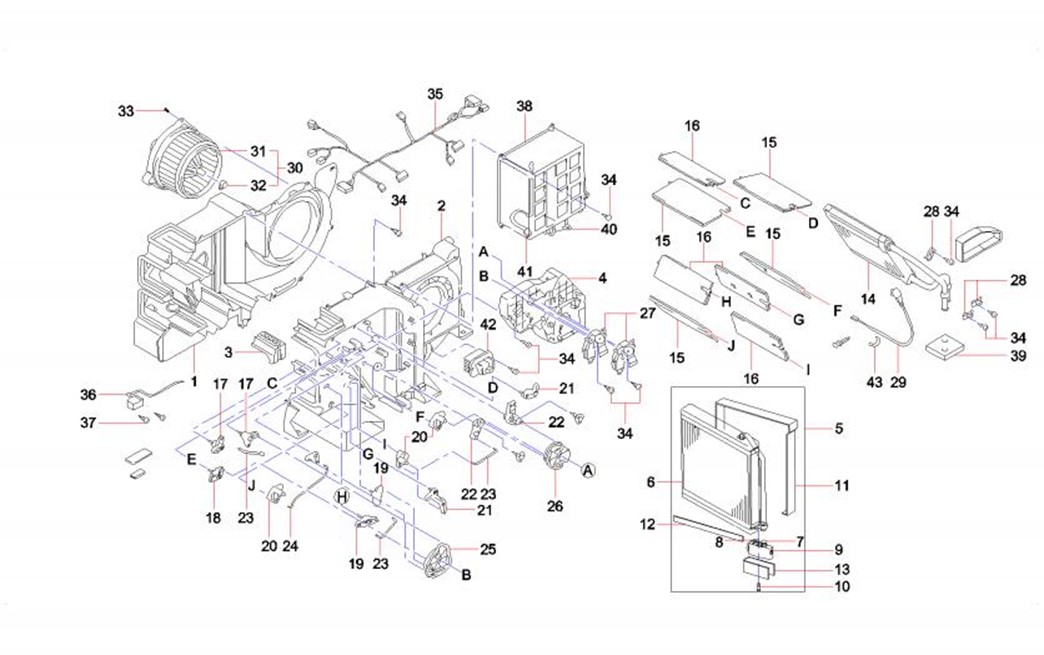

2-279-1 |
1 |
60153212 |
1 |
Outer shell, cooling motor group |
2-279-2 |
2 |
60153213 |
1 |
Outer shell, cooling motor group |
2-279-3 |
3 |
60153195 |
1 |
Plate |
2-279-4 |
4 |
60153196 |
1 |
Plate |
2-279-5 |
5 |
60153202 |
1 |
Evaporator assembly with parts |
2-279-6 |
6 |
60153218 |
1 |
Evaporator sub-assembly |
2-279-7 |
7 |
60153192 |
1 |
O-type ring |
2-279-8 |
8 |
60153193 |
1 |
O-type ring |
2-279-9 |
9 |
60153197 |
1 |
Valve, expansion |
2-279-10 |
10 |
60153215 |
2 |
Bolt |
2-279-11 |
11 |
60153203 |
1 |
Seal, insulation |
2-279-12 |
12 |
60153205 |
3 |
Seal, insulation |
2-279-13 |
13 |
60153204 |
1 |
Seal, insulation |
2-279-14 |
14 |
60153242 |
1 |
Core SUB, heater |
2-279-15 |
15 |
60049962 |
4 |
Door SUB |
2-279-16 |
16 |
60153216 |
4 |
Door SUB |
2-279-17 |
17 |
60049956 |
2 |
Rod SUB, connecting |
2-279-18 |
18 |
60049957 |
1 |
Rod SUB, connecting |
2-279-19 |
19 |
60049958 |
2 |
Rod SUB, connecting |
2-279-20 |
20 |
60049959 |
3 |
Rod SUB, connecting |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-281-21 |
21 |
60049941 |
2 |
Rod |
2-281-22 |
22 |
60049960 |
2 |
Rod sub-assembly, connecting |
2-281-23 |
23 |
60049963 |
3 |
Shaft |
2-281-24 |
24 |
60049964 |
1 |
Shaft |
2-281-25 |
25 |
60049943 |
1 |
Plate |
2-281-26 |
26 |
60049944 |
1 |
Plate |
2-281-27 |
27 |
60049947 |
2 |
Motor AS, servo |
2-281-28 |
28 |
60049955 |
3 |
Clamp |
2-281-29 |
29 |
60033039 |
1 |
Sensor, water temperature |
2-281-30 |
30 |
60153199 |
1 |
Motor As, with fan |
2-281-31 |
31 |
60049951 |
1 |
Blade, fan |
2-281-32 |
32 |
60049954 |
1 |
Clamp |
2-281-33 |
33 |
60049950 |
3 |
Screw, tapping, with washer |
2-281-34 |
34 |
60049965 |
32 |
Screw, self-tapping |
2-281-35 |
35 |
60049948 |
1 |
Harness AS, air conditioner |
2-281-36 |
36 |
60049966 |
1 |
Sensor, anti-frost |
2-281-37 |
37 |
60049949 |
2 |
Screw, with washer |
2-281-38 |
38 |
60049942 |
1 |
Box, SUB |
2-281-39 |
39 |
60049953 |
1 |
Seal, insulation |
2-281-40 |
40 |
60049945 |
1 |
Motor AS, servo |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-283-41 |
41 |
60153240 |
1 |
Thermistor AS |
2-283-42 |
42 |
60049968 |
1 |
Transistor AS, air conditioner |
2-283-43 |
43 |
60049952 |
1 |
Bracket, thermo-bulb parts |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

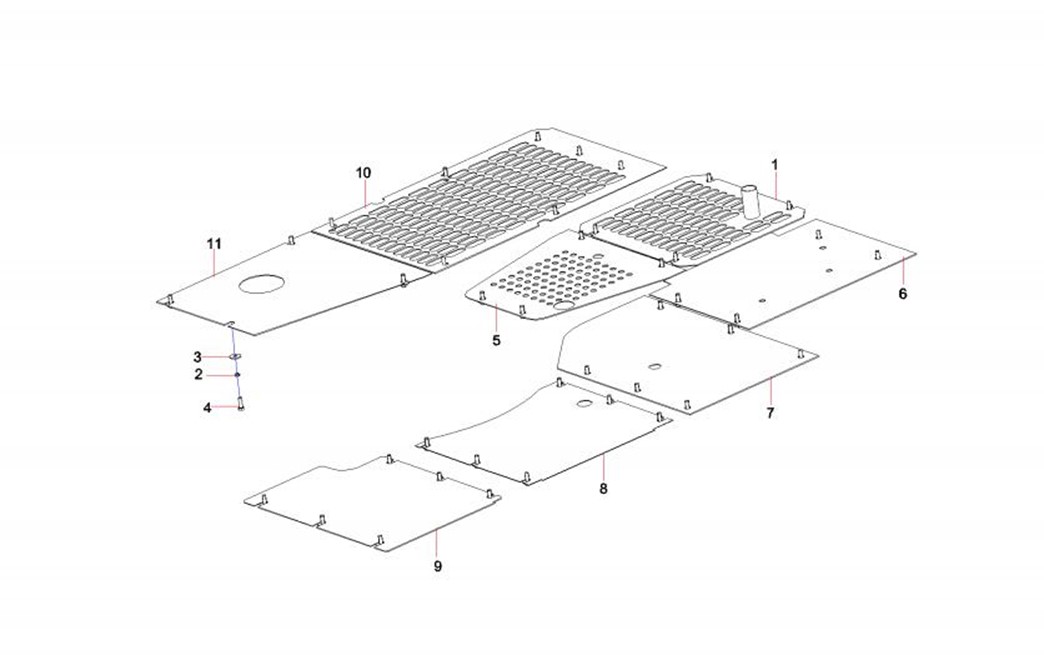

2-285-1 |
1 |
12772929 |
1 |
sealing board |
2-285-2 |
2 |
24000513 |
41 |
Washer |
2-285-3 |
3 |
60060548 |
41 |
Washer 12GB96.1 |
2-285-4 |
4 |
A210111000203 |
41 |
Bolt M12×35GB5783 10.9 |
2-285-5 |
5 |
12058454 |
1 |
Plate, sealing, front middle |
2-285-6 |
6 |
12058456 |
1 |
Plate, sealing, middle left |
2-285-7 |
7 |
12058458 |
1 |
Plate, sealing, cab rear |
2-285-8 |
8 |
12058459 |
1 |
Plate, sealing, cab middle |
2-285-9 |
9 |
12058460 |
1 |
Plate, sealing, cab front |
2-285-10 |
10 |
12108559 |
1 |
Plate, sealing, rear right |
2-285-11 |
11 |
12058461 |
1 |
Plate, sealing, oil tank |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

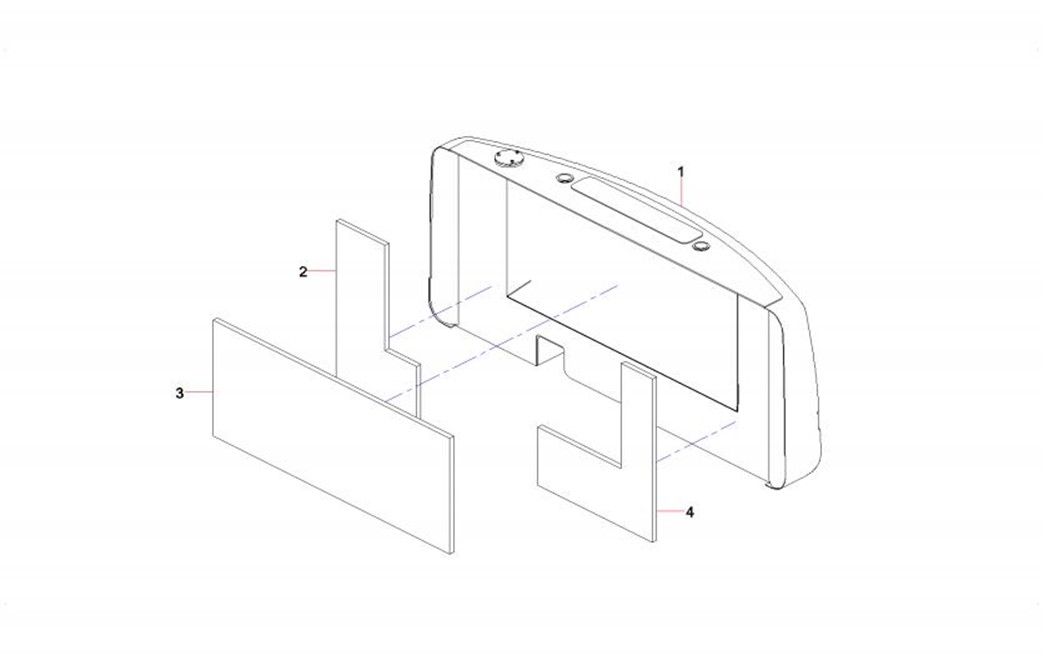

2-287-1 |
1 |
12320466 |
1 |
Main counterweight |
2-287-2 |
2 |
13289744 |
1 |
Right part sponge SY135C9I2K.1.9 |
2-287-3 |
3 |
13289869 |
1 |
Central sponge SY135C9I2K.1.9-5 |
2-287-4 |
4 |
13289872 |
1 |
Left Sponge SY135C9I2K.1.9-6 |
