SANY SY135C SY135C9 SY135C9I2K BR EXCAVATOR parts catalog 33

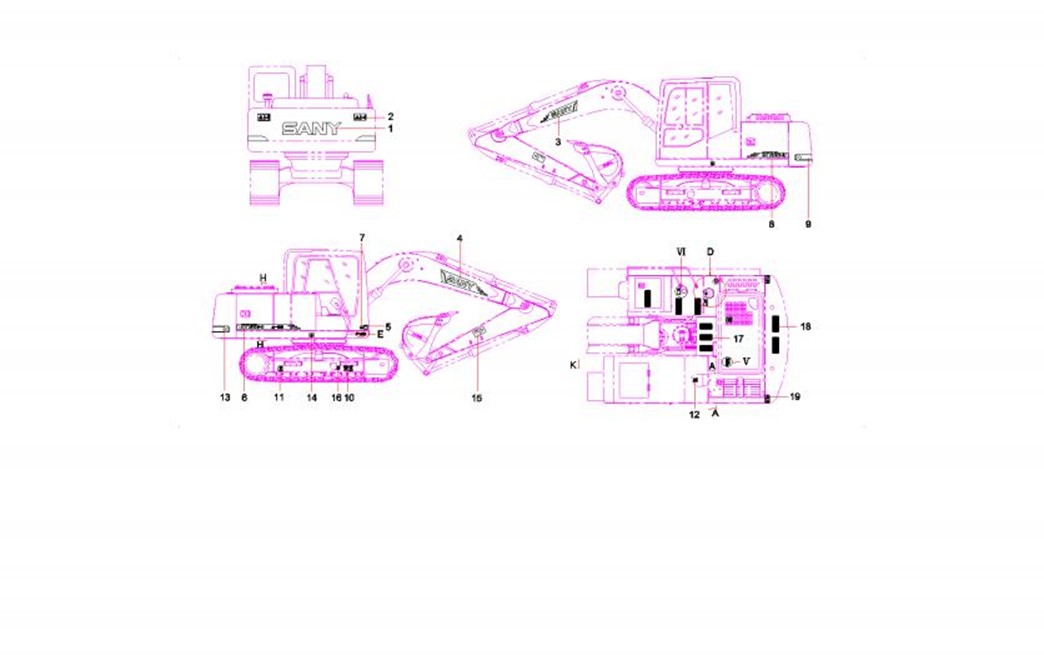

Chapter 6
coating SY135C9I2K(Braz)-TZ
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
6-3-1 |
1 |
12896881 |
1 |
Counterweight |
6-3-2 |
2 |
A820699001016 |
2 |
Decal, warning, counterweight |
6-3-3 |
3 |
12985107 |
1 |
Movable Arm Left Side |
6-3-4 |
4 |
12985112 |
1 |
Movable Arm Right Side |
6-3-5 |
5 |
10233764 |
1 |
Label, noise |
6-3-6 |
6 |
12896898 |
1 |
Machine right MarkingSY135C9I2K |
6-3-7 |
7 |
13255957 |
1 |
Lifting Marking SY135C8I2K-TZ-7 |
6-3-8 |
8 |
12896891 |
1 |
Machine left MarkingSY135C9I2K- |
6-3-9 |
9 |
12727593 |
1 |
Film, reflective, counterweight |
6-3-10 |
10 |
12052085 |
1 |
Decal, tie-down, shipment |
6-3-11 |
11 |
12052087 |
4 |
Label, lifting point |
6-3-12 |
12 |
13255725 |
1 |
No seat warning board |
6-3-13 |
13 |
12727594 |
1 |
Film, reflective, counterweight |
6-3-14 |
14 |
12052090 |
2 |
Decal, center of gravity |
6-3-15 |
15 |
A820601990963 |
2 |
Decal, warning, arm |
6-3-16 |
16 |
A820601990968 |
2 |
Decal, warning, tensioner |
6-3-17 |
17 |
A820699000370 |
3 |
Anti-skid, short |
6-3-18 |
18 |
A820699000369 |
5 |
Anti-skid, long |
6-3-19 |
19 |
13249237 |
3 |
Caution board of tension device |

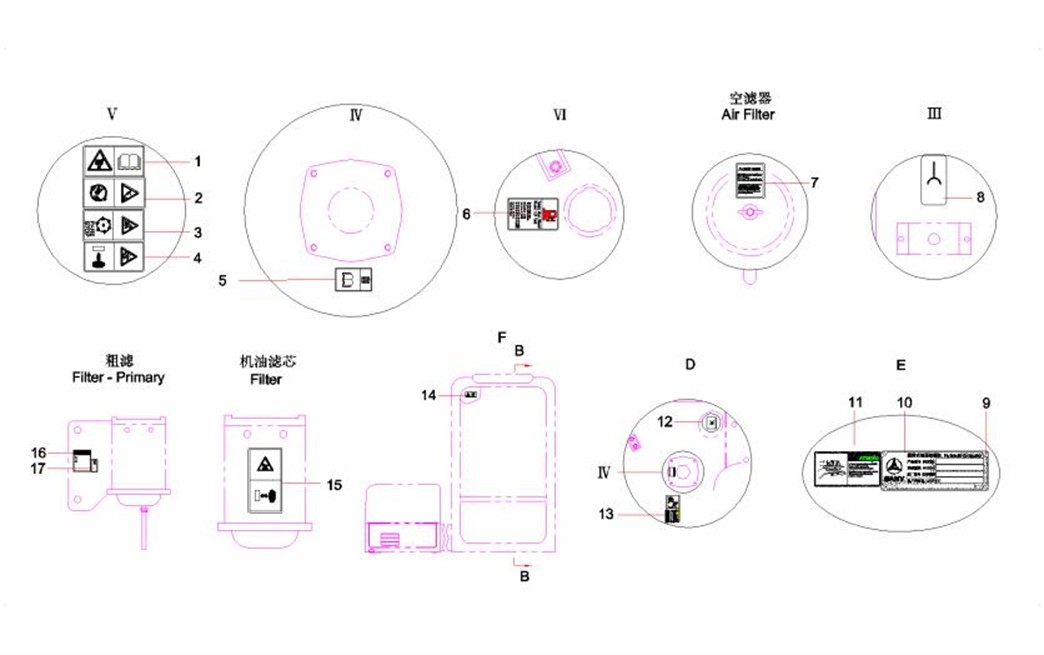

IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
6-5-1 |
1 |
13254366 |
1 |
Sign of Forbidding Tilting Machine |
6-5-2 |
2 |
A820601990961 |
1 |
Label, instruction, operation |
6-5-3 |
3 |
11464411 |
1 |
Graph, lubrication |
6-5-4 |
4 |
13166086 |
1 |
Lift capability meter SY135C8I3K- |
6-5-5 |
5 |
12496541 |
1 |
Decal, warning, power-off |
6-5-6 |
6 |
12496543 |
1 |
Label, warning, read manual |
6-5-7 |
7 |
12496542 |
1 |
Decal, warning, high-voltage |
6-5-8 |
8 |
12052084 |
1 |
Decal, safety, seat |
6-5-9 |
9 |
13254712 |
1 |
Caution board of “No Handhold” |
6-5-10 |
10 |
13249214 |
1 |
Seat adjusting indicator SY200C5- |
6-5-11 |
11 |
13254457 |
1 |
Security exit nameplate |
6-5-12 |
12 |
A820601990927 |
1 |
Label, unlock |
6-5-13 |
13 |
A820601990928 |
1 |
Label, oil level |
6-5-14 |
14 |
A820601990972 |
1 |
Label, power supply |
6-5-15 |
15 |
13251557 |
1 |
Board on the compressor |
6-5-16 |
16 |
A820699001018 |
2 |
Decal, instruction, forward |
6-5-17 |
17 |
13254447 |
1 |
Scheduled cleaning radiator |
6-5-18 |
18 |
13254367 |
1 |
Loading Warning Lable |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
6-7-1 |
1 |
12496540 |
1 |
Decal, warning, anti-spray |
6-7-2 |
2 |
12016795 |
1 |
Decal, warning, no standing |
6-7-3 |
3 |
13254419 |
1 |
Caution board of belt security |
6-7-4 |
4 |
12052082 |
1 |
Decal, warning, fan |
6-7-5 |
5 |
13272748 |
1 |
Hydraulic oil tank indicative board |
6-7-6 |
6 |
13255603 |
1 |
Logo plate of fuel tank |
6-7-7 |
7 |
13254430 |
1 |
Caution board for air cleaner |
6-7-8 |
8 |
A820699001109 |
1 |
Label, power socket |
6-7-9 |
9 |
A210510000007 |
4 |
Rivet |
6-7-10 |
10 |
10251978 |
1 |
Nameplate |
6-7-11 |
11 |
13254716 |
1 |
Add grease to swing bearing |
6-7-12 |
12 |
A820601990929 |
3 |
Label, drain, fuel tank |
6-7-13 |
13 |
13254413 |
1 |
Nameplate of Adding Hydraulic Oil |
6-7-14 |
14 |
12052088 |
1 |
Decal, warning, front window |
6-7-15 |
15 |
12052083 |
1 |
Decal, warning, hot surface |
6-7-16 |
16 |
A820601990962 |
1 |
Decal, drain, water separator |
6-7-17 |
17 |
12648410 |
1 |
fuel cleaner decal |
Chapter 7

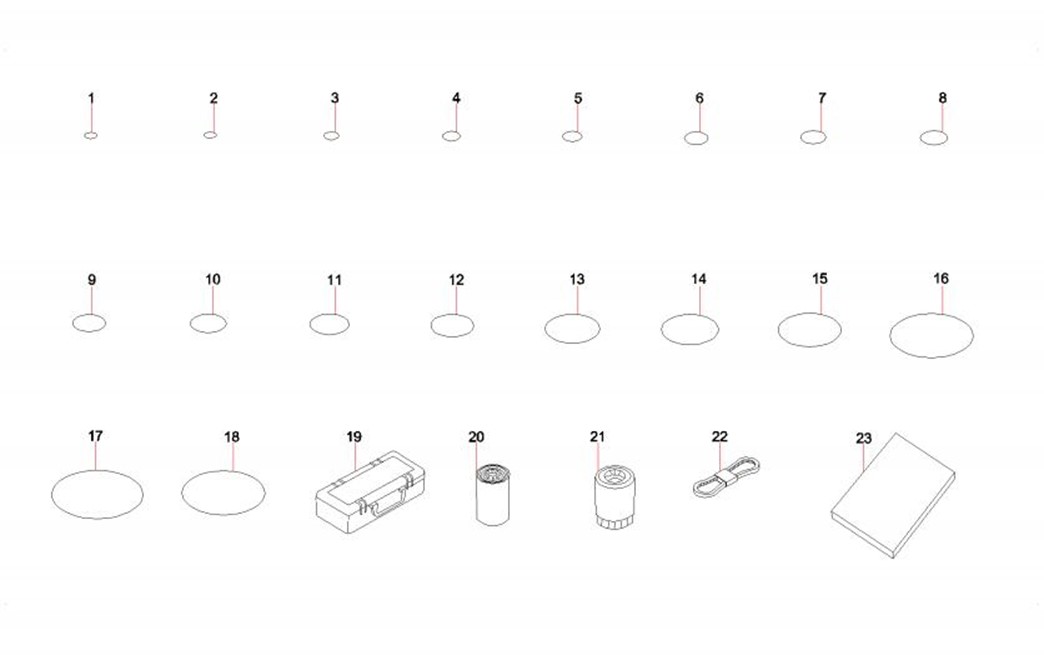

Attached Accessorie SY135C9I2K(BR).6
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
7-3-1 |
1 |
A210609000324 |
2 |
O-ring 130×10(GB3452.1) |
7-3-2 |
2 |
A210609000136 |
5 |
O-ring 29.7×3.5JISB2401 |
7-3-3 |
3 |
A230101000243 |
5 |
O-ring 16.7×3.5JISB2401 |
7-3-4 |
4 |
A230101000247 |
5 |
O-ring 10.9×2.3(JISB2401) |
7-3-5 |
5 |
B230101000038 |
2 |
O-ring |
7-3-6 |
6 |
B230101000047 |
5 |
O-ring |
7-3-7 |
7 |
B230101000049 |
5 |
O-ring 13.8×2.4JISB2401 |
7-3-8 |
8 |
B230101000050 |
5 |
O-ring 28.7×3.5JISB2401 |
7-3-9 |
9 |
B230101000090 |
5 |
O-ring 17.8×2.4JISB2401 |
7-3-10 |
10 |
A210609000131 |
2 |
O-ring 60×3.55GB3452.1 |
7-3-11 |
11 |
B230101000215 |
5 |
O-ring 32.92×3.53AS568-219 |
7-3-12 |
12 |
B230101000091 |
5 |
O-ring |
7-3-13 |
13 |
B230101000356 |
10 |
O-ring 23.7×3.5JISB2401 |
7-3-14 |
14 |
B230101000444 |
5 |
O-ring |
7-3-15 |
15 |
B230101000456 |
5 |
O-ring |
7-3-16 |
16 |
B230101000580 |
5 |
O-ring 24.99×3.53AS568-214 |
7-3-17 |
17 |
A229900001581 |
15 |
O-ring |
7-3-18 |
18 |
B230101000588 |
5 |
O-ring 179.3×5.7JISB2401 |
7-3-19 |
19 |
10456280 |
1 |
Tool, attached |
7-3-20 |
20 |
60220063 |
1 |
Diesel Fine Filter Core |
