SANY SY135C SY135C9 SY135C9I2K BR EXCAVATOR parts catalog 32
Chapter 5
Electrical System SY135C9I2K(BR).5
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

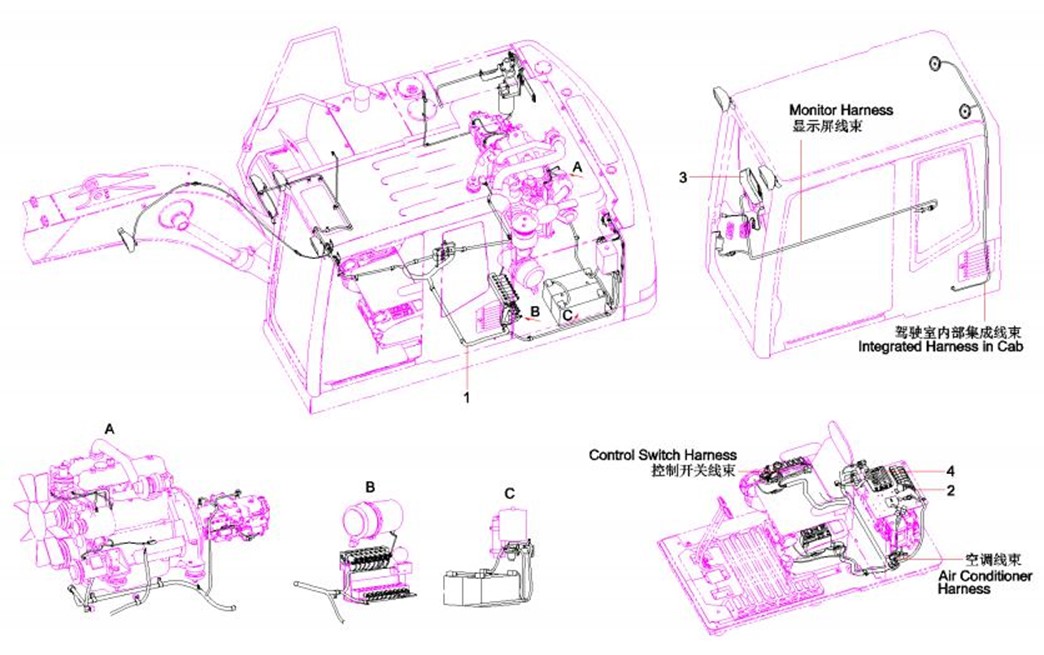

5-3-1 |
1 |
13470767 |
1 |
Vehicle electrical assembly |
5-3-2 |
2 |
13470793 |
1 |
Cab electrical assembly |
5-3-3 |
3 |
13468521 |
1 |
Sany Encourage Control Display |
5-3-4 |
4 |
13463260 |
1 |
Sany Encourage Hydraulic Control |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

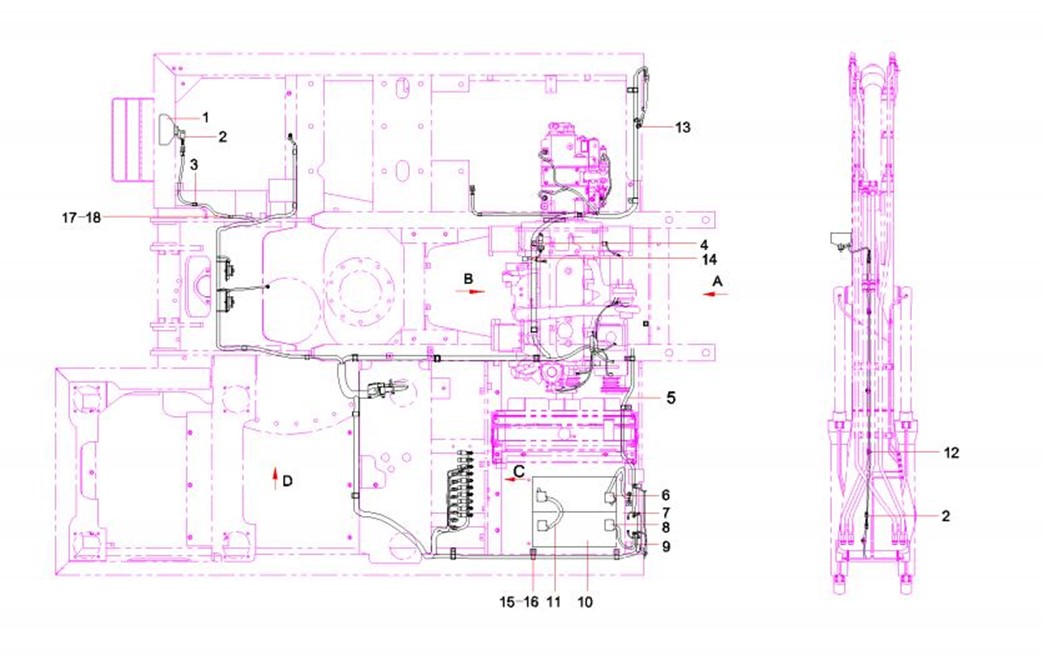

5-5-1 |
1 |
A241100000352 |
2 |
Lamp, working |
5-5-2 |
2 |
11400099 |
4 |
Clip |
5-5-3 |
3 |
60086353 |
4 |
Clamp, harness |
5-5-4 |
4 |
60086355 |
11 |
Clamp, harness |
5-5-5 |
5 |
60193173 |
1 |
Power line |
5-5-6 |
6 |
60013321 |
2 |
Connector GP, cathode, battery, A |
5-5-7 |
7 |
60012803 |
1 |
Wire, power supply |
5-5-8 |
8 |
60013322 |
2 |
Connector GP, anode, battery, A- |
5-5-9 |
9 |
60018110 |
1 |
Wire, power supply |
5-5-10 |
10 |
A242200000027 |
2 |
Battery |
5-5-11 |
11 |
60012792 |
1 |
Wire, power supply |
5-5-12 |
12 |
A239900000053 |
6 |
Tape, binding, nylon |
5-5-13 |
13 |
60202078 |
2 |
Cluster fixed lace |
5-5-14 |
14 |
13030667 |
1 |
bracketSY135C9I2K.5C.4.1 |
5-5-15 |
15 |
A210111000199 |
14 |
Bolt M12×20GB5783 10.9 |
5-5-16 |
16 |
24000513 |
14 |
Washer |
5-5-17 |
17 |
A210111000195 |
8 |
Bolt M10×16GB5783 10.9 |
5-5-18 |
18 |
24000637 |
11 |
Washer |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

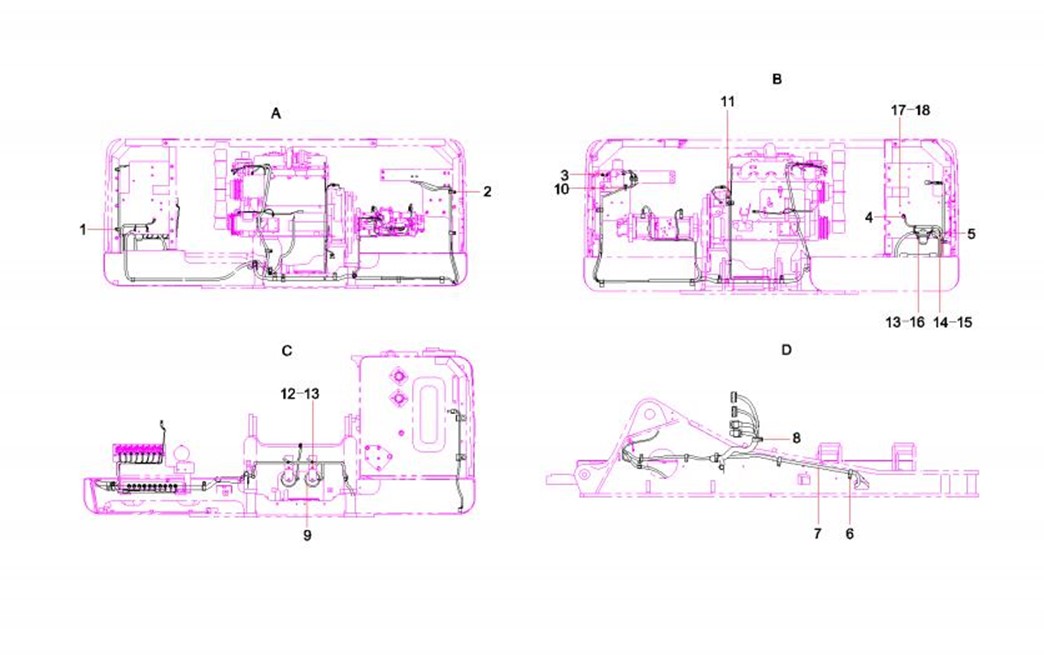

5-7-1 |
1 |
60083322 |
8 |
Clip, wire |
5-7-2 |
2 |
60086354 |
10 |
Clamp, harness |
5-7-3 |
3 |
A210204000357 |
3 |
Screw |
5-7-4 |
4 |
B241000000022 |
1 |
Socket, two-wire |
5-7-5 |
5 |
A241300000059 |
1 |
Box, fuse |
5-7-6 |
6 |
60086356 |
2 |
Clamp, harness |
5-7-7 |
7 |
Modification or other |
1 |
Harness, chassis |
5-7-7 |
7 |
12159543 |
1 |
Harness, chassis |
5-7-8 |
8 |
60086357 |
2 |
Clamp, harness |
5-7-9 |
9 |
60241902 |
1 |
horn |
5-7-10 |
10 |
60197034 |
1 |
Cluster fixed lace |
5-7-11 |
11 |
Modification or other |
1 |
Clamping clip |
5-7-11 |
11 |
60197033 |
1 |
Clamping clip |
5-7-12 |
12 |
A210111000343 |
2 |
Bolt M8×20GB5783 10.9 |
5-7-13 |
13 |
24000633 |
4 |
Washer |
5-7-14 |
14 |
A210210000030 |
2 |
Screw M4×12GB818 |
5-7-15 |
15 |
60060562 |
2 |
Washer |
5-7-16 |
16 |
A210111000293 |
2 |
Bolt M8×30GB5783 10.9 |
5-7-17 |
17 |
A210204000130 |
2 |
Screw M6×16GB70.1 |
5-7-18 |
18 |
24000632 |
2 |
Washer |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

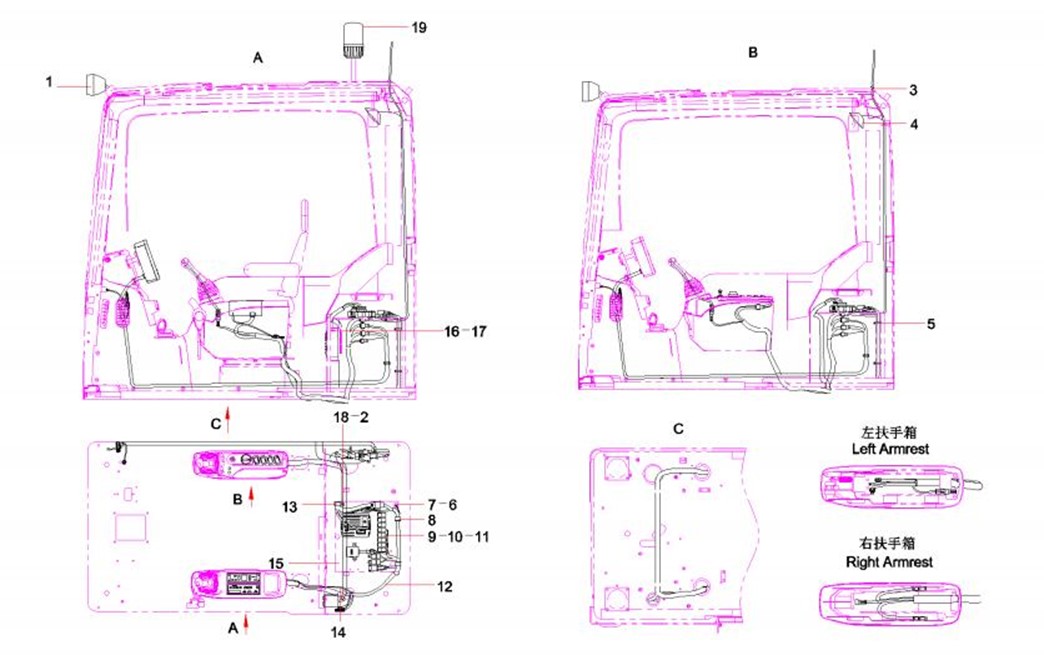

5-9-1 |
1 |
B241100000391 |
2 |
Lamp, working |
5-9-2 |
2 |
24000637 |
1 |
Washer |
5-9-3 |
3 |
60090606 |
1 |
Antenna |
5-9-4 |
4 |
60023703 |
1 |
Horn |
5-9-5 |
5 |
A239900000053 |
4 |
Tape, binding, nylon |
5-9-6 |
6 |
24000511 |
3 |
Washer |
5-9-7 |
7 |
A210111000342 |
3 |
Bolt M8×16GB5783 10.9 |
5-9-8 |
8 |
60197034 |
2 |
Cluster fixed lace |
5-9-9 |
9 |
B240700000250 |
5 |
Relay, auxiliary |
5-9-10 |
10 |
A210210000030 |
8 |
Screw M4×12GB818 |
5-9-11 |
11 |
60060562 |
6 |
Washer |
5-9-12 |
12 |
13468655 |
1 |
Cab Harness |
5-9-13 |
13 |
60086356 |
1 |
Clamp, harness |
5-9-14 |
14 |
60060300 |
1 |
Extension, antenna |
5-9-15 |
15 |
12333441 |
1 |
Electrical assembly |
5-9-16 |
16 |
A210210000017 |
2 |
Screw M6×20GB818 |
5-9-17 |
17 |
24000632 |
2 |
Washer |
5-9-18 |
18 |
A210111000012 |
1 |
Bolt M10×20GB5783 10.9 |
5-9-19 |
19 |
A241100000547 |
1 |
Light, alarm, audible and visual |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

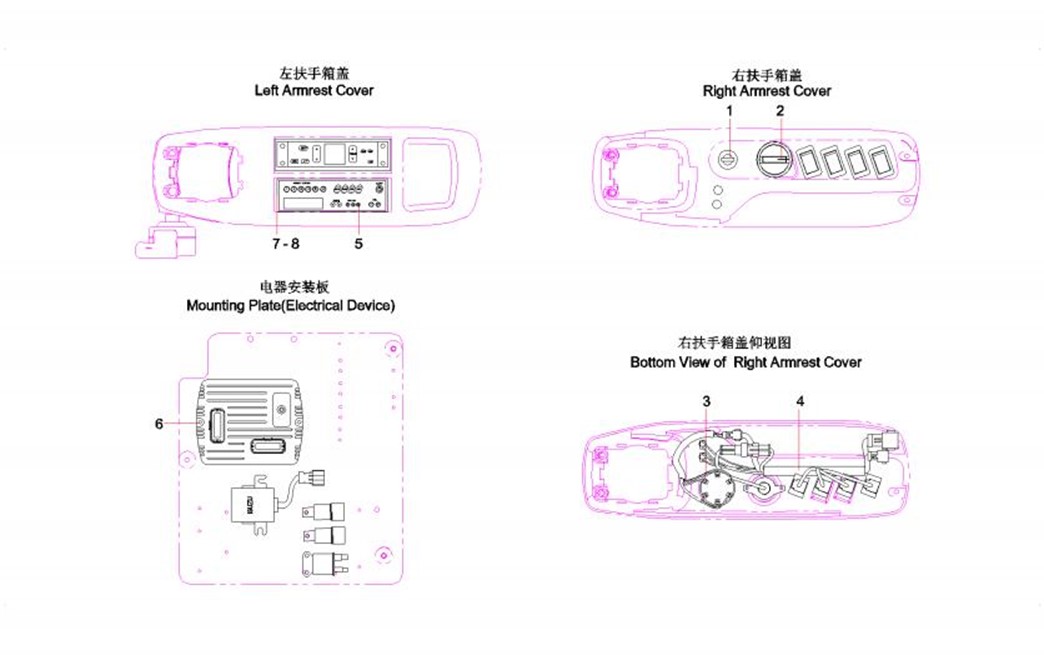

5-11-1 |
1 |
A241200001217 |
1 |
Switch, ignition |
5-11-2 |
2 |
60117463 |
1 |
Switch, fuel control |
5-11-3 |
3 |
A230200000021 |
1 |
Tape, electric, PVC |
5-11-4 |
4 |
13226597 |
1 |
SY135C9 28335 display control |
5-11-5 |
5 |
60205002 |
1 |
Radio |
5-11-6 |
6 |
A210210000027 |
2 |
Screw M6×30GB818 |
5-11-7 |
7 |
A210204000115 |
2 |
Screw M5×12GB70.1 |
5-11-8 |
8 |
24000509 |
2 |
Washer |
