SANY SY135C SY135C9 SY135C9I2K BR EXCAVATOR parts catalog 31
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
4-25-1 |
1 |
B210780000191 |
1 |
Nut M08LA3CX |
4-25-2 |
2 |
B229900001092 |
1 |
Sleeve, special |
4-25-3 |
3 |
A820205001235 |
1 |
Connector |

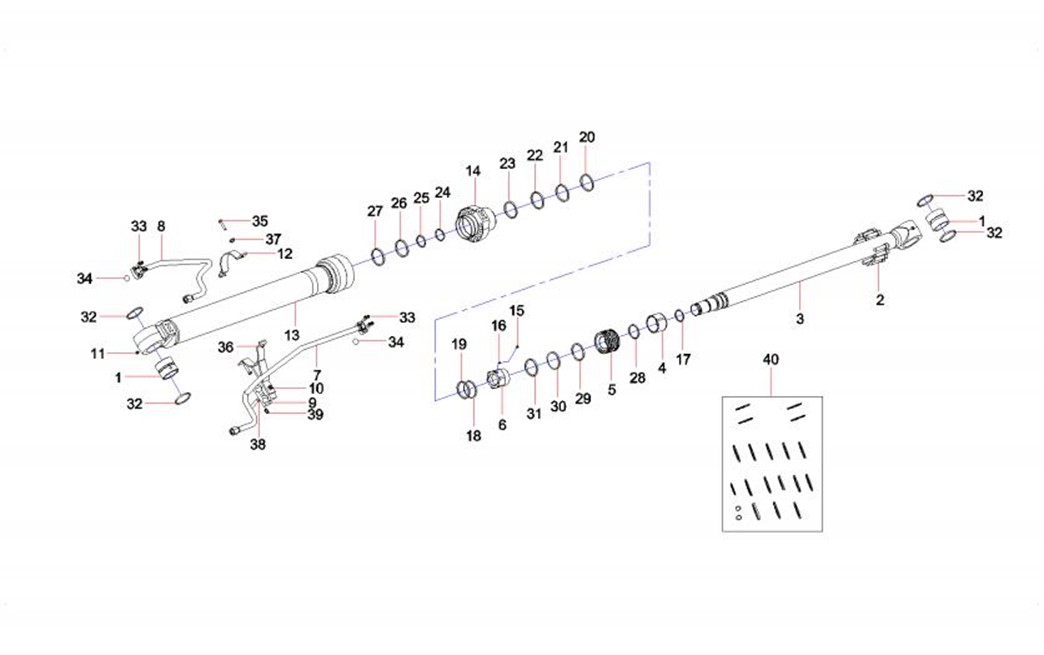

IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
4-27-1 |
1 |
60084691 |
2 |
Sleeve, shaft |
4-27-2 |
2 |
A210204000298 |
12 |
Screw M14×65GB70.1 |
4-27-3 |
3 |
60084705 |
1 |
Rod, piston |
4-27-4 |
4 |
60080485 |
1 |
Sleeve, buffer |
4-27-5 |
5 |
60084703 |
1 |
Piston |
4-27-6 |
6 |
60084742 |
1 |
Nut M56×2Q/HL04 |
4-27-7 |
7 |
60084689 |
1 |
Pipeline GP, boom |
4-27-8 |
8 |
60084690 |
1 |
Pipe GP, boom, right |
4-27-9 |
9 |
60084716 |
2 |
Plate, pressure |
4-27-10 |
10 |
A210307000025 |
1 |
Nut M14GB6170 |
4-27-11 |
11 |
A880899010002 |
2 |
Cup, oil |
4-27-12 |
12 |
60084709 |
1 |
Clamp GP |
4-27-13 |
13 |
60084701 |
1 |
Cylinder block |
4-27-14 |
14 |
60084696 |
1 |
Cover, end |
4-27-15 |
15 |
60084741 |
1 |
Screw M10×12GB80 |
4-27-16 |
16 |
60080467 |
1 |
Ball, steel |
4-27-17 |
17 |
60084694 |
1 |
Gasket |
4-27-18 |
18 |
60084712 |
1 |
Bushing, copper |
4-27-19 |
19 |
A880808070027 |
1 |
Ring, dust |
4-27-20 |
20 |
60084740 |
1 |
Ring, retaining |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
4-29-21 |
21 |
60080538 |
1 |
Ring, seal |
4-29-22 |
22 |
60084711 |
1 |
Ring, retainer, switch |
4-29-23 |
23 |
60084719 |
1 |
Ring, buffer |
4-29-24 |
24 |
60084729 |
1 |
Sleeve, sliding |
4-29-25 |
25 |
60084693 |
1 |
Ring, retaining |
4-29-26 |
26 |
A210609000089 |
1 |
O-Ring |
4-29-27 |
27 |
60084692 |
1 |
Ring, retaining |
4-29-28 |
28 |
60084745 |
1 |
Ring, buffer |
4-29-29 |
29 |
60084734 |
2 |
Ring, guide |
4-29-30 |
30 |
60084737 |
1 |
Ring, seal |
4-29-31 |
31 |
60084723 |
2 |
Ring, contaminant |
4-29-32 |
32 |
60038830 |
4 |
Ring, dust |
4-29-33 |
33 |
A210204000164 |
8 |
Screw M8×30GB70.1 |
4-29-34 |
34 |
B230101000656 |
2 |
O-ring |
4-29-35 |
35 |
60021558 |
2 |
Bolt M10×35GB5780 |
4-29-36 |
36 |
A210307000036 |
2 |
Nut M10GB6170 10 |
4-29-37 |
37 |
A210400000001 |
2 |
Washer 10GB93 |
4-29-38 |
38 |
A210110000030 |
1 |
Bolt M14×80GB5782 |
4-29-39 |
39 |
A210401000003 |
1 |
Washer 14GB93 |
4-29-40 |
40 |
60082858 |
1 |
Repair kit, cylinder, boom |

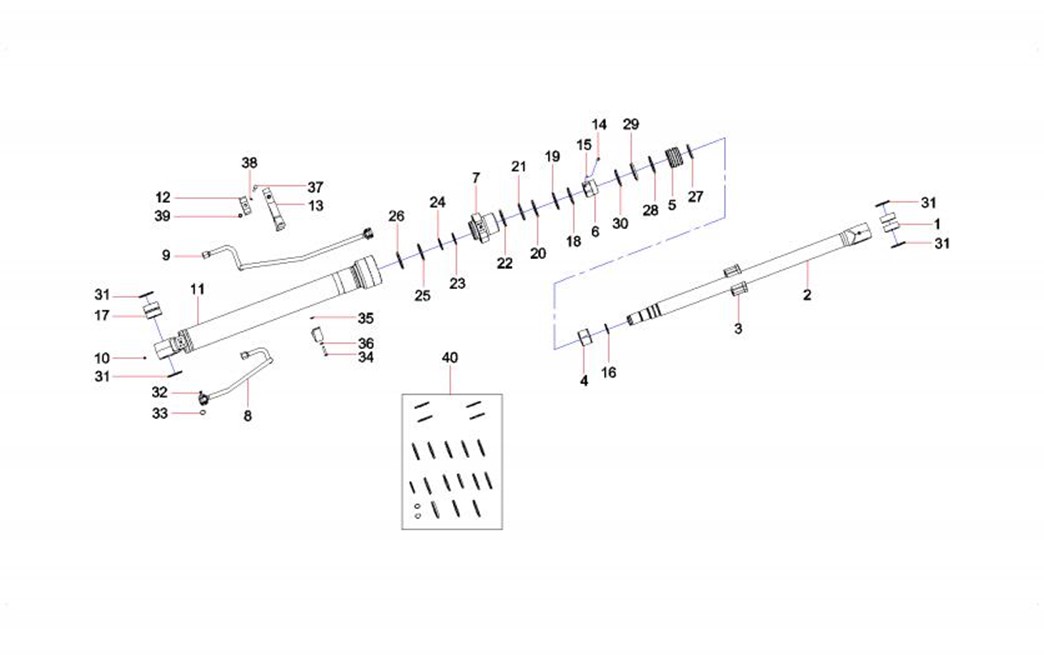

IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
4-31-1 |
1 |
60084691 |
2 |
Sleeve, shaft |
4-31-2 |
2 |
60084705 |
1 |
Rod, piston |
4-31-3 |
3 |
A210204000298 |
12 |
Screw M14×65GB70.1 |
4-31-4 |
4 |
60080485 |
1 |
Sleeve, buffer |
4-31-5 |
5 |
60084703 |
1 |
Piston |
4-31-6 |
6 |
60084742 |
1 |
Nut M56×2Q/HL04 |
4-31-7 |
7 |
60084696 |
1 |
Cover, end |
4-31-8 |
8 |
60084690 |
1 |
Pipe GP, boom, right |
4-31-9 |
9 |
60084689 |
1 |
Pipeline GP, boom |
4-31-10 |
10 |
A880899010002 |
2 |
Cup, oil |
4-31-11 |
11 |
60084701 |
1 |
Cylinder block |
4-31-12 |
12 |
60084716 |
2 |
Plate, pressure |
4-31-13 |
13 |
60084709 |
1 |
Clamp GP |
4-31-14 |
14 |
60084741 |
1 |
Screw M10×12GB80 |
4-31-15 |
15 |
60080467 |
1 |
Ball, steel |
4-31-16 |
16 |
60084694 |
1 |
Gasket |
4-31-17 |
17 |
60084712 |
1 |
Bushing, copper |
4-31-18 |
18 |
A880808070027 |
1 |
Ring, dust |
4-31-19 |
19 |
60084740 |
1 |
Ring, retaining |
4-31-20 |
20 |
60080538 |
1 |
Ring, seal |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
4-33-21 |
21 |
60084711 |
1 |
Ring, retainer, switch |
4-33-22 |
22 |
60084719 |
1 |
Ring, buffer |
4-33-23 |
23 |
60084729 |
1 |
Sleeve, sliding |
4-33-24 |
24 |
60084693 |
1 |
Ring, retaining |
4-33-25 |
25 |
A210609000089 |
1 |
O-Ring |
4-33-26 |
26 |
60084692 |
1 |
Ring, retaining |
4-33-27 |
27 |
60084745 |
1 |
Ring, buffer |
4-33-28 |
28 |
60084734 |
2 |
Ring, guide |
4-33-29 |
29 |
60084737 |
1 |
Ring, seal |
4-33-30 |
30 |
60084723 |
2 |
Ring, contaminant |
4-33-31 |
31 |
60038830 |
4 |
Ring, dust |
4-33-32 |
32 |
A210204000164 |
8 |
Screw M8×30GB70.1 |
4-33-33 |
33 |
B230101000656 |
2 |
O-ring |
4-33-34 |
34 |
60021558 |
2 |
Bolt M10×35GB5780 |
4-33-35 |
35 |
A210307000036 |
2 |
Nut M10GB6170 10 |
4-33-36 |
36 |
A210400000001 |
2 |
Washer 10GB93 |
4-33-37 |
37 |
A210110000030 |
1 |
Bolt M14×80GB5782 |
4-33-38 |
38 |
A210401000003 |
1 |
Washer 14GB93 |
4-33-39 |
39 |
A210307000025 |
1 |
Nut M14GB6170 |
4-33-40 |
40 |
60082858 |
1 |
Repair kit, cylinder, boom |

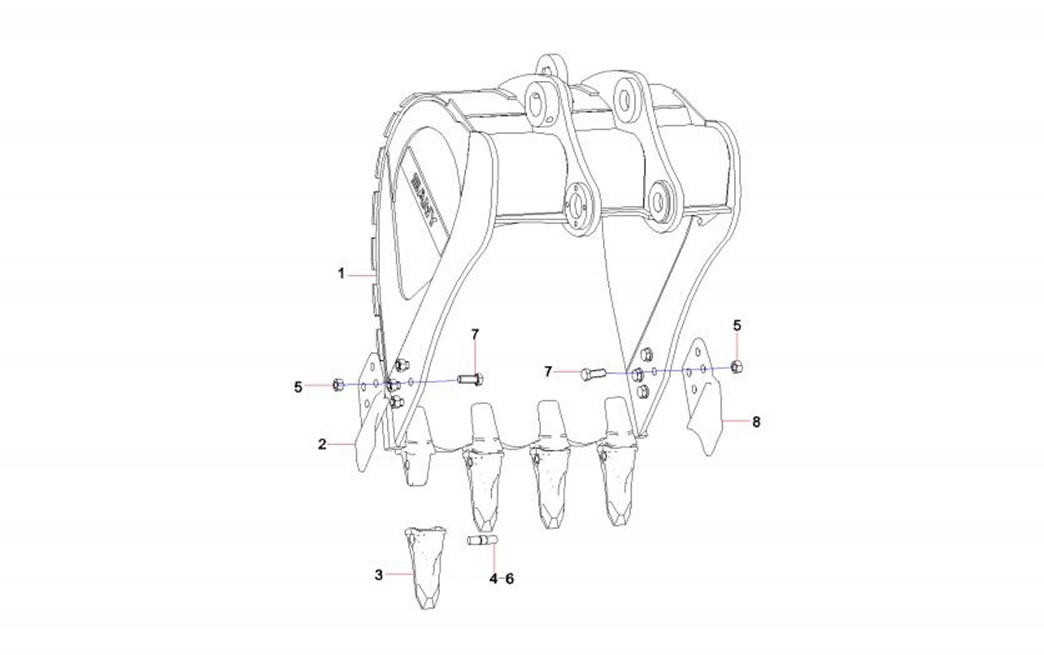

IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
4-35-1 |
1 |
12424301 |
1 |
bucketSY125C6C2K.3.4.1A |
4-35-2 |
2 |
A229900007131 |
1 |
Cutter, side |
4-35-3 |
3 |
11902148 |
5 |
Tooth, bucket |
4-35-4 |
4 |
11902152 |
5 |
Pin |
4-35-5 |
5 |
60012073 |
8 |
Nut |
4-35-6 |
6 |
11902151 |
5 |
Spring, snap |
4-35-7 |
7 |
A210111000301 |
8 |
Screw |
4-35-8 |
8 |
A229900007130 |
1 |
Cutter, side |
