SANY SY135C SY135C9 SY135C9I2K BR EXCAVATOR parts catalog 30
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

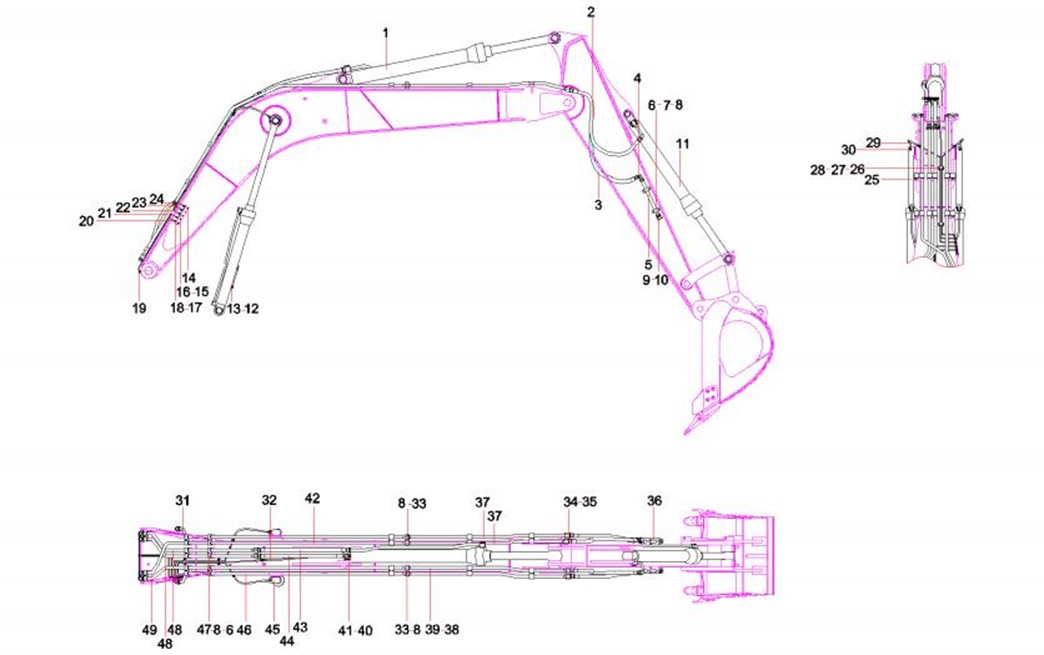

4-13-20 |
20 |
12043208 |
1 |
Tube, grease |
4-13-21 |
21 |
12043218 |
1 |
Tube, grease |
4-13-22 |
22 |
12043226 |
1 |
Tube, grease |
4-13-23 |
23 |
12043349 |
1 |
Tube, grease |
4-13-24 |
24 |
12043362 |
1 |
Tube, grease |
4-13-25 |
25 |
60024872 |
1 |
Cylinder, boom, left |
4-13-26 |
26 |
A820101345161 |
2 |
Clamp, pipe |
4-13-27 |
27 |
A210204000339 |
6 |
Screw M8×12GB70.1 10.9 |
4-13-28 |
28 |
24000511 |
6 |
Washer |
4-13-29 |
29 |
B230103005361 |
2 |
Hose |
4-13-30 |
30 |
60262245 |
3 |
Adapter 1CT-14-02SP |
4-13-31 |
31 |
12892760 |
1 |
steel pipe assembly of |
4-13-32 |
32 |
B230103000995 |
1 |
Hose |
4-13-33 |
33 |
A210204000215 |
16 |
Screw M10×35GB70.1 10.9 |
4-13-34 |
34 |
B230101000356 |
15 |
O-ring 23.7×3.5JISB2401 |
4-13-35 |
35 |
A820205002473 |
15 |
Connector |
4-13-36 |
36 |
10792058 |
1 |
Pipe, steel |
4-13-37 |
37 |
12043189 |
2 |
Pipe GP,steel |
4-13-38 |
38 |
12042264 |
2 |
Pipe GP,steel |
4-13-39 |
39 |
A210609000136 |
4 |
O-ring 29.7×3.5JISB2401 |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
4-15-40 |
40 |
A210204000354 |
4 |
Screw M10×30GB70.1 10.9 |
4-15-41 |
41 |
B210780000696 |
2 |
Flange, split |
4-15-42 |
42 |
12625362 |
1 |
steel pipe assembly of bucket |
4-15-43 |
43 |
60043082 |
1 |
Hose |
4-15-44 |
44 |
60259939 |
1 |
rubber hose |
4-15-45 |
45 |
60024871 |
1 |
Cylinder, boom, right |
4-15-46 |
46 |
12892762 |
1 |
steel pipe assembly of |
4-15-47 |
47 |
12043398 |
14 |
Clamp, pipe |
4-15-48 |
48 |
12625262 |
2 |
steel pipe assembly of arm |
4-15-49 |
49 |
12625300 |
1 |
steel pipe assembly of bucket |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

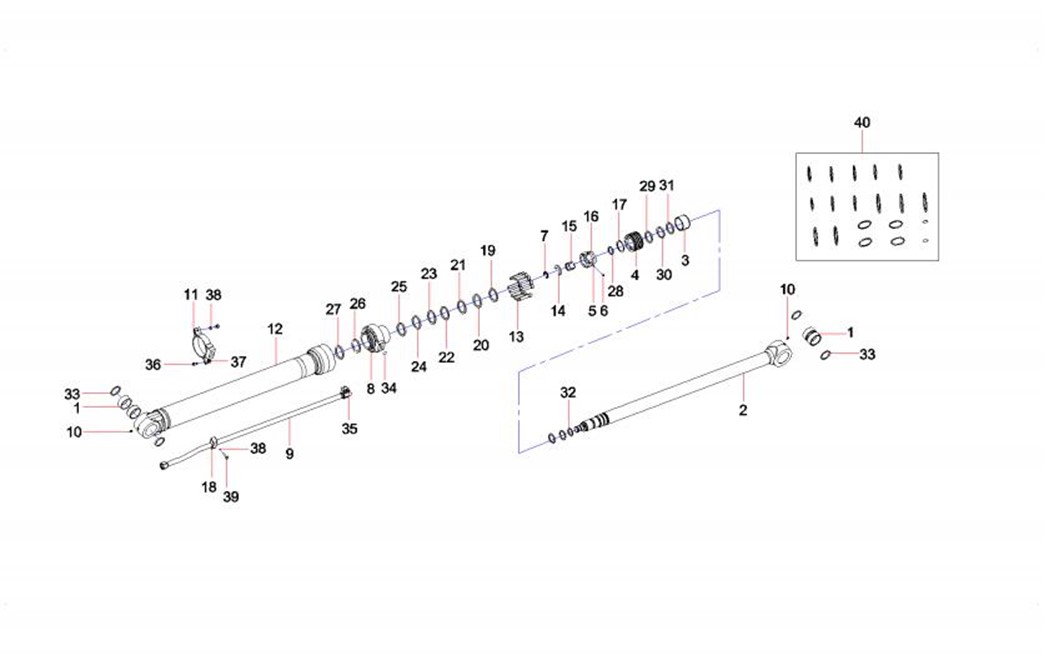

4-17-1 |
1 |
60084724 |
4 |
Sleeve, shaft |
4-17-2 |
2 |
60084706 |
1 |
Rod, piston |
4-17-3 |
3 |
60065192 |
1 |
Jacket, buffer, bucket |
4-17-4 |
4 |
60084704 |
1 |
Piston |
4-17-5 |
5 |
21010039 |
1 |
Steel Ball |
4-17-6 |
6 |
24000487 |
1 |
Bolt |
4-17-7 |
7 |
60084721 |
1 |
Ring, retainer |
4-17-8 |
8 |
60084697 |
1 |
Cover, end |
4-17-9 |
9 |
60084717 |
1 |
Pipe GP, oil, rod end |
4-17-10 |
10 |
A210804000002 |
2 |
Cup, oil M10×1JB7940.1 |
4-17-11 |
11 |
60084710 |
1 |
Hoop GP |
4-17-12 |
12 |
60084699 |
1 |
Block, cylinder |
4-17-13 |
13 |
24000778 |
12 |
Bolt |
4-17-14 |
14 |
60084727 |
1 |
Ring, retaining |
4-17-15 |
15 |
60084746 |
1 |
Sleeve, buffer |
4-17-16 |
16 |
60065311 |
1 |
Nut |
4-17-17 |
17 |
60084695 |
1 |
Shim |
4-17-18 |
18 |
60084715 |
1 |
Clamp |
4-17-19 |
19 |
60065244 |
1 |
Ring, retaining |
4-17-20 |
20 |
60017174 |
1 |
DKBI-ring, dustproof |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
4-19-21 |
21 |
60065354 |
1 |
Ring, seal |
4-19-22 |
22 |
60065309 |
1 |
Ring, retainer, switch |
4-19-23 |
23 |
60065201 |
1 |
Ring, buffer |
4-19-24 |
24 |
60084730 |
1 |
Sleeve, sliding |
4-19-25 |
25 |
60065243 |
1 |
Ring, retaining |
4-19-26 |
26 |
24001034 |
1 |
O-Ring |
4-19-27 |
27 |
60084726 |
1 |
Ring, retaining |
4-19-28 |
28 |
60084735 |
1 |
Ring, buffer |
4-19-29 |
29 |
60065334 |
2 |
Ring, guide |
4-19-30 |
30 |
60065348 |
1 |
Ring, seal |
4-19-31 |
31 |
60065214 |
1 |
Ring, contaminant |
4-19-32 |
32 |
60084748 |
1 |
Ring, buffer |
4-19-33 |
33 |
60038830 |
4 |
Ring, dust |
4-19-34 |
34 |
21018402 |
1 |
O-ring |
4-19-35 |
35 |
A210204000163 |
4 |
Screw M10×35GB70.1 |
4-19-36 |
36 |
60021558 |
2 |
Bolt M10×35GB5780 |
4-19-37 |
37 |
24000867 |
2 |
Nut |
4-19-38 |
38 |
A210400000001 |
3 |
Washer 10GB93 |
4-19-39 |
39 |
A210108000004 |
1 |
Bolt |
4-19-40 |
40 |
60082862 |
1 |
Repair kit, arm cylinder |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

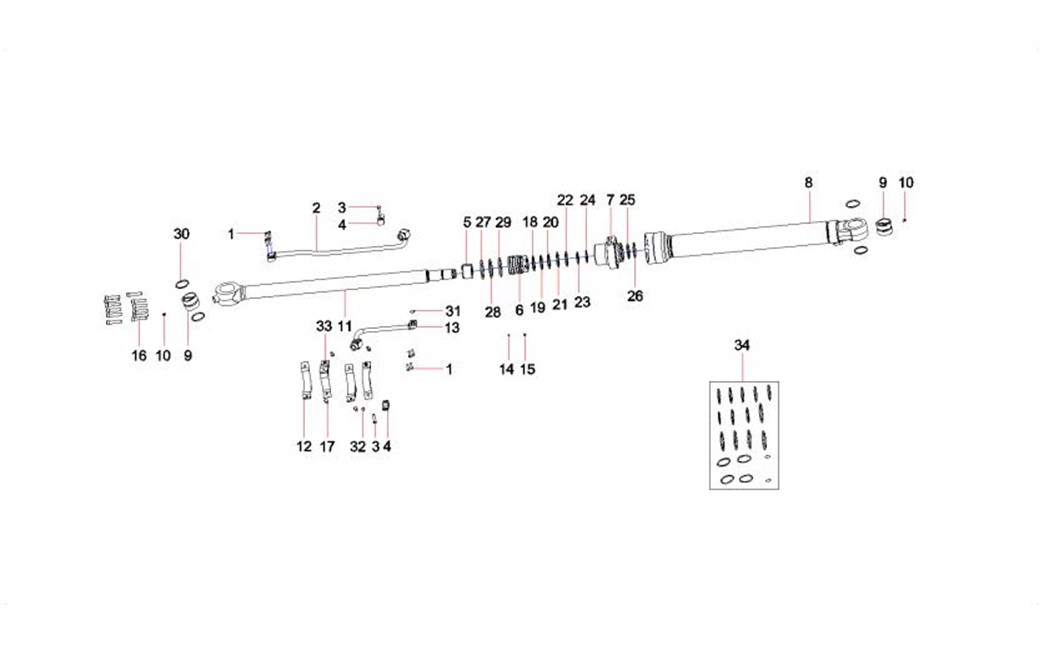

4-21-1 |
1 |
A210204000164 |
8 |
Screw M8×30GB70.1 |
4-21-2 |
2 |
60084718 |
1 |
Pipe GP, oil, rod end |
4-21-3 |
3 |
A210111000028 |
2 |
Bolt M10×45GB5783 |
4-21-4 |
4 |
60084714 |
2 |
Clamp |
4-21-5 |
5 |
60084747 |
1 |
Jacket, buffer |
4-21-6 |
6 |
60084702 |
1 |
Piston |
4-21-7 |
7 |
60084698 |
1 |
Head, cylinder |
4-21-8 |
8 |
60084700 |
1 |
Block, cylinder |
4-21-9 |
9 |
60084731 |
2 |
Sleeve, shaft |
4-21-10 |
10 |
A210804000002 |
2 |
Cup, oil M10×1JB7940.1 |
4-21-11 |
11 |
60084707 |
1 |
Rod, piston |
4-21-12 |
12 |
60084708 |
2 |
Hoop GP |
4-21-13 |
13 |
60084713 |
1 |
Pipe GP, oil, head end |
4-21-14 |
14 |
60080467 |
1 |
Ball, steel |
4-21-15 |
15 |
60020647 |
1 |
Set screw, socket head |
4-21-16 |
16 |
A210204000298 |
12 |
Screw M14×65GB70.1 |
4-21-17 |
17 |
60021558 |
4 |
Bolt M10×35GB5780 |
4-21-18 |
18 |
60038829 |
1 |
Ring, dust |
4-21-19 |
19 |
60084739 |
1 |
Ring, retaining |
4-21-20 |
20 |
60080537 |
1 |
Ring, seal |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
4-23-21 |
21 |
60080511 |
1 |
Ring, retainer, switch |
4-23-22 |
22 |
60084720 |
1 |
Ring, buffer |
4-23-23 |
23 |
60084728 |
1 |
Sleeve, sliding |
4-23-24 |
24 |
60084738 |
1 |
Ring, retaining |
4-23-25 |
25 |
B230101000983 |
1 |
O-ring 91.67×3.53AS568-239 |
4-23-26 |
26 |
60084725 |
1 |
Ring, retaining |
4-23-27 |
27 |
60084736 |
1 |
Ring, seal |
4-23-28 |
28 |
60080415 |
2 |
Ring, guide |
4-23-29 |
29 |
60084722 |
2 |
Ring, contaminant |
4-23-30 |
30 |
A880808070030 |
4 |
Ring, dust |
4-23-31 |
31 |
B230101000656 |
2 |
O-ring |
4-23-32 |
32 |
A210400000001 |
4 |
Washer 10GB93 |
4-23-33 |
33 |
24000867 |
4 |
Nut |
4-23-34 |
34 |
60082854 |
1 |
Repair kit, bucket cylinder |
