SANY SY220C SY220C9 SY220C9M2K EXCAVATOR parts catalog 08
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

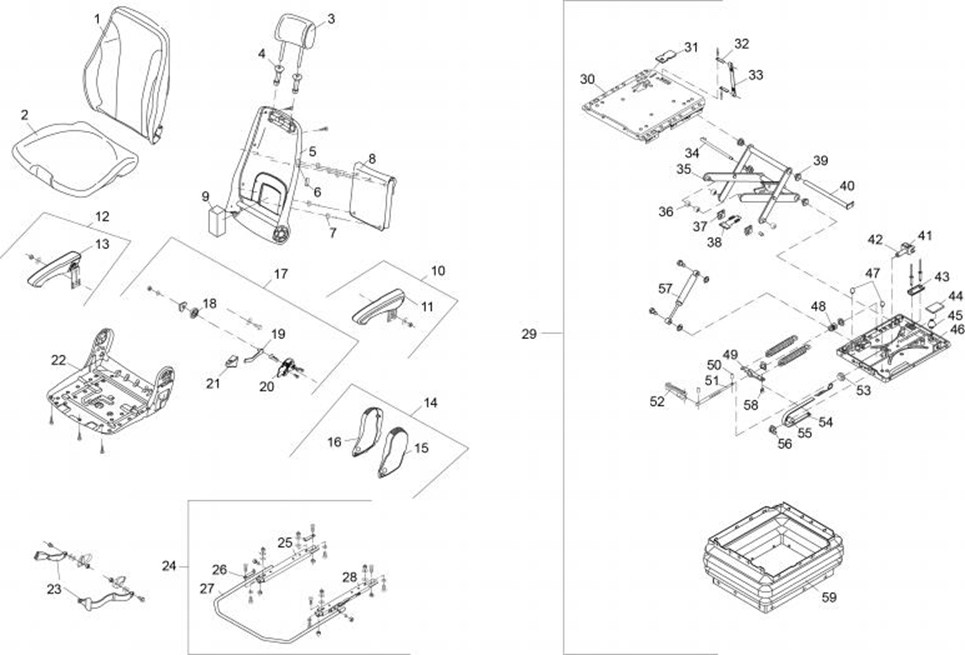

2-59-21 |
21 |
60153751 |
1 |
Handle, angle adjustment |
2-59-22 |
22 |
60153812 |
1 |
Framework, seat |
2-59-23 |
23 |
60153695 |
1 |
Seat belt |
2-59-24 |
24 |
60153746 |
1 |
Rail AS |
2-59-25 |
25 |
60153796 |
1 |
Rail, right |
2-59-26 |
26 |
60153752 |
1 |
Support, angle |
2-59-27 |
27 |
60153651 |
1 |
Bar, limit |
2-59-28 |
28 |
60153809 |
1 |
Rail, left |
2-59-29 |
29 |
60153814 |
1 |
Suspension AS, seat |
2-59-30 |
30 |
60153811 |
1 |
Plate, seat-holding |
2-59-31 |
31 |
60153656 |
1 |
Panel |
2-59-32 |
32 |
60153646 |
1 |
Panel |
2-59-33 |
33 |
60153696 |
1 |
Belt, safety, short |
2-59-34 |
34 |
60153701 |
1 |
Pin |
2-59-35 |
35 |
60153790 |
1 |
Rocker AS |
2-59-36 |
36 |
60153739 |
1 |
Roll |
2-59-37 |
37 |
60153733 |
1 |
Separator |
2-59-38 |
38 |
60153647 |
1 |
Strip |
2-59-39 |
39 |
60153822 |
1 |
Sleeve |
2-59-40 |
40 |
60153700 |
1 |
Pin |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-61-41 |
41 |
60153802 |
1 |
Roller, bearing |
2-61-42 |
42 |
60153657 |
1 |
Support |
2-61-43 |
43 |
60153617 |
1 |
Profile, U-shaped |
2-61-44 |
44 |
60153817 |
1 |
Plate, rubber |
2-61-45 |
45 |
60153679 |
1 |
Damper |
2-61-46 |
46 |
60153813 |
1 |
Plate, bottom, suspension |
2-61-47 |
47 |
60153691 |
1 |
Damper |
2-61-48 |
48 |
60153801 |
1 |
Race, ball,bearing |
2-61-49 |
49 |
60153707 |
1 |
Hanger, spring |
2-61-50 |
50 |
60153712 |
1 |
Pin, cylindrical |
2-61-51 |
51 |
60153699 |
1 |
Pin |
2-61-52 |
52 |
60153619 |
1 |
Trigger |
2-61-53 |
53 |
60153703 |
1 |
Bushing |
2-61-54 |
54 |
60153799 |
1 |
Indicator |
2-61-55 |
55 |
60153740 |
1 |
Roller |
2-61-56 |
56 |
60153820 |
1 |
Scale |
2-61-57 |
57 |
60153680 |
1 |
Damper |
2-61-58 |
58 |
60153738 |
1 |
Pin, retainer |
2-61-59 |
59 |
60153644 |
1 |
Bellow |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

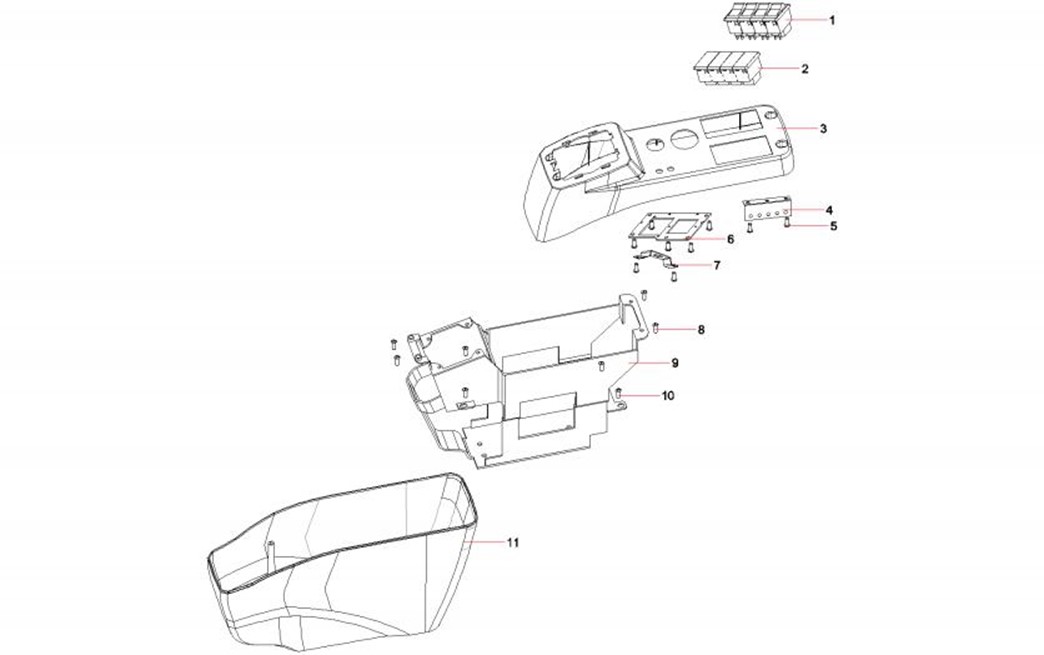

2-63-1 |
1 |
A241200000121 |
1 |
Switch,seesaw |
2-63-2 |
2 |
60309919 |
1 |
4-section frame |
2-63-3 |
3 |
60307220 |
1 |
Right armrest box upper cover |
2-63-4 |
4 |
60309924 |
1 |
bracket |
2-63-5 |
5 |
A210210000006 |
9 |
Screw |
2-63-6 |
6 |
60309925 |
1 |
bracket |
2-63-7 |
7 |
60309915 |
1 |
bracket |
2-63-8 |
8 |
A210210000017 |
4 |
Screw M6×20GB818 |
2-63-9 |
9 |
60309927 |
1 |
bracket |
2-63-10 |
10 |
A210210000008 |
4 |
Screw M6×16GB818 |
2-63-11 |
11 |
60309922 |
1 |
down housing |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

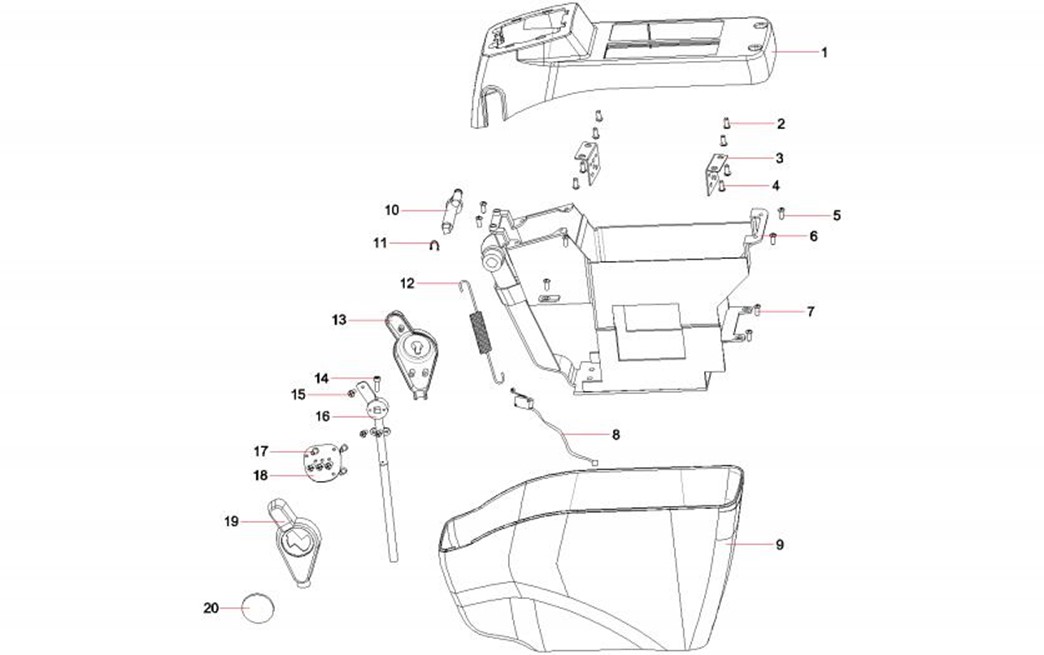

2-65-1 |
1 |
60307219 |
1 |
Left armrest box upper cover |
2-65-2 |
2 |
A210210000006 |
4 |
Screw |
2-65-3 |
3 |
60309918 |
2 |
bracket |
2-65-4 |
4 |
A210210000002 |
4 |
Screw |
2-65-5 |
5 |
A210210000017 |
4 |
Screw M6×20GB818 |
2-65-6 |
6 |
60309930 |
1 |
bracket |
2-65-7 |
7 |
A210210000008 |
4 |
Screw M6×16GB818 |
2-65-8 |
8 |
60309921 |
1 |
inching switch |
2-65-9 |
9 |
60309922 |
1 |
down housing |
2-65-10 |
10 |
60309920 |
1 |
camshaft |
2-65-11 |
11 |
60309917 |
1 |
clip |
2-65-12 |
12 |
60309914 |
1 |
spring |
2-65-13 |
13 |
60309929 |
1 |
left end cover |
2-65-14 |
14 |
60062048 |
1 |
Screw |
2-65-15 |
15 |
A210210000015 |
6 |
Screw |
2-65-16 |
16 |
60309923 |
1 |
leading rod |
2-65-17 |
17 |
A210210000009 |
3 |
Screw |
2-65-18 |
18 |
60309916 |
1 |
connecting board |
2-65-19 |
19 |
60309926 |
1 |
right end cover |
2-65-20 |
20 |
60309928 |
1 |
round cover |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

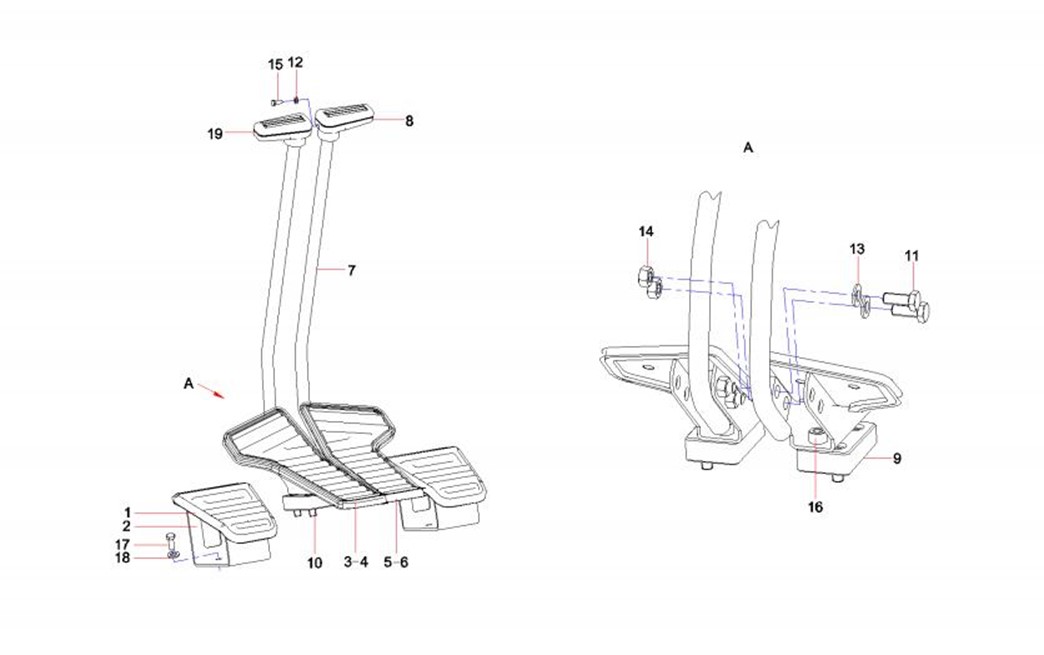

2-67-1 |
1 |
12002592 |
2 |
Sleeve, foot valve |
2-67-2 |
2 |
12004584 |
2 |
Foot rest |
2-67-3 |
3 |
12003641 |
1 |
Plate GP,foot valve |
2-67-4 |
4 |
12009258 |
1 |
Sheath, plate, butterfly footrest |
2-67-5 |
5 |
12009972 |
1 |
Plate GP,foot valve |
2-67-6 |
6 |
12010268 |
1 |
Sleeve, plate,foot valve |
2-67-7 |
7 |
13162846 |
2 |
Control LeverSY215C9.1.5.2.1 |
2-67-8 |
8 |
12691132 |
1 |
Handle, right |
2-67-9 |
9 |
11571909 |
2 |
Block, connection |
2-67-10 |
10 |
A210204000196 |
4 |
Screw M10×20GB70.1 |
2-67-11 |
11 |
A210111000197 |
4 |
Bolt M10×25GB5783 10.9 |
2-67-12 |
12 |
60060562 |
2 |
Washer |
2-67-13 |
13 |
24000637 |
4 |
Washer |
2-67-14 |
14 |
A210307000036 |
4 |
Nut |
2-67-15 |
15 |
A210210000030 |
2 |
Screw M4×12GB818 |
2-67-16 |
16 |
A210204000334 |
4 |
Screw |
2-67-17 |
17 |
A210204000340 |
4 |
Screw M8×16GB70.1 10.9 |
2-67-18 |
18 |
24000511 |
4 |
Washer |
2-67-19 |
19 |
12688927 |
1 |
Handle, left |
