识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

7-5-1

1

A241300000016

20

熔断器

Fuse 10-13.35A

7-5-2

2

A241300000017

10

熔断器

Fuse

7-5-3

3

A241300000018

10

熔断器

Fuse

7-5-4

4

A241300000019

15

熔断器5-6.75A 国产

Fuse

7-5-5

5

10722535

1

零部件图册SY700C(中文)

Parts Boom

7-5-6

6

60007712

1

发动机操作保养手册

Manual, operation and

7-5-7

7

A279900000038

1

挖掘机保养光碟

CD, excavator maintenance

7-5-8

8

A279900000037

1

三一挖掘机保养及保修手册

Manual, operation and

7-5-9

9

59003034

1

包装箱

Case, packing

7-5-10

10

59003026

1

包装箱

Box, packing

7-5-11

11

B260401010084

1

套筒

Socket

7-5-12

12

A550300000008

1

售后工作服(冬装)

Suit, working, service worker

7-5-13

13

10567878

1

随机工具

Tool, attached

7-5-14

14

A260401040005

1

活扳手

Wrench, adjustable

7-5-15

15

A260401090032

1

双头呆扳手

Spanner

7-5-16

16

B230101001658

2

DLI2防尘圈

Ring, dust

7-5-17

17

B230101001657

4

DLI防尘圈

Ring, dust

7-5-18

18

60162628

1

钥匙

Key

7-5-19

19

60205016

1

70T/85T回油滤芯

Oil Return Filter Element

7-5-20

20

60205015

1

70T/85T吸油滤芯

Oil Suction Filter Element

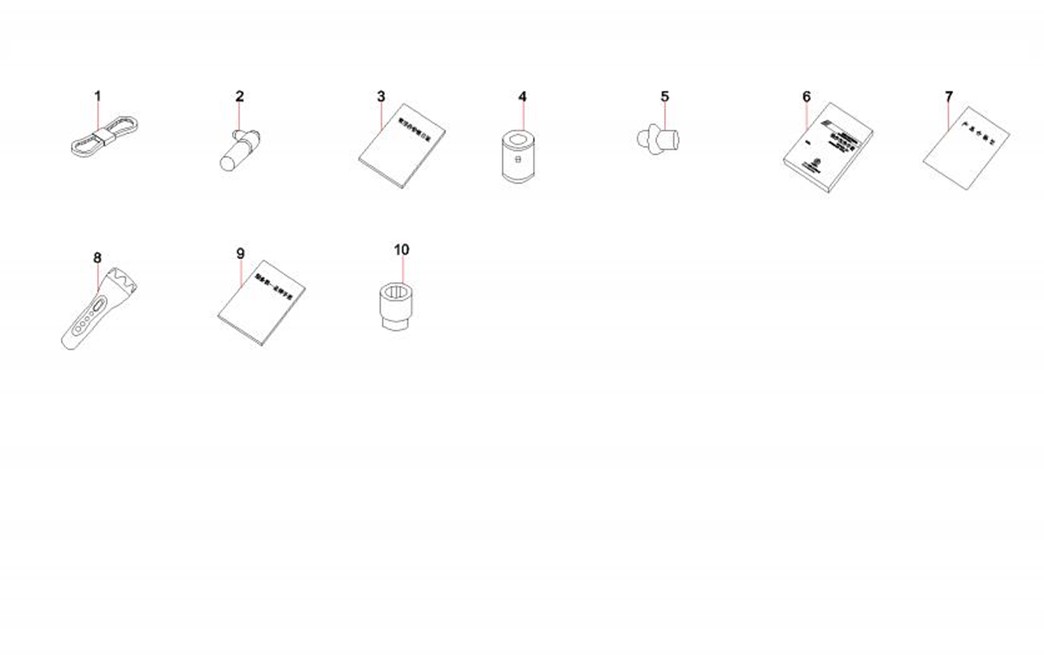

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

7-7-1

1

B230106000058

1

V带

V-belt

7-7-2

2

59001852

1

铁榔头

Hammer, iron

7-7-3

3

12252559

1

三一重机常用件价格目录

Catalog, spare part

7-7-4

4

A222100000119

1

先导滤芯

Element, pilot filter

7-7-5

5

A210804000002

20

黄油嘴

Fitting, Grease

7-7-6

6

11693468

1

SY700~850C履带式液压挖掘机操

Operation Manual

7-7-7

7

59000039

1

产品合格证

Certificate, product quality

7-7-8

8

A241100000596

1

手提工作灯

Flashlight

7-7-9

9

59006107

1

服务第一品牌手册

Brochure for No.1 Service Brand

7-7-10

10

21005869

1

手动套筒扳手套筒41(方孔

Sleeve,spanner,manual

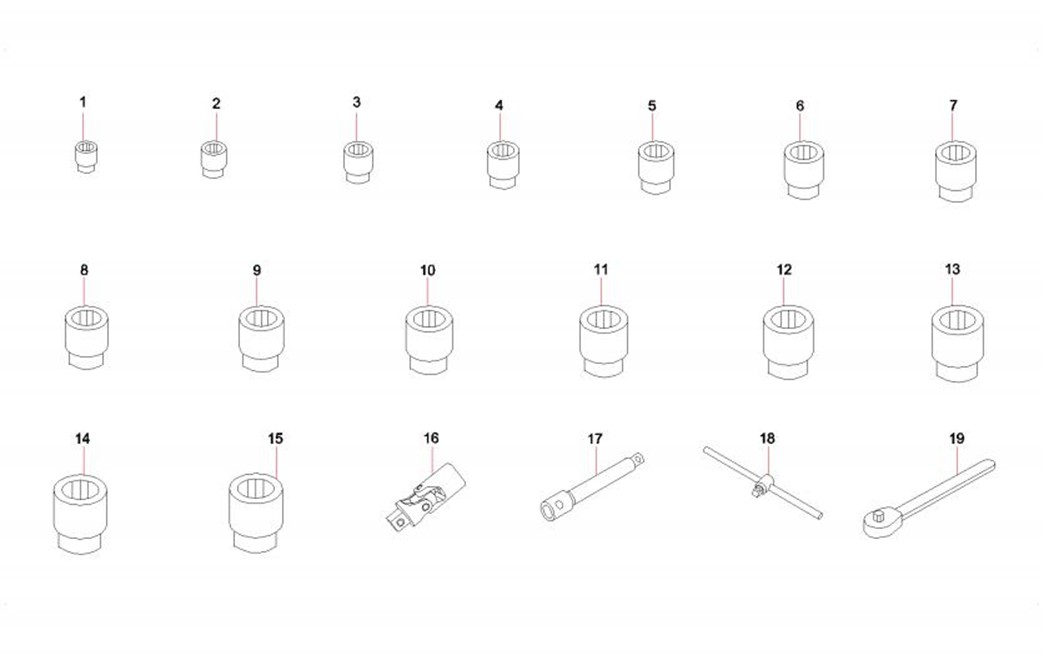

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

7-9-1

1

A260401010023

1

套筒

Socket 10×12.5GB3390.1

7-9-2

2

A260401010063

1

套筒

Socket 11×12.5GB3390.1

7-9-3

3

A260401010024

1

套筒

Socket 13×12.5GB3390.1

7-9-4

4

A260401010095

1

套筒

Socket 14×12.5LGB3390.1

7-9-5

5

A260401010025

1

套筒

Socket 16×12.5GB3390.1

7-9-6

6

A260401010077

1

套筒

Socket 17×12.5GB3390.1

7-9-7

7

60001295

1

套筒

Socket 18×12.5GB3390.1

7-9-8

8

A260401010081

1

套筒

Socket 19×12.5GB3390.1

7-9-9

9

A260401010027

1

套筒

Socket 21×12.5GB3390.1

7-9-10

10

A260401010078

1

套筒

Socket 22×12.5GB3390.1

7-9-11

11

A260401010051

1

套筒

Socket 24×12.5GB3390.1

7-9-12

12

A260401010031

1

套筒

Socket 27×20GB3390.1

7-9-13

13

A260401010037

1

套筒

Socket

7-9-14

14

A260401010055

1

套筒

Socket 30×20GB3390.1

7-9-15

15

A260401010057

1

套筒

Socket 36×20GB3390.1

7-9-16

16

A229900007607

1

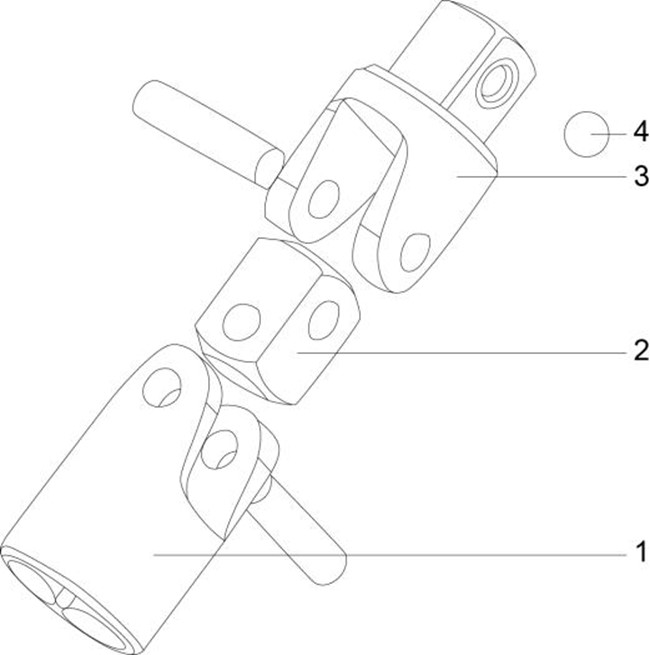

万向接头

Joint, universal

7-9-17

17

A260401010065

1

接杆

Rod, extension

7-9-18

18

60001293

1

滑行头手柄

T-tool

7-9-19

19

A260401090010

1

可逆式棘轮扳手

Wrench, ratchet, reversible

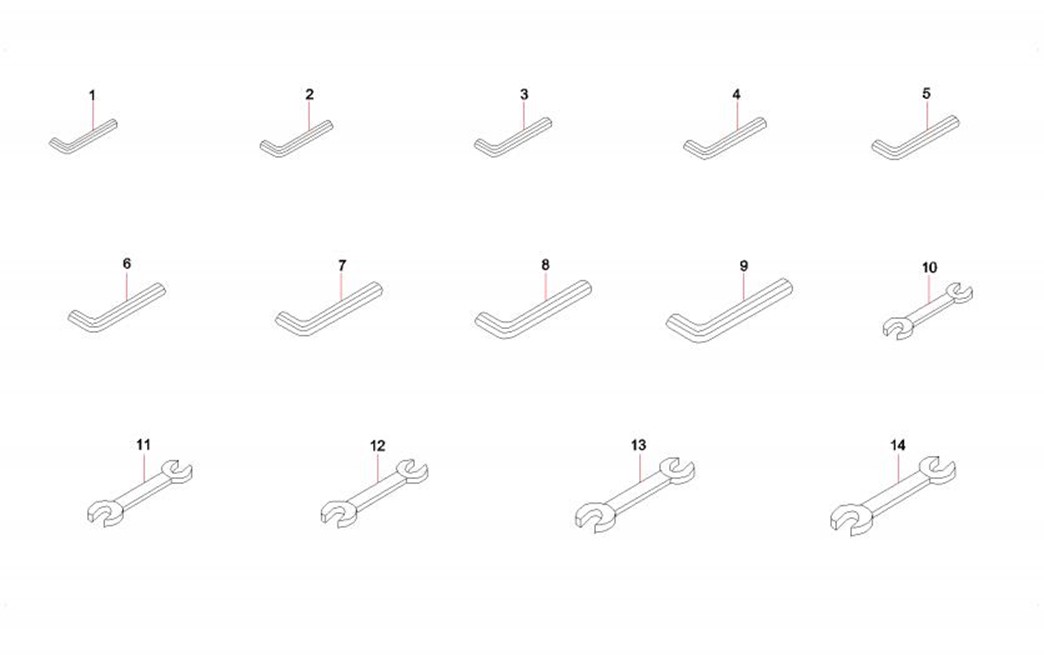

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

7-11-1

1

A260401020014

1

内六角扳手

Wrench, Allen 2.5RGB5356

7-11-2

2

A260401020015

1

内六角扳手

Wrench, Allen 3RGB5356

7-11-3

3

A260401020008

1

内六角扳手

Wrench, Allen 4RGB5356

7-11-4

4

A260401020009

1

内六角扳手

Wrench, Allen 5RGB5356

7-11-5

5

A260401020010

1

内六角扳手

Wrench, Allen 6RGB5356

7-11-6

6

A260401020011

1

内六角扳手

Wrench, Allen 8RGB5356

7-11-7

7

A260401020004

1

内六角扳手

Wrench, Allen 10RGB5356

7-11-8

8

B260401020048

1

内六角扳手

Wrench, Allen 14RGB5356

7-11-9

9

B260401020049

1

内六角扳手

Wrench, Allen 17RGB5356

7-11-10

10

A260401030002

1

双头呆扳手

Wrench, open-end 8×10GB4388

7-11-11

11

A260401030001

1

双头呆扳手

Wrench, open-end 12×14GB4388

7-11-12

12

A260401030027

1

双头呆扳手

Wrench, open-end 13×16GB4388

7-11-13

13

A260401030005

1

双头呆扳手

Wrench, open-end 17×19GB4388

7-11-14

14

A260401030029

1

双头呆扳手

Wrench, open-end 18×21GB4388

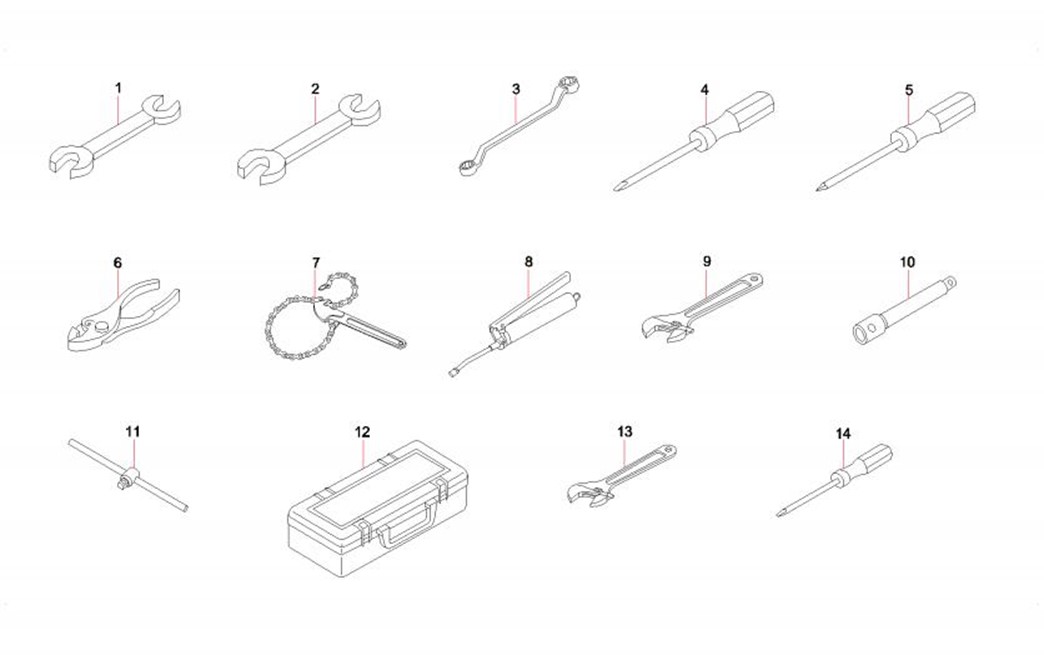

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

7-13-1

1

A260401030007

1

双头呆扳手

Wrench, open-end 22×24GB4388

7-13-2

2

A260401030008

1

双头呆扳手

Double-ended spanner

7-13-3

3

A260401030100

1

双头梅花扳手

Wrench, box-end 16×18GB4388

7-13-4

4

A260402010022

1

一字槽螺钉旋具

Slotted screw rotator

7-13-5

5

A260402020026

1

十字槽螺钉旋具

Cross slotted screw rotator

7-13-6

6

A260404000002

1

钢丝钳

Cutter, wire

7-13-7

7

60001296

1

链条扳手20节

Wrench, chain

7-13-8

8

B260409000015

1

高压黄油枪

Gun, grease, high pressure

7-13-9

9

A260401040004

1

活扳手

Spanner, adjustable

7-13-10

10

A260401010021

1

接杆

Rod, extension

7-13-11

11

60001294

1

滑行头手柄

T-tool

7-13-12

12

A290000000155

1

手提工具箱

Toolbox, portable

7-13-13

13

A260401040005

1

活扳手

Wrench, adjustable

7-13-14

14

A260402010013

1

一字槽螺钉旋具

Slotted screw rotator
