SANY SY700C SY700C2I2K EXCAVATOR parts catalog 43
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|

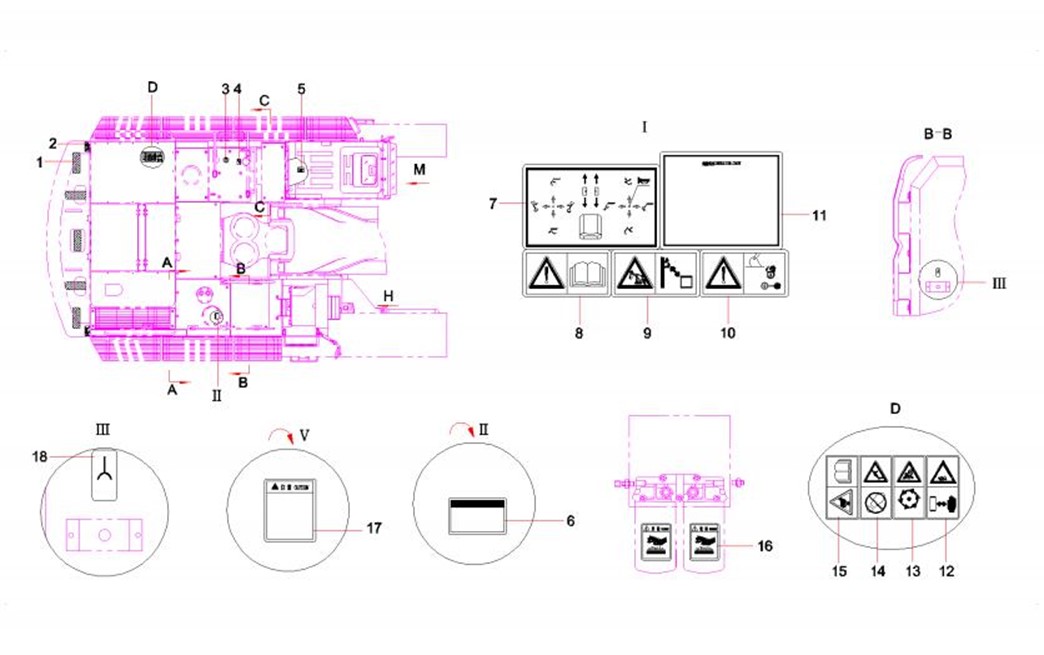

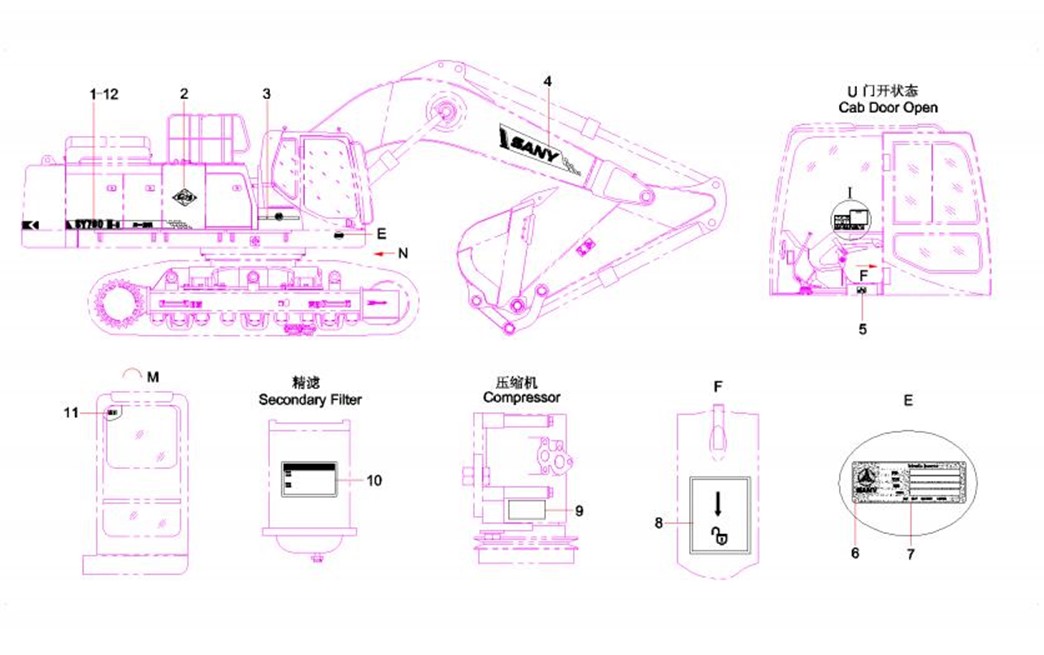

6-3-1 |
1 |
A820601990972 |
1 |
电源标志 |
Label, power supply |
|
6-3-2 |
2 |
12842974 |
1 |
三一标贴 |
Label, power socket |
|
6-3-3 |
3 |
A820601990969 |
1 |
安全出口标志 |
Label, emergency exit |
|
6-3-4 |
4 |
12722067 |
1 |
配重贴花 |
Decal, counterweight |
|
6-3-5 |
5 |
A820699001016 |
2 |
配重警示牌 |
Decal, warning, counterweight |
|
6-3-6 |
6 |
12727594 |
1 |
配重反光膜 |
Film, reflective, counterweight |
|
6-3-7 |
7 |
12727593 |
1 |
配重反光膜 |
Film, reflective, counterweight |
|
6-3-8 |
8 |
A820601990963 |
2 |
斗杆警示牌 |
Decal, warning, arm |
|
6-3-9 |
9 |
12722073 |
1 |
动臂左侧贴花 |
Decal, boom, left |
|
6-3-10 |
10 |
12919048 |
1 |
700矿山机机身左侧贴花 |
Left mark of 700 mine |
|
6-3-11 |
11 |
12256696 |
1 |
矿山机标识(大) |
Decal, big, mining machine |
|
6-3-12 |
12 |
A820601990934 |
4 |
装运固定点标志 |
Decal,tie-down,shipment |
|
6-3-13 |
13 |
12033801 |
2 |
重心标牌 |
Decal, center of gravity |
|
6-3-14 |
14 |
A820601990968 |
2 |
张紧装置警示牌 |
Decal, warning, tensioner |
|
6-3-15 |
15 |
A820101990552 |
4 |
吊钩点标示图 |
Diagram, hoisting point |
|
6-3-16 |
16 |
A820699001018 |
2 |
前进方向标志 |
Decal, instruction, forward |
|
6-3-17 |
17 |
12409907 |
1 |
回转支承警示牌 |
Decal, warning, swing bearing |
|
6-3-18 |
18 |
A820601990928 |
1 |
油位标签 |
Label, oil level |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
6-5-1 |
1 |
12919188 |
1 |
700矿山机机身右侧贴花 |
Right markⅠof 700 mine |
|
6-5-2 |
2 |
12753962 |
1 |
节能高效贴花 |
Decal, information, energy saving & |
|
6-5-3 |
3 |
12753900 |
1 |
服务热线贴花 |
Decal, service hotline |
|
6-5-4 |
4 |
12722074 |
1 |
动臂右侧贴花 |
Decal, boom, right |
|
6-5-5 |
5 |
A820601990967 |
1 |
座椅调节指示牌 |
Decal, instruction, seat adjustment |
|
6-5-6 |
6 |
A210510000007 |
4 |
铆钉 |
Rivet |
|
6-5-7 |
7 |
10251978 |
1 |
铭牌 |
Nameplate |
|
6-5-8 |
8 |
A820601990927 |
1 |
开锁标识牌 |
Label, unlock |
|
6-5-9 |
9 |
A820699001284 |
1 |
冷媒更换说明 |
Decal, instruction, refrigerant |
|
6-5-10 |
10 |
A820601990962 |
3 |
油水分离器放水标识 |
Decal, drain, water separator |
|
6-5-11 |
11 |
A820699001019 |
1 |
前窗锁紧警示牌 |
Decal, warning, front window |
|
6-5-12 |
12 |
12919238 |
1 |
700矿山机机身右侧贴花 |
Right markⅡof 700 mine |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
6-7-1 |
1 |
A820699000369 |
5 |
长防滑贴 |
Anti-skid, long |
|
6-7-2 |
2 |
A820601990926 |
2 |
防跌落警示牌 |
Decal, warning, falling |
|
6-7-3 |
3 |
A820601990929 |
1 |
油箱放水标识 |
Label, drain, fuel tank |
|
6-7-4 |
4 |
10256693 |
1 |
燃油箱标识牌 |
Decal |
|
6-7-5 |
5 |
A820699001023 |
1 |
严禁坐人警示牌 |
Decal, warning, no-sitting |
|
6-7-6 |
6 |
变更或见其他配置 |
1 |
液压油箱标识牌 |
Decal |
|
6-7-7 |
7 |
A820601990961 |
1 |
操纵标示图 |
Label, instruction, operation |
|
6-7-8 |
8 |
11464425 |
1 |
查阅说明书警示牌 |
Label, warning, “Read manual” |
|
6-7-9 |
9 |
11464432 |
1 |
高压回避警示牌 |
Decal, warning, high-voltage |
|
6-7-10 |
10 |
11464441 |
1 |
钥匙断电警示牌 |
Decal, warning, power-off |
|
6-7-11 |
11 |
变更或见其他配置 |
1 |
润滑图表 |
Graph, lubrication |
|
6-7-12 |
12 |
A820101050793 |
1 |
风扇打手警示牌 |
Mark, warning, “Hand injury by fan” |
|
6-7-13 |
13 |
A820699001017 |
1 |
皮带安全警示牌 |
Decal, warning, belt safety |
|
6-7-14 |
14 |
A820601990973 |
1 |
机顶罩警示牌 |
Decal, warning, engine hood |
|
6-7-15 |
15 |
A820699000948 |
1 |
防喷溅警示牌 |
Decal, warning, anti-spray |
|
6-7-16 |
16 |
A820101050798 |
2 |
烫手警示标牌 |
Decal, warning, hot surface |
|
6-7-17 |
17 |
11214851 |
1 |
加油泵警示牌 |
Label, warning, oil feed pump |
|
6-7-18 |
18 |
A820699001109 |
1 |
电源插座标志 |
Label, power socket |
第7章
随机附件
(Accessories)
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|

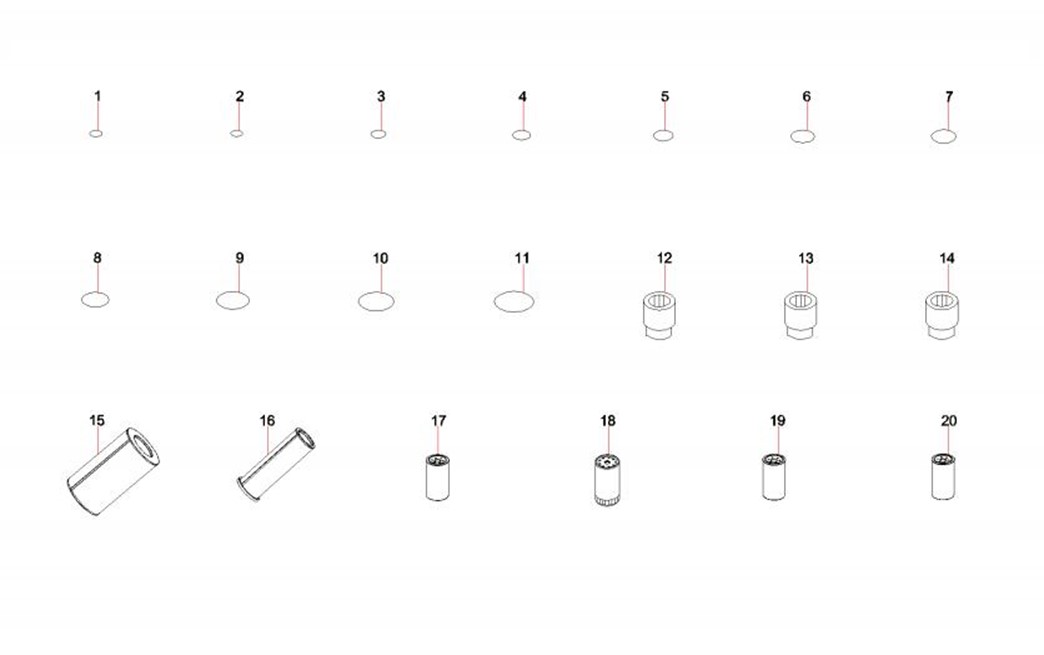

7-3-1 |
1 |
B230101000465 |
10 |
O形圈 |
O-ring |
|
7-3-2 |
2 |
B230101000996 |
10 |
O形圈 |
O-ring |
|
7-3-3 |
3 |
A210609000343 |
2 |
O形圈 |
O-ring 190×10(GB3452.1) |
|
7-3-4 |
4 |
B230101000047 |
10 |
O形圈 |
O-ring |
|
7-3-5 |
5 |
B230101000049 |
10 |
O形圈 |
O-ring 13.8×2.4JISB2401 |
|
7-3-6 |
6 |
B230101000090 |
5 |
O形圈 |
O-ring |
|
7-3-7 |
7 |
B230101000215 |
5 |
O形圈 |
O-ring |
|
7-3-8 |
8 |
B230101000244 |
2 |
O形圈 |
O-ring 47.22×3.53 AS568-225 |
|
7-3-9 |
9 |
B230101000356 |
5 |
O形圈 |
O-ring |
|
7-3-10 |
10 |
B230101000456 |
10 |
O形圈 |
O-ring |
|
7-3-11 |
11 |
B230101000580 |
5 |
O形圈 |
O-ring 24.99×3.53AS568-214 |
|
7-3-12 |
12 |
21082291 |
1 |
套筒 |
Socket |
|
7-3-13 |
13 |
60008167 |
1 |
套筒 |
Bush |
|
7-3-14 |
14 |
60008168 |
1 |
套筒 |
Bush |
|
7-3-15 |
15 |
B222100000633 |
1 |
空气滤清器主滤芯 |
Element, primary, air cleaner |
|
7-3-16 |
16 |
B222100000634 |
2 |
空气滤清器安全滤芯 |
Element, safety, air cleaner |
|
7-3-17 |
17 |
B222100000401 |
1 |
柴油滤清器 |
Filter, diesel fuel |
|
7-3-18 |
18 |
B222100000400 |
2 |
机油滤清器 |
Filter, engine oil |
|
7-3-19 |
19 |
B222100000729 |
1 |
柴油滤清器 |
Filter, fuel |
|
7-3-20 |
20 |
B222100000766 |
1 |
柴油滤清器 |
Diesel filter |
