SANY SY95C SY95C3I2S EXCAVATOR parts catalog 03

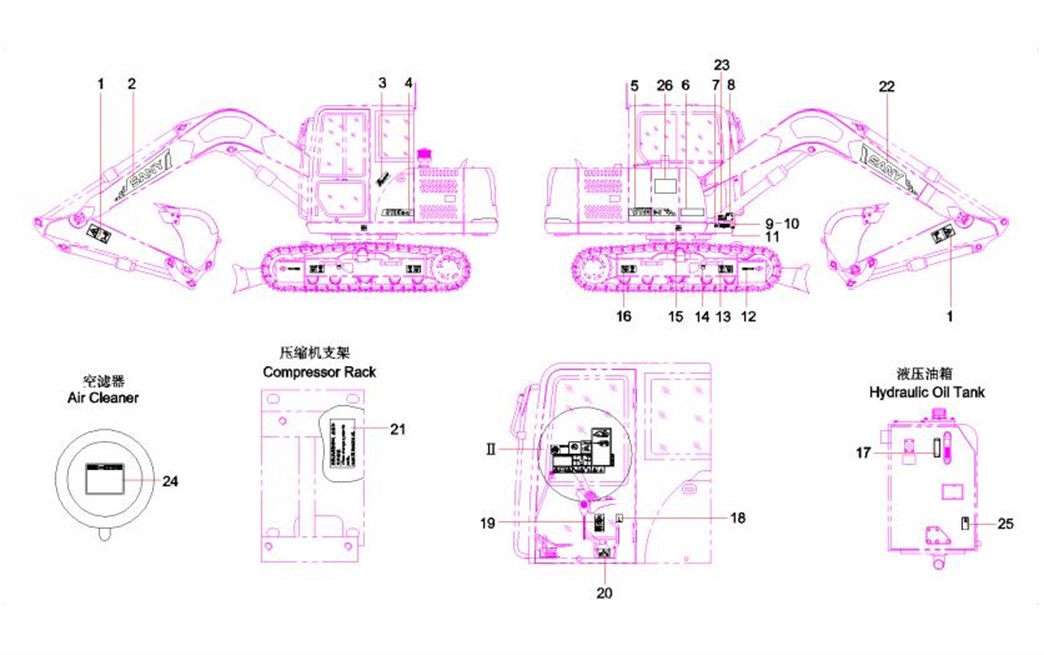

第1章
挖掘机涂装
(Painting, excavator)
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
1-3-1 |
1 |
10124614 |
2 |
斗杆警示牌 |
Decal, warning, arm |
1-3-2 |
2 |
12917324 |
1 |
动臂左侧贴花 |
Movable Arm Left Side |
1-3-3 |
3 |
60033484 |
1 |
贴花 |
Decal |
1-3-4 |
4 |
12890506 |
1 |
机身左贴花 |
Machine left MarkingSY95C9I2H- |
1-3-5 |
5 |
12890554 |
1 |
机身右贴花 |
Machine right MarkingSY95C9I2H- |
1-3-6 |
6 |
12880598 |
1 |
服务热线贴花 |
Service hot-line |
1-3-7 |
7 |
12540826 |
1 |
回转支承加注润滑脂 |
Add grease to swing bearing |
1-3-8 |
8 |
10385320 |
1 |
噪音标记 |
Label, noise |
1-3-9 |
9 |
10251978 |
1 |
铭牌 |
Nameplate |
1-3-10 |
10 |
A210510000007 |
4 |
铆钉 |
Rivet |
1-3-11 |
11 |
11172196 |
1 |
回转齿轮加油标示 |
Marker, oil feed, swing gear |
1-3-12 |
12 |
A820603000246 |
2 |
前进方向标志 |
Decal, instruction, forward |
1-3-13 |
13 |
12052087 |
4 |
吊钩点标示图 |
Label, lifting point |
1-3-14 |
14 |
A820601990968 |
2 |
张紧装置警示牌 |
Decal, warning, tensioner |
1-3-15 |
15 |
12052090 |
2 |
重心标志 |
Decal, center of gravity |
1-3-16 |
16 |
12052085 |
4 |
装运固定点标志 |
Decal, tie-down, shipment |
1-3-17 |
17 |
A820601990928 |
1 |
油位标签 |
Label, oil level |
1-3-18 |
18 |
A820601990927 |
1 |
开锁标识牌 |
Label, unlock |
1-3-19 |
19 |
12076696 |
1 |
禁止攀扶警示标牌 |
Decal, warning, no climbing |
1-3-20 |
20 |
A820601990967 |
1 |
座椅调节指示牌 |
Decal, instruction, seat adjustment |
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
1-5-21 |
21 |
A820699001284 |
1 |
冷媒更换说明 |
Decal, instruction, refrigerant |
1-5-22 |
22 |
12917325 |
1 |
动臂右侧贴花 |
Movable Arm Right Side |
1-5-23 |
23 |
12891717 |
1 |
吊装贴花 |
Lifting Marking |
1-5-24 |
24 |
11571532 |
1 |
空滤器警示牌 |
Decal, warning, air cleaner |
1-5-25 |
25 |
12648410 |
1 |
燃油滤清放水贴花 |
fuel cleaner decal |
1-5-26 |
26 |
12880593 |
1 |
节能高效贴花 |
Economical & high efficiency |
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|

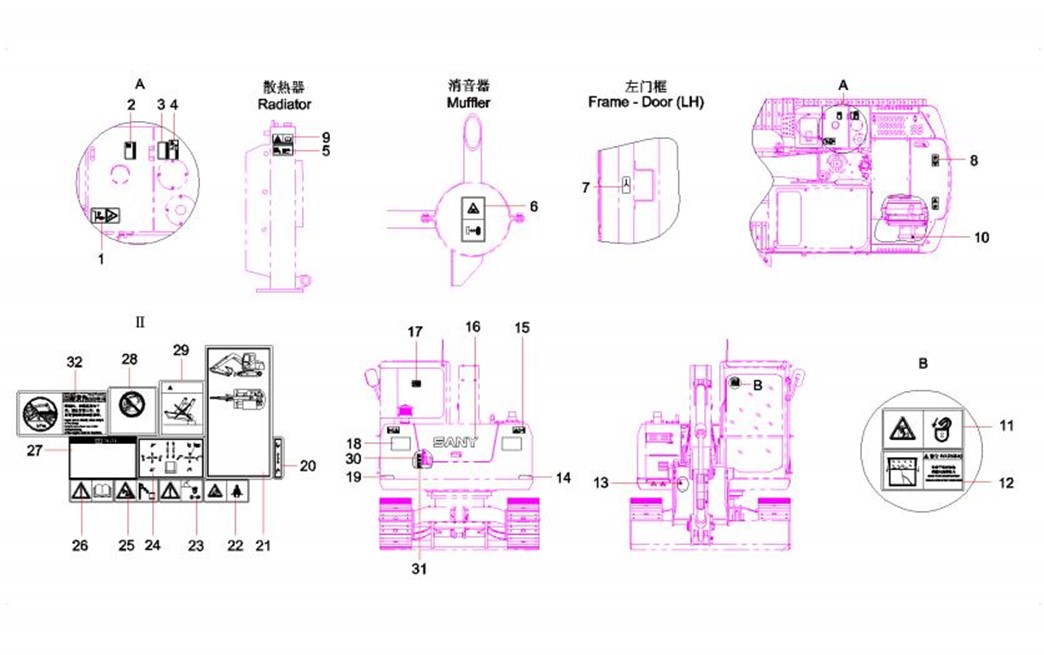

1-7-1 |
1 |
A820601990926 |
2 |
防跌落警示牌 |
Decal, warning, falling |
1-7-2 |
2 |
A820601991047 |
1 |
燃油箱标识牌 |
Decal, fuel tank |
1-7-3 |
3 |
A820601991048 |
1 |
液压油箱标识牌 |
Label, identification, hydraulic tank |
1-7-4 |
4 |
12185067 |
1 |
液压油加油标识牌 |
Decal, refilling, hydraulic oil |
1-7-5 |
5 |
11992504 |
1 |
定期清洗散热器标牌 |
Decal, regular-cleaning, radiator |
1-7-6 |
6 |
12052083 |
1 |
烫手警示标牌 |
Decal, warning, hot surface |
1-7-7 |
7 |
A820699001109 |
1 |
电源插座标志 |
Label, power socket |
1-7-8 |
8 |
12016795 |
2 |
禁止站人警示标牌 |
Decal, warning, no standing |
1-7-9 |
9 |
12496540 |
1 |
防喷溅警示牌 |
Decal, warning, anti-spray |
1-7-10 |
10 |
A820601990972 |
1 |
电源标志 |
Label, power supply |
1-7-11 |
11 |
12052088 |
1 |
前窗锁紧警示牌 |
Decal, warning, front window |
1-7-12 |
12 |
12080939 |
1 |
雨刮器防撞贴花 |
Decal |
1-7-13 |
13 |
11170999 |
1 |
回转减速机加油标示 |
Marker, oil feed, swing reducer |
1-7-14 |
14 |
12880559 |
1 |
配重右反光膜 |
counterweight right reflective |
1-7-15 |
15 |
A820601991049 |
2 |
配重警示牌 |
Decal, warning, counterweight |
1-7-16 |
16 |
12917326 |
1 |
配重贴花 |
Counterweight marking |
1-7-17 |
17 |
12052089 |
1 |
安全出口标志 |
Label, emergency exit |
1-7-18 |
18 |
60033800 |
2 |
配重贴花 |
Decal, counterweight |
1-7-19 |
19 |
12880533 |
1 |
配重左反光膜 |
counterweight left reflective |
1-7-20 |
20 |
A820601000014 |
1 |
推土铲操纵指示牌 |
Decal |
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
1-9-21 |
21 |
A820601000015 |
1 |
润滑图表 |
Graph, lubrication |
1-9-22 |
22 |
12052084 |
1 |
座椅安全警示牌 |
Decal, safety, seat |
1-9-23 |
23 |
12496541 |
1 |
钥匙断电警示牌 |
Decal, warning, power-off |
1-9-24 |
24 |
A820601990961 |
1 |
操纵标示图 |
Label, instruction, operation |
1-9-25 |
25 |
12496542 |
1 |
高压回避警示牌 |
Decal, warning, high-voltage |
1-9-26 |
26 |
12496543 |
1 |
查阅说明书警示牌 |
Label, warning, read manual |
1-9-27 |
27 |
A820699001024 |
1 |
预热警示牌 |
Decal, warning, preheating |
1-9-28 |
28 |
12157387 |
1 |
严禁工作时倾斜机器标识牌 |
Decal, no inclining during operation |
1-9-29 |
29 |
11809799 |
1 |
禁止推土铲单侧受力标识牌 |
Decal, warning |
1-9-30 |
30 |
12052082 |
1 |
风扇打手警示标牌 |
Decal, warning, fan |
1-9-31 |
31 |
12496544 |
1 |
皮带安全警示牌 |
Decal, warning, belt safety |
1-9-32 |
32 |
12972179 |
1 |
上车警示牌 |
Loading Warning LableSY55-TZ- |
