识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

7-5-21

21

13529746

1

燃油系统

Fuel System SYL956H5.7.4

7-5-22

22

13686899

1

粗滤器支板

plate SYL956H5.7-25

7-5-23

23

60289943

1

消声器

Muffle

7-5-24

24

60289942

1

空滤器

AIR FILTER

7-5-25

25

A222100000384

1

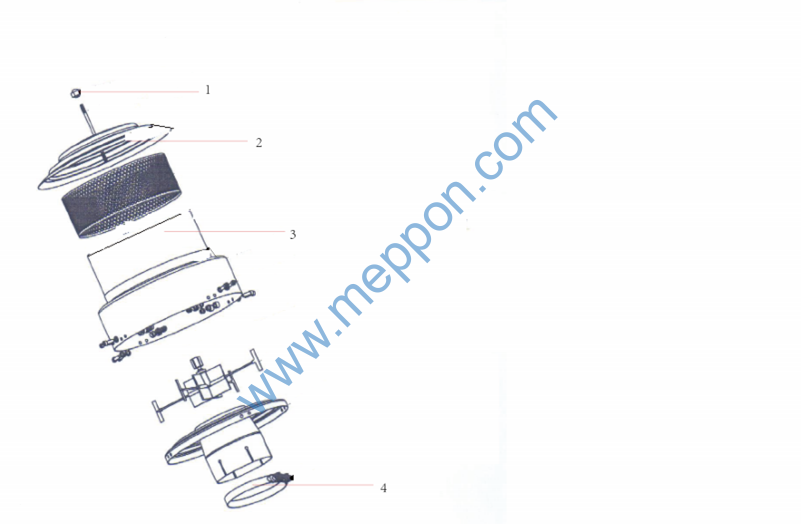

空气预滤器

Prefilter, air

7-5-26

26

13686911

1

空滤进气管

pipe SYL956H5.7-26

7-5-27

27

变更或见其他配置

1

T型抱箍φ130- φ150 进口

T-type anchor ear

7-5-28

28

A229900002683

1

T型抱箍

Clamp, T-type

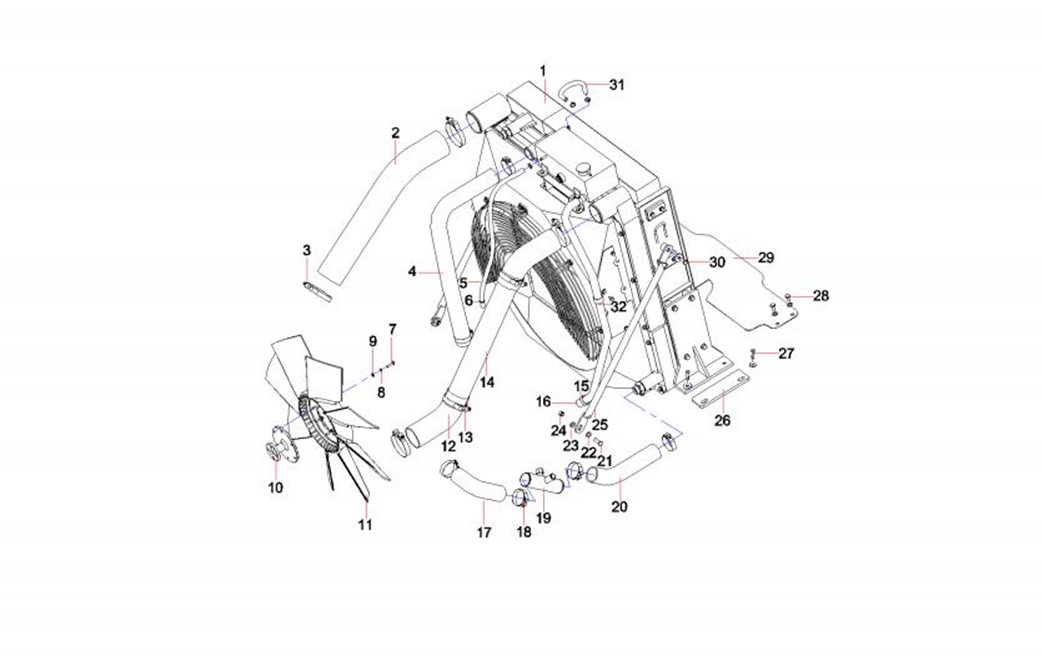

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

7-7-1

1

60271259

1

散热器

Radiator

7-7-2

2

13511269

1

进气管

air intake tube SYL956H5.7.5-4

7-7-3

3

A229900002683

2

T型抱箍

Clamp, T-type

7-7-4

4

13511268

1

散热器进水管

intake pipe SYL956H5.7.5-3

7-7-5

5

13050548

1

发动机除气管

动机除气管

7-7-6

6

A210855000003

4

喉箍

Hoop

7-7-7

7

A210111000091

6

螺栓

Bolt

7-7-8

8

24000511

6

垫圈8GB93 达克锈

Washer

7-7-9

9

A210307000012

6

螺母

Nut

7-7-10

10

13049142

1

风扇联接法兰

Connecting flange of fan

7-7-11

11

60232711

1

风扇

Fan

7-7-12

12

13511271

2

中冷管

intercooled steel tube

7-7-13

13

变更或见其他配置

4

T型抱箍

Anchor ear, T-type

7-7-14

14

13511254

1

中冷钢管

intercooled steel tube

7-7-15

15

A210855000020

4

喉箍

Hoop

7-7-16

16

13511270

1

补水管

recharging tube SYL956H5.7.5-5

7-7-17

17

13511265

1

下水管

sewer tube SYL956H5.7.5-1

7-7-18

18

变更或见其他配置

6

T型抱箍

Clamp, T-type

7-7-19

19

13511273

1

四通钢管

Four-way steel tube

7-7-20

20

13511267

1

下水管

sewer tube SYL956H5.7.5-2

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

7-9-21

21

A210111000203

2

螺栓

Bolt

7-9-22

22

60060548

6

垫圈12GB96.1 达克锈

Washer 12GB96.1

7-9-23

23

24000639

6

垫圈12GB97.1 达克锈

Washer

7-9-24

24

A210307000031

2

螺母M12GB6170 10级

Nut M12GB6170 10

7-9-25

25

13509203

2

支撑杆

supporting lever SYL956H5.7.2.2

7-9-26

26

13055340

2

散热器橡胶垫

Radiator rubber pad

7-9-27

27

A210111000119

4

螺栓M12×45GB5783 10.9级

Bolt M12×45GB5783 10.9

7-9-28

28

A210111000199

4

螺栓M12×20GB5783 10.9级

Bolt

7-9-29

29

13511266

1

导风板

Wind guide board SYL956H1.7.5-

7-9-30

30

A210111000101

2

螺栓M12×25GB5783 10.9级

Bolt M12×25GB5783 10.9

7-9-31

31

13050540

1

散热器除气管

Air removing tube of radiator

7-9-32

32

60086357

1

线束固定夹

Clamp, harness

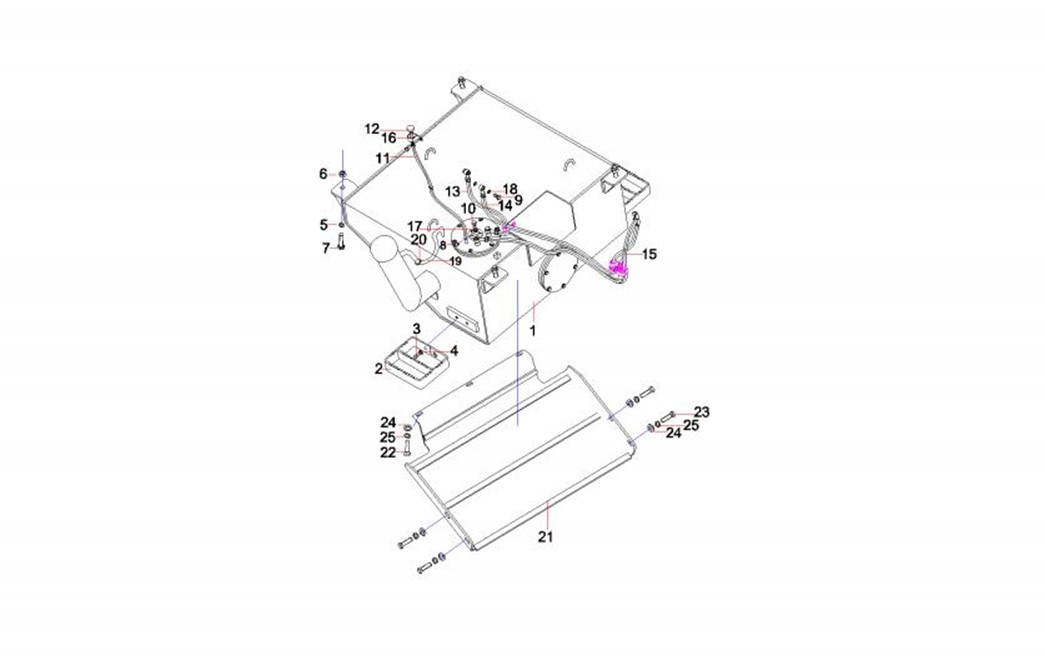

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

7-11-1

1

13502784

1

燃油箱总成

Assembly tank fuel

7-11-2

2

变更或见其他配置

2

机罩脚踏总成

hood pedal

7-11-3

3

A210405000001

7

垫圈

Washer

7-11-4

4

A210111000037

7

螺栓

Bolt

7-11-5

5

A210491000132

8

垫圈

Washer 20GB1230

7-11-6

6

A210319000014

4

螺母M20GB889.1 10级

Nut

7-11-7

7

A210110000201

4

螺栓M20×80GB5783 10.9级

Bolt

7-11-8

8

A210855000003

1

喉箍

Hoop

7-11-9

9

A210199000016

2

铰接螺栓

Bolt, articulated

7-11-10

10

A210459000007

2

铰接螺栓

Articulating bolt

7-11-11

11

13511263

1

透气管

entilation tube SYL956H1.7.7-23

7-11-12

12

A222100000125

1

空气滤清器C型

Filter, air

7-11-13

13

13511261

1

燃油箱出油管

Oil-out tube of fuel tank

7-11-14

14

13511262

1

燃油管

fuel pipe SYL956H5.7.4-22

7-11-15

15

13511264

1

燃油管

fuel pipe SYL956H5.7.4-24

7-11-16

16

60086355

4

线束固定夹

Clamp, harness

7-11-17

17

A210434000007

4

垫圈

Washer 14JB982

7-11-18

18

A210434000008

4

垫圈

Washer 16JB982

7-11-19

19

13048943

1

油箱通气管

Oil tank ventilation tube

7-11-20

20

A210855000020

2

喉箍

Hoop

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

7-13-21

21

13556546

1

燃油箱护板

fuel tank protective plate

7-13-22

22

A210111000212

3

螺栓M16×35GB5783 10.9级

Bolt M16×35GB5783 10.9

7-13-23

23

A210111000053

4

螺栓M16×40GB5783 10.9级

Bolt M16×40GB5783 10.9

7-13-24

24

A210405000003

7

垫圈

Washer

7-13-25

25

A210401000004

7

垫圈

Washer
