SANY SYL956H5 WHEEL LOADER parts catalog 05
第6章

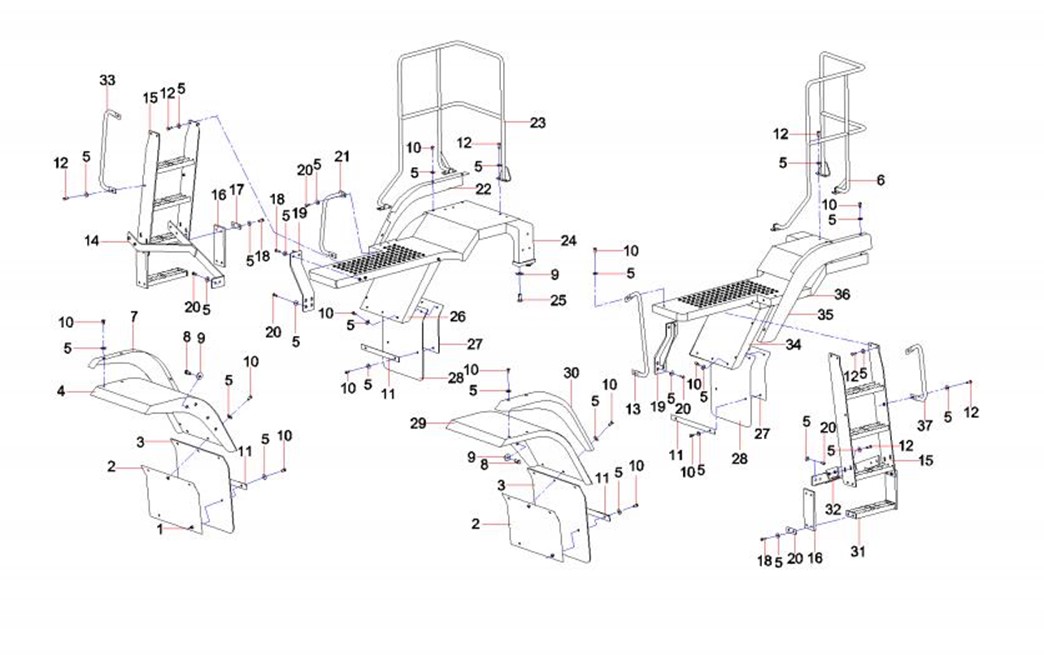

走台、扶梯与挡泥板总成 (platform staircase and dashboard assembl)
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
6-3-1 |
1 |
A210307000001 |
16 |
螺母 |
Nut |
6-3-2 |
2 |
13510007 |
2 |
加强板 |
reinforced plate SYL958H1.6C-2 |
6-3-3 |
3 |
13510001 |
2 |
挡泥橡胶板 |
anti-mud rubber plate |
6-3-4 |
4 |
13508841 |
1 |
右前挡泥板 |
right front dashboard |
6-3-5 |
5 |
A210404000004 |
104 |
垫圈 |
Washer |
6-3-6 |
6 |
13509681 |
1 |
左侧走台护栏总成 |
left platform guardrail assembly |
6-3-7 |
7 |
13188264 |
1 |
右前挡泥板装饰 |
Right front dashboard trimming |
6-3-8 |
8 |
A210111000263 |
8 |
螺栓 M16×30GB5783 10.9级 |
Bolt M16×30GB5783 10.9 |
6-3-9 |
9 |
A210404000008 |
8 |
垫圈 |
Washer |
6-3-10 |
10 |
A210111000101 |
8 |
螺栓M12×25GB5783 10.9级 |
Bolt M12×25GB5783 10.9 |
6-3-11 |
11 |
13510012 |
2 |
压板 |
board SYL958H1.6C-3 |
6-3-12 |
12 |
A210111000203 |
4 |
螺栓 |
Bolt |
6-3-13 |
13 |
13509909 |
1 |
爬梯矮扶手总成 |
dwarf handrail of ladder assembly |
6-3-14 |
14 |
13509538 |
1 |
右侧爬梯支撑板总成 |
right ladder supporting plate |
6-3-15 |
15 |
13509341 |
2 |
爬梯总成 |
ladder assembly SYL958H1.6C.3 |
6-3-16 |
16 |
13486251 |
4 |
脚踏连接板 |
connecting board of footboard |
6-3-17 |
17 |
13486255 |
8 |
脚踏板固定块 |
pedal fixed block SYL958H1.6B-9 |
6-3-18 |
18 |
A210111000204 |
16 |
螺栓 |
Bolt |
6-3-19 |
19 |
13509900 |
2 |
走台支撑 |
pavement supporting |
6-3-20 |
20 |
A210111000202 |
65 |
螺栓 |
Bolt M12×30GB578310.9 |
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
6-5-21 |
21 |
13509912 |
1 |
爬梯矮扶手总成 |
dwarf handrail of ladder assembly |
6-5-22 |
22 |
13509942 |
1 |
右侧走台装饰条 |
right platform decorating plate |
6-5-23 |
23 |
13509466 |
1 |
右侧走台护栏总成 |
right platform guardrail assembly |
6-5-24 |
24 |
13508787 |
1 |
走台总成 |
platform assembly |
6-5-25 |
25 |
A210111000119 |
8 |
螺栓M12×45GB5783 10.9级 |
Bolt M12×45GB5783 10.9 |
6-5-26 |
26 |
13509209 |
1 |
走台右侧挡泥板 |
right platform decorating plate |
6-5-27 |
27 |
13486247 |
2 |
压板 |
board SYL958H1.6B-7 |
6-5-28 |
28 |
13486242 |
2 |
挡泥橡胶板 |
anti-mud rubber plate |
6-5-29 |
29 |
13508955 |
1 |
左前挡泥板 |
left front dashboard |
6-5-30 |
30 |
13188352 |
1 |
左前挡泥板装饰 |
Left front dashboard trimming |
6-5-31 |
31 |
13484401 |
2 |
柔性脚踏板 |
foot pedal SYL958H1.6B.4 |
6-5-32 |
32 |
13509545 |
1 |
左侧爬梯支撑板总成 |
left ladder supporting plate |
6-5-33 |
33 |
13509930 |
1 |
爬梯矮扶手总成 |
dwarf handrail of ladder assembly |
6-5-34 |
34 |
13509213 |
1 |
走台左侧挡泥板 |
right platform decorating plate |
6-5-35 |
35 |
13509957 |
1 |
左侧走台装饰条 |
left platform decorating plate |
6-5-36 |
36 |
13508680 |
1 |
走台总成 |
platform assembly |
6-5-37 |
37 |
13509936 |
1 |
爬梯矮扶手总成 |
dwarf handrail of ladder assembly |
第7章

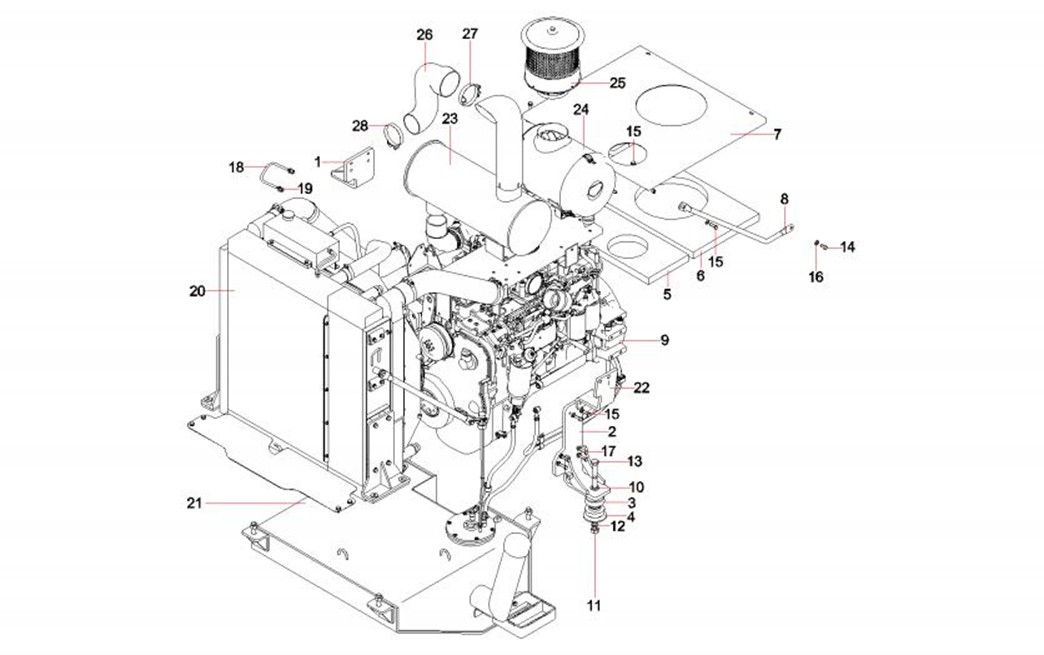

动力系统
(Power system SYL956H5.7)
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
7-3-1 |
1 |
13511260 |
1 |
发动机右支座 |
engine’s right bearer |
7-3-2 |
2 |
13511246 |
1 |
发动机左支座 |
engine’s left bearer SYL956H5.7.1 |
7-3-3 |
3 |
60271965 |
4 |
减震器 |
damper |
7-3-4 |
4 |
13509022 |
2 |
垫板 |
Backup plate SYL958H5.8-1 |
7-3-5 |
5 |
13511249 |
1 |
吸音海绵 |
sponge noise-absorbing |
7-3-6 |
6 |
13511250 |
1 |
吸音海绵 |
sponge noise-absorbing |
7-3-7 |
7 |
13511256 |
1 |
空滤盖总成 |
air filter plate SYL956H5.7.2.1 |
7-3-8 |
8 |
13511252 |
2 |
支撑 |
support tube SYL956H5.7.2-4 |
7-3-9 |
9 |
60272742 |
1 |
发动机 |
engine |
7-3-10 |
10 |
A210491000122 |
4 |
垫圈 |
Washer 24GB1230 |
7-3-11 |
11 |
A210307000007 |
2 |
螺母M24GB6170 10级 |
Nut |
7-3-12 |
12 |
A210401000008 |
2 |
垫圈 |
Washer 24GB93 |
7-3-13 |
13 |
A210110000260 |
2 |
螺栓M24×160GB5782 10.9级 |
Bolt M24×160GB5782 10.9 |
7-3-14 |
14 |
A210111000101 |
2 |
螺栓M12×25GB5783 10.9级 |
Bolt M12×25GB5783 10.9 |
7-3-15 |
15 |
A210111000203 |
4 |
螺栓 |
Bolt |
7-3-16 |
16 |
A210405000001 |
18 |
垫圈 |
Washer |
7-3-17 |
17 |
A210111000204 |
10 |
螺栓 |
Bolt |
7-3-18 |
18 |
13517749 |
1 |
U型螺杆 |
u type bolt SYL956H5.7-23 M12 |
7-3-19 |
19 |
A210307000031 |
2 |
螺母M12GB6170 10级 |
Nut M12GB6170 10 |
7-3-20 |
20 |
13530246 |
1 |
冷却系统 |
Cooling system SYL956H5.7.2 |
