识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

9-25-1

1

60232380

1

转斗油缸

Rotating bucket oil cylinder

9-25-2

2

B230101000578

1

O形圈

O-ring 40.7×3.5JISB2401

9-25-3

3

A210111000012

2

螺栓 M10×20GB5783 10.9级

Bolt M10×20GB5783 10.9

9-25-4

4

A210204000366

4

螺钉

Screw

9-25-5

5

13045044

1

转斗大腔钢管总成

Bigger cavity tube assy of bucket

9-25-6

6

13045257

1

管夹

Pipe nip

9-25-7

7

24000637

2

垫圈10GB97.1 达克锈

Washer

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

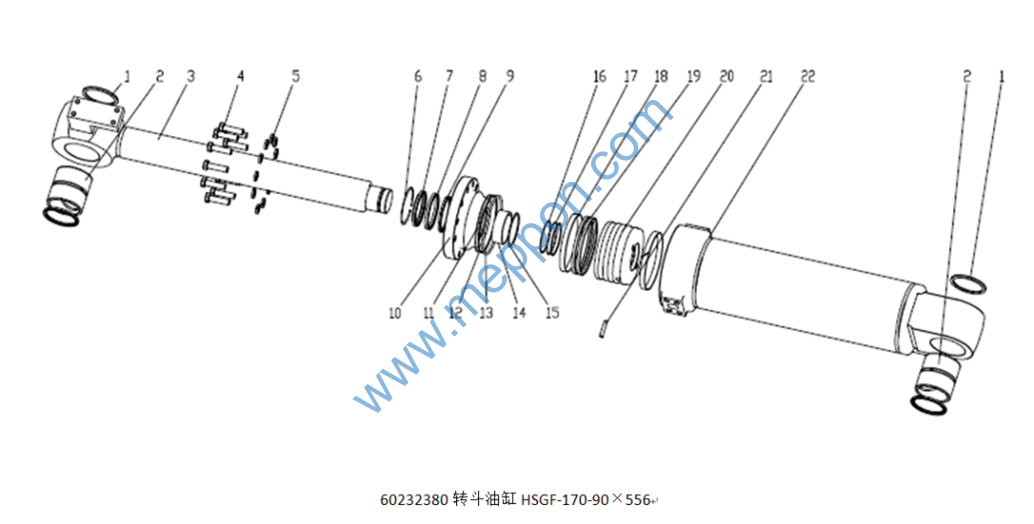

9-27-1

1

60321050

4

骨架防尘

Dust ring

9-27-2

2

60321033

2

衬套

Liner sleeve

9-27-3

3

60321032

1

活塞杆总成

Piston rod assem

9-27-4

4

60321055

11

六角头螺栓

Bolt

9-27-5

5

60321062

11

重型弹簧挡圈

Pad elastic

9-27-6

6

60321023

1

弹簧挡圈

Stopper ring

9-27-7

7

60321053

1

防尘圈

Dust ring

9-27-8

8

60321068

1

U型密封

Seal ring

9-27-9

9

60321066

1

缓冲密封

Buffer seal

9-27-10

10

60321031

1

缸盖

Cover plate

9-27-11

11

60321064

1

O型圈

O-ring

9-27-12

12

60321072

1

O型圈挡圈

Retainer ring

9-27-13

13

60321025

1

O型圈

O-ring

9-27-14

14

60321051

1

DD衬套

Liner sleeve

9-27-15

15

60321024

1

弹簧挡圈

Retainer ring

9-27-16

16

60321074

2

O型圈挡圈

Retainer ring

9-27-17

17

60321029

1

O型圈

O-ring

9-27-18

18

60321045

2

抗磨环

Support ring

9-27-19

19

60321069

2

活塞密封

Main seal ring

9-27-20

20

60321364

1

活塞

Piston rod

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

9-29-21

21

60321059

1

内六角锥端紧定螺钉

Bolt

9-29-22

22

60321034

1

缸筒总成

Oil cylinder assembly

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

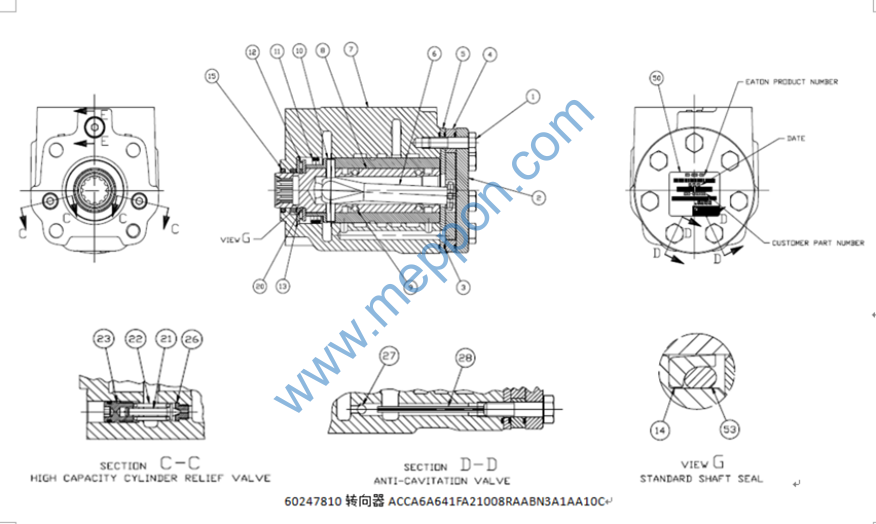

9-31-1

1

60247810

1

转向器

Steering Valve

9-31-2

2

A210111000101

7

螺栓M12×25GB5783 10.9级

Bolt M12×25GB5783 10.9

9-31-3

3

24000637

9

垫圈10GB97.1 达克锈

Washer

9-31-4

4

B210780000141

4

管接头

Connector, pipe

9-31-5

5

B230103002135

1

胶管

Hose,rubber

9-31-6

6

B230103008413

1

胶管

Hose, rubber

9-31-7

7

60104245

2

胶管

Hose, rubber

9-31-8

8

60232381

2

转向油缸

Steering Cylinder

9-31-9

9

13513447

1

支架

bracket SYL956H5.10.7.1

9-31-10

10

A210111000366

2

螺栓M16×25GB5783 10.9级

Bolt M16×25GB5783 10.9 grade

9-31-11

11

24000642

2

垫圈16GB97.1 达克锈

Washer

9-31-12

12

13415103

1

管接头

jiont SYL958H1.10.8-14

9-31-13

13

60244143

2

蓄能器

Accumulator

9-31-14

14

B230103005350

2

胶管

Hose, rubber

9-31-15

15

A820205002535

8

接头

Connector

9-31-16

16

B230101000090

8

O形圈

O-ring 17.8×2.4JISB2401

9-31-17

17

B230103005377

1

胶管

Hose, rubber

9-31-18

18

A210110000359

2

螺栓M10×100GB5782 10.9级

Bolt M10×100GB5782 10.9

9-31-19

19

13409302

1

转向集流块

steering afflux block

9-31-20

20

B230101000356

2

O形圈

O-ring 23.7×3.5JISB2401

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

9-33-21

21

10165802

2

接头

Connector

9-33-22

22

60086355

1

线束固定夹

Clamp, harness

9-33-23

23

13414958

1

syl958h1_10_8-12.prt

plate SYL958H1.10.8-12

9-33-24

24

13414959

2

橡胶管夹

rubber hose clamp SYL958H1.10.8

9-33-25

25

60086354

1

线束固定夹

Clamp, harness

9-33-26

26

60000307

1

胶管

Rubber hose

9-33-27

27

B210780000142

1

管接头

Connector, pipe

9-33-28

28

23000732

1

胶管

Hose AS

9-33-29

29

13170395

2

管接头

Pipe connector

9-33-30

30

B230103005317

1

胶管

Rubber Hose

9-33-31

31

13170394

1

管接头

Pipe connector
