识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

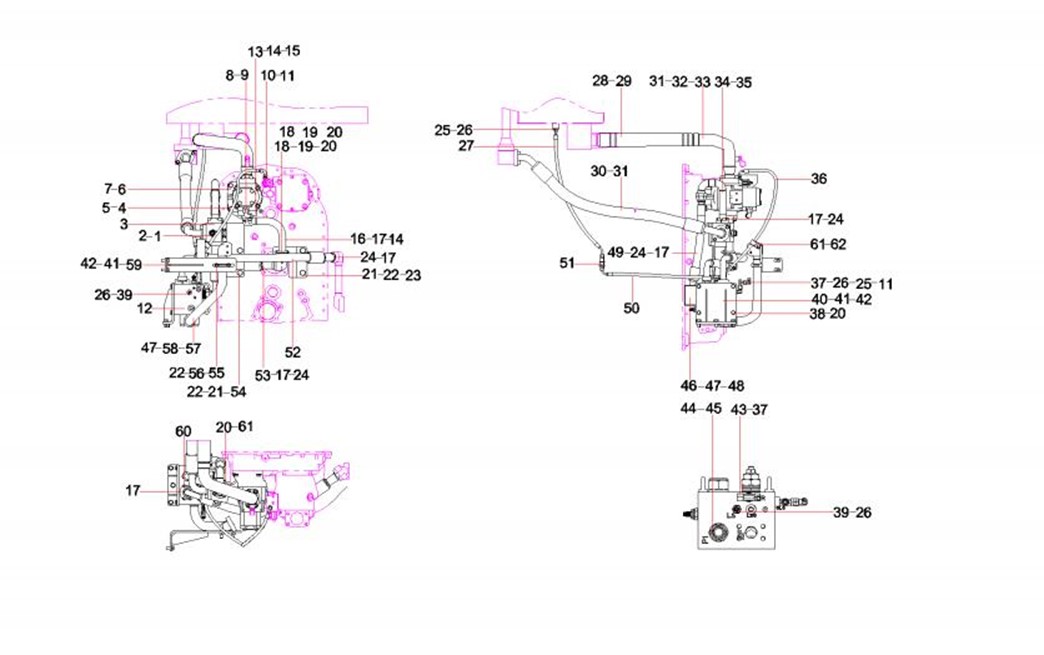

9-45-1

1

23001883

4

螺钉

Bolt

9-45-2

2

A210204000446

4

螺钉

Bolt

9-45-3

3

24000852

2

螺母

Nut

9-45-4

4

A210491000120

2

垫圈

Washer 10GB1230

9-45-5

5

60272718

2

压盘分总成

Platen

9-45-6

6

60272714

2

保护套

GAITER

9-45-7

7

21005137

7

螺母

Nut

9-45-8

8

60272700

1

垫圈

THRUST WASHER

9-45-9

9

60272705

3

锚板分总成

connecting plate

9-45-10

10

60272696

1

接触销

GLAND NUT

9-45-11

11

60272707

3

电磁铁

Electromagnet

9-45-12

12

60272712

6

垫片

THRUST WASHER

9-45-13

13

60272708

3

电磁铁托架

Electromagnet

9-45-14

14

10486966

3

螺钉

9-45-15

15

24000516

3

垫圈

Washer

9-45-16

16

60271436

1

螺母

Nut

9-45-17

17

60272711

1

弹性螺钉

SPRING WASHER

9-45-18

18

60006790

1

螺塞

Screw Plug G1/8

9-45-19

19

24001167

1

螺塞

Plug, screw

9-45-20

20

60272703

1

螺柱

Nut

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

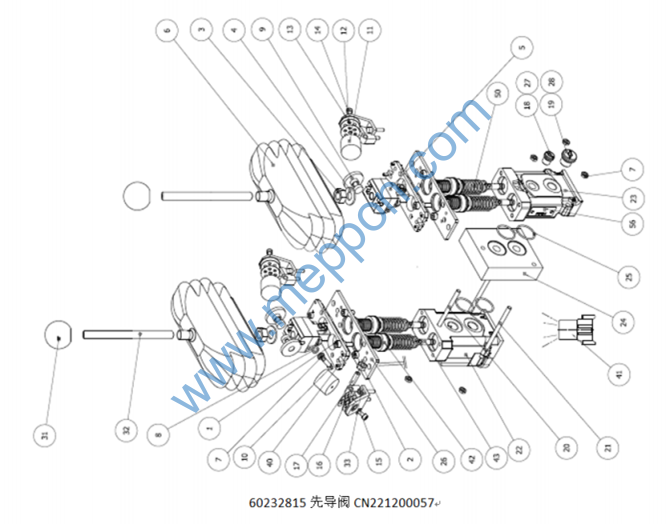

9-47-21

21

60272704

2

螺柱

Nut

9-47-22

22

60272716

1

阀体

HOUSING

9-47-23

23

60272717

1

阀体

HOUSING

9-47-24

24

60272695

1

隔离片

GLAND NUT

9-47-25

25

60272697

4

O形圈

O-RING

9-47-26

26

60272701

2

连接板

connecting plate

9-47-27

27

60272698

1

垫圈

THRUST WASHER

9-47-28

28

60272699

1

垫圈

THRUST WASHER

9-47-31

31

60272709

2

手柄球

Handle ball

9-47-32

32

60272710

2

操纵杆

control lever

9-47-33

33

A210201000015

6

螺钉

Screw

9-47-40

40

60078259

6

弹性销

Pin – Spring

9-47-41

41

60272702

1

连接器总成

connecting plate

9-47-42

42

60272713

4

柱塞分总成

PISTON

9-47-43

43

60272715

4

阀杆分总成

HOUSING

9-47-50

50

60272694

4

弹簧

SPRING

9-47-56

56

60272706

1

标牌

Nameplate

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

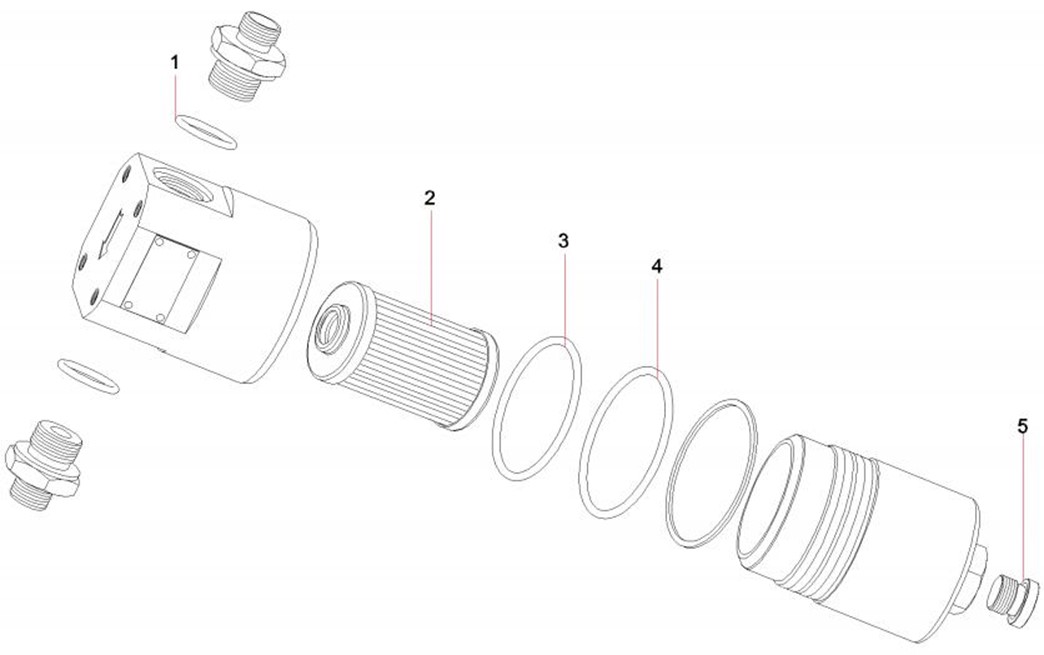

9-49-1

1

29010015

2

O形圈

O-ring

9-49-2

2

A222100000119

1

先导滤芯

Element, pilot filter

9-49-3

3

A210609000132

1

O形圈

O-ring 61.5×3.55GB3452.1

9-49-4

4

A210609000133

1

O形圈

O-Ring-65×3.55GB3452.1

9-49-5

5

B210399000001

1

螺塞

Plug, screw

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

9-51-1

1

10165802

1

接头

Connector

9-51-2

2

B230101000356

1

O形圈

O-ring 23.7×3.5JISB2401

9-51-3

3

13512903

1

过渡块

transition block SYL956H5.10.4-7

9-51-4

4

A210111000204

4

螺栓

Bolt

9-51-5

5

A210491000121

4

垫圈

Washer 12GB1230

9-51-6

6

60286578

1

双联齿轮泵

gear pump

9-51-7

7

B230101001392

1

O形圈

O-ring

9-51-8

8

B210780000143

1

端直通接头

Connector, pipe

9-51-9

9

B210780000024

1

直角组合接头

Connector, pipe

9-51-10

10

B210780000142

1

管接头

Connector, pipe

9-51-11

11

B210780000418

3

管接头

Connector, pipe

9-51-12

12

60268312

1

单变量系统阀组

Single vsriable system valve group

9-51-13

13

13512902

1

过渡法兰

Spacer Flange SYL956H5.10.4-2

9-51-14

14

B230101000456

2

O形圈

O-ring

9-51-15

15

A210204000167

4

螺钉M12×25GB70.1 10.9级

Screw M16×1.5GB6185.2 10

9-51-16

16

13512712

1

出油钢管

steel tube SYL956H5.10.4.3

9-51-17

17

A210204000354

24

螺钉 M10×30GB70.1 10.9级

Screw M10×30GB70.1 10.9

9-51-18

18

11160698

1

U型螺栓

U-bolt

9-51-19

19

A210307000036

2

螺母

Nut M10GB6170 10

9-51-20

20

24000637

9

垫圈10GB97.1 达克锈

Washer

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

9-53-21

21

A210111000367

4

螺栓

Bolt M20×30(GB5783)

9-53-22

22

24000646

4

垫圈20GB97.1 达克锈

Washer

9-53-23

23

13512707

1

安装板

plate SYL956H5.10.4-5

9-53-24

24

B210780000244

8

对开法兰

Flange, split

9-53-25

25

A820205000940

4

接头

Connector

9-53-26

26

B230101000047

6

O形圈

O-ring

9-53-27

27

变更或见其他配置

1

胶管

rubber hose

9-53-28

28

13512843

1

吸油胶管

suction hose SYL956H5.10.4-6

9-53-29

29

60219321

4

喉箍φ46- φ71 W型内衬

Hose clamp

9-53-30

30

13514265

1

胶管总成

hose SYL956H5.10.4.8

9-53-31

31

A210204000338

8

螺钉M12×40GB70.1 10.9级

Screw

9-53-32

32

13536121

1

吸油钢管

oil suction steel pipe

9-53-33

33

60048836

1

O形圈

O-ring

9-53-34

34

13512724

1

回油钢管

steel tube SYL956H5.10.4.5

9-53-35

35

A210609000142

1

O形圈

O-ring 32.5×3.55GB3452.1

9-53-36

36

60264407

1

胶管

rubber hose

9-53-37

37

B210780000170

1

管接头

Connector, pipe

9-53-38

38

A210111000024

4

螺栓

Bolt M10×30GB5783 10.9

9-53-39

39

A820205001771

2

堵头

Plug

9-53-40

40

13513443

1

固定架

fixed frame SYL956H5.10.4.6
