SANY SY135C SY135C9 SY135C9I4K EXCAVATOR parts catalog 41

Meppon Co., Ltd Posted on by







IC

INDEX

PART NUMBER

QTY

PART NAME

4-5-1

1

13443821

1

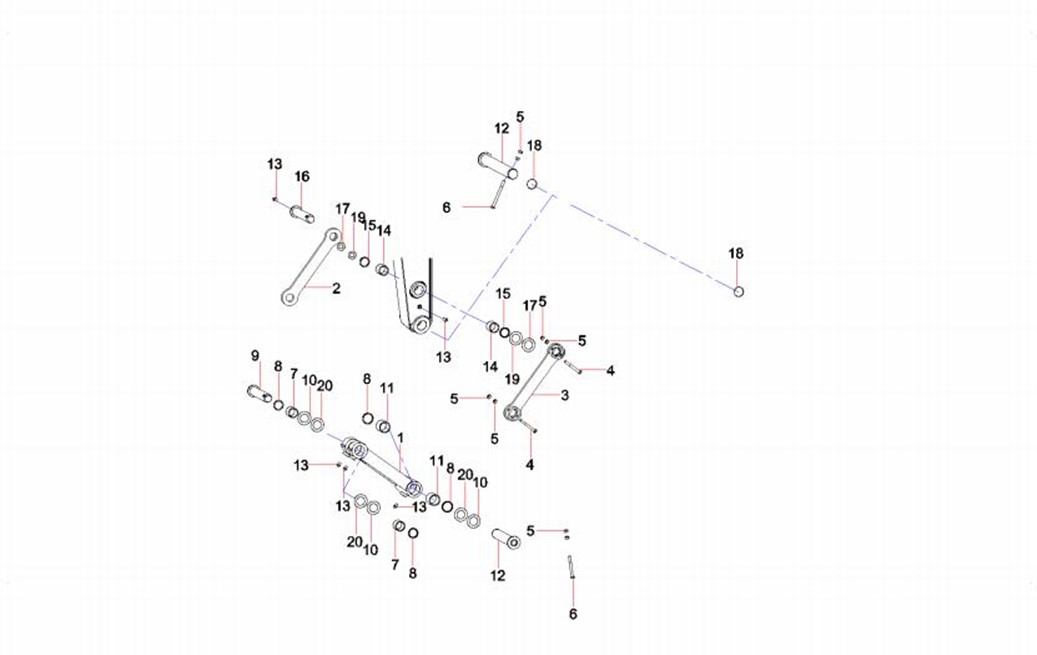

Arm SY135C9I4K.3.3

4-5-2

2

A810312110107

1

Roll, pin

4-5-3

3

A810312990208

10

Shim

4-5-4

4

A810312019061

7

Plate, fixing

4-5-5

5

A210111000202

14

Bolt M12×30GB578310.9

4-5-6

6

24000513

14

Washer

4-5-7

7

A810312110108

2

Roll, pin

4-5-8

8

A810312990209

10

Shim

4-5-9

9

12933250

2

Shaft SleeveSY135C8I2K.3-17

















IC

INDEX

PART NUMBER

QTY

PART NAME

4-7-1

1

A810312100033

1

Rod, connecting

4-7-2

2

11821941

1

Rocker, left

4-7-3

3

11821876

1

Rocker, right

4-7-4

4

A210110000234

2

Bolt M20×140GB5782 10.9

4-7-5

5

A210307000029

8

Nut

4-7-6

6

A210110000352

2

Bolt

4-7-7

7

A820202005379

2

Sleeve, shaft

4-7-8

8

B230101001124

8

ME-2 dust ring

4-7-9

9

A810312110110

1

Roll, pin

4-7-10

10

A810312990208

10

Shim

4-7-11

11

A820202005380

4

Sleeve, shaft

4-7-12

12

A810312110111

2

Roll, pin

4-7-13

13

B229900000686

6

Fitting, grease

4-7-14

14

A820202005381

2

Sleeve, shaft

4-7-15

15

B230101001123

2

ME-2 dust ring

4-7-16

16

A810312110112

1

Roll, pin

4-7-17

17

A810312019062

2

Shim

4-7-18

18

A210609000352

2

O-ring

4-7-19

19

10167597

2

Shim

4-7-20

20

A810312990209

10

Shim





























Chapter 5

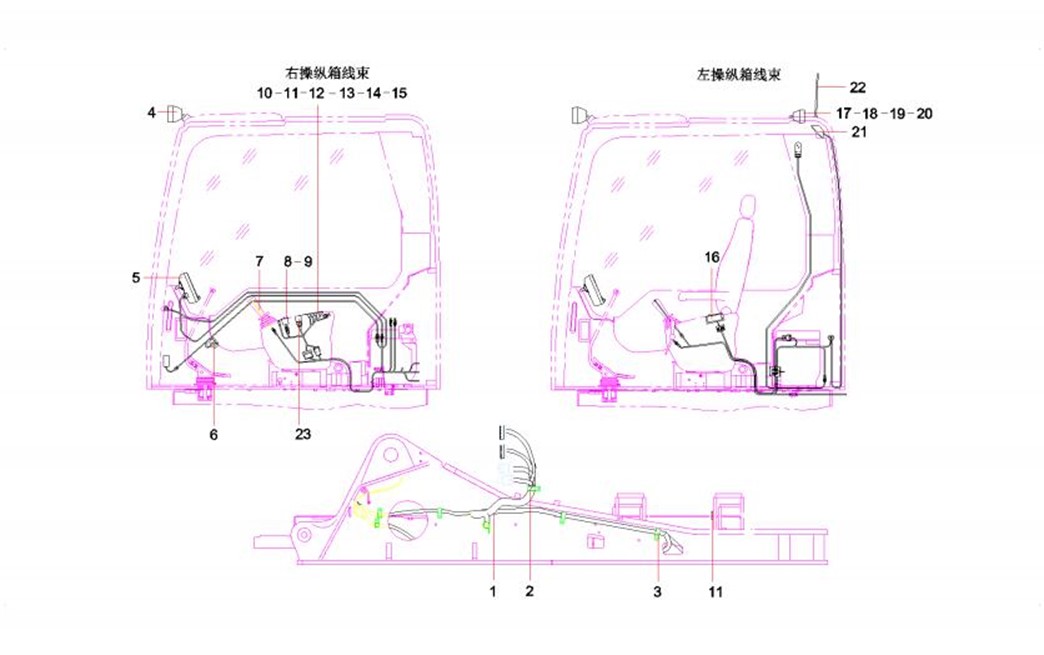

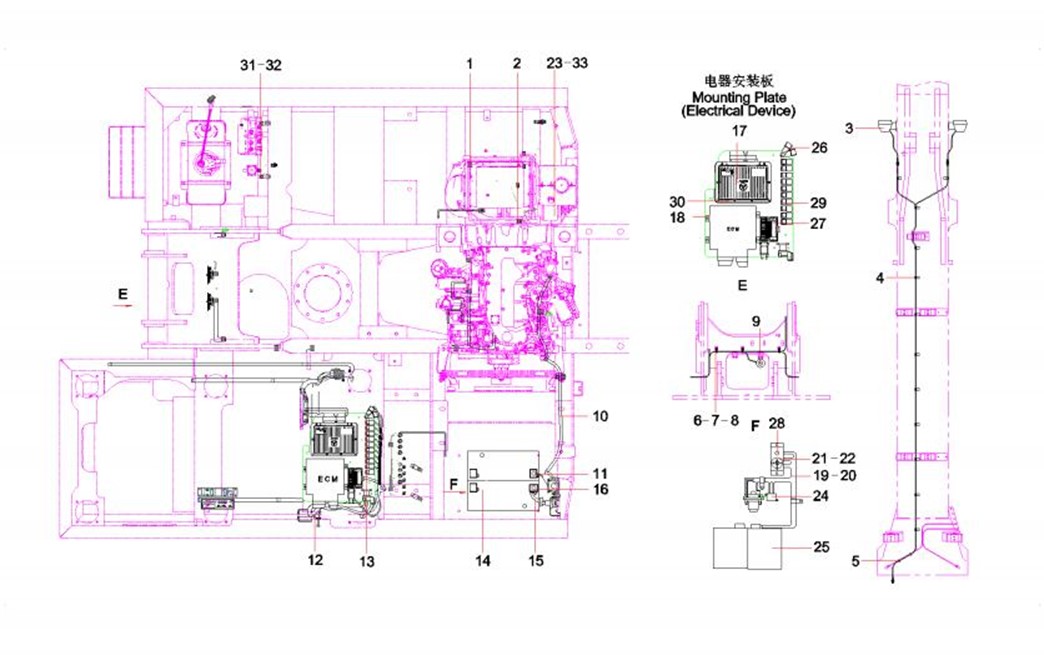

Cab electrical assemble SY135C9I4K(US).















IC

INDEX

PART NUMBER

QTY

PART NAME

5-3-1

1

13438198

1

Vehicle Body Harness

5-3-2

2

60086357

2

Harness clamp

5-3-3

3

60086356

2

Clamp, harness

5-3-4

4

B241100000391

2

Lamp, working

5-3-5

5

13439771

1

Sany Encourage Control Display

5-3-6

6

60222807

1

Charger

5-3-7

7

13438042

1

Driver’s Cab Harness

5-3-8

8

60211508

1

Knob switch

5-3-9

9

A241200001217

1

Start switch

5-3-10

10

A210210000030

4

Screw M4×12GB818

5-3-11

11

13612089

1

connector steady rest

5-3-12

12

13321446

1

Control Switch Harness

5-3-13

13

60060562

4

Washer

5-3-14

14

A210111000342

3

Bolt M8×16GB5783 10.9

5-3-15

15

24000511

3

Washer

5-3-16

16

60205002

1

Radio

5-3-17

17

A241100000547

1

Light, alarm, audible and visual

5-3-18

18

60083322

8

Wire clip

5-3-19

19

A210204000130

5

Screw M6×16GB70.1

5-3-20

20

24000632

5

Washer

















IC

INDEX

PART NUMBER

QTY

PART NAME

5-5-21

21

60023703

1

Speaker

5-5-22

22

60090606

1

Antenna

5-5-23

23

A230200000021

1

Tape, electric, PVC
