SANY SY135C SY135C9 SY135C9I4K EXCAVATOR parts catalog 42
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

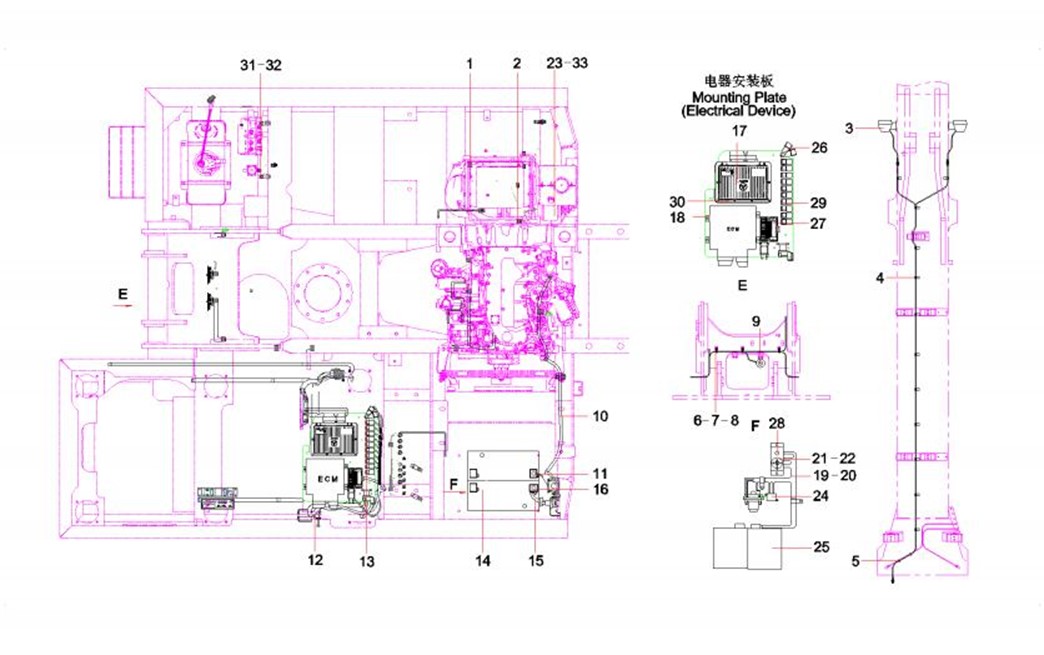

5-7-1 |
1 |
60086353 |
10 |
Clamp, harness |
5-7-2 |
2 |
60086355 |
15 |
Clamp, harness |
5-7-3 |
3 |
A241100000352 |
2 |
Lamp, working |
5-7-4 |
4 |
A239900000053 |
6 |
Tape, binding, nylon |
5-7-5 |
5 |
11400099 |
4 |
Clip |
5-7-6 |
6 |
60086354 |
15 |
Clamp, harness |
5-7-7 |
7 |
24000289 |
14 |
Bolt |
5-7-8 |
8 |
24000513 |
14 |
Washer |
5-7-9 |
9 |
A229900001896 |
1 |
Horn |
5-7-10 |
10 |
60193173 |
1 |
Power line |
5-7-11 |
11 |
60013321 |
2 |
Terminal Group, Battery Negative |
5-7-12 |
12 |
60060300 |
1 |
Extension, antenna |
5-7-13 |
13 |
24000529 |
3 |
Bolt |
5-7-14 |
14 |
60012792 |
1 |
Wire, power supply |
5-7-15 |
15 |
60018110 |
1 |
Wire, power supply |
5-7-16 |
16 |
60013322 |
2 |
Terminal Group, Battery Positive |
5-7-17 |
17 |
13439767 |
1 |
Sany Encourage Hydraulic Control |
5-7-18 |
18 |
13439765 |
4 |
ECM fixed plate |
5-7-19 |
19 |
11428026 |
1 |
Wire, power |
5-7-20 |
20 |
60012805 |
1 |
Cable, Battery |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
5-9-21 |
21 |
13437634 |
1 |
frame SY135C9I4K.1.5.20 |
5-9-22 |
22 |
60148849 |
1 |
Battery Control switch |
5-9-23 |
23 |
60197034 |
5 |
Cluster fixed lace |
5-9-24 |
24 |
A241300000059 |
1 |
Box, fuse |
5-9-25 |
25 |
A242200000027 |
2 |
Battery |
5-9-26 |
26 |
B240700000250 |
10 |
Relay |
5-9-27 |
27 |
60222546 |
1 |
converter |
5-9-28 |
28 |
B241000000022 |
1 |
Socket, two-wire |
5-9-29 |
29 |
A210204000115 |
14 |
Screw M5×12GB70.1 |
5-9-30 |
30 |
24000509 |
14 |
Washer |
5-9-31 |
31 |
24000272 |
8 |
Bolt M10×20GB5783 Dacroment |
5-9-32 |
32 |
24000637 |
12 |
Washer |
5-9-33 |
33 |
60202078 |
5 |
Cluster fixed lace |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

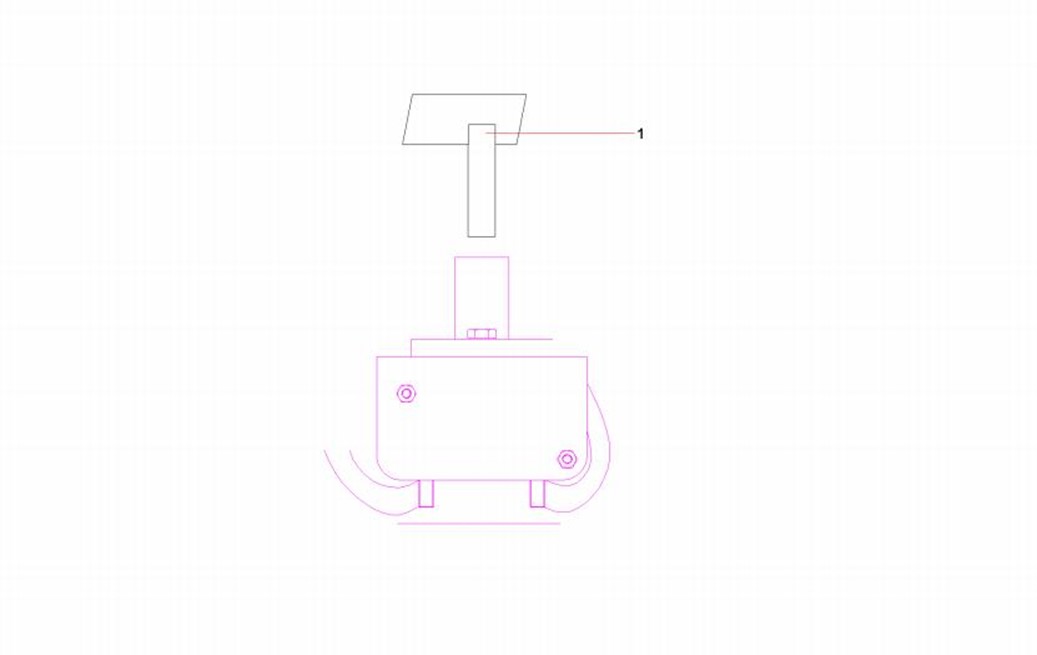

5-11-1 |
1 |
60306442 |
1 |
battery switch key |

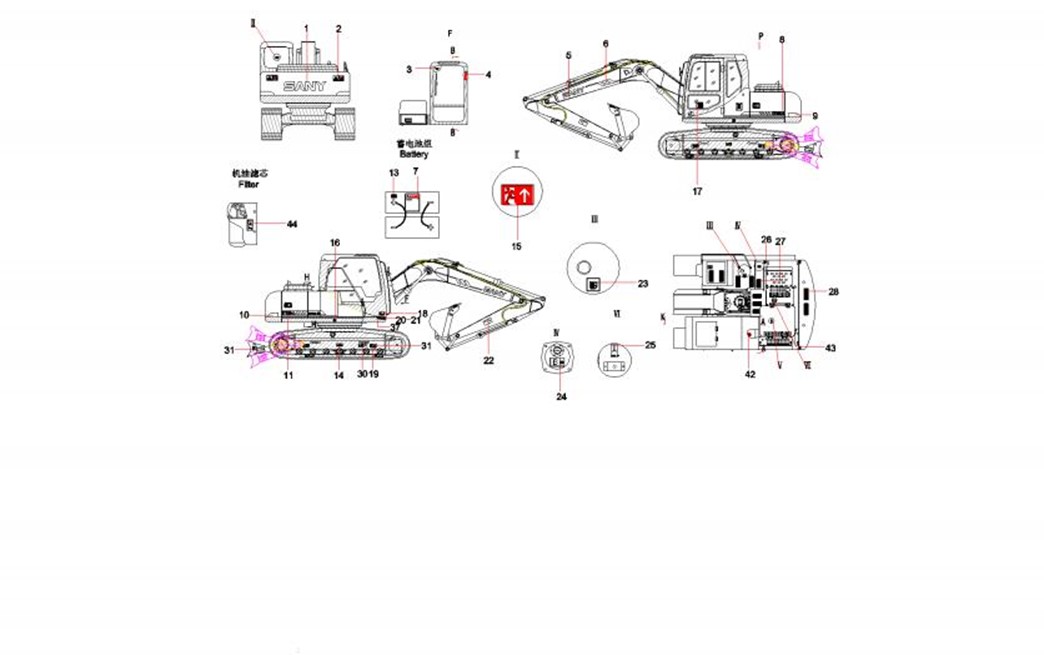

Chapter 6
coating SY135C9I4K-TZ
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
6-3-1 |
1 |
12896881 |
1 |
Counterweight |
6-3-2 |
2 |
13333248 |
2 |
Counterweight warning board |
6-3-3 |
3 |
13340001 |
1 |
Front window lock caution board |
6-3-4 |
4 |
12033806 |
1 |
Label, preventing fire disaster |
6-3-5 |
5 |
A820699000768 |
2 |
Decal, machine body |
6-3-6 |
6 |
10233746 |
2 |
Decal, boom, side |
6-3-7 |
7 |
13333405 |
1 |
Caution plate of Battery |
6-3-8 |
8 |
13091883 |
1 |
Machine left MarkingSY135C8I3K- |
6-3-9 |
9 |
12727593 |
1 |
Film, reflective, counterweight |
6-3-10 |
10 |
12727594 |
1 |
Film, reflective, counterweight |
6-3-11 |
11 |
13091936 |
1 |
Machine right MarkingSY135C8I3K |
6-3-14 |
14 |
13336668 |
2 |
Track tension |
6-3-15 |
15 |
A820601990969 |
1 |
Label, emergency exit |
6-3-16 |
16 |
12052090 |
2 |
Decal, center of gravity |
6-3-17 |
17 |
13202406 |
1 |
Lubrication table SY135C8I3K-TZ- |
6-3-18 |
18 |
13156487 |
1 |
Fixed loading spot layout |
6-3-19 |
19 |
12052085 |
1 |
Decal, tie-down, shipment |
6-3-20 |
20 |
13141404 |
1 |
nameplateSY135C8I3K-TZ-3 |
6-3-21 |
21 |
A210510000007 |
4 |
Rivet |
6-3-22 |
22 |
13333382 |
2 |
Arm warning SY215C9C5KL-TZ-3 |
