SANY SY155W SY155W9I3K WHEEL EXCAVATOR parts catalog 03

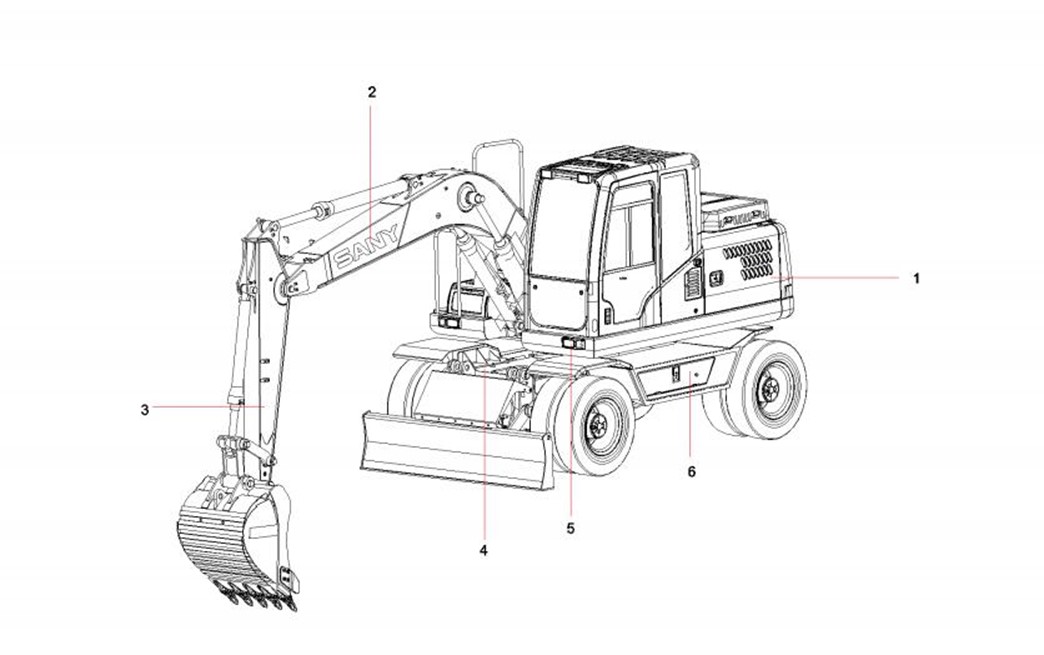

第1章
SY155W9I3K轮胎式液压挖掘机主体SY155W9I3K
(SY155W9I3K Hydraulic Wheel Excavator Bod)
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
1-3-1 |
1 |
13365313 |
1 |
回转装置 |
Slewing device SY150W9I3K.1 |
1-3-2 |
2 |
13604003 |
1 |
涂装 |
decal SY155W9I3K-TZ |
1-3-3 |
3 |
13325610 |
1 |
工作装置总成 |
Work device assembly |
1-3-4 |
4 |
13366279 |
1 |
行走装置 |
travel device SY150w9i3k.2 |
1-3-5 |
5 |
13366601 |
1 |
电气系统 |
Electrical assembly drawing |
1-3-6 |
6 |
13602997 |
1 |
随机附件 |
Attached tools and parts |

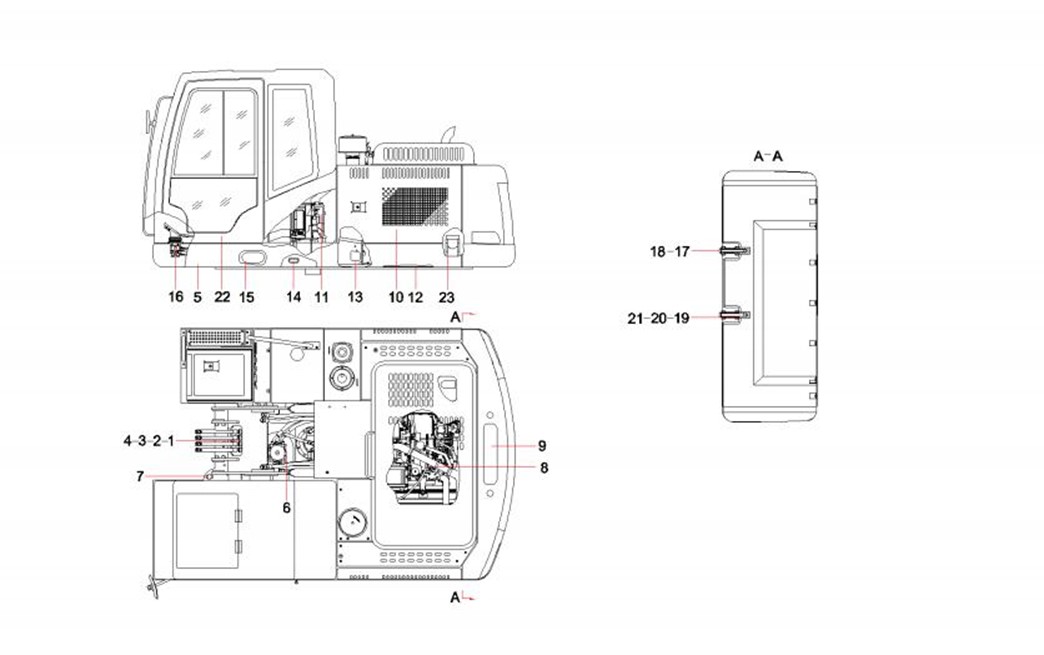

第2章
回转装置
(Slewing device SY150W9I3K.1)
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
2-3-1 |
1 |
A820606030364 |
1 |
密封垫 |
Gasket, seal |
2-3-2 |
2 |
A820101117871 |
1 |
盖 |
Cover |
2-3-3 |
3 |
A210111000202 |
2 |
螺栓 |
Bolt M12×30GB578310.9 |
2-3-4 |
4 |
A210405000001 |
2 |
垫圈 |
Washer 12GB97.1 |
2-3-5 |
5 |
13357192 |
1 |
回转平台 |
revolving frame SY150W9I3K.1.1 |
2-3-6 |
6 |
13370377 |
1 |
液压主管路 |
Hydraulic main pipeline |
2-3-7 |
7 |
13350490 |
1 |
固定销轴 |
Fixed pin shaft SY150W9I3K.1.11 |
2-3-8 |
8 |
13360268 |
1 |
动力系统 |
Power system SY150W9I3K.1.3 |
2-3-9 |
9 |
13381613 |
1 |
配重总成 |
counterweight assembly |
2-3-10 |
10 |
13364291 |
1 |
覆盖件总装 |
general assembly of covering parts |
2-3-11 |
11 |
13326324 |
1 |
空调系统 |
Air conditioning SY150W9I3K.1.8 |
2-3-12 |
12 |
13359529 |
1 |
底封板总成 |
Assembly of bottom sealing board |
2-3-13 |
13 |
13185990 |
4 |
. 胶护套 |
Protective sleeveSY135C9M2K.1- |
2-3-14 |
14 |
11225694 |
1 |
护套 |
Sheath |
2-3-15 |
15 |
13350485 |
2 |
橡胶护套 |
Protective sleeve SY150W9I3K.1- |
2-3-16 |
16 |
13373656 |
1 |
先导管路 |
pilot pipeline SY150W9I3K.1.4 |
2-3-17 |
17 |
A210110000308 |
4 |
螺栓M27×200GB5782 10.9级 |
Bolt M27×200GB5782 10.9 |
2-3-18 |
18 |
A210444000004 |
4 |
垫圈 |
Washer 27GB1230 |
2-3-19 |
19 |
A820101327187 |
2 |
垫片 |
Shim |
2-3-20 |
20 |
11664456 |
4 |
调整垫片 |
Shim, adjusting |
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
2-5-21 |
21 |
11664457 |
4 |
调整垫片 |
Shim, adjusting |
2-5-22 |
22 |
13386606 |
1 |
驾驶室总成 |
assembly cab SY150W9I3K.1.5 |
2-5-23 |
23 |
13517607 |
2 |
护套 |
Protective sleeve SY150W9I3K.1- |
