SANY SY16C SY16C3 SY16C3Y4W EXCAVATOR parts catalog 26
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

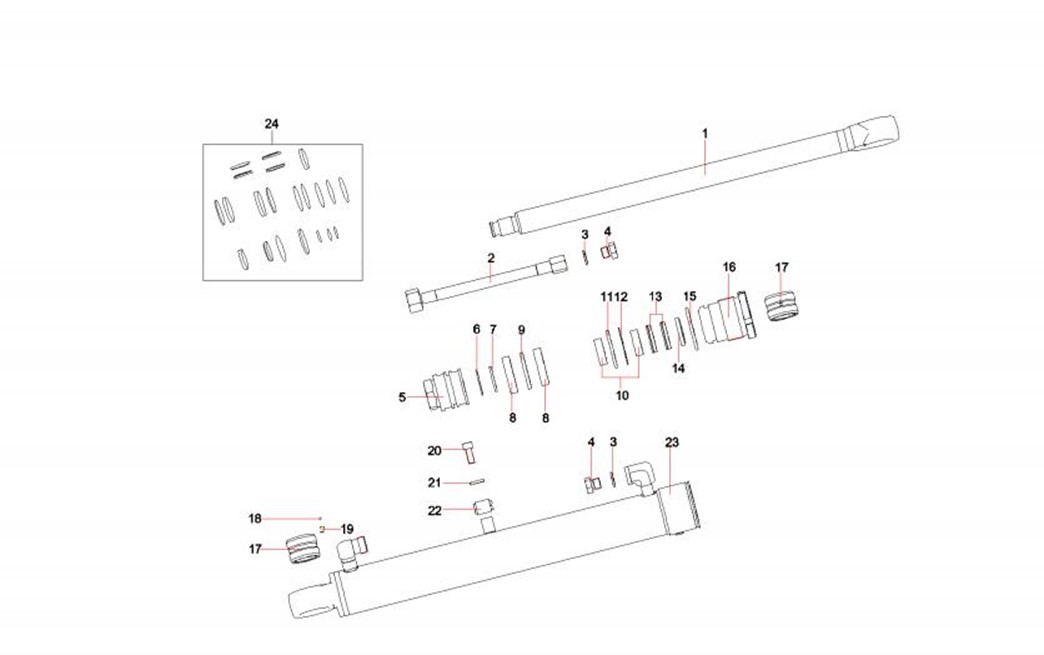

3-37-1 |
1 |
13019507 |
1 |
piston rod ZX16.3.5.1 |
3-37-2 |
2 |
13008607 |
1 |
Oil Pipe Component ZX16.3.5.3 |
3-37-3 |
3 |
A210434000007 |
2 |
Washer 14JB982 |
3-37-4 |
4 |
A210333000010 |
2 |
Plug, screw |
3-37-5 |
5 |
13019448 |
1 |
Piston ZX16.3.5-1 |
3-37-6 |
6 |
24003725 |
1 |
Retainer ring |
3-37-7 |
7 |
A210608000122 |
1 |
O-ring 30×2.65GB3452.1 |
3-37-8 |
8 |
A880803040036 |
2 |
Ring, guide, UP |
3-37-9 |
9 |
B230101000192 |
1 |
Seal, OK-ring |
3-37-10 |
10 |
60017217 |
2 |
Guide ring |
3-37-11 |
11 |
A210609000060 |
1 |
O-ring 45×3.55GB3452.1 |
3-37-12 |
12 |
B210491000141 |
1 |
Ring,retainer |
3-37-13 |
13 |
60017221 |
2 |
Ring,seal |
3-37-14 |
14 |
60042090 |
1 |
Ring,dust |
3-37-15 |
15 |
A210609000062 |
1 |
O-ring 48.7×3.55GB3452.1 |
3-37-16 |
16 |
13553740 |
1 |
guide sleeve ZX16.3.3-2 |
3-37-17 |
17 |
11701353 |
1 |
Bushing |
3-37-18 |
18 |
A210661000015 |
1 |
Steel Ball |
3-37-19 |
19 |
60068694 |
1 |
Screw M6×8GB77 |
3-37-20 |
20 |
A210204000220 |
1 |
Screw M8×20GB70.1 10.9 |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
3-39-21 |
21 |
13469025 |
1 |
washer ZX35.3.1B-6 |
3-39-22 |
22 |
13008028 |
1 |
Pipe Clamp ZX16.3.1-5 |
3-39-23 |
23 |
13019509 |
1 |
Cylinder assem. ZX16.3.5.2 |
3-39-24 |
24 |
60266033 |
1 |
Telescopic Cylinder Repair Kit |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

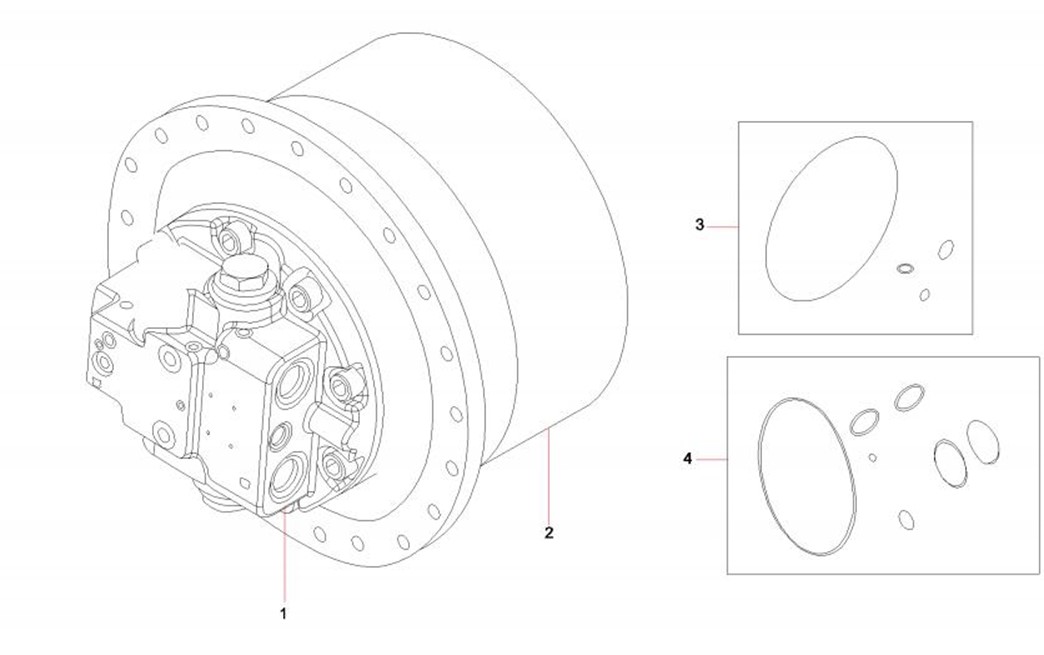

3-41-1 |
1 |
60305404 |
1 |
Hydraulic motor |
3-41-2 |
2 |
60305393 |
1 |
Reducer |
3-41-3 |
3 |
60305440 |
1 |
Seal Kit |
3-41-4 |
4 |
60305439 |
1 |
Seal Kit |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

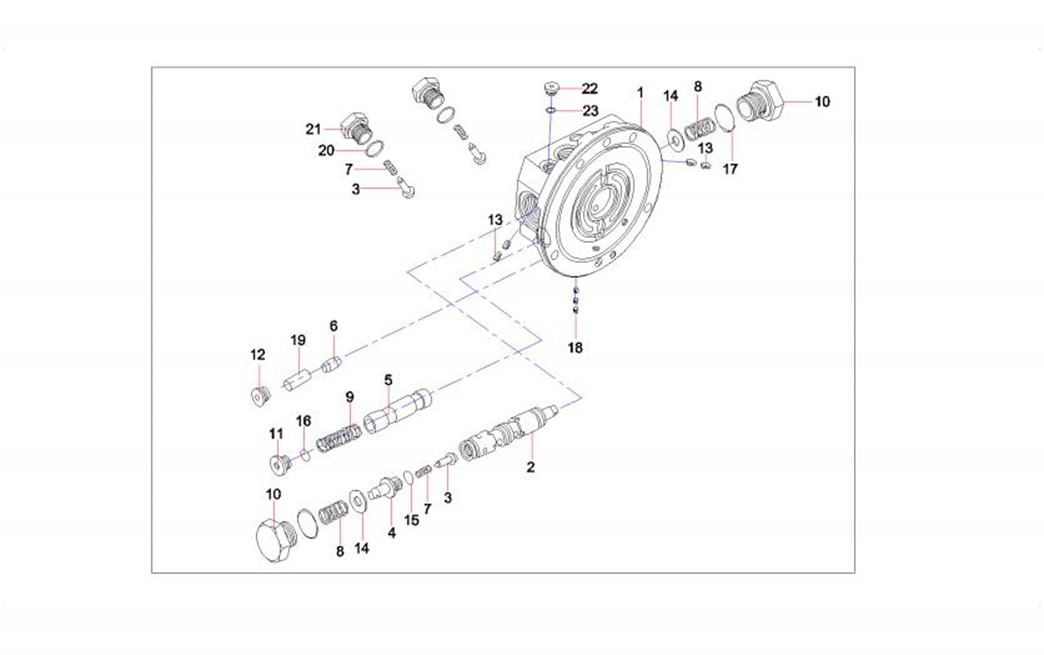

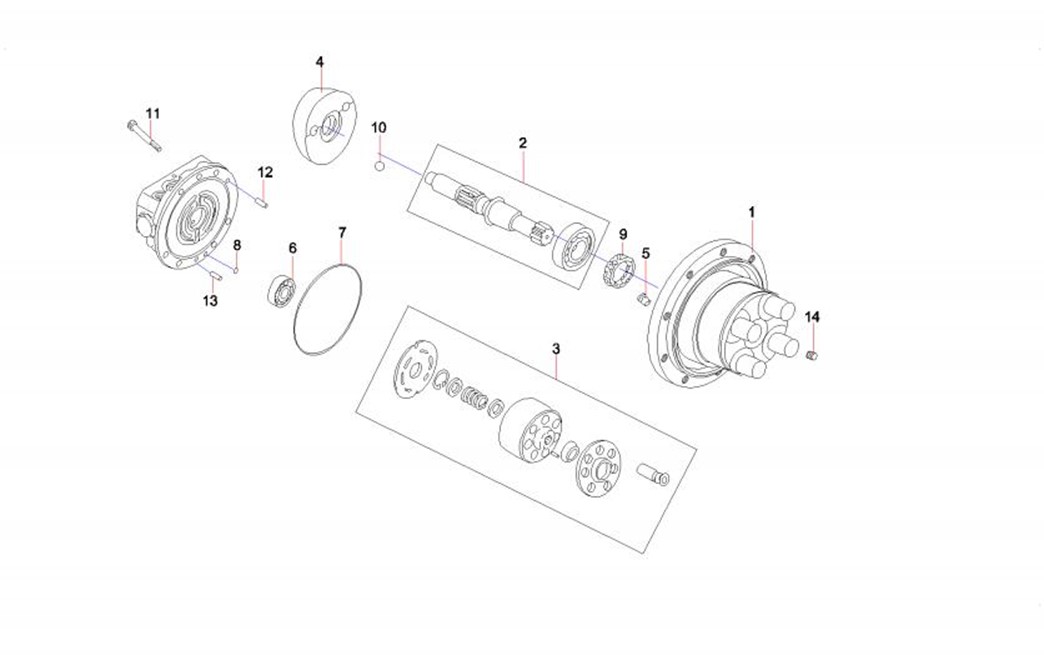

3-43-1 |
1 |
Modification or other |
1 |
Body |
3-43-2 |
2 |
Modification or other |
1 |
Shaft ASSY |
3-43-3 |
3 |
Modification or other |
1 |
Cylinder barrel ASSY |
3-43-4 |
4 |
Modification or other |
1 |
Swash plate |
3-43-5 |
5 |
Modification or other |
1 |
Control piston |
3-43-6 |
6 |
Modification or other |
1 |
Bearing |
3-43-7 |
7 |
Modification or other |
1 |
O-ring 104.4×3.1JISB2401 |
3-43-8 |
8 |
Modification or other |
1 |
O-ring |
3-43-9 |
9 |
Modification or other |
1 |
Oil seal |
3-43-10 |
10 |
Modification or other |
2 |
Ball |
3-43-11 |
11 |
Modification or other |
7 |
Screw |
3-43-12 |
12 |
Modification or other |
1 |
Spring pin |
3-43-13 |
13 |
Modification or other |
1 |
Screw |
3-43-14 |
14 |
Modification or other |
1 |
Screw |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
3-45-1 |
1 |
Modification or other |
1 |
Body |
3-45-2 |
2 |
Modification or other |
1 |
Spool |
3-45-3 |
3 |
Modification or other |
4 |
Check valve |
3-45-4 |
4 |
Modification or other |
2 |
Spring guide |
3-45-5 |
5 |
Modification or other |
1 |
Spool |
3-45-6 |
6 |
Modification or other |
1 |
Spool |
3-45-7 |
7 |
Modification or other |
4 |
Spring V1 |
3-45-8 |
8 |
Modification or other |
2 |
Spring V2 |
3-45-9 |
9 |
Modification or other |
1 |
Spring V3 |
3-45-10 |
10 |
Modification or other |
2 |
Plug |
3-45-11 |
11 |
Modification or other |
2 |
Plug |
3-45-12 |
12 |
Modification or other |
2 |
Plug |
3-45-13 |
13 |
Modification or other |
4 |
Choke |
3-45-14 |
14 |
Modification or other |
2 |
Ring |
3-45-15 |
15 |
Modification or other |
2 |
O ring |
3-45-16 |
16 |
Modification or other |
2 |
O-Ring |
3-45-17 |
17 |
Modification or other |
2 |
O-Ring |
3-45-18 |
18 |
Modification or other |
3 |
Chock |
3-45-19 |
19 |
Modification or other |
2 |
Pin |
3-45-20 |
20 |
Modification or other |
2 |
Check plug |
