SANY SY16C SY16C3 SY16C3Y4W EXCAVATOR parts catalog 27
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
3-47-21 |
21 |
Modification or other |
2 |
O-ring |
3-47-22 |
22 |
Modification or other |
4 |
Plug |
3-47-23 |
23 |
Modification or other |
1 |
O-ring |

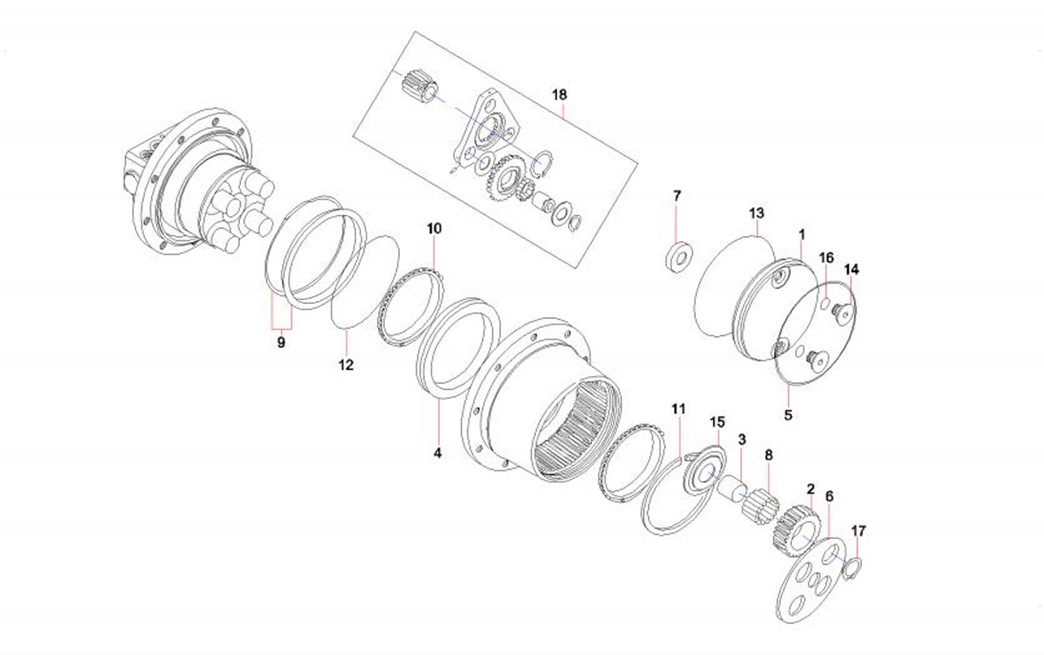

IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
3-49-1 |
1 |
Modification or other |
1 |
Cover |
3-49-2 |
2 |
Modification or other |
4 |
B1 Gear |
3-49-3 |
3 |
Modification or other |
4 |
Ring |
3-49-4 |
4 |
Modification or other |
1 |
Seal ring |
3-49-5 |
5 |
Modification or other |
1 |
O snap ring |
3-49-6 |
6 |
Modification or other |
1 |
Thrust plate |
3-49-7 |
7 |
Modification or other |
1 |
Ring, slide |
3-49-8 |
8 |
Modification or other |
96 |
Needle |
3-49-9 |
9 |
Modification or other |
1 |
Floating seal |
3-49-10 |
10 |
Modification or other |
2 |
Bearing |
3-49-11 |
11 |
Modification or other |
1 |
Snap ring |
3-49-12 |
12 |
Modification or other |
1 |
O-ring |
3-49-13 |
13 |
Modification or other |
1 |
O-ring |
3-49-14 |
14 |
Modification or other |
2 |
Plug |
3-49-15 |
15 |
Modification or other |
1 |
Thrust washer |
3-49-16 |
16 |
Modification or other |
3 |
O-Ring |
3-49-17 |
17 |
Modification or other |
2 |
Snap ring |
3-49-18 |
18 |
Modification or other |
1 |
Carrier 2 ASSY |

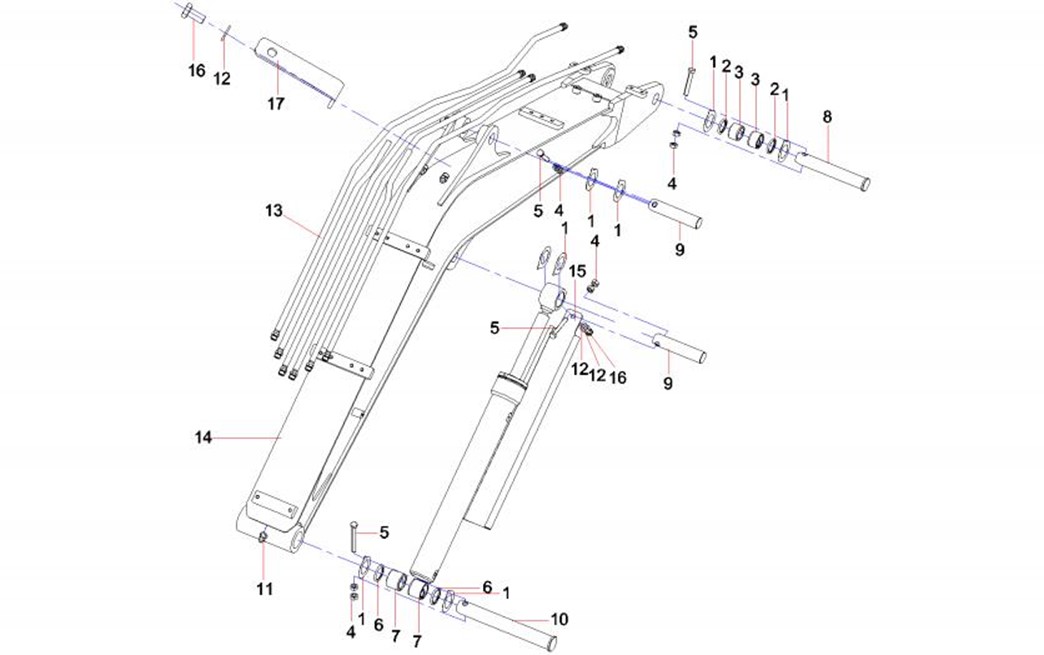

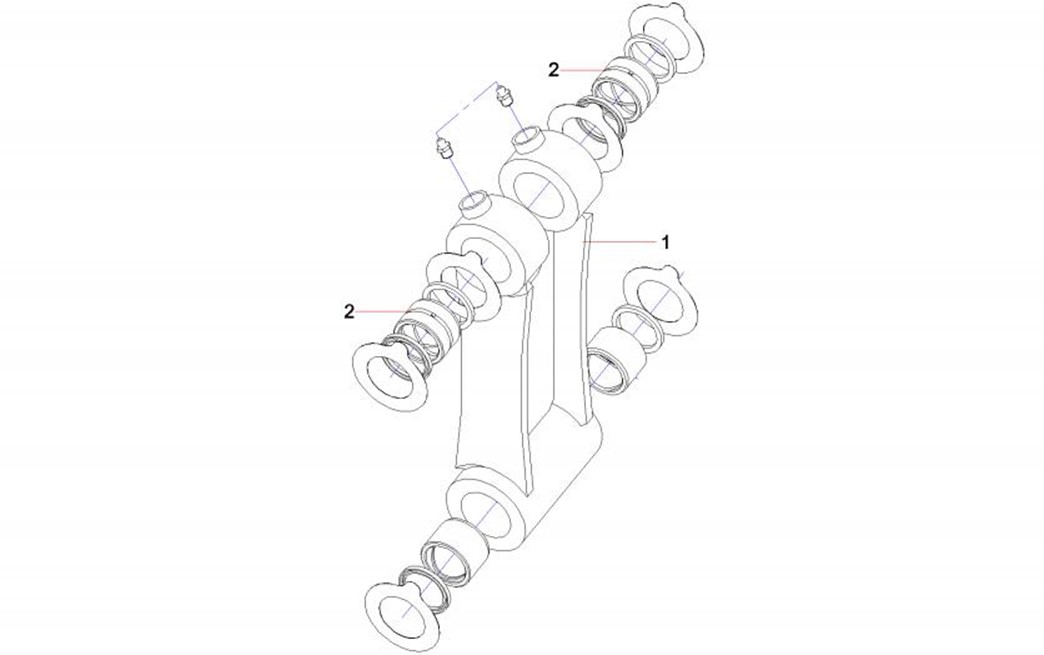

Chapter 4
Working attachment
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
4-3-1 |
1 |
13000200 |
28 |
Spacer |
4-3-2 |
2 |
60022526 |
12 |
Ring,dust |
4-3-3 |
3 |
12980716 |
8 |
Shaft Sleeve |
4-3-4 |
4 |
A210307000036 |
24 |
Nut M10GB6170 10 |
4-3-5 |
5 |
A210111000294 |
10 |
Bolt M10×65GB5783 10.9 |
4-3-6 |
6 |
60022527 |
2 |
Ring,dustproof |
4-3-7 |
7 |
12980735 |
2 |
Shaft Sleeve |
4-3-8 |
8 |
13003657 |
1 |
Shaft |
4-3-9 |
9 |
12980395 |
2 |
Shaft |
4-3-10 |
10 |
12980448 |
1 |
Shaft |
4-3-11 |
11 |
A210804000002 |
7 |
Cup, oil M10×1JB7940.1 |
4-3-12 |
12 |
24000637 |
3 |
Washer |
4-3-13 |
13 |
13004976 |
1 |
Pipeline work equipment |
4-3-14 |
14 |
13001974 |
1 |
Boom |
4-3-15 |
15 |
13353002 |
1 |
Oil cylinder protecting board |
4-3-16 |
16 |
A210111000012 |
2 |
Bolt M10×20GB5783 10.9 |
4-3-17 |
17 |
13002021 |
1 |
Lamp Bracket |

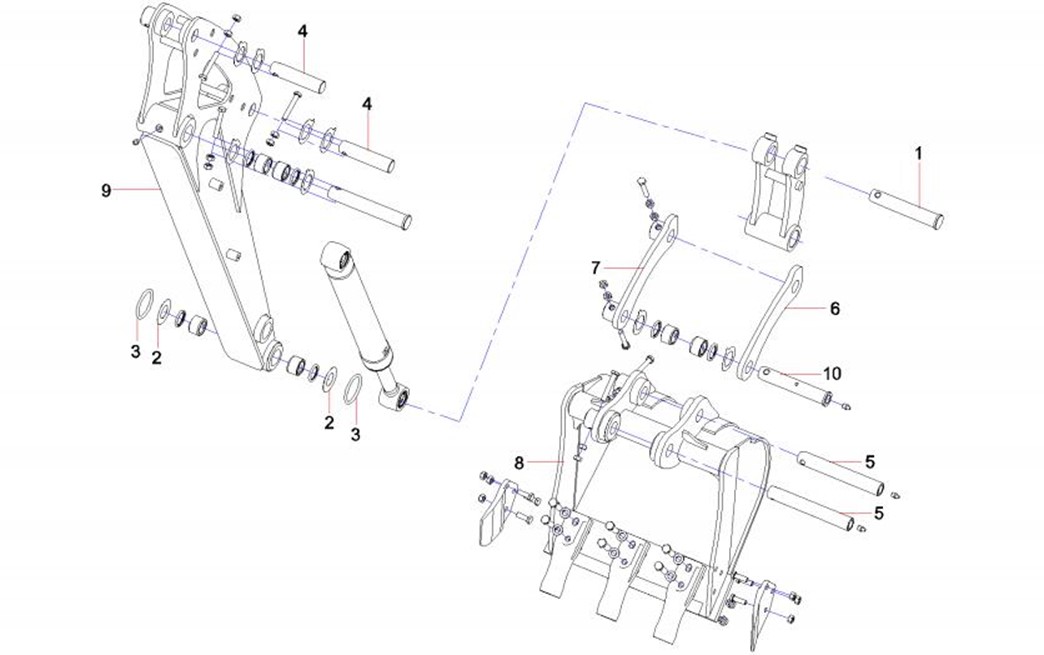

IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
4-5-1 |
1 |
12980310 |
1 |
Shaft |
4-5-2 |
2 |
13000255 |
2 |
Spacer |
4-5-3 |
3 |
A210608000086 |
2 |
O-ring |
4-5-4 |
4 |
12980345 |
2 |
Shaft |
4-5-5 |
5 |
12980301 |
2 |
Shaft |
4-5-6 |
6 |
13002022 |
1 |
Rocker |
4-5-7 |
7 |
13002023 |
1 |
Rocker composite element |
4-5-8 |
8 |
Modification or other |
1 |
Bucket |
4-5-9 |
9 |
12997893 |
1 |
Arm |
4-5-10 |
10 |
12980313 |
1 |
Shaft |
