SANY SY16C SY16C3Y3W EXCAVATOR parts catalog 04
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
2-9-1 |
1 |
60281073 |
1 |
固定式座椅 |
Driver cab seat |
2-9-2 |
2 |
13004843 |
1 |
座椅安装板 |
Seat installation plate |
2-9-3 |
3 |
13004844 |
1 |
座椅底组件海绵 |
Seat base component sponge |
2-9-4 |
4 |
24000633 |
4 |
垫圈8GB97.1 达克锈 |
Washer |
2-9-5 |
5 |
A210307000012 |
4 |
螺母 |
Nut |

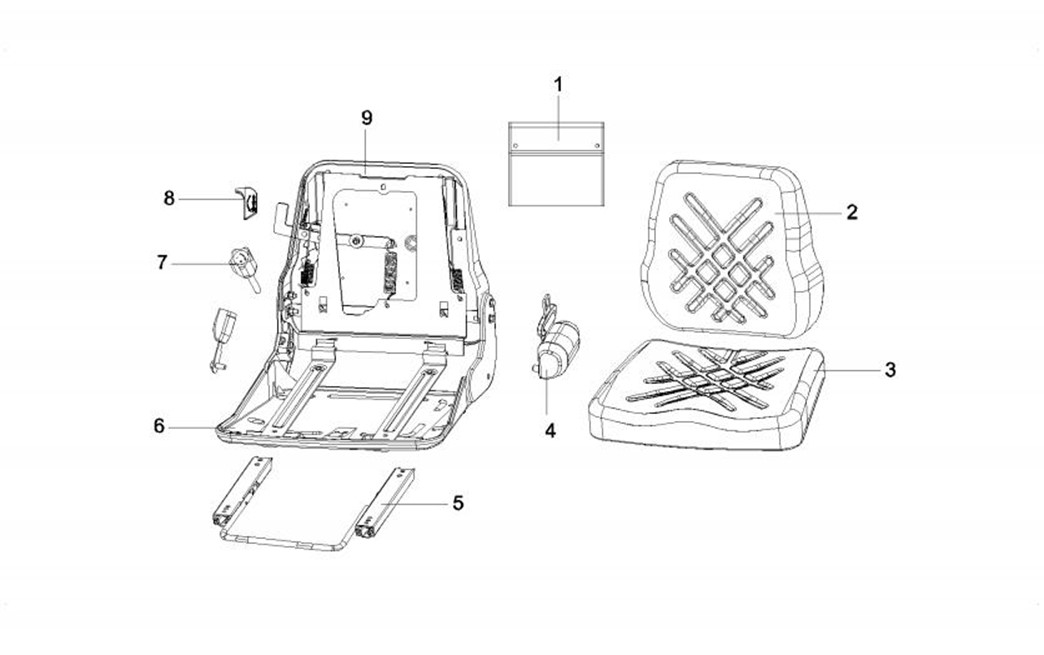

识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
2-11-1 |
1 |
60308226 |
1 |
资料袋总成 |
information bag assembly |
2-11-2 |
2 |
60308230 |
1 |
皮革靠背海绵总成 |
leather backrest sponge assembly |
2-11-3 |
3 |
60308231 |
1 |
皮革座垫海绵总成 |
leather seat sponge assembly |
2-11-4 |
4 |
60308228 |
1 |
可回弹安全带 |
safety belt |
2-11-5 |
5 |
60308221 |
1 |
滑道总成 |
slideway assembly |
2-11-6 |
6 |
60308222 |
1 |
座垫底板组件 |
seat base plate assembly |
2-11-7 |
7 |
60308223 |
1 |
调荷手柄组件 |
adjust load handle assembly |
2-11-8 |
8 |
60308224 |
1 |
塑料手柄套 |
plastic handle |
2-11-9 |
9 |
60308225 |
1 |
靠背底板组件 |
backrest base plate assembly |

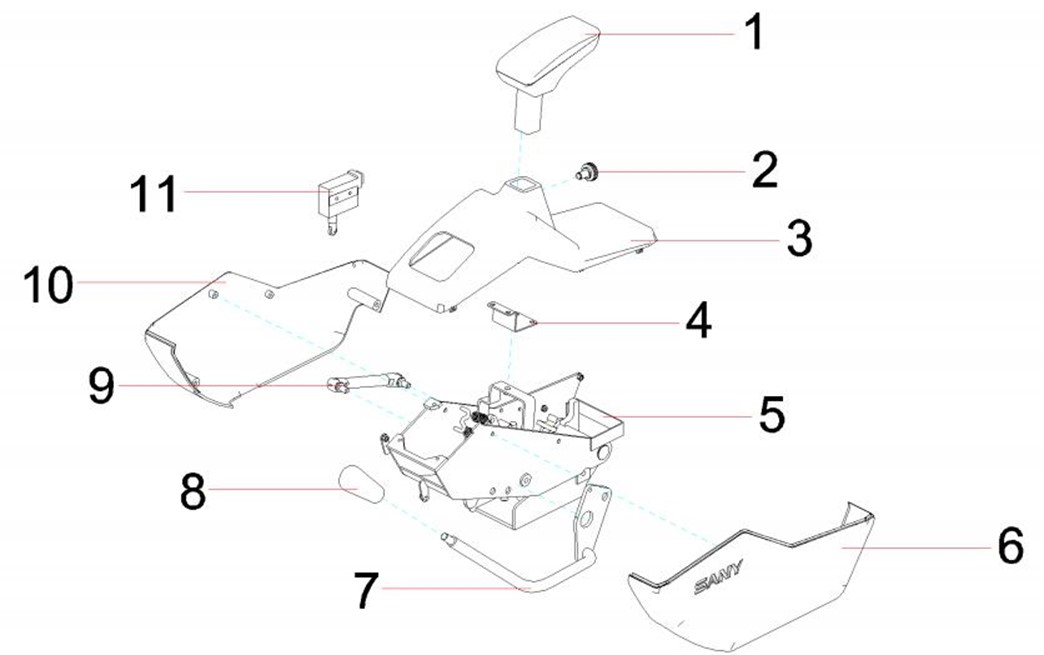

识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
2-13-1 |
1 |
60259927 |
1 |
手托 |
hand rail |
2-13-2 |
2 |
60259923 |
1 |
上盖限位件 |
hand rail limit |
2-13-3 |
3 |
60259919 |
1 |
左扶手箱上盖 |
left armrest box upper cover |
2-13-4 |
4 |
60259920 |
1 |
上盖固定件 |
upper cover anchor |
2-13-5 |
5 |
60292211 |
1 |
左扶手箱骨架 |
left armrest box framework |
2-13-6 |
6 |
60259922 |
1 |
左扶手箱左壳 |
left armrest box left shell |
2-13-7 |
7 |
60259925 |
1 |
把手杆 |
handle lever |
2-13-8 |
8 |
60259924 |
1 |
把手手柄 |
handle |
2-13-9 |
9 |
60309855 |
1 |
斯泰秘鲁斯气弹簧 |
gas spring |
2-13-10 |
10 |
60259921 |
1 |
左扶手箱右壳 |
left armrest box right shell |
2-13-11 |
11 |
60250079 |
1 |
行程开关 |
journey switch |
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
2-15-1 |
1 |
60292210 |
1 |
右扶手箱骨架 |
right armrest box framework |
2-15-2 |
2 |
60259930 |
1 |
右扶手箱左壳 |
right armrest box left shell |
2-15-3 |
3 |
60259929 |
1 |
右扶手箱右壳 |
right armrest box right shell |
2-15-4 |
4 |
60259928 |
1 |
右扶手箱上盖 |
right armrest box upper cover |
2-15-5 |
5 |
60259927 |
1 |
手托 |
hand rail |
2-15-6 |
6 |
60259934 |
1 |
油门手柄 |
throttle handle |
2-15-7 |
7 |
60259920 |
1 |
上盖固定件 |
upper cover anchor |
2-15-8 |
8 |
A210307000012 |
1 |
螺母 |
Nut |
2-15-9 |
9 |
60259934 |
1 |
油门手柄 |
throttle handle |
2-15-10 |
10 |
24000637 |
1 |
垫圈10GB97.1 达克锈 |
Washer |
2-15-11 |
11 |
60292653 |
2 |
拉线机构垫板 |
drawing wire cushion |
2-15-12 |
12 |
60295005 |
2 |
碗型垫片 |
mat |
2-15-13 |
13 |
A210111000028 |
1 |
螺栓 |
Bolt |
2-15-14 |
14 |
60259923 |
1 |
上盖限位件 |
hand rail limit |
2-15-15 |
15 |
60306443 |
1 |
工作灯开关 |
rocker switch |
2-15-16 |
16 |
60306444 |
1 |
高低速开关 |
rocker switch |
2-15-17 |
17 |
60306445 |
1 |
切换开关 |
rocker switch |
2-15-18 |
18 |
60306442 |
1 |
总电源开关钥匙 |
battery switch key |

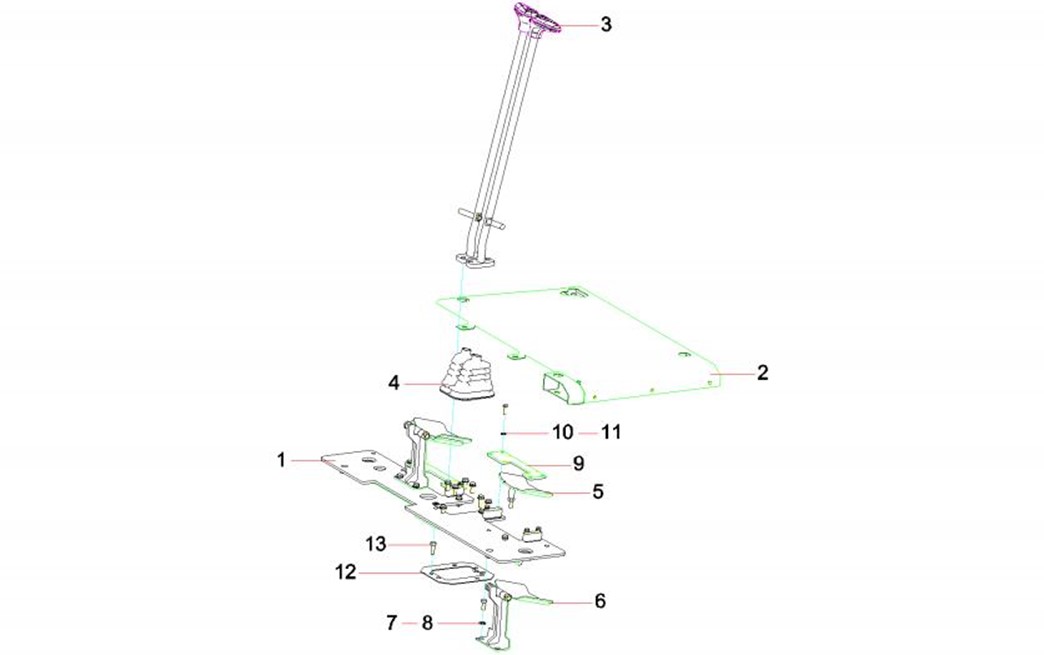

识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|

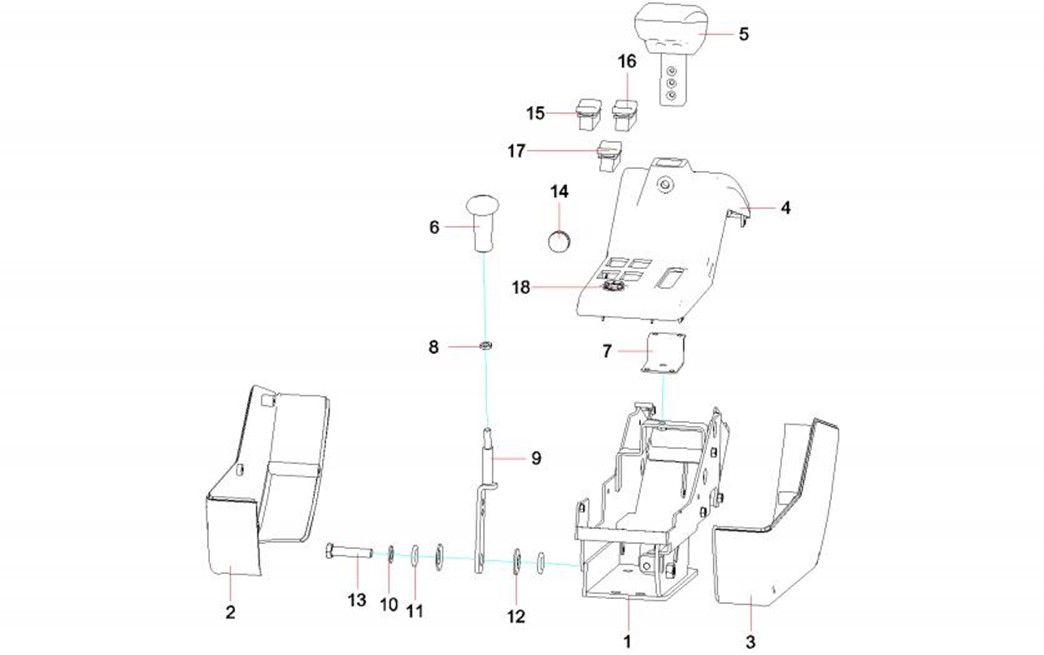

2-17-1 |
1 |
13455983 |
1 |
前底板组件 |
front base plate component |
2-17-2 |
2 |
13455903 |
1 |
脚踏底板组件 |
foot-operated base plate |
2-17-3 |
3 |
12985863 |
1 |

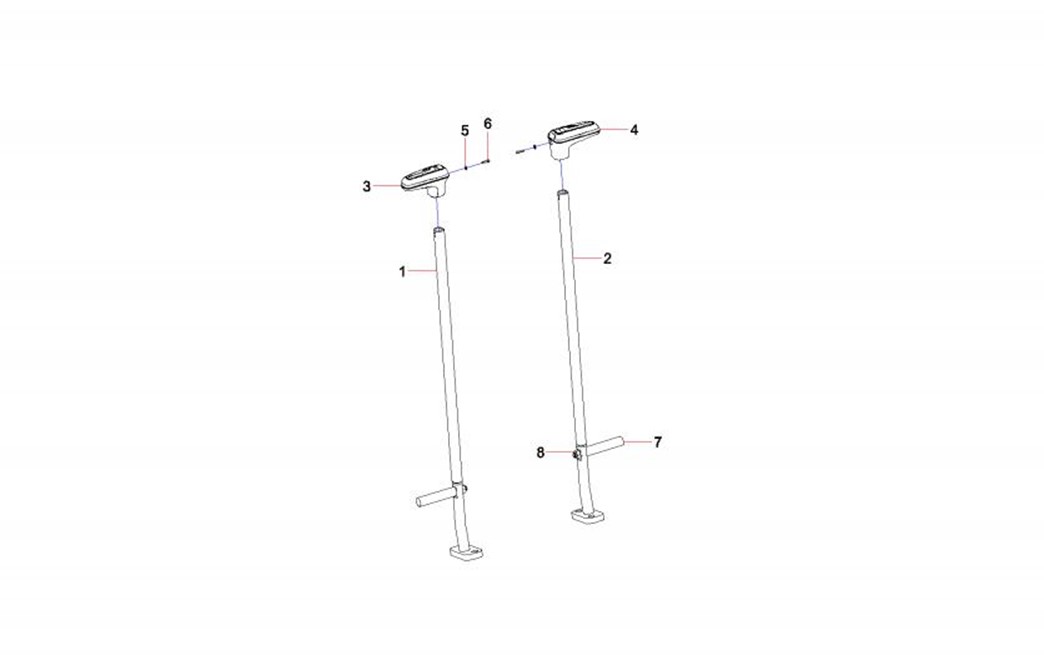

行走操纵机构 |
Running control mechanism |
2-17-4 |
4 |
变更或见其他配置 |
1 |
橡胶护套组件 |
rubber protective sleeve |
2-17-5 |
5 |
变更或见其他配置 |
2 |
脚踏连接板 |
pedal connecting board |
2-17-6 |
6 |
变更或见其他配置 |
2 |
破碎脚踏组件 |
breaking Pedal assy |
2-17-7 |
7 |
A210405000007 |
14 |
垫圈 |
Washer |
2-17-8 |
8 |
A210111000089 |
10 |
螺栓 |
Bolt |
2-17-9 |
9 |
13471149 |
2 |
安装板 |
installation plate |
2-17-10 |
10 |
A210405000006 |
8 |
垫圈 |
Washer |
2-17-11 |
11 |
变更或见其他配置 |
8 |
螺栓 |
Bolt |
2-17-12 |
12 |
13004851 |
1 |
阀安装组件 |
Valve installation component |
2-17-13 |
13 |
A210111000090 |
4 |
螺栓 |
Bolt |
