SANY SY20C SY20C3 SY20C3Y3W INDIA EXCAVATOR parts catalog 29
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
6-7-21 |
21 |
B260409000015 |
1 |
Gun, grease, high pressure |
6-7-22 |
22 |
A260401030028 |
1 |
Spanner, double-ended |
6-7-23 |
23 |
B260401090024 |
1 |
Spanner, belt |

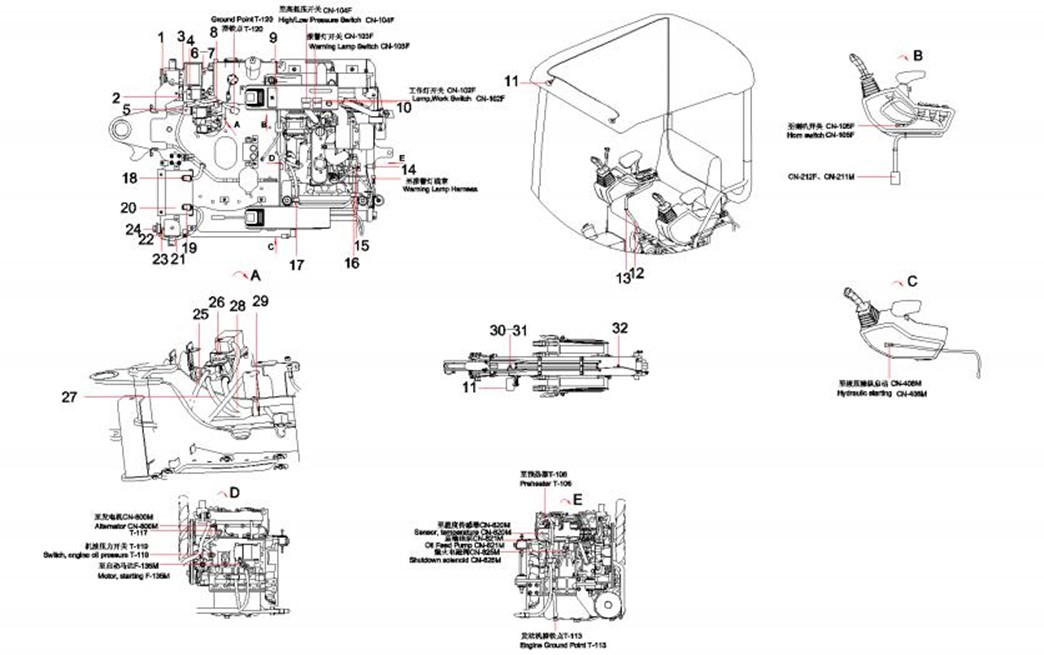

Chapter 7
Electrical System SY16C3Y3W.5
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
7-3-1 |
1 |
60211509 |
1 |
Horn |
7-3-2 |
2 |
60114652 |
1 |
Relay |
7-3-3 |
3 |
12995001 |
1 |
Fixed plate |
7-3-4 |
4 |
12994978 |
1 |
Installation plate |
7-3-5 |
5 |
13464508 |
1 |
installation plate for electrical |
7-3-6 |
6 |
A210111000079 |
4 |
Bolt |
7-3-7 |
7 |
24000632 |
4 |
Washer |
7-3-8 |
8 |
60086355 |
3 |
Clamp, harness |
7-3-9 |
9 |
60225933 |
1 |
Instrument assembly |
7-3-10 |
10 |
60218598 |
1 |
Ignition switch |
7-3-11 |
11 |
60218608 |
1 |
Working light |
7-3-12 |
12 |
13545010 |
1 |
Control Switch Harness |
7-3-13 |
13 |
60202078 |
4 |
Cluster fixed lace |
7-3-14 |
14 |
B241000000022 |
1 |
Socket, two-wire |
7-3-15 |
15 |
60193169 |
1 |
Power line |
7-3-16 |
16 |
60083322 |
1 |
Wire clip |
7-3-17 |
17 |
60086354 |
5 |
Clamp, harness |
7-3-18 |
18 |
60013322 |
1 |
Terminal Group, Battery Positive |
7-3-19 |
19 |
60013321 |
1 |
Terminal Group, Battery Negative |
7-3-20 |
20 |
60066402 |
1 |
Battery |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
7-5-21 |
21 |
60136387 |
2 |
Wire, power supply |
7-5-22 |
22 |
60193169 |
1 |
Power line |
7-5-23 |
23 |
13117005 |
1 |
power supply switch |
7-5-24 |
24 |
60241333 |
1 |
Batterie Switch |
7-5-25 |
25 |
60136390 |
1 |
Wire, power supply |
7-5-26 |
26 |
A241300000059 |
1 |
Box, fuse |
7-5-27 |
27 |
12988877 |
1 |
Power Harness |
7-5-28 |
28 |
12983323 |
1 |
Vehical Body Harness |
7-5-29 |
29 |
60086356 |
2 |
Clamp, harness |
7-5-30 |
30 |
A210111000293 |
18 |
Bolt |
7-5-31 |
31 |
24000633 |
18 |
Washer |
7-5-32 |
32 |
60086353 |
5 |
Clamp, harness |
Chapter 8
Other Fittings
