SANY SY335C SY335C9 SY335C9I2KH EXCAVATOR parts catalog 05
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-29-41 |
41 |
B220401000916 |
1 |
Valve AS, shut off, engine oil |
2-29-42 |
42 |
A229900001345 |
1 |
Clamp, hose |
2-29-43 |
43 |
A820606030088 |
1 |
Hose AS, primary water filter |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

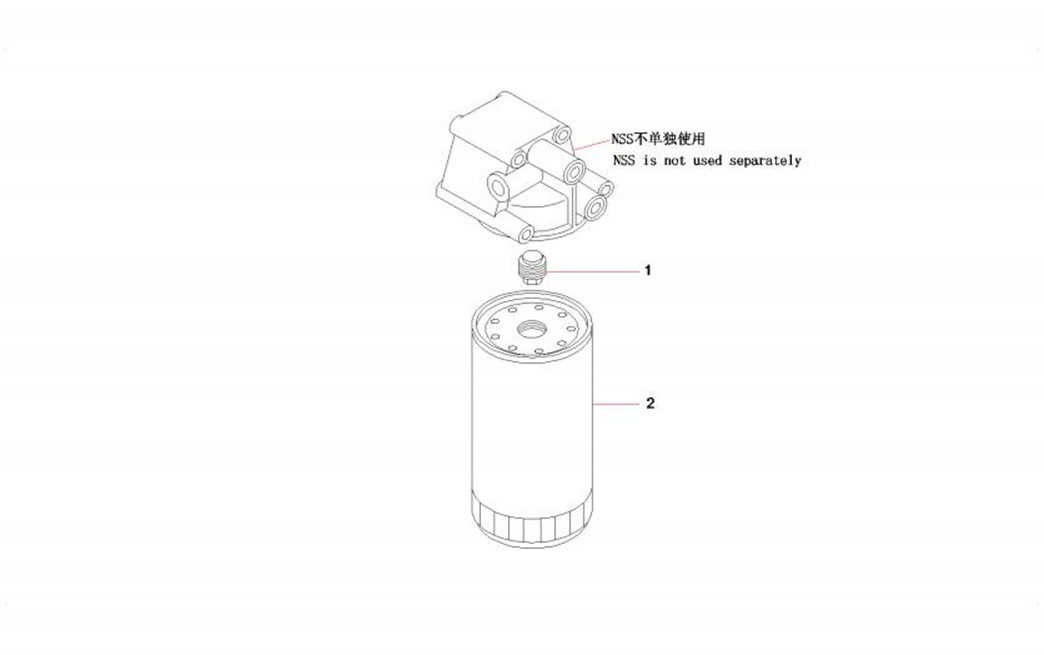

2-31-1 |
1 |
B229900004781 |
1 |
Plug, Connecting |
2-31-2 |
2 |
B222100000488 |
1 |
Filter, engine oil |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-33-1 |
1 |
60078250 |
1 |
Fuel Filter Seat |
2-33-2 |
2 |
60064761 |
1 |
Element, fuel filter |
2-33-3 |
3 |
60180565 |
1 |
Water Cup |
2-33-4 |
4 |
60078244 |
1 |
Water Drain Plug |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

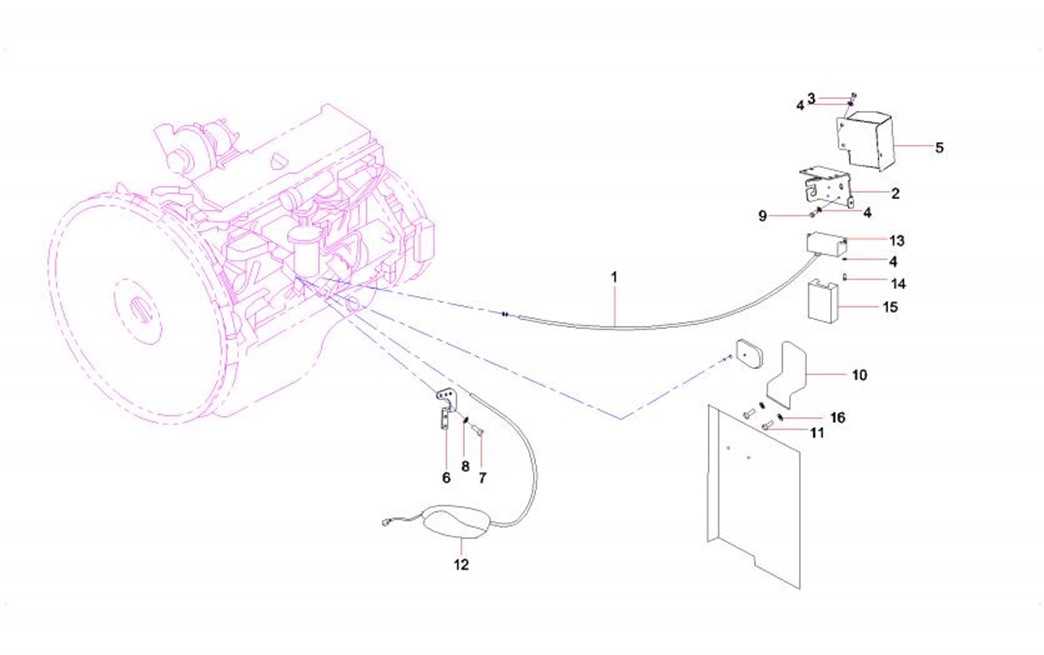

2-35-1 |
1 |
60240318 |
1 |
Sliding soft shaft |
2-35-2 |
2 |
13134903 |
1 |
motor |
2-35-3 |
3 |
Modification or other |
3 |
Screw M10×20GB70.1 |
2-35-4 |
4 |
24000637 |
10 |
Washer |
2-35-5 |
5 |
13134718 |
1 |
waterproof |
2-35-6 |
6 |
11626828 |
1 |
Arm, throttle motor |
2-35-7 |
7 |
A210204000220 |
1 |
Screw M8×20GB70.1 10.9 |
2-35-8 |
8 |
24000633 |
1 |
Washer |
2-35-9 |
9 |
A210111000012 |
4 |
Bolt M10×20GB5783 10.9 |
2-35-10 |
10 |
10145126 |
1 |
Bracket (Stopper, Electric) |
2-35-11 |
11 |
Modification or other |
2 |
Bolt |
2-35-12 |
12 |
B229900002662 |
1 |
Stopper GP, electric |
2-35-13 |
13 |
60099069 |
1 |
Motor,throttle |
2-35-14 |
14 |
Modification or other |
3 |
Screw |
2-35-15 |
15 |
13161805 |
1 |
Protective |
2-35-16 |
16 |
60060565 |
4 |
Washer |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

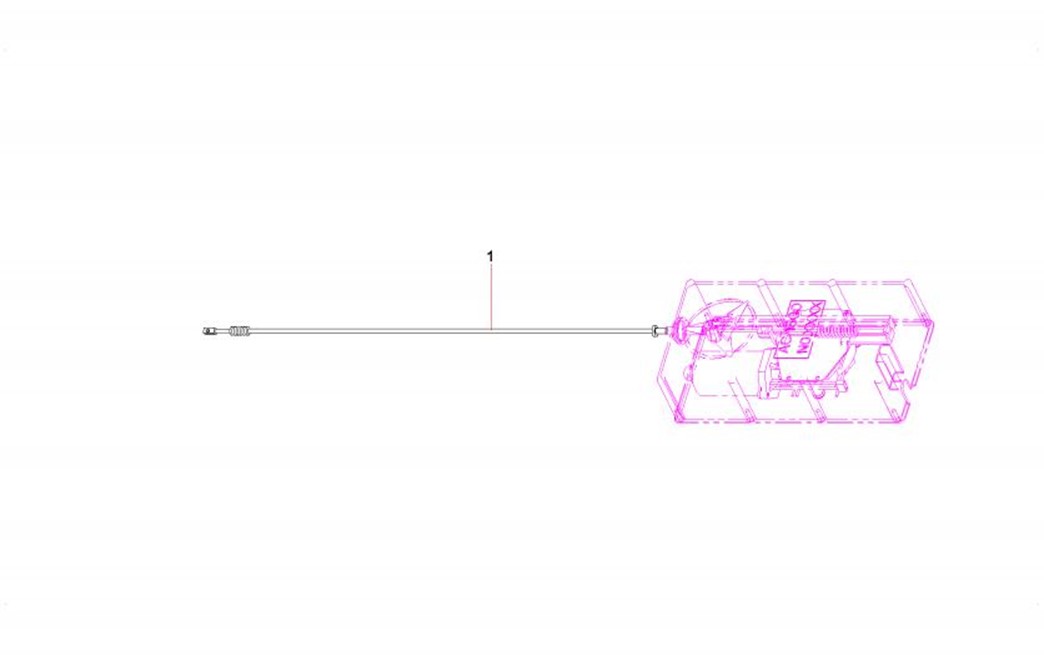

2-37-1 |
1 |
B241300000086 |
1 |
Cable |
