SANY SY335C SY335C9 SY335C9I2KH EXCAVATOR parts catalog 28

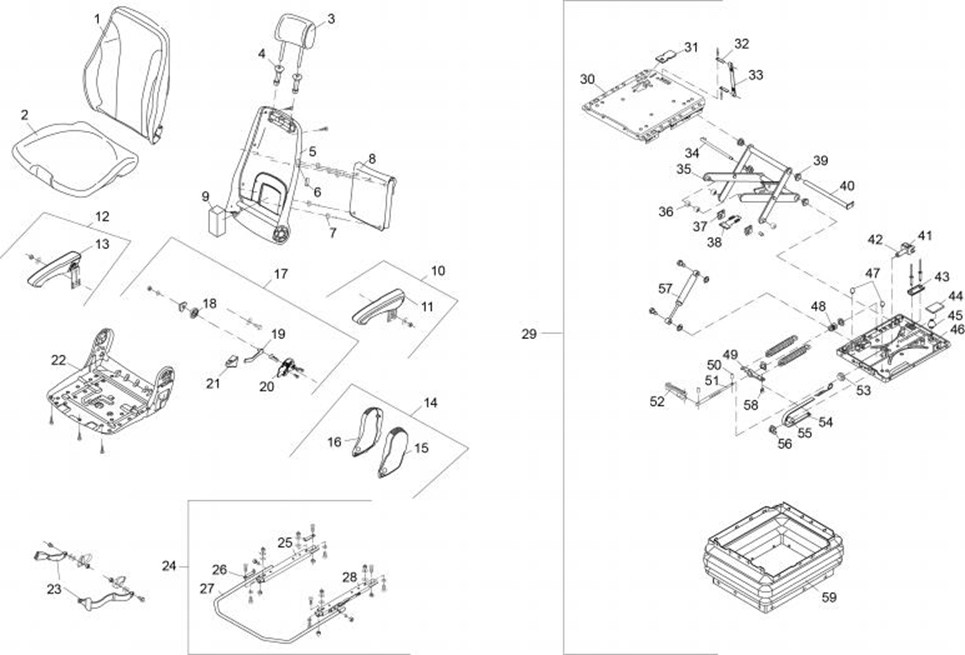

IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-259-1 |
1 |
60153633 |
1 |
Cushion, back |
2-259-2 |
2 |
60153810 |
1 |
Cushion, seat |
2-259-3 |
3 |
60153648 |
1 |
Headrest |
2-259-4 |
4 |
60153704 |
1 |
Bushing |
2-259-5 |
5 |
60153632 |
1 |
Backrest |
2-259-6 |
6 |
60153625 |
1 |
Cover, black |
2-259-7 |
7 |
60153669 |
1 |
Ring |
2-259-8 |
8 |
60153650 |
1 |
Bag, document |
2-259-9 |
9 |
60153643 |
1 |
Foam |
2-259-10 |
10 |
60153808 |
1 |
Armrest AS (LH) |
2-259-11 |
11 |
60153807 |
1 |
Armrest (LH) |
2-259-12 |
12 |
60153795 |
1 |
Armrest AS (RH) |
2-259-13 |
13 |
60153794 |
1 |
Armrest (RH) |
2-259-14 |
14 |
60153754 |
1 |
Cover AS, hinge |
2-259-15 |
15 |
60153664 |
1 |
Cover LH |
2-259-16 |
16 |
60153653 |
1 |
Cover RH |
2-259-17 |
17 |
60153756 |
1 |
Adjuster, backrest angle |
2-259-18 |
18 |
60153711 |
1 |
Pillar, spring |
2-259-19 |
19 |
60153831 |
1 |
Lever, left |
2-259-20 |
20 |
60153626 |
1 |
Plate, movable |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-261-21 |
21 |
60153751 |
1 |
Handle, angle adjustment |
2-261-22 |
22 |
60153812 |
1 |
Framework, seat |
2-261-23 |
23 |
60153695 |
1 |
Seat belt |
2-261-24 |
24 |
60153746 |
1 |
Rail AS |
2-261-25 |
25 |
60153796 |
1 |
Rail, right |
2-261-26 |
26 |
60153752 |
1 |
Support, angle |
2-261-27 |
27 |
60153651 |
1 |
Bar, limit |
2-261-28 |
28 |
60153809 |
1 |
Rail, left |
2-261-29 |
29 |
60153814 |
1 |
Suspension AS, seat |
2-261-30 |
30 |
60153811 |
1 |
Plate, seat-holding |
2-261-31 |
31 |
60153656 |
1 |
Panel |
2-261-32 |
32 |
60153646 |
1 |
Panel |
2-261-33 |
33 |
60153696 |
1 |
Belt, safety, short |
2-261-34 |
34 |
60153701 |
1 |
Pin |
2-261-35 |
35 |
60153790 |
1 |
Rocker AS |
2-261-36 |
36 |
60153739 |
1 |
Roll |
2-261-37 |
37 |
60153733 |
1 |
Separator |
2-261-38 |
38 |
60153647 |
1 |
Strip |
2-261-39 |
39 |
60153822 |
1 |
Sleeve |
2-261-40 |
40 |
60153700 |
1 |
Pin |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-263-41 |
41 |
60153802 |
1 |
Roller, bearing |
2-263-42 |
42 |
60153657 |
1 |
Support |
2-263-43 |
43 |
60153617 |
1 |
Profile, U-shaped |
2-263-44 |
44 |
60153817 |
1 |
Plate, rubber |
2-263-45 |
45 |
60153679 |
1 |
Damper |
2-263-46 |
46 |
60153813 |
1 |
Plate, bottom, suspension |
2-263-47 |
47 |
60153691 |
1 |
Damper |
2-263-48 |
48 |
60153801 |
1 |
Race, ball,bearing |
2-263-49 |
49 |
60153707 |
1 |
Hanger, spring |
2-263-50 |
50 |
60153712 |
1 |
Pin, cylindrical |
2-263-51 |
51 |
60153699 |
1 |
Pin |
2-263-52 |
52 |
60153619 |
1 |
Trigger |
2-263-53 |
53 |
60153703 |
1 |
Bushing |
2-263-54 |
54 |
60153799 |
1 |
Indicator |
2-263-55 |
55 |
60153740 |
1 |
Roller |
2-263-56 |
56 |
60153820 |
1 |
Scale |
2-263-57 |
57 |
60153680 |
1 |
Damper |
2-263-58 |
58 |
60153738 |
1 |
Pin, retainer |
2-263-59 |
59 |
60153644 |
1 |
Bellow |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

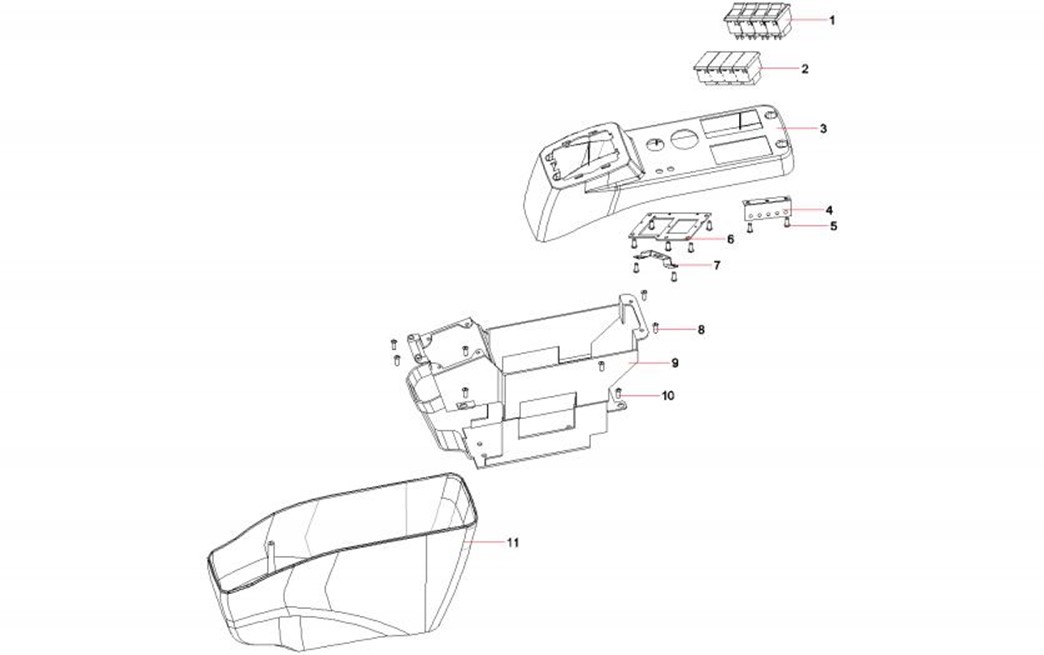

2-265-1 |
1 |
A241200000121 |
1 |
Switch,seesaw |
2-265-2 |
2 |
60309919 |
1 |
4-section frame |
2-265-3 |
3 |
60307220 |
1 |
Right armrest box upper cover |
2-265-4 |
4 |
60309924 |
1 |
bracket |
2-265-5 |
5 |
A210210000006 |
9 |
Screw |
2-265-6 |
6 |
60309925 |
1 |
bracket |
2-265-7 |
7 |
60309915 |
1 |
bracket |
2-265-8 |
8 |
A210210000017 |
4 |
Screw M6×20GB818 |
2-265-9 |
9 |
60309927 |
1 |
bracket |
2-265-10 |
10 |
A210210000008 |
4 |
Screw |
2-265-11 |
11 |
60309922 |
1 |
down housing |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

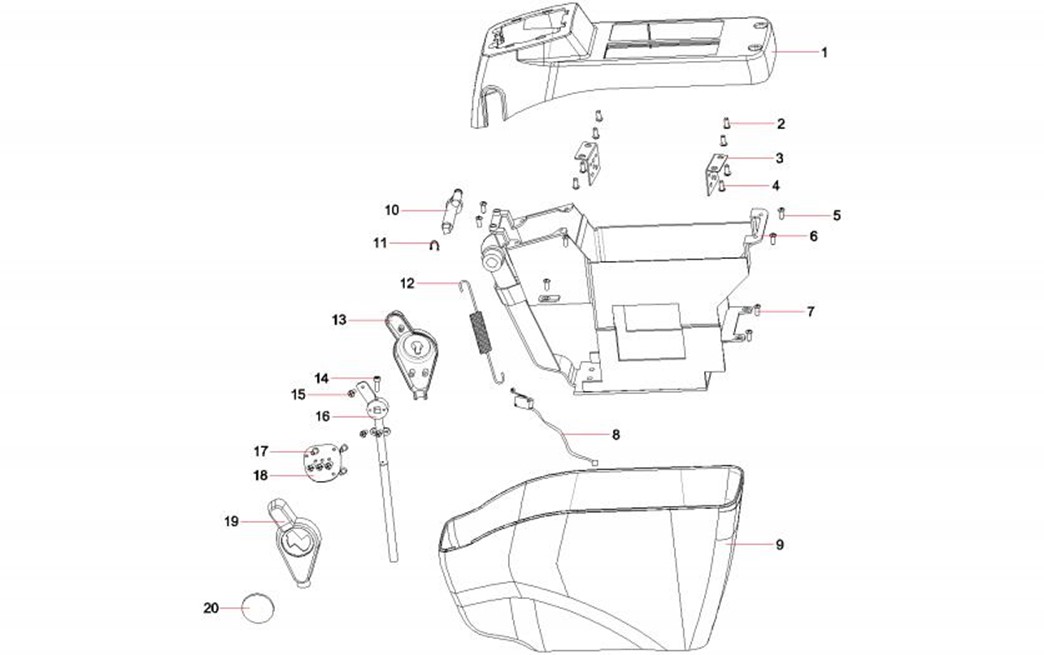

2-267-1 |
1 |
60307219 |
1 |
Left armrest box upper cover |
2-267-2 |
2 |
A210210000006 |
4 |
Screw |
2-267-3 |
3 |
60309918 |
2 |
bracket |
2-267-4 |
4 |
A210210000002 |
4 |
Screw |
2-267-5 |
5 |
A210210000017 |
4 |
Screw M6×20GB818 |
2-267-6 |
6 |
60309930 |
1 |
bracket |
2-267-7 |
7 |
A210210000008 |
4 |
Screw |
2-267-8 |
8 |
60309921 |
1 |
inching switch |
2-267-9 |
9 |
60309922 |
1 |
down housing |
2-267-10 |
10 |
60309920 |
1 |
camshaft |
2-267-11 |
11 |
60309917 |
1 |
clip |
2-267-12 |
12 |
60309914 |
1 |
spring |
2-267-13 |
13 |
60309929 |
1 |
left end cover |
2-267-14 |
14 |
60062048 |
1 |
Screw |
2-267-15 |
15 |
A210210000015 |
6 |
Screw |
2-267-16 |
16 |
60309923 |
1 |
leading rod |
2-267-17 |
17 |
A210210000009 |
3 |
Screw |
2-267-18 |
18 |
60309916 |
1 |
connecting board |
2-267-19 |
19 |
60309926 |
1 |
right end cover |
2-267-20 |
20 |
60309928 |
1 |
round cover |
