SANY SY335C SY335C9 SY335C9I2KH EXCAVATOR parts catalog 29
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

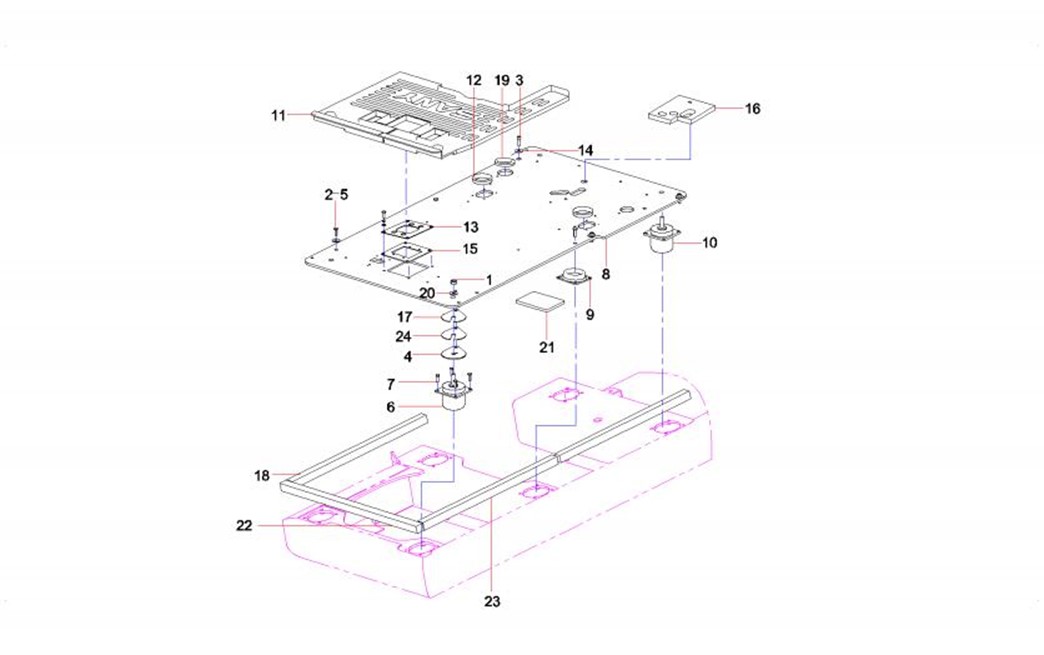

2-269-1 |
1 |
A210307000028 |
4 |
Nut |
2-269-2 |
2 |
24000637 |
16 |
Washer |
2-269-3 |
3 |
Modification or other |
2 |
Bolt |
2-269-4 |
4 |
11546613 |
4 |
Plate |
2-269-5 |
5 |
A210111000195 |
8 |
Bolt M10×16GB5783 10.9 |
2-269-6 |
6 |
B229900000244 |
2 |
Support, cab |
2-269-7 |
7 |
A210111000024 |
24 |
Bolt M10×30GB5783 10.9 |
2-269-8 |
8 |
12324425 |
1 |
Base PlateSY335C9I2K.1.5.6.1 |
2-269-9 |
9 |
12827984 |
2 |
Rubber pad |
2-269-10 |
10 |
B229900000245 |
2 |
Support, cab |
2-269-11 |
11 |
A820606030753 |
1 |
Mat, floor |
2-269-12 |
12 |
A820606030056 |
2 |
Grommet |
2-269-13 |
13 |
11937141 |
1 |
Gasket, foot valve |
2-269-14 |
14 |
24000633 |
2 |
Washer |
2-269-15 |
15 |
A810402050021 |
1 |
Board, connecting |
2-269-16 |
16 |
11935737 |
1 |
Foam, sealing |
2-269-17 |
17 |
Modification or other |
4 |
Shim |
2-269-18 |
18 |
12385099 |
1 |
Sponge, bottom plate, cab |
2-269-19 |
19 |
A820606030059 |
1 |
Grommet |
2-269-20 |
20 |
A210491000118 |
4 |
Washer 16GB1230 |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-271-21 |
21 |
A820699000215 |
1 |
Foam, back |
2-271-22 |
22 |
12768939 |
1 |
Foam, bottom plate, cab |
2-271-23 |
23 |
12768943 |
2 |
Sponge, bottom plate, cab |
2-271-24 |
24 |
Modification or other |
4 |
Shim |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

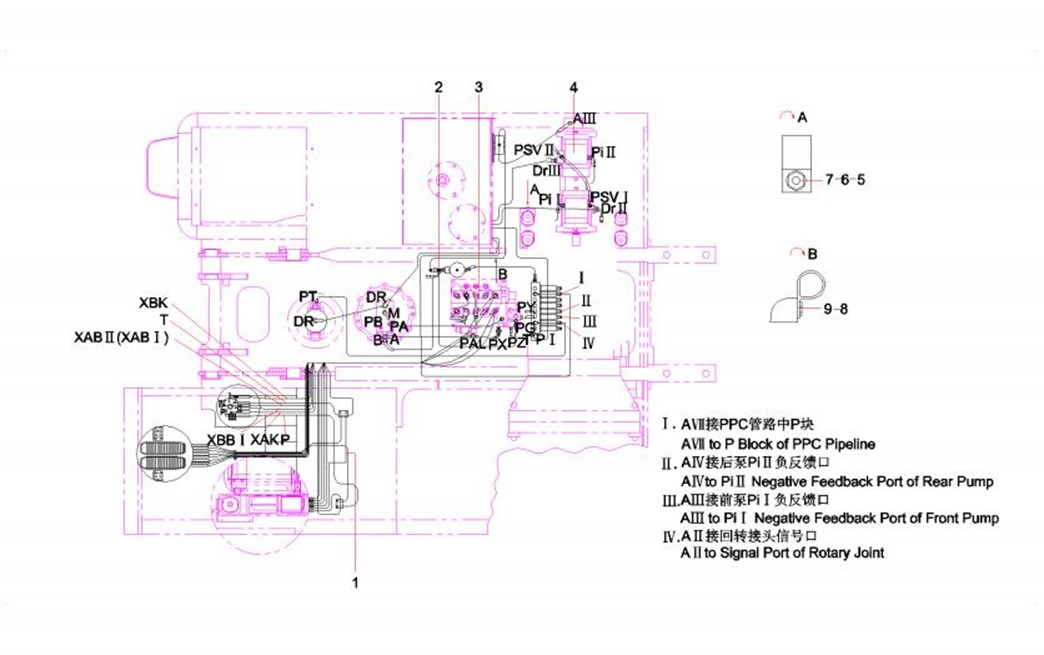

2-273-1 |
1 |
11772669 |
1 |
Pipeline AS, PPC |
2-273-2 |
2 |
12757265 |
1 |
Electromagnetic valve pipeline |
2-273-3 |
3 |
12757236 |
1 |
Main valve pipeline |
2-273-4 |
4 |
12757217 |
1 |
Main pump pipeline |
2-273-5 |
5 |
Modification or other |
1 |
Clamp, harness |
2-273-6 |
6 |
A210111000012 |
1 |
Bolt M10×20GB5783 10.9 |
2-273-7 |
7 |
24000637 |
1 |
Washer |
2-273-8 |
8 |
60086354 |
1 |
Clamp, harness |
2-273-9 |
9 |
A210111000199 |
1 |
Bolt M12×20GB5783 10.9 |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

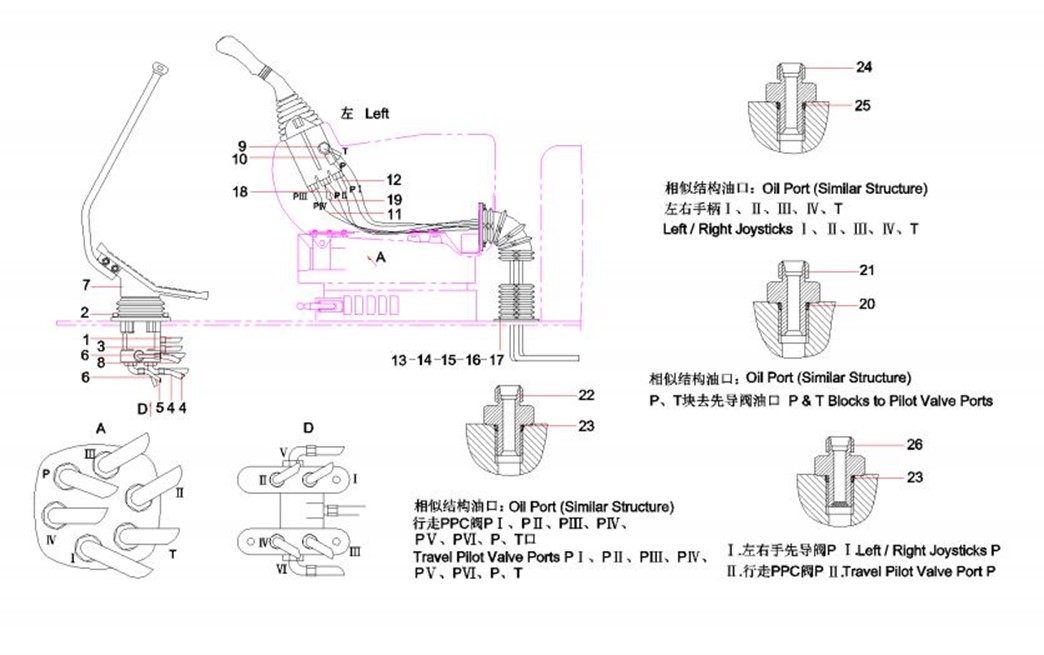

2-275-1 |
1 |
B230103000982 |
1 |
Hose |
2-275-2 |
2 |
A210111000195 |
4 |
Bolt M10×16GB5783 10.9 |
2-275-3 |
3 |
B230103004256 |
1 |
Hose |
2-275-4 |
4 |
B230103001563 |
2 |
Hose |
2-275-5 |
5 |
B230103002275 |
1 |
Hose |
2-275-6 |
6 |
B230103000899 |
2 |
Hose |
2-275-7 |
7 |
60170604 |
1 |
Pilot-control Valve |
2-275-8 |
8 |
B230103002658 |
1 |
Hose |
2-275-9 |
9 |
B230103002263 |
1 |
Hose, rubber |
2-275-10 |
10 |
A831211120000 |
1 |
Hose, rubber |
2-275-11 |
11 |
B230103003988 |
1 |
Hose, rubber |
2-275-12 |
12 |
B230103002649 |
1 |
Hose, rubber |
2-275-13 |
13 |
A820601990304 |
2 |
Flange |
2-275-14 |
14 |
A820601990336 |
2 |
Bellows |
2-275-15 |
15 |
11243401 |
2 |
Sleeve, rubber |
2-275-16 |
16 |
A210111000079 |
8 |
Bolt |
2-275-17 |
17 |
24000632 |
8 |
Washer |
2-275-18 |
18 |
B230103004390 |
1 |
Hose, rubber |
2-275-19 |
19 |
B230103002650 |
1 |
Hose |
2-275-20 |
20 |
Modification or other |
8 |
O-ring 10.9×2.3(JISB2401) |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

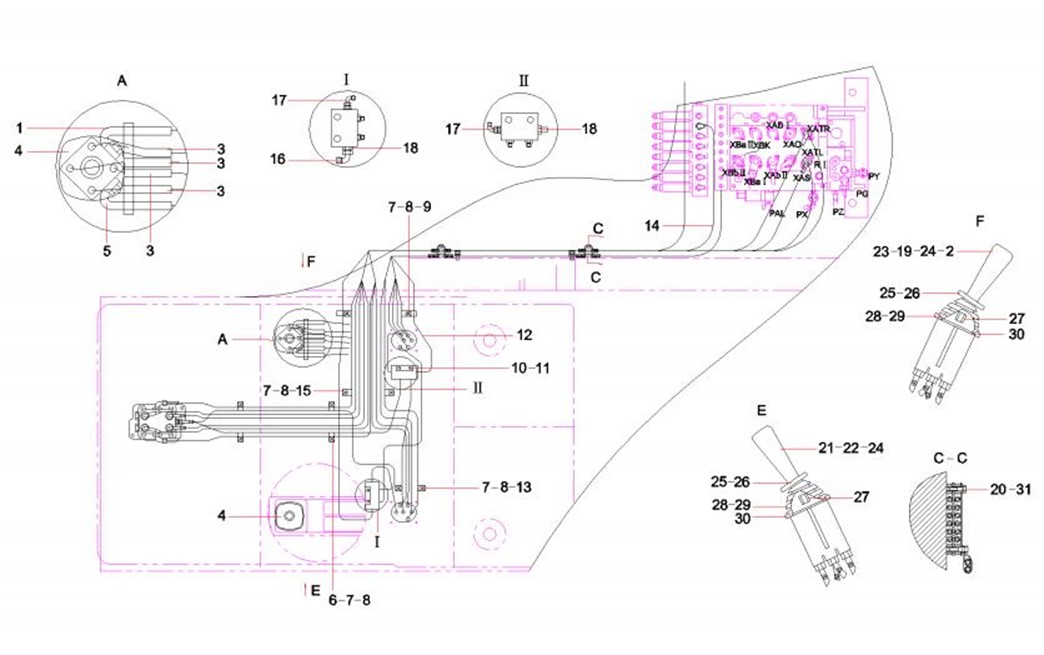

2-277-21 |
21 |
A820205000839 |
6 |
Connector |
2-277-22 |
22 |
A820205000940 |
7 |
Connector |
2-277-23 |
23 |
B230101000047 |
10 |
O-ring |
2-277-24 |
24 |
A820205000946 |
10 |
Connector |
2-277-25 |
25 |
B230101000049 |
10 |
O-ring 13.8×2.4JISB2401 |
2-277-26 |
26 |
60020078 |
3 |
Connector, filter |
