SANY SY335C SY335C9 SY335C9I2KH EXCAVATOR parts catalog 39
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

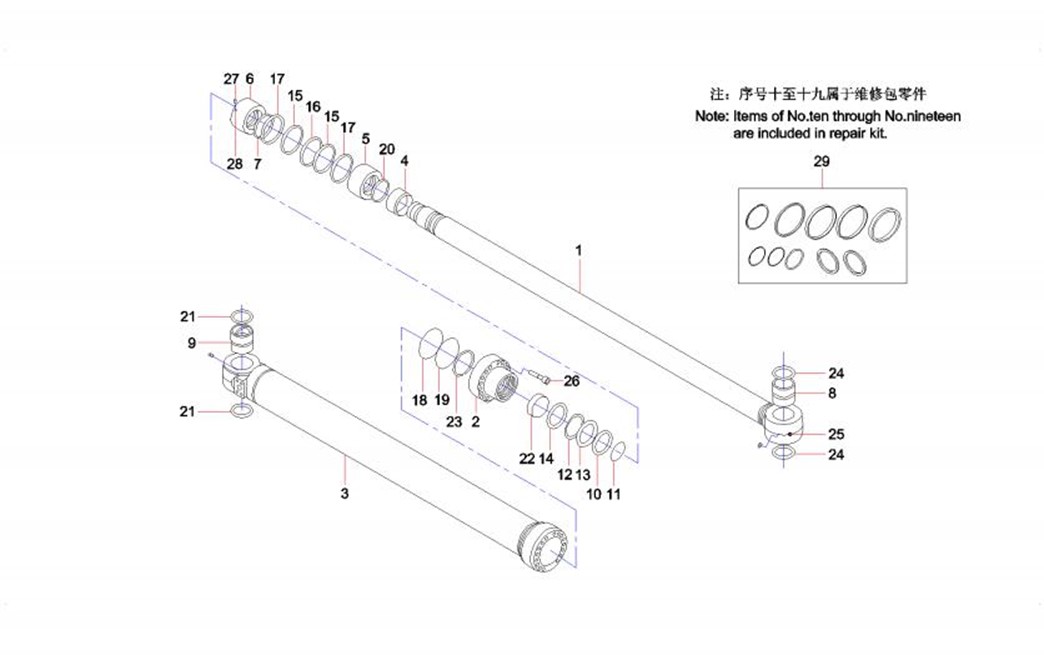

4-31-1 |
1 |
60193829 |
1 |
Rod, piston |
4-31-2 |
2 |
60193830 |
1 |
Cover, end |
4-31-3 |
3 |
60193831 |
1 |
Cylinder block |
4-31-4 |
4 |
60193832 |
1 |
Piston |
4-31-5 |
5 |
60065206 |
1 |
Sleeve, buffer |
4-31-6 |
6 |
60154028 |
1 |
Nut |
4-31-7 |
7 |
60174451 |
1 |
Gasket |
4-31-8 |
8 |
60044357 |
1 |
Sleeve, shaft |
4-31-9 |
9 |
60044359 |
1 |
Sleeve, shaft |
4-31-10 |
10 |
60065342 |
1 |
Ring, dust |
4-31-11 |
11 |
60065242 |
1 |
Ring, retaining |
4-31-12 |
12 |
60154049 |
1 |
Ring, seal |
4-31-13 |
13 |
60154022 |
1 |
Ring, retainer, switch |
4-31-14 |
14 |
60065204 |
1 |
Ring, buffer |
4-31-15 |
15 |
60174498 |
2 |
Ring, guide |
4-31-16 |
16 |
60174503 |
1 |
Ring, seal |
4-31-17 |
17 |
60065218 |
2 |
Ring, contaminant |
4-31-18 |
18 |
60174489 |
1 |
Ring, seal |
4-31-19 |
19 |
60065236 |
1 |
Ring, retaining |
4-31-20 |
20 |
60065346 |
1 |
Ring, buffer |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
4-33-21 |
21 |
60044361 |
2 |
Ring, dust |
4-33-22 |
22 |
60154009 |
1 |
Sleeve, sliding |
4-33-23 |
23 |
60153990 |
1 |
Ring, retaining |
4-33-24 |
24 |
60044360 |
2 |
Ring, dust |
4-33-25 |
25 |
60169622 |
2 |
Cup, oil |
4-33-26 |
26 |
60022043 |
12 |
Screw |
4-33-27 |
27 |
60174438 |
1 |
Screw, socket head |
4-33-28 |
28 |
21010039 |
1 |
Steel Ball |
4-33-29 |
29 |
60140866 |
1 |
Repair kit, cylinder, boom |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

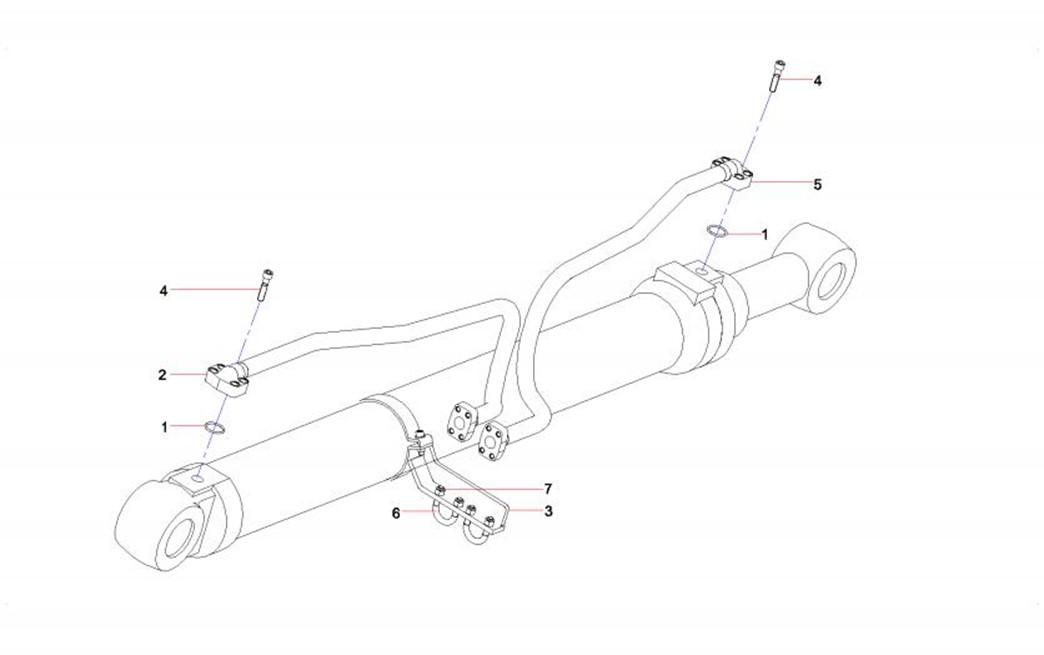

4-35-1 |
1 |
B230101000456 |
2 |
O-ring |
4-35-2 |
2 |
12809824 |
1 |
Right locular steel tube |
4-35-3 |
3 |
A810312990198 |
1 |
Clip GP, pipe |
4-35-4 |
4 |
A210204000462 |
8 |
Screw M12×45GB70.1 10.9 |
4-35-5 |
5 |
12809826 |
1 |
Right large-lumen steel |
4-35-6 |
6 |
A820301013877 |
2 |
U-bolt |
4-35-7 |
7 |
A210307000031 |
4 |
Nut M12GB6170 10 |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

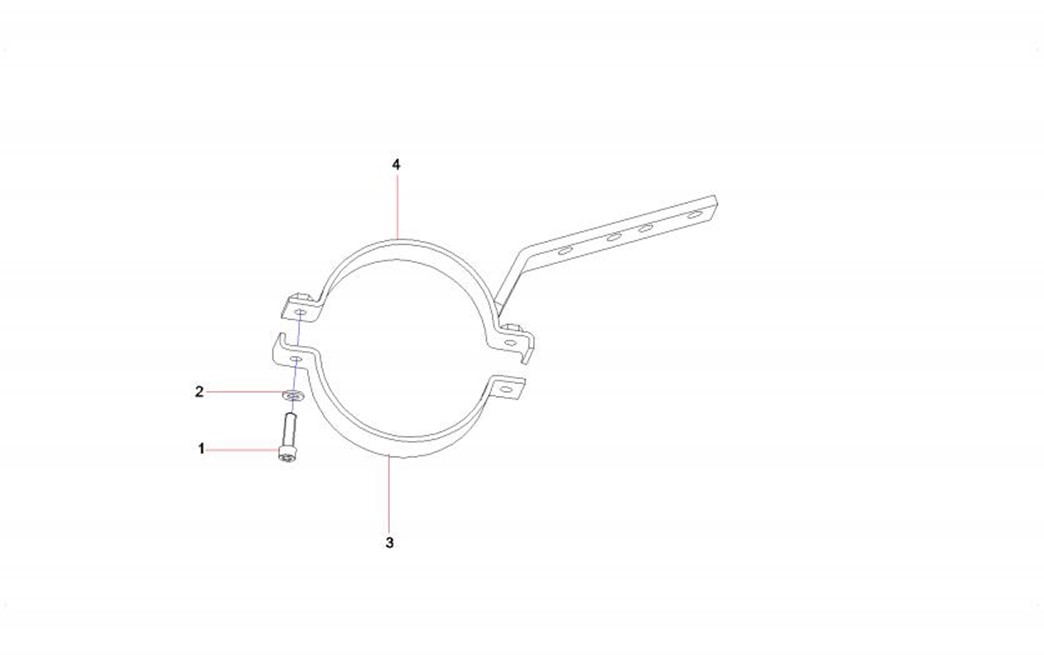

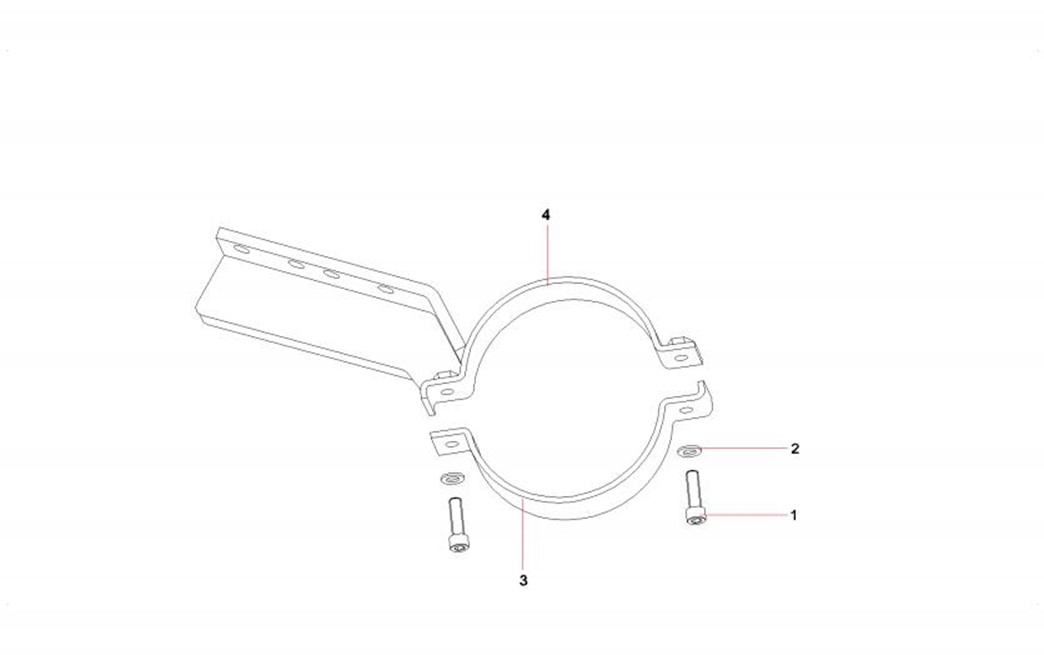

4-37-1 |
1 |
A210204000355 |
2 |
Screw M10×40GB70.1 10.9 |
4-37-2 |
2 |
A210405000011 |
2 |
Washer |
4-37-3 |
3 |
A820101311191 |
1 |
Clamp, pipe |
4-37-4 |
4 |
A810312990199 |
1 |
Weldment, pipe clip |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

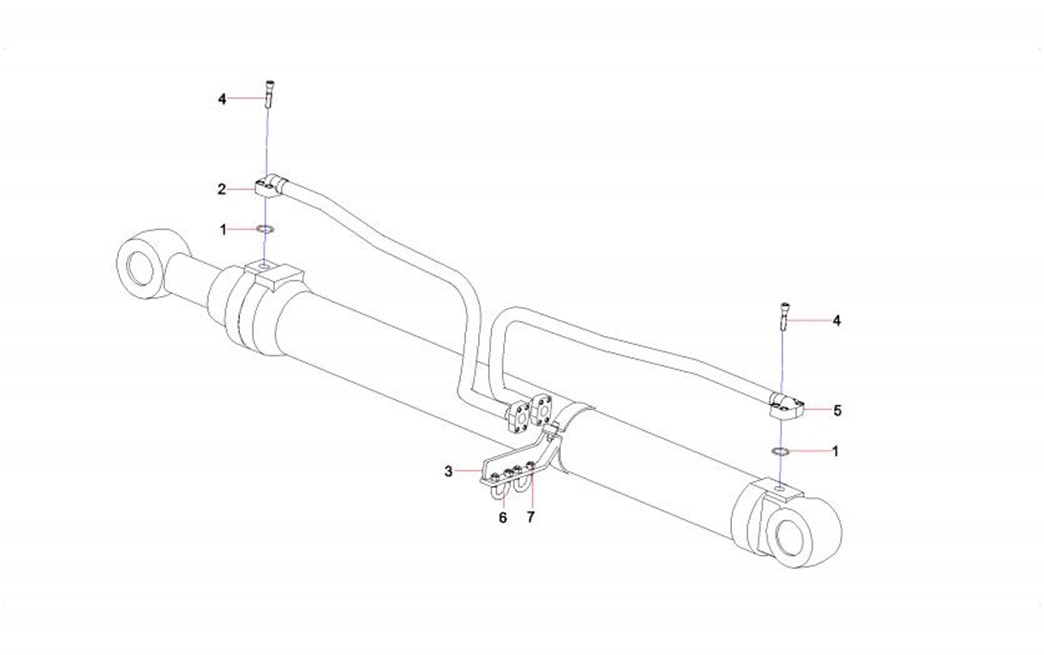

4-39-1 |
1 |
B230101000456 |
2 |
O-ring |
4-39-2 |
2 |
12809821 |
1 |
Left locular steel tube |
4-39-3 |
3 |
A810201000218 |
1 |
Clip GP, pipe |
4-39-4 |
4 |
A210204000462 |
8 |
Screw M12×45GB70.1 10.9 |
4-39-5 |
5 |
12809822 |
1 |
Left large-lumen steel |
4-39-6 |
6 |
A820301013877 |
2 |
U-bolt |
4-39-7 |
7 |
A210307000031 |
4 |
Nut M12GB6170 10 |
