SANY SY335C SY335C9 SY335C9I2KH EXCAVATOR parts catalog 40
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
4-41-1 |
1 |
A210204000355 |
2 |
Screw M10×40GB70.1 10.9 |
4-41-2 |
2 |
A210405000011 |
2 |
Washer |
4-41-3 |
3 |
A820101311191 |
1 |
Clamp, pipe |
4-41-4 |
4 |
A810201000219 |
1 |
Weldment, pipe clip |

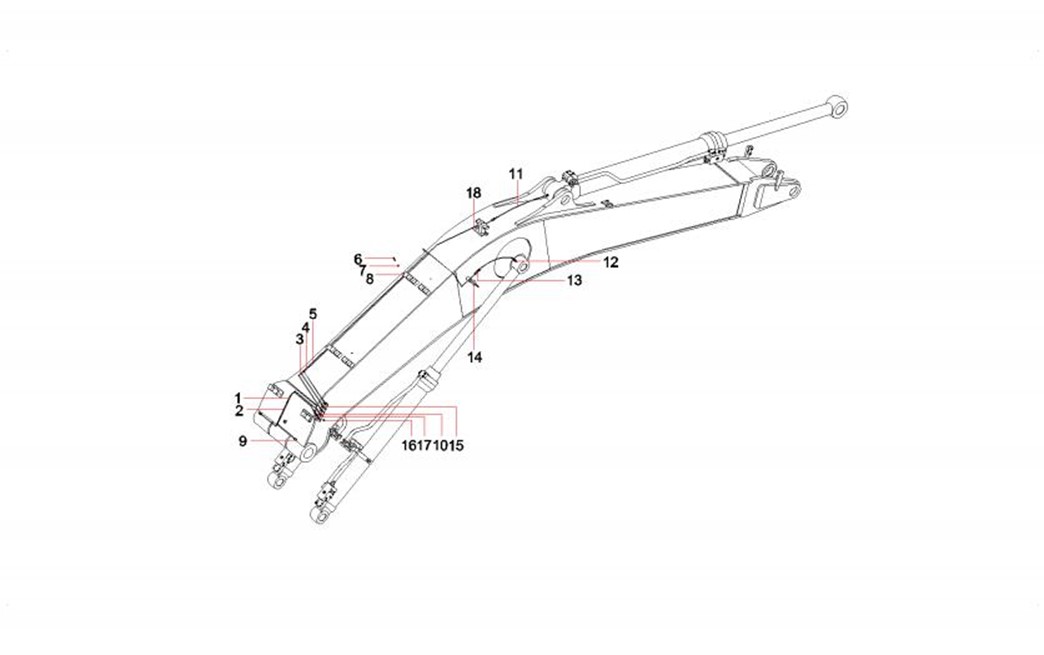

IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
4-43-1 |
1 |
12109881 |
1 |
butter pipe assemble |
4-43-2 |
2 |
12109905 |
1 |
butter pipe assemble |
4-43-3 |
3 |
12109322 |
1 |
butter pipe assemble |
4-43-4 |
4 |
12109786 |
1 |
butter pipe assemble |
4-43-5 |
5 |
12109664 |
1 |
butter pipe assemble |
4-43-6 |
6 |
Modification or other |
7 |
Bolt |
4-43-7 |
7 |
24000633 |
7 |
Washer |
4-43-8 |
8 |
A820101211948 |
2 |
Clamp, pipe |
4-43-9 |
9 |
11102369 |
2 |
Connector |
4-43-10 |
10 |
11102367 |
2 |
Connector |
4-43-11 |
11 |
B230103000815 |
3 |
Hose, rubber |
4-43-12 |
12 |
A820205000858 |
3 |
Connector |
4-43-13 |
13 |
11102368 |
6 |
Connector |
4-43-14 |
14 |
A820101211945 |
2 |
Clip |
4-43-15 |
15 |
A210434000007 |
3 |
Washer 14JB982 |
4-43-16 |
16 |
B229900000379 |
5 |
Fitting, grease |
4-43-17 |
17 |
A210434000005 |
2 |
Washer 10JB982 |
4-43-18 |
18 |
A820101216692 |
1 |
Clip |
Chapter 5
Electric system

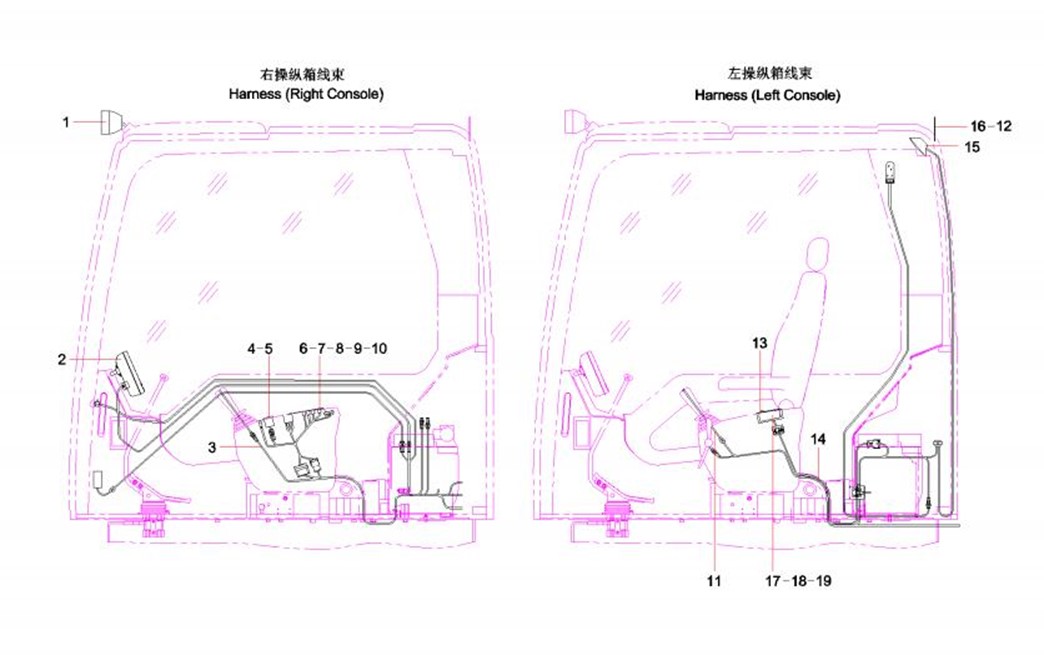

IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
5-3-1 |
1 |
B241100000391 |
2 |
Lamp, working |
5-3-2 |
2 |
Modification or other |
1 |
Sany Encourage Control Display |
5-3-3 |
3 |
12952363 |
1 |
Driver’s Cab Harness |
5-3-4 |
4 |
60117463 |
1 |
Switch, fuel control |
5-3-5 |
5 |
A241200001217 |
1 |
Switch, ignition |
5-3-6 |
6 |
60053220 |
1 |
Lamp, indicator, LED, red |
5-3-7 |
7 |
60053221 |
1 |
Lamp, indicator, LED, yellow |
5-3-8 |
8 |
11147618 |
1 |
Harness, control switch |
5-3-9 |
9 |
Modification or other |
2 |
Bolt |
5-3-10 |
10 |
A210111000088 |
2 |
Bolt |
5-3-11 |
11 |
13400087 |
1 |
horn switch tansfer harness |
5-3-12 |
12 |
60060300 |
1 |
Extension, antenna |
5-3-13 |
13 |
60205002 |
1 |
Radio |
5-3-14 |
14 |
A230200000170 |
1 |
Clamp |
5-3-15 |
15 |
60023703 |
1 |
Speaker |
5-3-16 |
16 |
60090606 |
1 |
Antenna |
5-3-17 |
17 |
A210204000115 |
2 |
Screw M5×12GB70.1 |
5-3-18 |
18 |
A210204000340 |
4 |
Screw M8×16GB70.1 10.9 |
5-3-19 |
19 |
24000633 |
4 |
Washer |

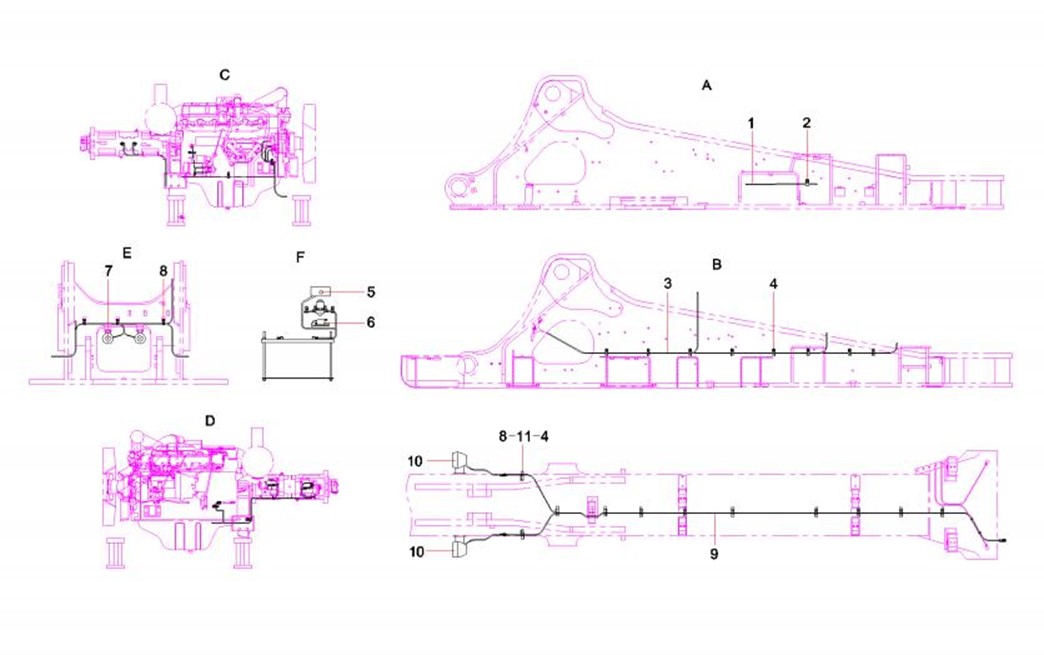

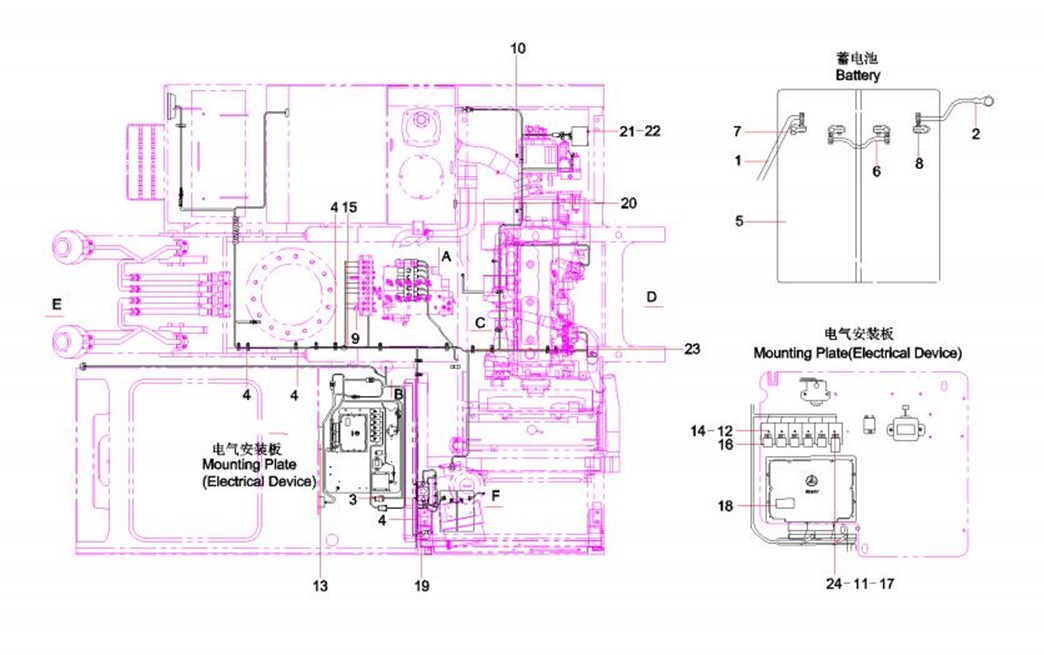

IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
5-5-1 |
1 |
60012794 |
1 |
Wire, power supply |
5-5-2 |
2 |
60086354 |
9 |
Clamp, harness |
5-5-3 |
3 |
13331156 |
1 |
Vehicle Body Harness |
5-5-4 |
4 |
24000513 |
11 |
Washer |
5-5-5 |
5 |
B241000000022 |
1 |
Socket, two-wire |
5-5-6 |
6 |
A241300000059 |
1 |
Box, fuse |
5-5-7 |
7 |
60260625 |
1 |
Electrical Horn |
5-5-8 |
8 |
60149356 |
7 |
Clamp, wire, ellipse |
5-5-9 |
9 |
12757095 |
1 |
Work Lamp harness |
5-5-10 |
10 |
60114255 |
1 |
Lamp, work |
5-5-11 |
11 |
A210111000199 |
11 |
Bolt M12×20GB5783 10.9 |
