SANY SY335C SY335C9 SY335C9I2KH EXCAVATOR parts catalog 41
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

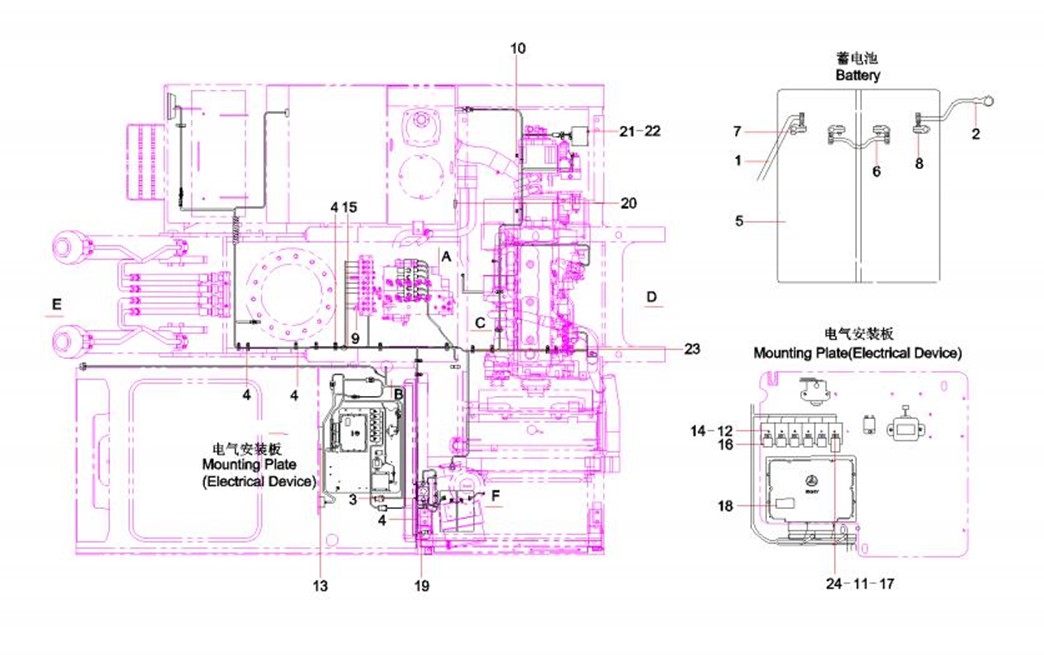

5-7-1 |
1 |
60203569 |
1 |
Power Supply Line |
5-7-2 |
2 |
60203568 |
1 |
Power Supply Line |
5-7-3 |
3 |
Modification or other |
2 |
Bolt |
5-7-4 |
4 |
Modification or other |
7 |
Nylon belting |
5-7-5 |
5 |
60071633 |
2 |
Battery |
5-7-6 |
6 |
60012792 |
1 |
Wire, power supply |
5-7-7 |
7 |
60013322 |
2 |
Terminal Group, Battery Positive |
5-7-8 |
8 |
60013321 |
2 |
Terminal Group, Battery Negative |
5-7-9 |
9 |
60217141 |
9 |
Pressure Sensor |
5-7-10 |
10 |
60217140 |
2 |
Pressure Sensor |
5-7-11 |
11 |
60238782 |
8 |
Washer |
5-7-12 |
12 |
A210210000030 |
5 |
Screw M4×12GB818 |
5-7-13 |
13 |
60236122 |
1 |
Step motor driver |
5-7-14 |
14 |
60060562 |
5 |
Washer |
5-7-15 |
15 |
11779657 |
1 |
Sleeve, rubber |
5-7-16 |
16 |
60245361 |
8 |
Intermediate Relay |
5-7-17 |
17 |
24000509 |
4 |
Washer |
5-7-18 |
18 |
13178574 |
1 |
Sany Encourage Hydraulic Control |
5-7-19 |
19 |
60060565 |
1 |
Washer |
5-7-20 |
20 |
60060301 |
1 |
Sensor, temperature |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
5-9-21 |
21 |
Modification or other |
2 |
Accessories, metal, fixed, plug-in |
5-9-22 |
22 |
A210111000195 |
6 |
Bolt M10×16GB5783 10.9 |
5-9-23 |
23 |
60083322 |
3 |
Wire clip |
5-9-24 |
24 |
A210210000003 |
6 |
Screw |

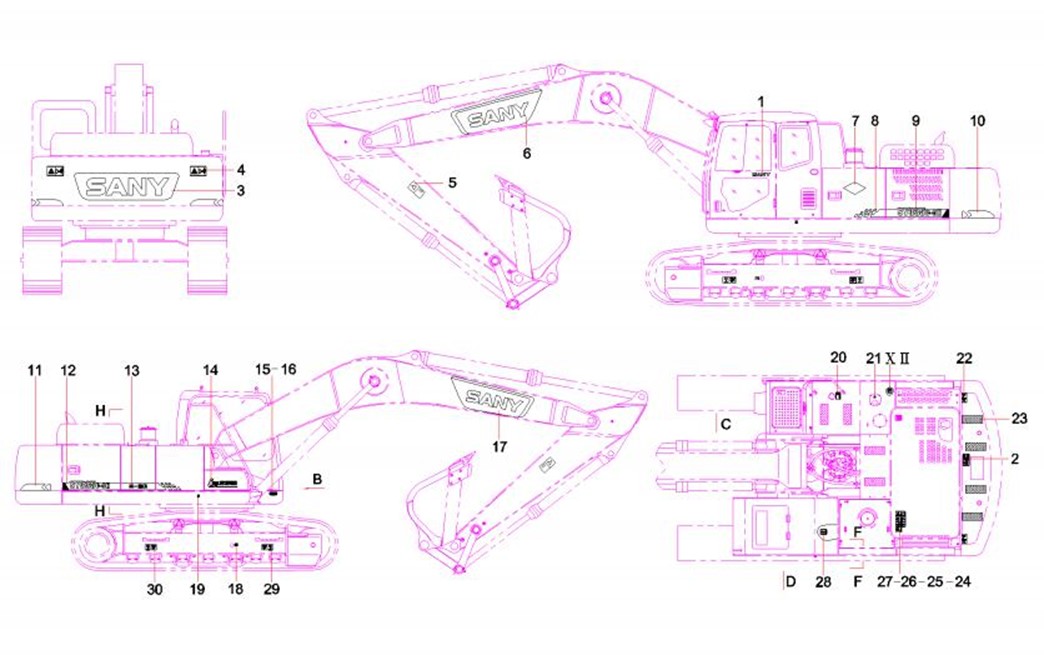

Chapter 6
Painting
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
6-3-1 |
1 |
12842974 |
1 |
Label, power socket |
6-3-2 |
2 |
Modification or other |
1 |
Decal,exhaust |
6-3-3 |
3 |
12722067 |
1 |
Decal, counterweight |
6-3-4 |
4 |
A820699001016 |
2 |
Decal, warning, counterweight |
6-3-5 |
5 |
A820601990963 |
2 |
Decal, warning, arm |
6-3-6 |
6 |
12722073 |
1 |
Decal, boom, left |
6-3-7 |
7 |
Modification or other |
1 |
Decal |
6-3-8 |
8 |
Modification or other |
1 |
Machine Model |
6-3-9 |
9 |
Modification or other |
2 |
Machine Model |
6-3-10 |
10 |
12727594 |
1 |
Film, reflective, counterweight |
6-3-11 |
11 |
12727593 |
1 |
Film, reflective, counterweight |
6-3-12 |
12 |
Modification or other |
1 |
Machine Model |
6-3-13 |
13 |
Modification or other |
1 |
Decal |
6-3-14 |
14 |
Modification or other |
1 |
Decal, service hotline |
6-3-15 |
15 |
10251978 |
1 |
Nameplate |
6-3-16 |
16 |
Modification or other |
4 |
Rivet |
6-3-17 |
17 |
12722074 |
1 |
Decal, boom, right |
6-3-18 |
18 |
A820601990968 |
2 |
Decal, warning, tensioner |
6-3-19 |
19 |
12033801 |
2 |
Decal, center of gravity |
6-3-20 |
20 |
A820601991039 |
1 |
Decal, fuel tank |

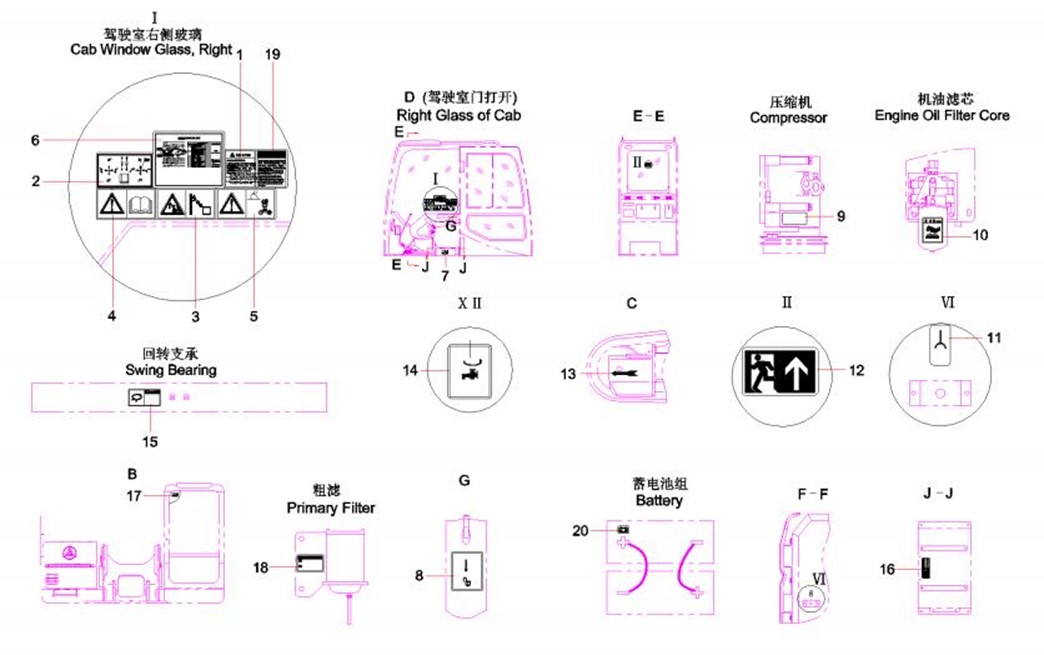

IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
6-5-21 |
21 |
13536536 |
1 |
Hydraulic oil tank indicative board |
6-5-22 |
22 |
A820601990926 |
3 |
Decal, warning, falling |
6-5-23 |
23 |
A820699000369 |
12 |
Anti-skid, long |
6-5-24 |
24 |
A820601990973 |
1 |
Decal, warning, engine hood |
6-5-25 |
25 |
A820699001017 |
1 |
Decal, warning, belt safety |
6-5-26 |
26 |
A820101050793 |
1 |
Mark, warning, “Hand injury by fan” |
6-5-27 |
27 |
A820699000948 |
1 |
Decal, warning, anti-spray |
6-5-28 |
28 |
11323371 |
1 |
Decal, warning, no-sitting |
6-5-29 |
29 |
A820101990552 |
4 |
Diagram, hoisting point |
6-5-30 |
30 |
A820601990934 |
4 |
Decal,tie-down,shipment |
