SANY SY335C SY335C9 SY335C9I2KH EXCAVATOR parts catalog 42
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
6-7-1 |
1 |
11648786 |
1 |
Decal, warning, pre-start |
6-7-2 |
2 |
A820601990961 |
1 |
Label, instruction, operation |
6-7-3 |
3 |
11464432 |
1 |
Decal, warning, high-voltage |
6-7-4 |
4 |
11464425 |
1 |
Label, warning, “Read manual” |
6-7-5 |
5 |
11464441 |
1 |
Decal, warning, power-off |
6-7-6 |
6 |
13536535 |
1 |
Lubricating graphic chart |
6-7-7 |
7 |
A820601990967 |
1 |
Decal, instruction, seat adjustment |
6-7-8 |
8 |
A820601990927 |
1 |
Label, unlock |
6-7-9 |
9 |
A820699001284 |
1 |
Decal, instruction, refrigerant |
6-7-10 |
10 |
A820101050798 |
1 |
Decal, warning, hot surface |
6-7-11 |
11 |
A820699001109 |
1 |
Label, power socket |
6-7-12 |
12 |
A820601990969 |
1 |
Label, emergency exit |
6-7-13 |
13 |
12057746 |
2 |
Decal, instruction, forward |
6-7-14 |
14 |
A820601990929 |
1 |
Label, drain, fuel tank |
6-7-15 |
15 |
12403551 |
1 |
Rotary bearing caution |
6-7-16 |
16 |
11993325 |
1 |
Nameplate |
6-7-17 |
17 |
A820699001019 |
1 |
Decal, warning, front window |
6-7-18 |
18 |
A820601990962 |
1 |
Decal, drain, water separator |
6-7-19 |
19 |
12919461 |
1 |
Stop engine caution |
6-7-20 |
20 |
A820601990972 |
1 |
Label, power supply |
Chapter 7
Accessory

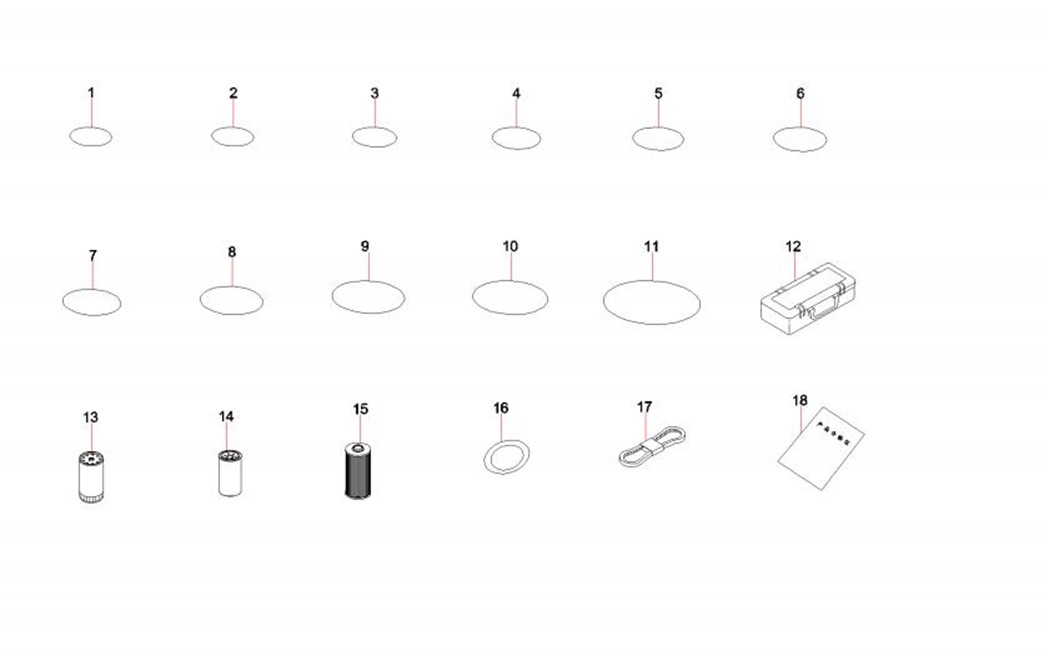

IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
7-3-1 |
1 |
B230101000047 |
8 |
O-ring |
7-3-2 |
2 |
A230101000247 |
12 |
O-ring 10.9×2.3(JISB2401) |
7-3-3 |
3 |
B230101000049 |
10 |
O-ring 13.8×2.4JISB2401 |
7-3-4 |
4 |
A230101000243 |
3 |
O-ring 16.7×3.5JISB2401 |
7-3-5 |
5 |
A229900001581 |
2 |
O-ring |
7-3-6 |
6 |
B230101000356 |
2 |
O-ring 23.7×3.5JISB2401 |
7-3-7 |
7 |
B230101000050 |
5 |
O-ring 28.7×3.5JISB2401 |
7-3-8 |
8 |
A210609000136 |
2 |
O-ring 29.7×3.5JISB2401 |
7-3-9 |
9 |
B230101000456 |
4 |
O-ring |
7-3-10 |
10 |
B230101000445 |
2 |
O-ring |
7-3-11 |
11 |
A210608000108 |
2 |
O-ring |
7-3-12 |
12 |
10442742 |
1 |
Tools, attached |
7-3-13 |
13 |
60201219 |
1 |
Fuel Fine Filter Core |
7-3-14 |
14 |
60201220 |
1 |
Fuel Strainer Element |
7-3-15 |
15 |
B222100000494 |
1 |
Filter,oil |
7-3-16 |
16 |
A229900005005 |
1 |
Catch, lock |
7-3-17 |
17 |
A230106000403 |
1 |
V-belt |
7-3-18 |
18 |
59000039 |
1 |
Certificate, product quality |

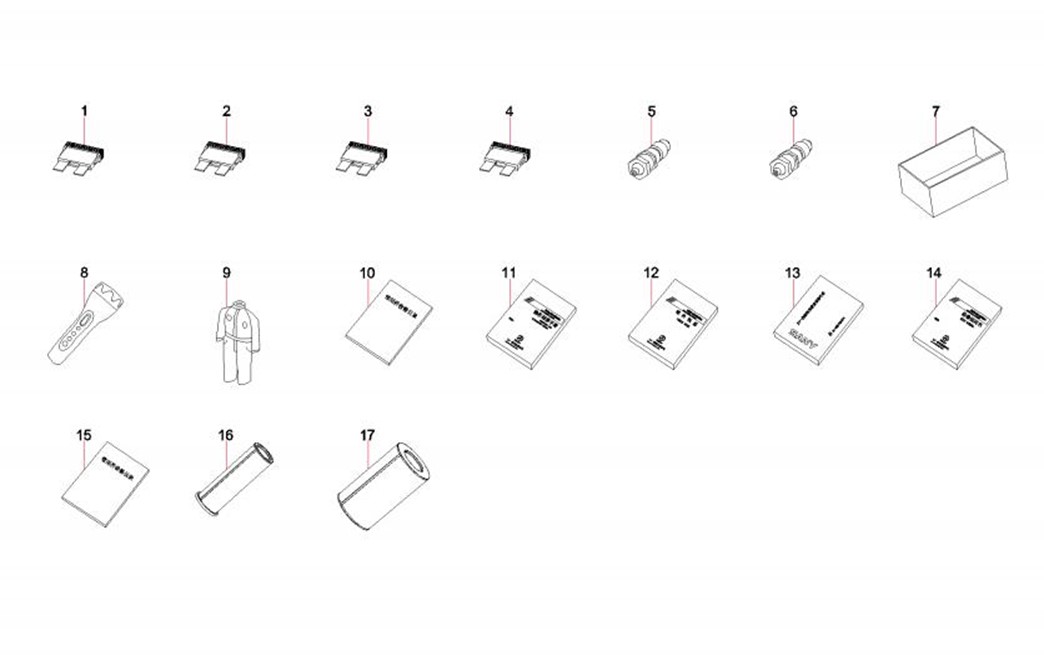

IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
7-5-1 |
1 |
A241300000019 |
10 |
Fuse |
7-5-2 |
2 |
A241300000018 |
5 |
Fuse |
7-5-3 |
3 |
A241300000017 |
5 |
Fuse |
7-5-4 |
4 |
A241300000016 |
10 |
Fuse 10-13.35A |
7-5-5 |
5 |
B229900000686 |
5 |
Fitting, grease |
7-5-6 |
6 |
B229900000379 |
5 |
Fitting, grease |
7-5-7 |
7 |
Modification or other |
1 |
Accessories Box |
7-5-8 |
8 |
A241100000596 |
1 |
Flashlight |
7-5-9 |
9 |
A550300000008 |
1 |
Suit, working, service worker |
7-5-10 |
10 |
Modification or other |
1 |
Brochure for No.1 Service Brand |
7-5-11 |
11 |
Modification or other |
1 |
Manual, operation and |
7-5-12 |
12 |
12745158 |
1 |
SY335C9I2KH spare parts drawing |
7-5-13 |
13 |
Modification or other |
1 |
Manual, operation and |
7-5-14 |
14 |
60102032 |
1 |
Maintenance Manual |
7-5-15 |
15 |
Modification or other |
1 |
Catalog, spare part |
7-5-16 |
16 |
B222100000640 |
1 |
Safety element,air filter |
7-5-17 |
17 |
B222100000641 |
1 |
Main element,air filter |

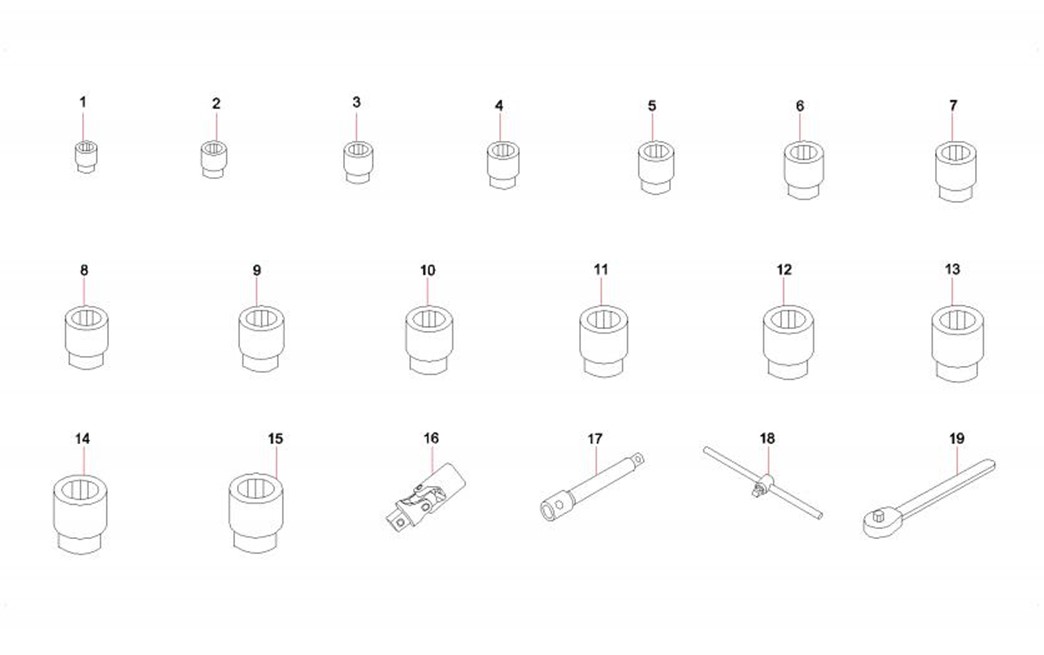

IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
7-7-1 |
1 |
A260401010023 |
1 |
Socket 10×12.5GB3390.1 |
7-7-2 |
2 |
A260401010063 |
1 |
Socket 11×12.5GB3390.1 |
7-7-3 |
3 |
A260401010024 |
1 |
Socket 13×12.5GB3390.1 |
7-7-4 |
4 |
A260401010095 |
1 |
Socket 14×12.5LGB3390.1 |
7-7-5 |
5 |
A260401010025 |
1 |
Socket 16×12.5GB3390.1 |
7-7-6 |
6 |
A260401010077 |
1 |
Socket 17×12.5GB3390.1 |
7-7-7 |
7 |
60001295 |
1 |
Socket 18×12.5GB3390.1 |
7-7-8 |
8 |
A260401010081 |
1 |
Socket 19×12.5GB3390.1 |
7-7-9 |
9 |
A260401010027 |
1 |
Socket 21×12.5GB3390.1 |
7-7-10 |
10 |
A260401010078 |
1 |
Socket 22×12.5GB3390.1 |
7-7-11 |
11 |
A260401010051 |
1 |
Socket 24×12.5GB3390.1 |
7-7-12 |
12 |
A260401010031 |
1 |
Socket 27×20GB3390.1 |
7-7-13 |
13 |
A260401010037 |
1 |
Socket |
7-7-14 |
14 |
A260401010055 |
1 |
Socket 30×20GB3390.1 |
7-7-15 |
15 |
A260401010057 |
1 |
Socket 36×20GB3390.1 |
7-7-16 |
16 |
A229900007607 |
1 |
Joint, universal |
7-7-17 |
17 |
A260401010065 |
1 |
Rod, extension |
7-7-18 |
18 |
60001293 |
1 |
T-tool |
7-7-19 |
19 |
A260401090010 |
1 |
Wrench, ratchet, reversible |
