SANY SY35C SY35C2 SY35C2Y4WU EXCAVATOR parts catalog 32

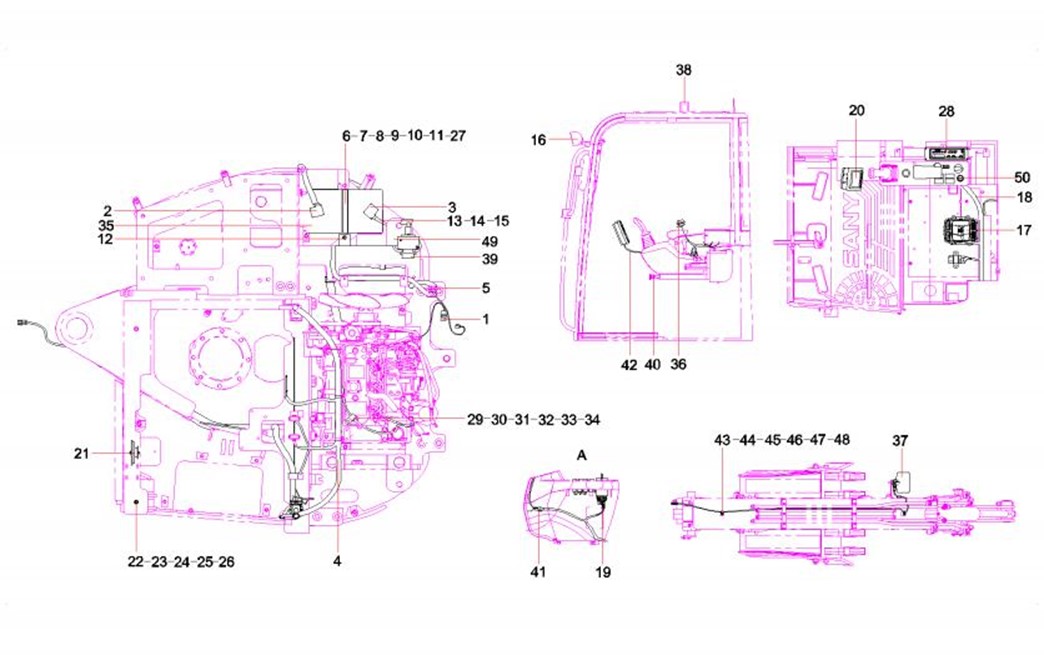

IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
5-3-1 |
1 |
B241000000022 |
1 |
Socket, two-wire |
5-3-2 |
2 |
60013321 |
1 |
Connector GP, cathode, battery, A |
5-3-3 |
3 |
60013322 |
1 |
Connector GP, anode, battery, A- |
5-3-4 |
4 |
13231767 |
1 |
Vehicle Body Harn |
5-3-5 |
5 |
60202078 |
10 |
Cluster fixed lace |
5-3-6 |
6 |
A210405000007 |
5 |
Washer 8GB97.1 |
5-3-7 |
7 |
A210404000009 |
6 |
Washer 6GB96.1 |
5-3-8 |
8 |
A210404000010 |
4 |
Washer 5GB96.1 |
5-3-9 |
9 |
A210404000003 |
20 |
Washer 10GB96.1 |
5-3-10 |
10 |
13091123 |
1 |
Battery Binder |
5-3-11 |
11 |
13091122 |
1 |
Battery Binder |
5-3-12 |
12 |
13091125 |
1 |
Battery Support |
5-3-13 |
13 |
60193171 |
1 |
Power line |
5-3-14 |
14 |
60215132 |
2 |
Power Supply Line |
5-3-15 |
15 |
60193169 |
1 |
Power line |
5-3-16 |
16 |
60173509 |
1 |
working light |
5-3-17 |
17 |
12824424 |
1 |
Integrated box SY85C1K2S.5C.1.1 |
5-3-18 |
18 |
13231764 |
1 |
Driver’s Cab Harness |
5-3-19 |
19 |
13231766 |
1 |
Control harness SY35C2Y4.5C.3 |
5-3-20 |
20 |
60229721 |
1 |
Control display screen |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
5-5-21 |
21 |
60211509 |
1 |
Horn |
5-5-22 |
22 |
A210210000030 |
4 |
Screw M4×12GB818 |
5-5-23 |
23 |
A210111000088 |
2 |
Bolt M8×16GB5783 |
5-5-24 |
24 |
A210111000089 |
1 |
Bolt M8×20GB5783 |
5-5-25 |
25 |
A210111000079 |
6 |
Bolt M6×16GB5783 |
5-5-26 |
26 |
A210111000195 |
20 |
Bolt M10×16GB5783 10.9 |
5-5-27 |
27 |
A820606030643 |
3 |
Cushion, battery |
5-5-28 |
28 |
60047845 |
1 |
Radio |
5-5-29 |
29 |
60083322 |
4 |
Clip, wire |
5-5-30 |
30 |
60086354 |
10 |
Clamp, harness |
5-5-31 |
31 |
60086353 |
1 |
Clamp, harness |
5-5-32 |
32 |
60086356 |
1 |
Clamp, harness |
5-5-33 |
33 |
60086357 |
1 |
Clamp, harness |
5-5-34 |
34 |
60086355 |
2 |
Clamp, harness |
5-5-35 |
35 |
B242200000026 |
1 |
Battery |
5-5-36 |
36 |
60236996 |
1 |
Knob switch |
5-5-37 |
37 |
60204926 |
1 |
Working light |
5-5-38 |
38 |
60237043 |
1 |
Alarm lamp |
5-5-39 |
39 |
60148849 |
1 |
Battery Control switch |
5-5-40 |
40 |
60027621 |
1 |
Emergency stop switch |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
5-7-41 |
41 |
60041902 |
1 |
Accessories, metal, fixed, plug-in |
5-7-42 |
42 |
13231768 |
1 |
harness of display |
5-7-43 |
43 |
A210111000011 |
3 |
Bolt M10×20GB5783 |
5-7-44 |
44 |
A210405000011 |
3 |
Washer 10GB97.1 |
5-7-45 |
45 |
21005334 |
1 |
Bolt |
5-7-46 |
46 |
A210405000006 |
2 |
Washer 6GB97.1 |
5-7-47 |
47 |
23000169 |
2 |
Nut |
5-7-48 |
48 |
A210111000342 |
2 |
Bolt M8×16GB5783 10.9 |
5-7-49 |
49 |
13078810 |
1 |
supporting plate |
5-7-50 |
50 |
60218598 |
1 |
Ignition switch |

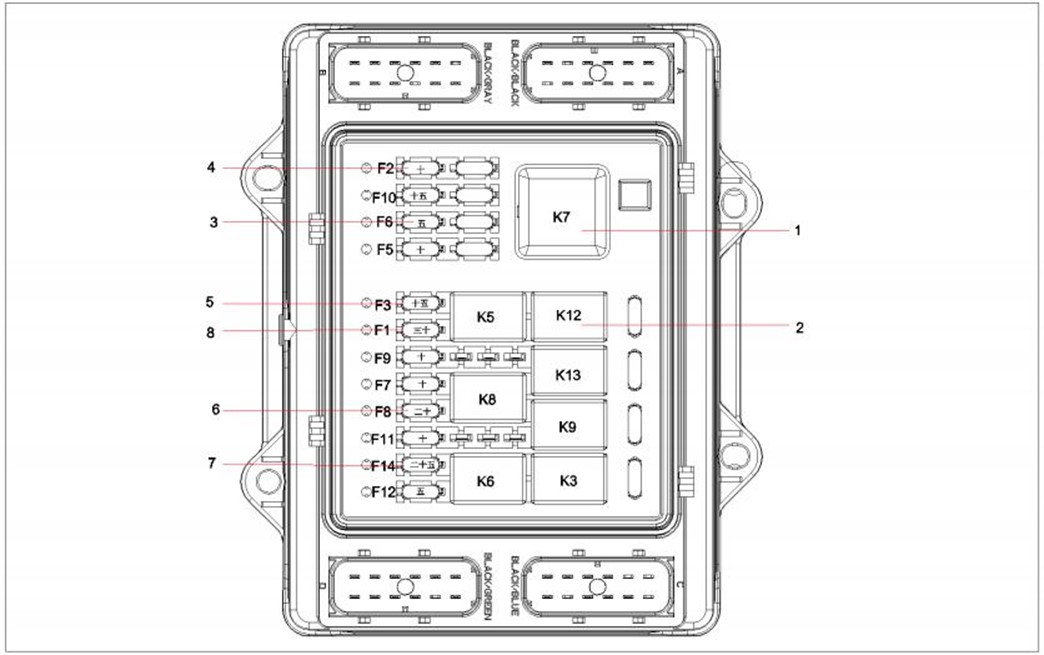

IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
5-9-1 |
1 |
60215655 |
1 |
Intermediate Relay |
5-9-2 |
2 |
60215653 |
7 |
Intermediate Relay |
5-9-3 |
3 |
60215505 |
2 |
fuse |
5-9-4 |
4 |
60215506 |
5 |
fuse |
5-9-5 |
5 |
60215507 |
2 |
fuse |
5-9-6 |
6 |
60215508 |
1 |
fuse |
5-9-7 |
7 |
60215509 |
1 |
fuse |
5-9-8 |
8 |
60215510 |
1 |
fuse |

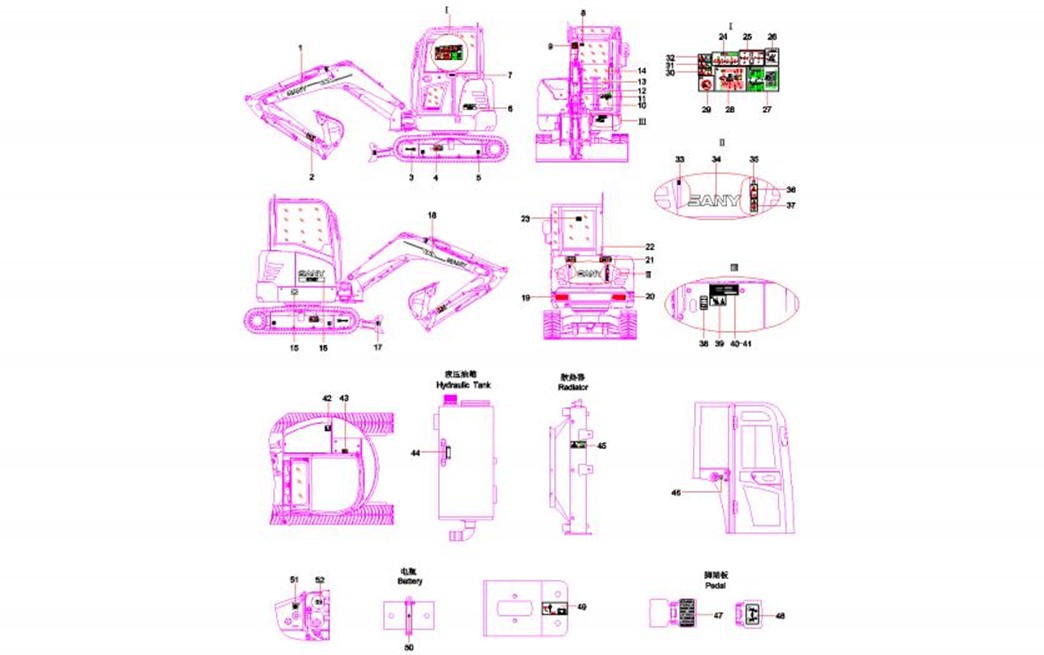

Chapter 6
Coating SY35C2Y4WU(北美)
