SANY SY35C SY35C2 SY35C2Y4WU EXCAVATOR parts catalog 33
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

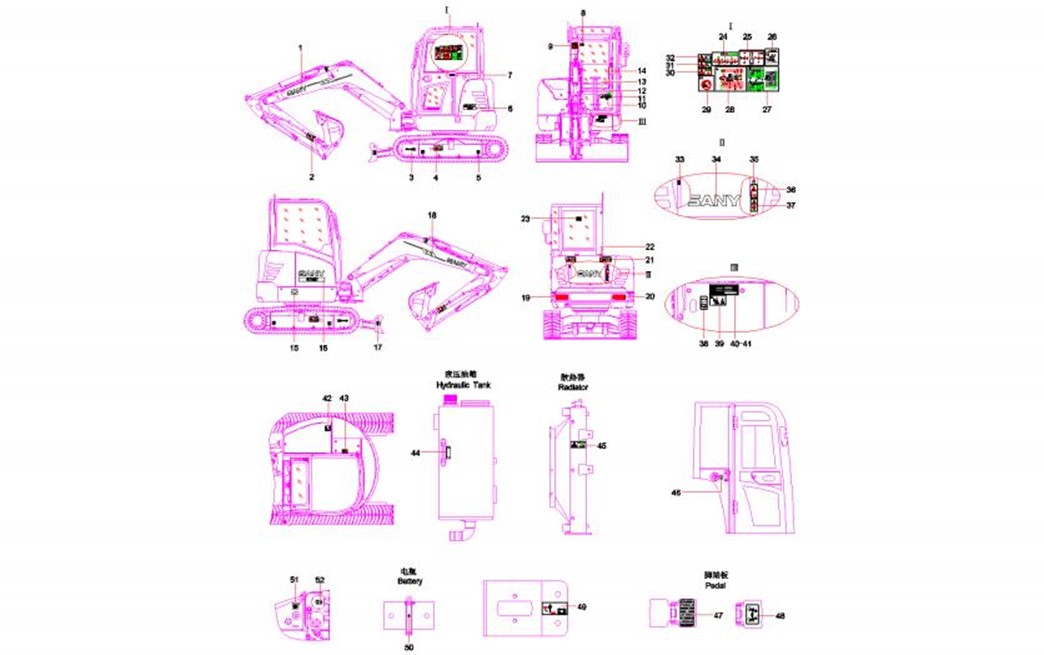

6-3-1 |
1 |
13322581 |
2 |
Movable Arm Marking |
6-3-2 |
2 |
13346185 |
2 |
Caution plate of bucket rod |
6-3-3 |
3 |
A820603000246 |
2 |
Decal, instruction, forward |
6-3-4 |
4 |
13333436 |
2 |
Antispray caution plate |
6-3-5 |
5 |
13166446 |
4 |
Fixed loading spot mark |
6-3-6 |
6 |
13168025 |
1 |
SANY logo mark |
6-3-7 |
7 |
A820601000014 |
1 |
Decal |
6-3-8 |
8 |
13340001 |
1 |
Front window lock caution board |
6-3-9 |
9 |
12033806 |
1 |
Label, preventing fire disaster |
6-3-10 |
10 |
13567095 |
1 |
Joystick change indication |
6-3-11 |
11 |
13578183 |
1 |
FOPS& TOPS Card |
6-3-12 |
12 |
13504946 |
1 |
Emergency Stop Switch |
6-3-13 |
13 |
13166512 |
1 |
Seat adjustment |
6-3-14 |
14 |
13155987 |
1 |
Leading switch mark |
6-3-15 |
15 |
12052090 |
2 |
Decal, center of gravity |
6-3-16 |
16 |
13168028 |
1 |
SANY logo mark |
6-3-17 |
17 |
12052087 |
4 |
Label, lifting point |
6-3-18 |
18 |
13323204 |
2 |
label SY35C2Y4WU-TZ-12 |
6-3-19 |
19 |
13166523 |
1 |
Counterweight left reflective |
6-3-20 |
20 |
13166529 |
1 |
Counterweight right reflective |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
6-5-21 |
21 |
13344406 |
2 |
Counterweight warning board |
6-5-22 |
22 |
13339939 |
1 |
Caution for hotness SY75C3I3R- |
6-5-23 |
23 |
A820601990969 |
1 |
Label, emergency exit |
6-5-24 |
24 |
13334332 |
1 |
Control map SY215C9C5KL-TZ- |
6-5-25 |
25 |
A820601990961 |
1 |
Label, instruction, operation |
6-5-26 |
26 |
13411513 |
1 |
Suffering Power Of Single Side |
6-5-27 |
27 |
13400067 |
1 |
Lifting capability meter |
6-5-28 |
28 |
13166449 |
1 |
Lubricating graphic chart |
6-5-29 |
29 |
13474847 |
1 |
Sign of Forbidding Tilting Machine |
6-5-30 |
30 |
13351088 |
1 |
Seat safety caution board |
6-5-31 |
31 |
13340247 |
1 |
Warning board for high pressure |
6-5-32 |
32 |
12496543 |
1 |
Label, warning, read manual |
6-5-33 |
33 |
13334245 |
1 |
Oil-water separator drain |
6-5-34 |
34 |
12880634 |
1 |
counerweight markingSY55C9I2R- |
6-5-35 |
35 |
13132241 |
1 |
Power supply socket |
6-5-36 |
36 |
13342850 |
1 |
Fan tough caution board |
6-5-37 |
37 |
13339874 |
1 |
Caution board of belt security |
6-5-38 |
38 |
13411389 |
1 |
Slewing bearing oil filler mark |
6-5-39 |
39 |
13411269 |
1 |
Lifting Mark SY35C2Y4WU(北美)- |
6-5-40 |
40 |
13141404 |
1 |
nameplateSY135C8I3K-TZ-3 |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
6-7-41 |
41 |
A210510000007 |
4 |
Rivet |
6-7-42 |
42 |
13340334 |
1 |
Oil level label SY75C3I3R-TZ-17 |
6-7-43 |
43 |
13341890 |
1 |
Caution board of “No Standing” |
6-7-44 |
44 |
A820601990928 |
1 |
Label, oil level |
6-7-45 |
45 |
13340515 |
1 |
Antispray caution plate SY75C3I3R |
6-7-46 |
46 |
A820601990927 |
1 |
Label, unlock |
6-7-47 |
47 |
13342566 |
2 |
Antiskid paste SY35C2Y4WU-TZ- |
6-7-48 |
48 |
13156069 |
1 |
Foot pedal mark |
6-7-49 |
49 |
13323350 |
1 |
Switch Label SY35C2Y4WU-TZ- |
6-7-50 |
50 |
13148777 |
1 |
Power sign |
6-7-51 |
51 |
13166425 |
1 |
Fuel tank indicatorSY215CAI4K- |
6-7-52 |
52 |
13272748 |
1 |
Hydraulic oil tank indicative board |
Chapter 7
Attached accessories
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

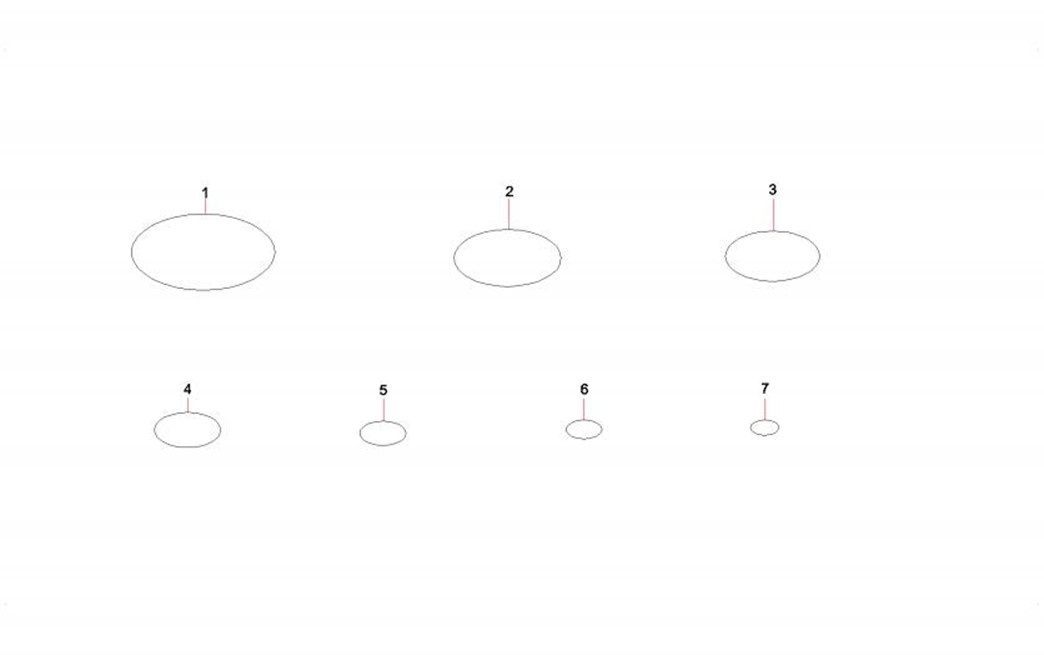

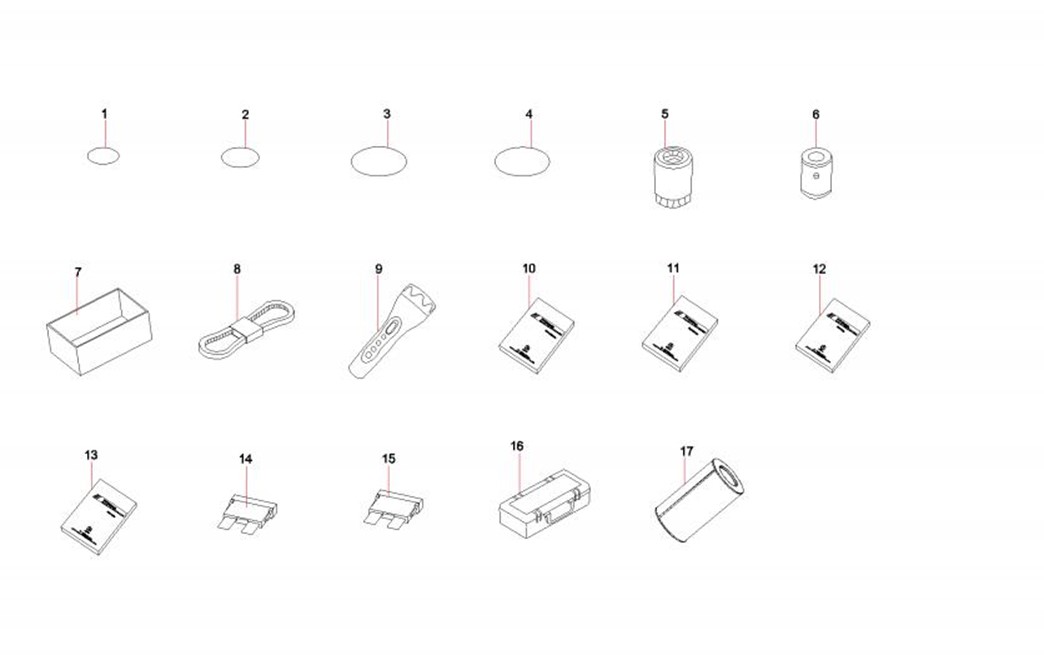

7-3-1 |
1 |
A210608000086 |
4 |
O-ring |
7-3-2 |
2 |
B230101000047 |
8 |
O-ring |
7-3-3 |
3 |
13231104 |
1 |
Main pipeline O ring |
7-3-4 |
4 |
13231105 |
1 |
Undercarriage O ring |
7-3-5 |
5 |
B222100000686 |
1 |
Filter – Oil |
7-3-6 |
6 |
60027937 |
1 |
Fuel filter |
7-3-7 |
7 |
13229265 |
1 |
Attached tools |
7-3-8 |
8 |
A230106000304 |
1 |
V-belt |
7-3-9 |
9 |
60126008 |
1 |
Work lamp, hand-hold |
7-3-10 |
10 |
13447545 |
1 |
SA Excavator SY Series ML |
7-3-11 |
11 |
13444957 |
1 |
SA Excavator SY35 SOM |
7-3-12 |
12 |
13231276 |
1 |
Drawing volume of parts |
7-3-13 |
13 |
13106659 |
1 |
Operation instruction |
7-3-14 |
14 |
A241300000016 |
5 |
Fuse 10-13.35A |
7-3-15 |
15 |
A241300000019 |
5 |
Fuse |
7-3-16 |
16 |
60041997 |
1 |
Box, accessory |
7-3-17 |
17 |
60123506 |
1 |
Main cartridge,air filter |
