IC

INDEX

PART NUMBER

QTY

PART NAME

2-31-1

1

60328544

1

new back lock

2-31-2

2

60248570

1

left inner plaque

2-31-3

3

60248577

1

up handle

2-31-4

4

60248555

1

wall lamp

2-31-5

5

60328545

1

new back lock rubber cover

2-31-6

6

60328543

1

handle plastic cover

2-31-7

7

60328542

1

Back lock handle

IC

INDEX

PART NUMBER

QTY

PART NAME

2-33-1

1

60308226

1

information bag assembly

2-33-2

2

60308227

1

fabric backrest sponge assembly

2-33-3

3

60308229

1

fabric seat sponge assembly

2-33-4

4

60308228

1

safety belt

2-33-5

5

60308221

1

slideway assembly

2-33-6

6

60308222

1

seat base plate assembly

2-33-7

7

60308223

1

adjust load handle assembly

2-33-8

8

60308224

1

plastic handle

2-33-9

9

60308225

1

backrest base plate assembly

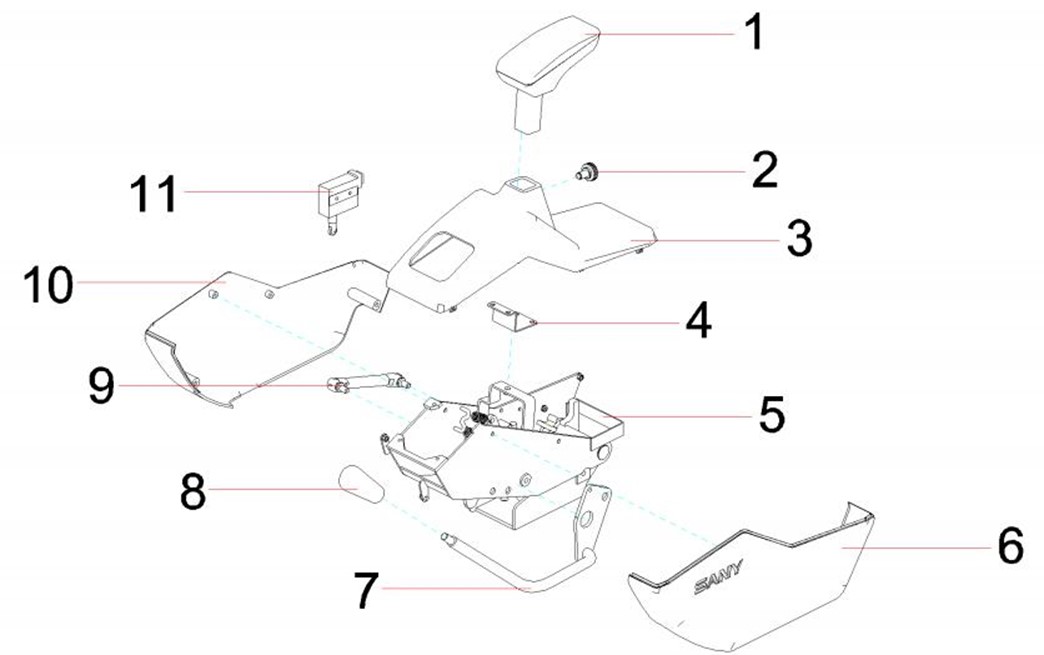

IC

INDEX

PART NUMBER

QTY

PART NAME

2-35-1

1

60259927

1

hand rail

2-35-2

2

60259923

1

hand rail limit

2-35-3

3

60259919

1

left armrest box upper cover

2-35-4

4

60259920

1

upper cover anchor

2-35-5

5

60292211

1

left armrest box framework

2-35-6

6

60259922

1

left armrest box left shell

2-35-7

7

60259925

1

handle lever

2-35-8

8

60259924

1

handle

2-35-9

9

60309855

1

gas spring

2-35-10

10

60259921

1

left armrest box right shell

2-35-11

11

60250079

1

journey switch

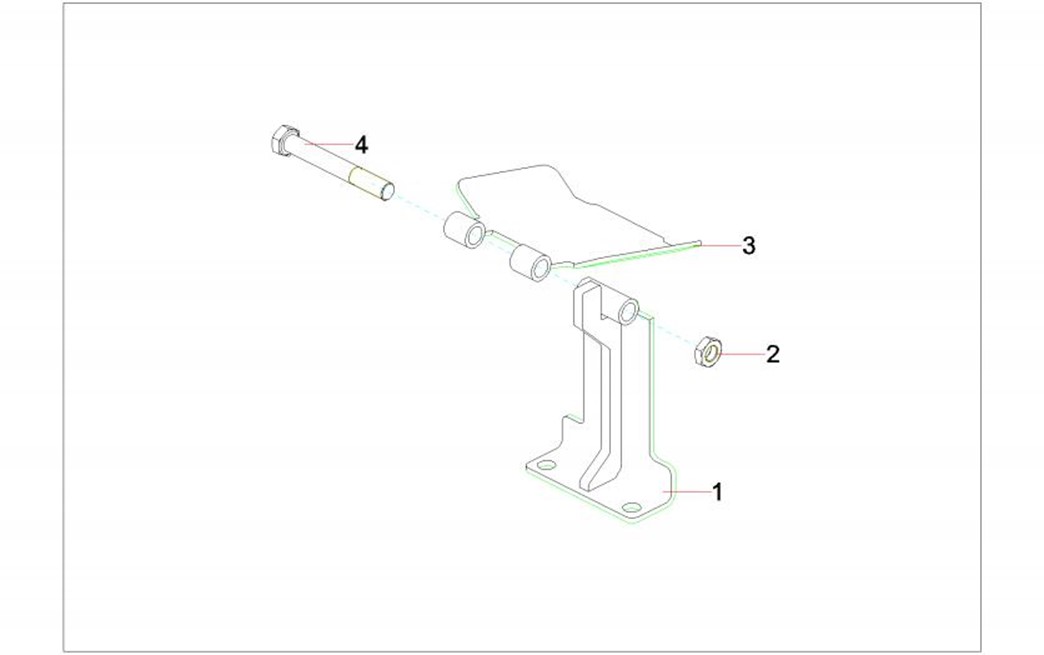

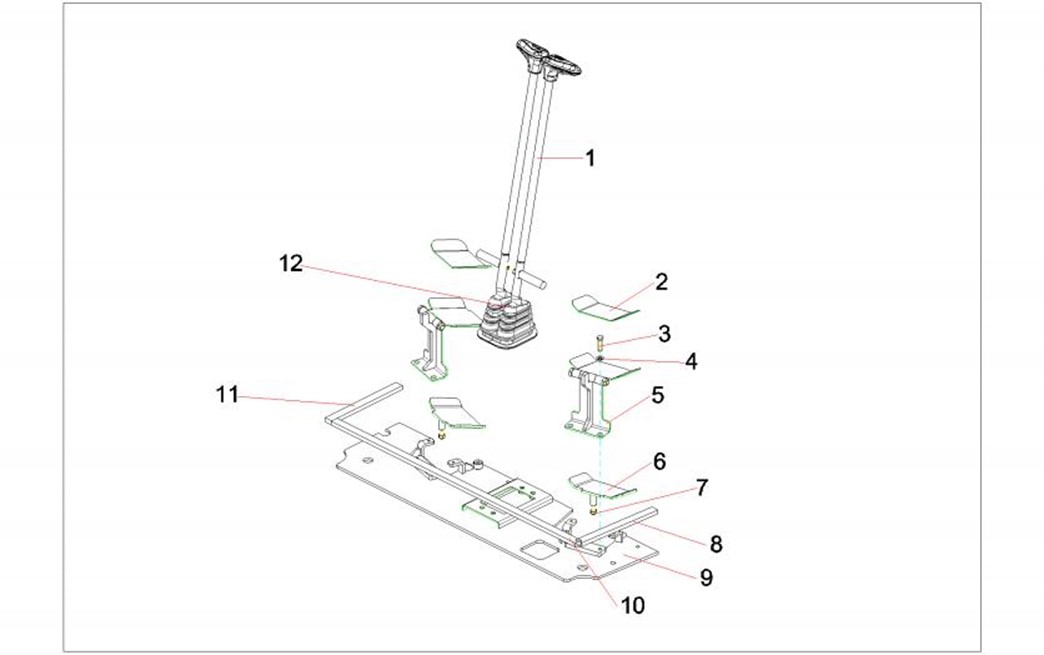

IC

INDEX

PART NUMBER

QTY

PART NAME

2-37-1

1

12985863

1

Running control mechanism

2-37-2

2

13297306

2

pedal buffer rubber pad

2-37-3

3

A210111000293

4

Bolt

2-37-4

4

24000633

4

Washer

2-37-5

5

13457933

2

breaking Pedal assy

2-37-6

6

13457956

2

pedal component

2-37-7

7

A210307000012

2

Nut M8GB6170

2-37-8

8

13117641

1

Base plate left sponge

2-37-9

9

13492575

1

front base plate component

2-37-10

10

13117643

1

Base plate front sponge

2-37-11

11

13117642

1

Base plate right front sponge

2-37-12

12

13116120

1

Rubber protective sleeve

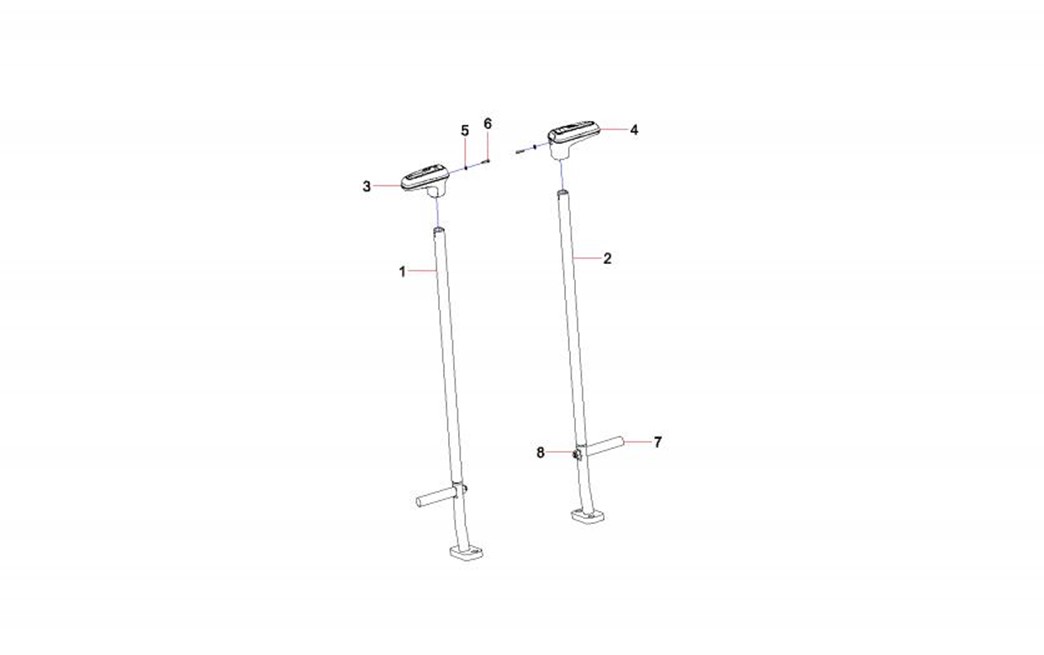

IC

INDEX

PART NUMBER

QTY

PART NAME

2-39-1

1

12985867

1

Control lever

2-39-2

2

12985868

1

Right control lever

2-39-3

3

12688927

1

Handle, left

2-39-4

4

12691132

1

Handle, right

2-39-5

5

60238780

2

Washer

2-39-6

6

A210210000059

2

Screw

2-39-7

7

12985862

2

foot-operated rod

2-39-8

8

A210307000012

2

Nut M8GB6170
