IC

INDEX

PART NUMBER

QTY

PART NAME

2-41-1

1

13456077

1

support plate

2-41-2

2

A210309000016

1

Nut M12GB6172.1

2-41-3

3

13456073

1

Pedal rotary plate

2-41-4

4

A210110000323

1

Bolt M12×90GB5782 10.9

IC

INDEX

PART NUMBER

QTY

PART NAME

2-43-1

1

60259932

1

bulldozing shovel bar

2-43-2

2

60259923

1

hand rail limit

2-43-3

3

60306446

1

rocker switch

2-43-4

4

60306447

1

rocker switch

2-43-5

5

60259936

1

right armrest box upper cover

2-43-6

6

60259920

1

upper cover anchor

2-43-7

7

60259930

1

right armrest box left shell

2-43-8

8

60259937

1

right armrest box right shell

2-43-9

9

60259936

1

right armrest box upper cover

2-43-10

10

60306443

1

rocker switch

2-43-11

11

60259927

1

hand rail

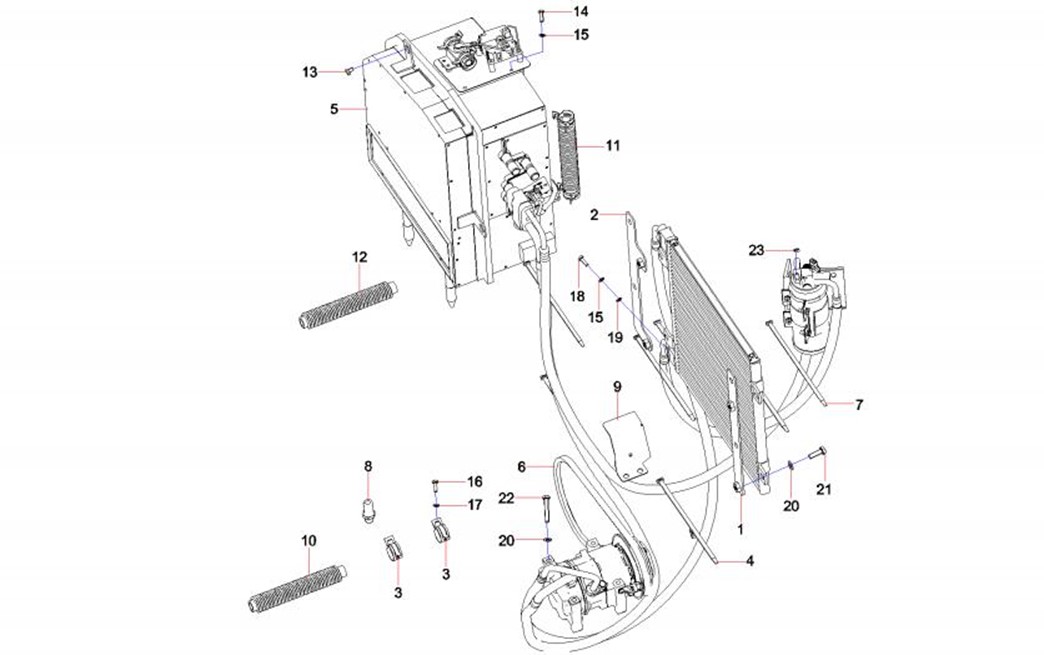

IC

INDEX

PART NUMBER

QTY

PART NAME

2-45-1

1

13208679

1

left support of

2-45-2

2

13208681

1

right support of

2-45-3

3

60166393

6

Clamp, pipe

2-45-4

4

60197034

5

Cluster fixed lace

2-45-5

5

60234442

1

Air condition

2-45-6

6

A230106000304

1

V-belt

2-45-7

7

A239900000065

8

Strap, nylon

2-45-8

8

10453599

1

Connector

2-45-9

9

13418200

1

compressor protective

2-45-10

10

13473028

1

Pipe SY35C2Y4WU.1.8-5

2-45-11

11

11084197

1

Pipe, hot pipe, air conditioner

2-45-12

12

13528968

1

Pipe SY35C2Y4WU.1.8-6

2-45-13

13

A210111000293

3

Bolt

2-45-14

14

A210111000079

4

Bolt M6×16GB5783

2-45-15

15

24000632

10

Washer

2-45-16

16

A210111000195

2

Bolt M10×16GB5783 10.9

2-45-17

17

24000637

2

Washer

2-45-18

18

A210111000082

2

Bolt

2-45-19

19

60060564

4

Washer

2-45-20

20

24000633

16

Washer

IC

INDEX

PART NUMBER

QTY

PART NAME

2-47-21

21

A210111000343

12

Bolt M8×20GB5783 10.9

2-47-22

22

A210110000253

4

Bolt M8×100GB5782

2-47-23

23

A210307000016

2

Nut M6GB6170

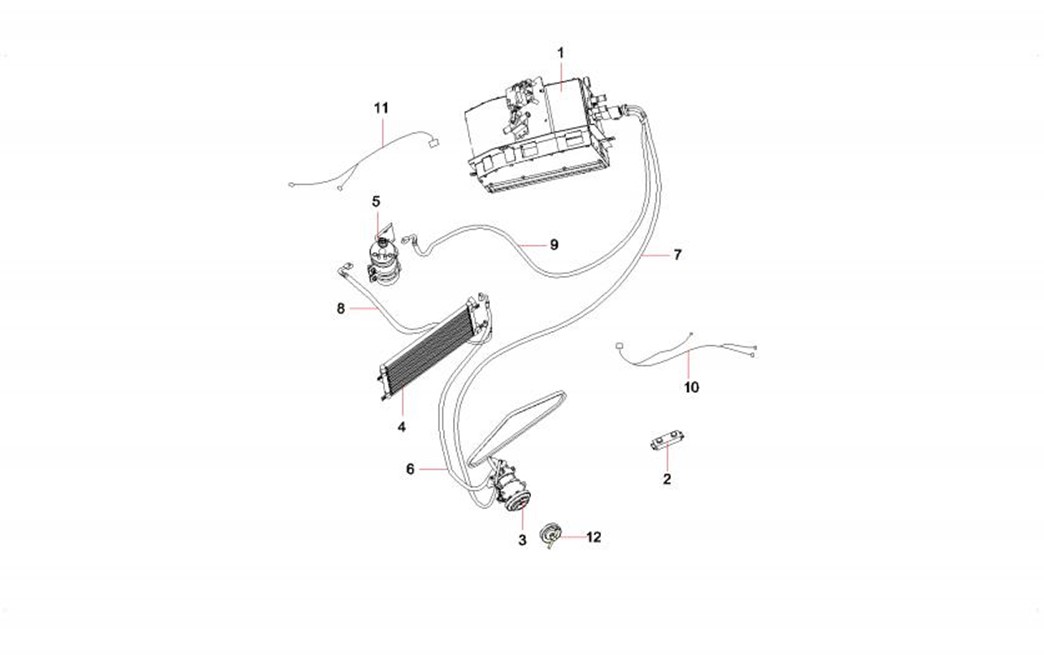

IC

INDEX

PART NUMBER

QTY

PART NAME

2-49-1

1

60242097

1

EVAP-HTR UNI

2-49-2

2

60242100

1

CONTROL UNIT

2-49-3

3

60242101

1

COMPRESSOR ASSY

2-49-4

4

60242102

1

CONDENSER ASSY

2-49-5

5

60242103

1

RECEIVER DRIER ASSY

2-49-6

6

60242104

1

HOSE ASSY-DISCHARGE

2-49-7

7

60242105

1

HOSE ASSY-SUCTION

2-49-8

8

60242106

1

HOSE ASSY-LIQUID

2-49-9

9

60242107

1

HOSE ASSY-LIQUID

2-49-10

10

60242108

1

WIRE HARNESS ASSY-EXT

2-49-11

11

60242109

1

WIRE HARNESS ASSY-EXT

2-49-12

12

60030552

1

Pulley AS, tension
