IC

INDEX

PART NUMBER

QTY

PART NAME

2-51-1

1

A210111000011

42

Bolt

2-51-2

2

60060546

21

Washer 10GB96.1

2-51-3

3

A210405000011

21

Washer 10GB97.1

2-51-4

4

13588214

1

sealing sponge SY35U.1.6-16

2-51-5

5

13453758

1

sealing sponge SY35U.1.6-7

2-51-6

6

13328005

1

sealing sponge SY35U.1.6-2

2-51-7

7

13328006

1

sealing sponge SY35U.1.6-6

2-51-8

8

13078809

1

Supporting frame

2-51-9

9

60078540

1

Spring, air, rear hood

2-51-10

10

A210491000007

2

Pin 2.5×20GB91

2-51-11

11

A210111000040

10

Bolt M12×40GB5783

2-51-12

12

60060548

10

Washer 12GB96.1

2-51-13

13

A210405000007

2

Washer 8GB97.1

2-51-14

14

13588201

1

sealing sponge SY35U.1.6-15

2-51-15

15

13177209

1

Covering parts

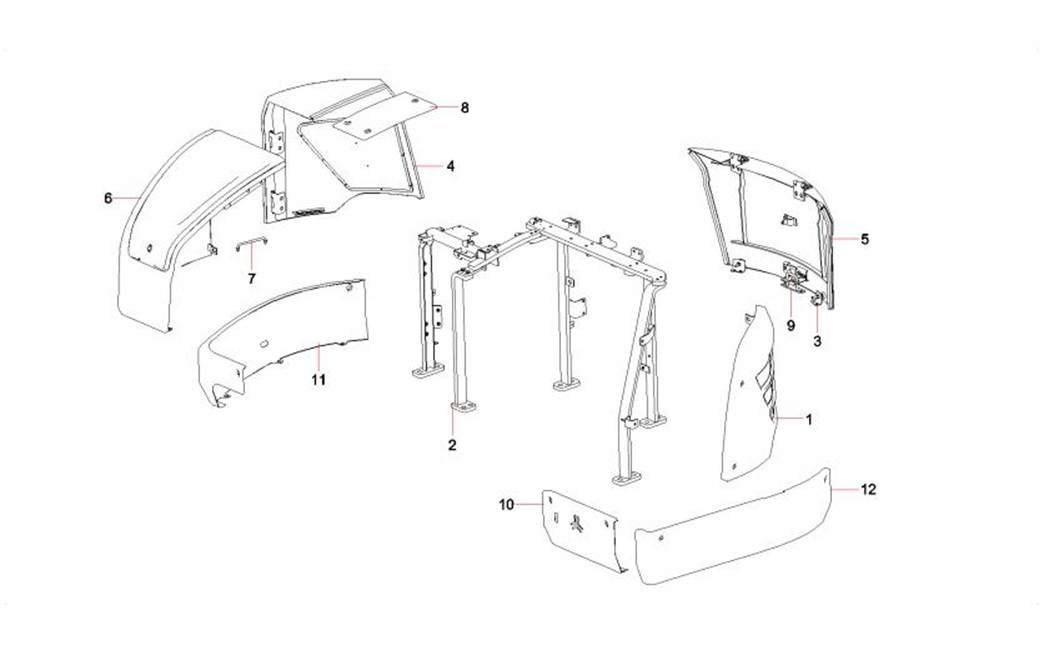

IC

INDEX

PART NUMBER

QTY

PART NAME

2-53-1

1

13088416

1

General assembly of left door

2-53-2

2

13088187

1

Bracket AS

2-53-3

3

13088595

2

Limit board assembly

2-53-4

4

13088446

1

General assembly of right door

2-53-5

5

13088478

1

General assembly of rear hood

2-53-6

6

13088507

1

General assembly of front engine

2-53-7

7

13088544

1

Limit wind hook

2-53-8

8

13088548

1

Uppercover board assembly

2-53-9

9

13088551

1

Lock

2-53-10

10

13088591

1

Left front side beam wrapping

2-53-11

11

13088592

1

Right side beam wrapping

2-53-12

12

13088593

1

Left side beam wrapping

IC

INDEX

PART NUMBER

QTY

PART NAME

2-55-1

1

13088420

1

left door weldmentSY35U.1.6.1.1

2-55-2

2

13088423

1

steel lathing assem.SY35U.1.6.1.2

2-55-3

3

A210405000004

10

Washer

2-55-4

4

A210307000014

10

Nut M4GB6170

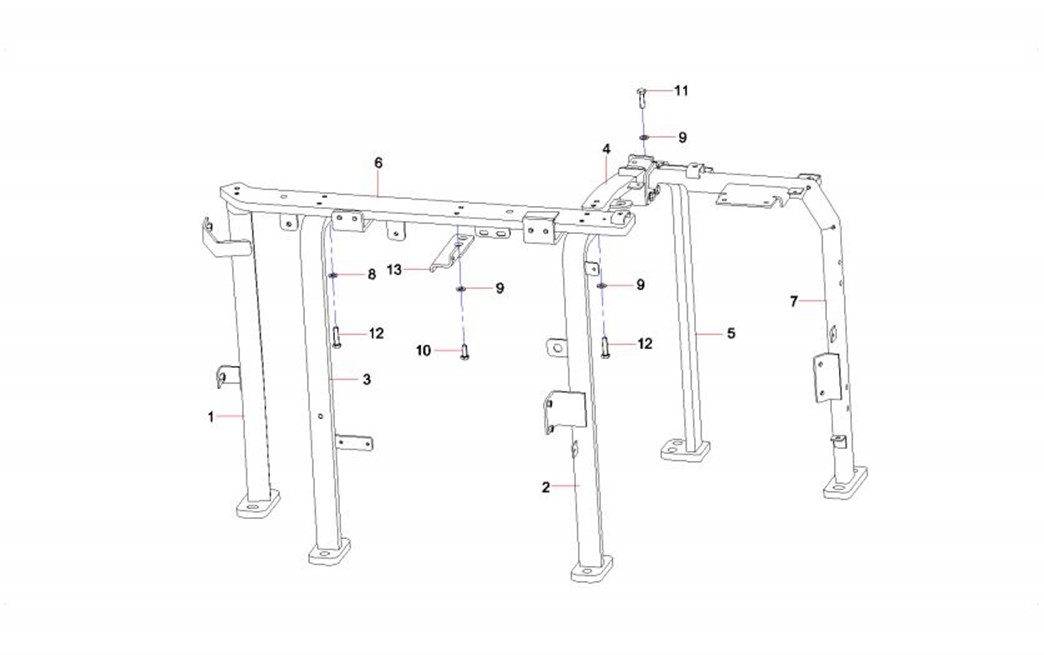

IC

INDEX

PART NUMBER

QTY

PART NAME

2-57-1

1

13088194

1

Left-hand pillar component

2-57-2

2

13088199

1

Right rear pillar component

2-57-3

3

13088206

1

Left rear pillar component

2-57-4

4

13088210

1

Right up beam assembly

2-57-5

5

13088213

1

Righr front pillar

2-57-6

6

13088219

1

Bridging beam component

2-57-7

7

13088229

1

Right-hand pillar component

2-57-8

8

A210404000003

4

Washer 10GB96.1

2-57-9

9

A210405000011

10

Washer 10GB97.1

2-57-10

10

A210111000018

4

Bolt M10×25GB5783

2-57-11

11

A210111000025

2

Bolt M10×35GB5783

2-57-12

12

A210111000027

8

Bolt

2-57-13

13

13149221

1

Gas spring bracket

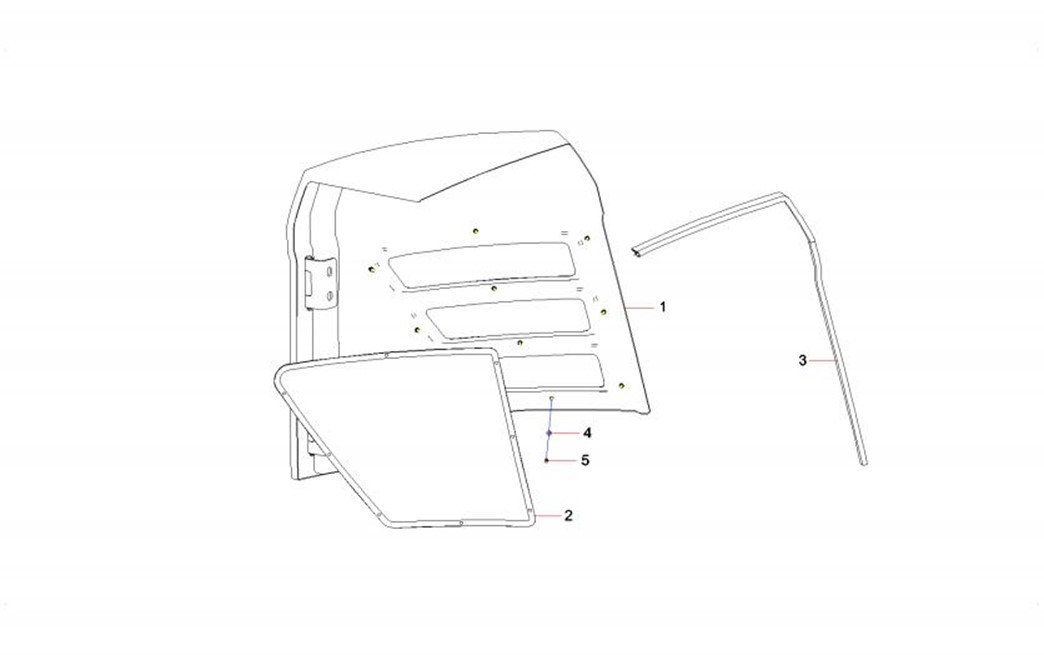

IC

INDEX

PART NUMBER

QTY

PART NAME

2-59-1

1

13088450

1

right door weldment SY35U.1.6.2.1

2-59-2

2

13088457

1

steel lathing assem.SY35U.1.6.2.2

2-59-3

3

13088445

1

rubber stripSY35U.1.6.2-1

2-59-4

4

A210405000004

10

Washer

2-59-5

5

A210307000014

10

Nut M4GB6170
