IC

INDEX

PART NUMBER

QTY

PART NAME

2-61-1

1

13088485

1

Rear hood weldment

2-61-2

2

A210111000018

4

Bolt M10×25GB5783

2-61-3

3

A210401000001

4

Washer

2-61-4

4

A210404000003

4

Washer 10GB96.1

2-61-5

5

13145932

2

Hinge of rear hood

2-61-6

6

13088475

1

Left rubber strip

2-61-7

7

A210405000006

2

Washer 6GB97.1

2-61-8

8

A210401000016

2

Washer 6GB93

2-61-9

9

A210111000079

2

Bolt M6×16GB5783

2-61-10

10

13088477

1

Limit mounting plate

2-61-11

11

60225215

1

Bonnet Lock

2-61-12

12

A210111000088

2

Bolt M8×16GB5783

2-61-13

13

A210405000007

2

Washer 8GB97.1

2-61-14

14

13088476

1

Right rubber strip

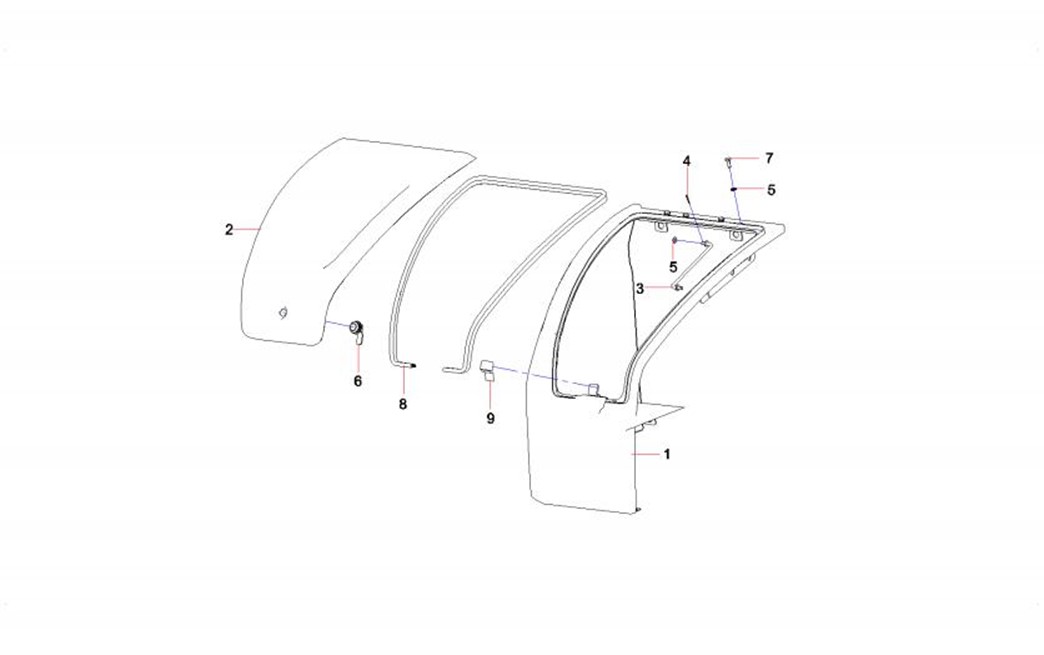

IC

INDEX

PART NUMBER

QTY

PART NAME

2-63-1

1

13088519

1

front engine hoodSY35U.1.6.4.1

2-63-2

2

13088524

1

cover of front engine

2-63-3

3

13088526

1

wind hookSY35U.1.6.4.3

2-63-4

4

A210491000007

2

Pin 2.5×20GB91

2-63-5

5

A210405000007

6

Washer 8GB97.1

2-63-6

6

A222200000093

1

Lock, cab door

2-63-7

7

A210111000089

4

Bolt M8×20GB5783

2-63-8

8

13088505

1

rubber stripSY35U.1.6.4-1

2-63-9

9

13088506

1

rubber sleeveSY35U.1.6.4-2

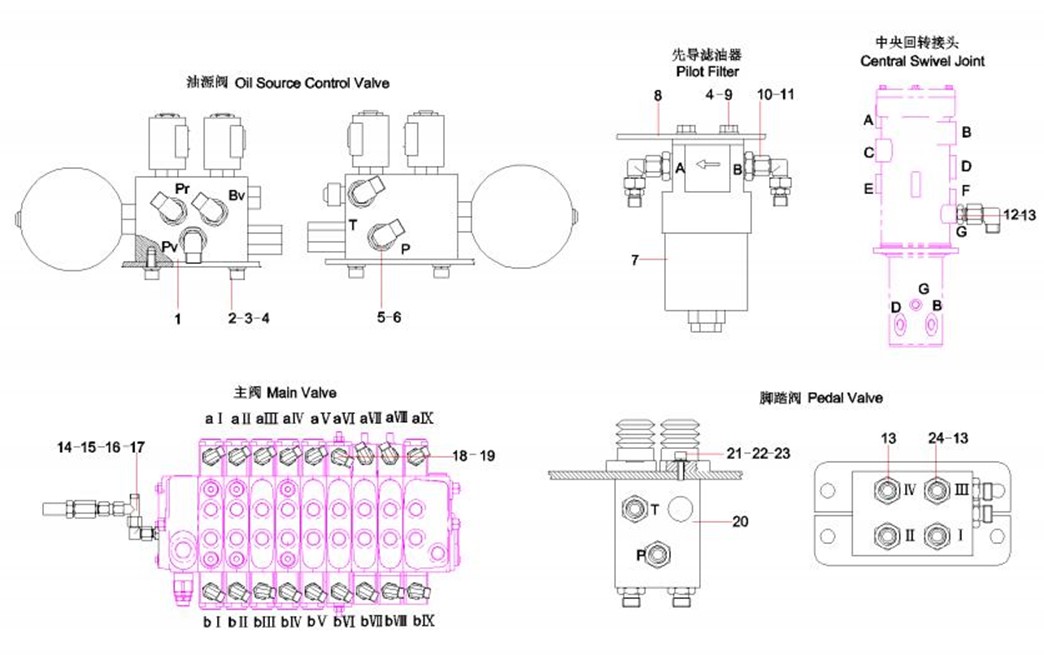

IC

INDEX

PART NUMBER

QTY

PART NAME

2-65-1

1

60046293

1

Valve,pressure reducing

2-65-2

2

A210204000147

2

Screw

2-65-3

3

24000511

4

Washer

2-65-4

4

24000633

10

Washer

2-65-5

5

B210780000176

10

Connector, pipe

2-65-6

6

B210780000418

11

Connector, pipe

2-65-7

7

B229900000063

1

Filter, oil

2-65-8

8

13426234

1

Transitional Plate

2-65-9

9

A210111000343

8

Bolt M8×20GB5783 10.9

2-65-10

10

B210780000024

2

Elbow

2-65-11

11

B210780000827

2

Connector, pipe

2-65-12

12

A820205000844

2

Connector

2-65-13

13

B230101000047

8

O-ring

2-65-14

14

B210780000170

7

Connector, pipe

2-65-15

15

B210780001045

5

Connector, pipe

2-65-16

16

A820205001061

1

Coupler, sensor, negative flow

2-65-17

17

60114799

1

Sensor, pressure

2-65-18

18

B210780000823

36

Joint, pipe

2-65-19

19

23904681

35

Joint, pipe

2-65-20

20

60129665

1

Valve, pilot, travel

IC

INDEX

PART NUMBER

QTY

PART NAME

2-67-21

21

A210204000196

4

Screw M10×20GB70.1

2-67-22

22

24000512

4

Washer

2-67-23

23

24000637

4

Washer

2-67-24

24

21011540

4

Fitting, pipe

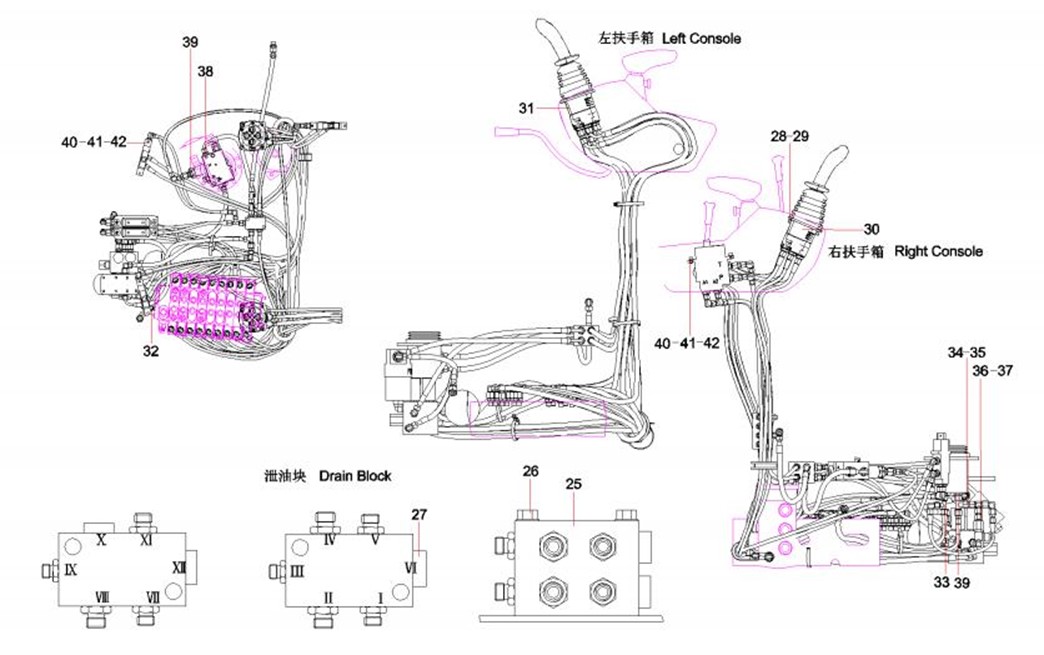

IC

INDEX

PART NUMBER

QTY

PART NAME

2-69-25

25

12053111

1

Block, PT

2-69-26

26

A210110000306

2

Bolt M8×65GB5782

2-69-27

27

B210780000164

3

Plug, screw

2-69-28

28

A210204000130

8

Screw M6×16GB70.1

2-69-29

29

60060564

8

Washer

2-69-30

30

60242507

1

Right Pilot Control Valve Assembly

2-69-31

31

60242506

1

Left Pilot Control Valve Assembly

2-69-32

32

B210780001053

1

Connector,pipe

2-69-33

33

B210780000014

8

Joint, pipe

2-69-34

34

60136966

7

Pipe connector

2-69-35

35

B220400000169

2

Valve, shuttle, tee

2-69-36

36

A820205000944

2

Adapter, relay

2-69-37

37

B240700000221

2

Relay, pressure

2-69-38

38

B210780001720

1

Connector, pipe

2-69-39

39

A820205000940

3

Connector

2-69-40

40

60027725

6

Screw

2-69-41

41

60027775

6

Washer

2-69-42

42

60281974

3

Pilot-control Valve
