IC

INDEX

PART NUMBER

QTY

PART NAME

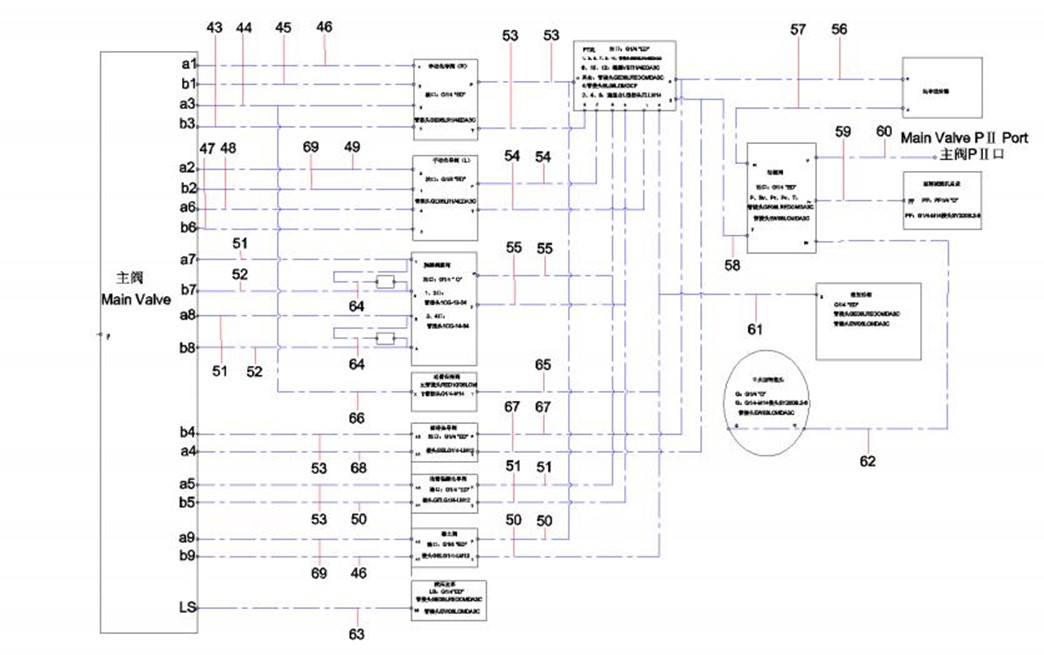

2-71-43

43

60120220

1

Hose

2-71-44

44

60120217

1

Hose

2-71-45

45

60169726

1

Hose

2-71-46

46

60120221

2

Hose

2-71-47

47

60120212

1

Hose

2-71-48

48

60120211

1

Hose

2-71-49

49

60120215

1

Hose

2-71-50

50

60120209

3

Hose,rubber

2-71-51

51

60240240

4

Hose

2-71-52

52

60240241

2

Hose

2-71-53

53

60120208

4

Hose

2-71-54

54

60240242

2

Hose

2-71-55

55

60255796

2

RubberHose

2-71-56

56

B230103001258

1

Hydraulic Hose Assembly

2-71-57

57

A831213044000

2

Hose

2-71-58

58

A831213065000

1

Hose

2-71-59

59

B230103000995

1

Hose

2-71-60

60

23000432

1

Hose,rubber

2-71-61

61

B230103007522

1

Hose

2-71-62

62

60242300

1

rubber hose

IC

INDEX

PART NUMBER

QTY

PART NAME

2-73-63

63

60240245

1

Hose

2-73-64

64

60270116

2

rubber hose

2-73-65

65

B230103007524

1

Hose,rubber

2-73-66

66

60120216

1

Hose

2-73-67

67

60240239

2

Hose

2-73-68

68

60120222

1

Hose

2-73-69

69

60120214

2

Hose

IC

INDEX

PART NUMBER

QTY

PART NAME

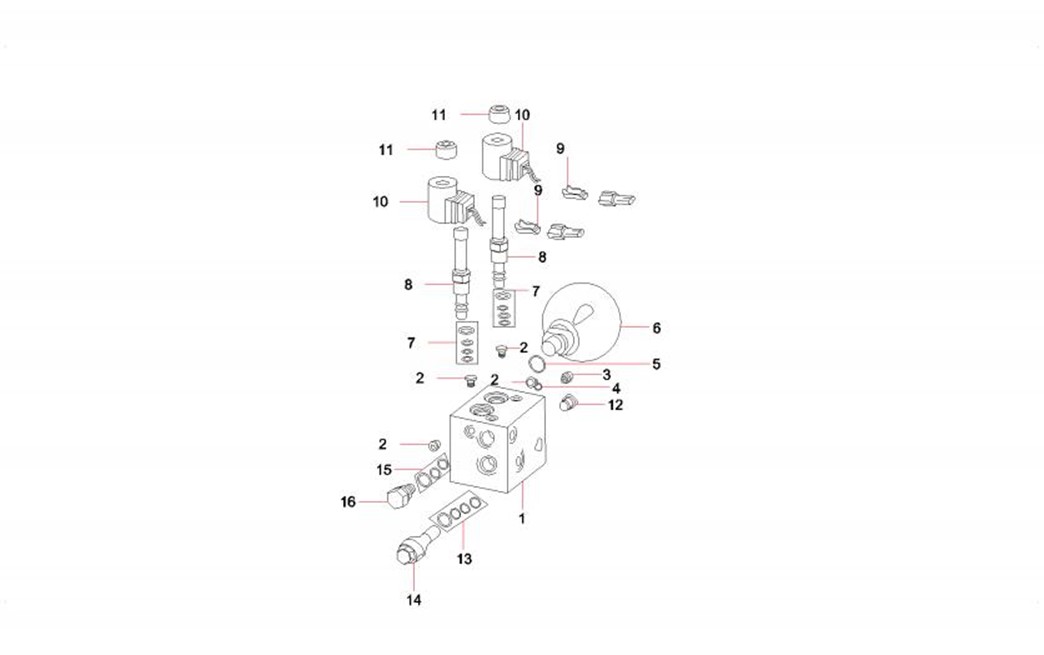

2-75-1

1

60114259

1

Block,valve

2-75-2

2

60114270

5

Plug

2-75-3

3

60114263

1

Valve,one-way,inner

2-75-4

4

60114280

1

O-ring

2-75-5

5

60114281

1

O-ring

2-75-6

6

60114277

1

Accumulator

2-75-7

7

60114268

2

Unloading electromagnetic valve

2-75-8

8

60114265

2

Valve,electromagnetic

2-75-9

9

60114283

2

Socket

2-75-10

10

60114285

2

Coil,electromagnetic valve

2-75-11

11

60114275

2

Nut

2-75-12

12

60114269

1

Plug

2-75-13

13

60114272

1

Kit,repair,valve,pressure reducing

2-75-14

14

60114260

1

Valve,pressure reducing

2-75-15

15

60114266

1

Repair kit,valve,safety

2-75-16

16

60114257

1

Valve,safety

IC

INDEX

PART NUMBER

QTY

PART NAME

2-77-1

1

60294881

2

adaptor

2-77-2

2

29010015

2

O-ring

2-77-3

3

60294882

1

sealing cushion

2-77-4

4

A230101000563

1

Seal,O-ring

2-77-5

5

24002612

1

O-Ring-20×2.4(GB1235)

2-77-6

6

A222100000119

1

Element, pilot filter

2-77-7

7

60294883

1

housing

2-77-8

8

21000077

1

O-ring

2-77-9

9

60294884

1

screw plug

IC

INDEX

PART NUMBER

QTY

PART NAME

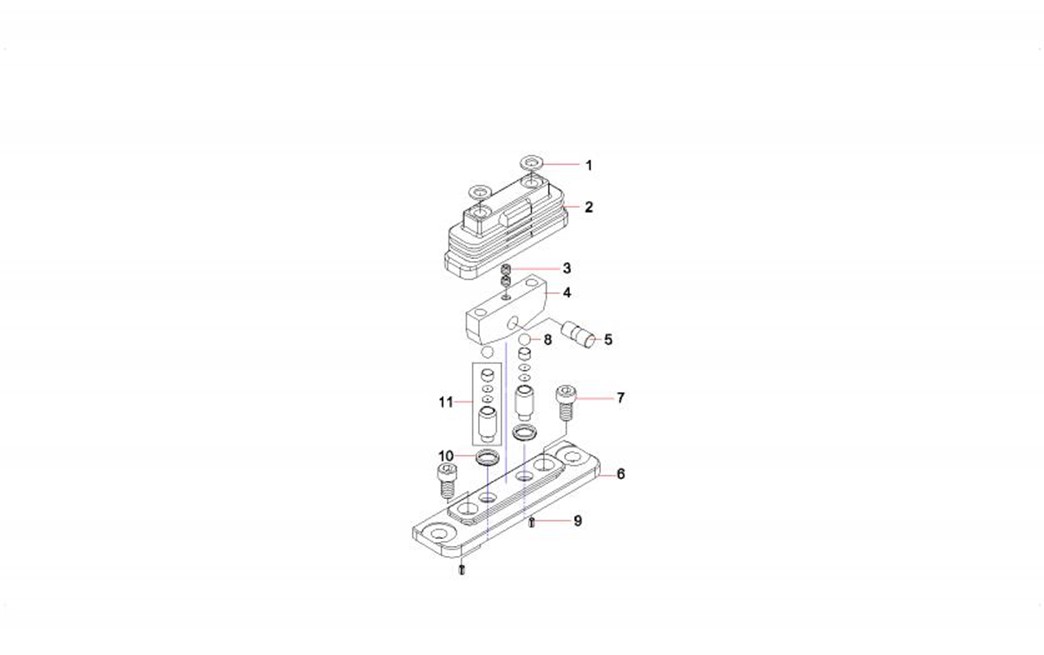

2-79-1

1

11578416

4

Gasket

2-79-2

2

60171688

2

Spool, valve

2-79-3

3

60171541

4

Plug, screw

2-79-4

4

60171597

2

Spool Guide

2-79-5

5

60171675

2

Pin

2-79-6

6

60171644

2

Fixed plate

2-79-7

7

60171656

4

Screw

2-79-8

8

60171567

4

Steel ball

2-79-9

9

60171676

4

Pin

2-79-10

10

60171550

4

Retaining ring

2-79-11

11

60171672

4

Push rod assembly
