IC

INDEX

PART NUMBER

QTY

PART NAME

2-221-1

1

13057241

1

Counterweight

2-221-2

2

A210110000330

1

Bolt M24×180GB5782 10.9

2-221-3

3

A210111000321

2

Bolt M24×80GB5783 10.9

2-221-4

4

A210491000122

3

Washer 24GB1230

IC

INDEX

PART NUMBER

QTY

PART NAME

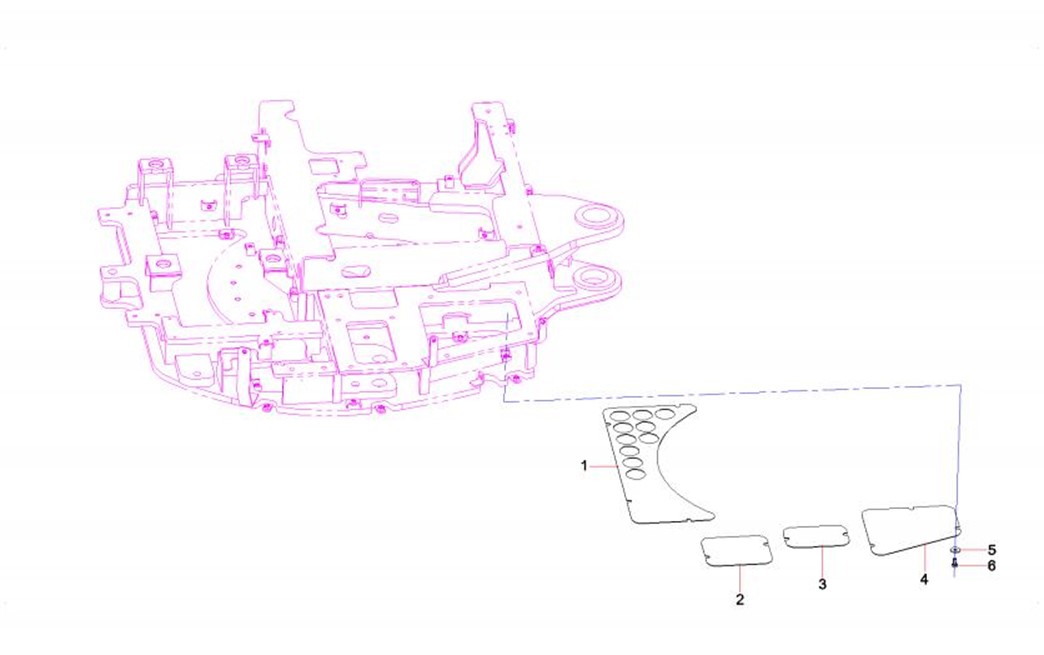

2-223-1

1

13112177

1

Sealing board

2-223-2

2

13112243

1

Sealing board

2-223-3

3

13112250

1

Sealing board

2-223-4

4

13112255

1

Sealing board

2-223-5

5

A210404000003

11

Washer 10GB96.1

2-223-6

6

A210111000011

11

Bolt

IC

INDEX

PART NUMBER

QTY

PART NAME

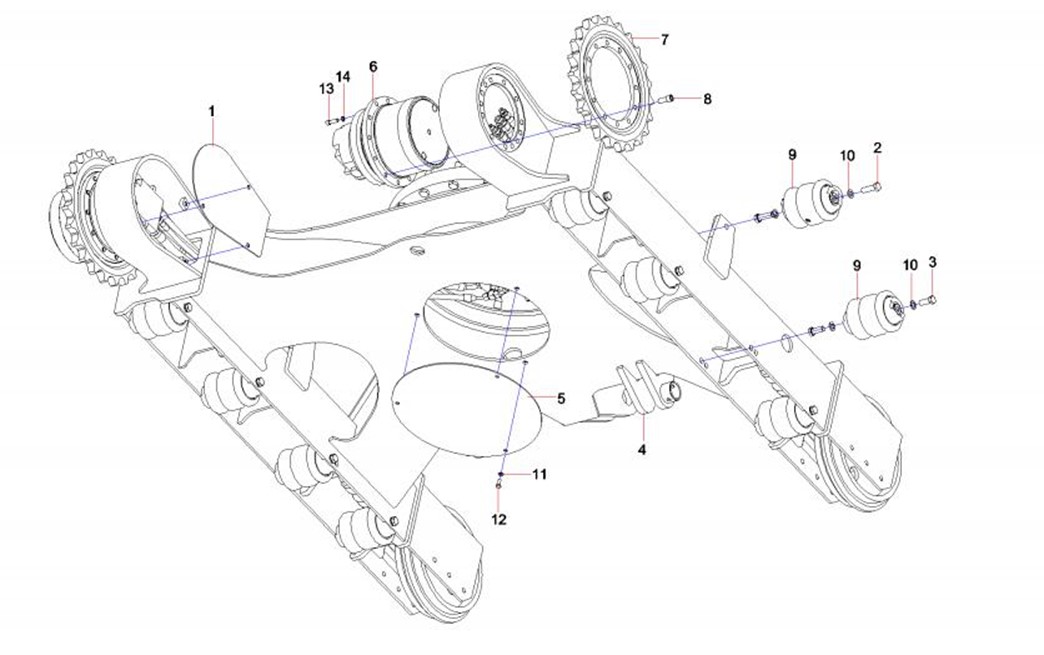

3-3-1

1

13037024

2

Motor cover

3-3-2

2

A210111000209

4

Bolt M14×45GB5783 10.9

3-3-3

3

A210111000442

16

Bolt M14×35GB5783 10.9

3-3-4

4

13070383

1

Combination Running frame

3-3-5

5

13040450

1

Bottom cover plate

3-3-6

6

13063324

1

Undercarriage hydraulic system

3-3-7

7

60181503

2

Driving wheel

3-3-8

8

A210204000337

24

Screw M12×30GB70.110.9

3-3-9

9

12935633

10

track roller

3-3-10

10

A210444000001

20

Washer 14(GB1230)

3-3-11

11

A210405000007

5

Washer 8GB97.1

3-3-12

12

A210111000343

5

Bolt M8×20GB5783 10.9

3-3-13

13

A210204000338

34

Screw M12×40GB70.1 10.9

3-3-14

14

A210405000001

34

Washer 12GB97.1

IC

INDEX

PART NUMBER

QTY

PART NAME

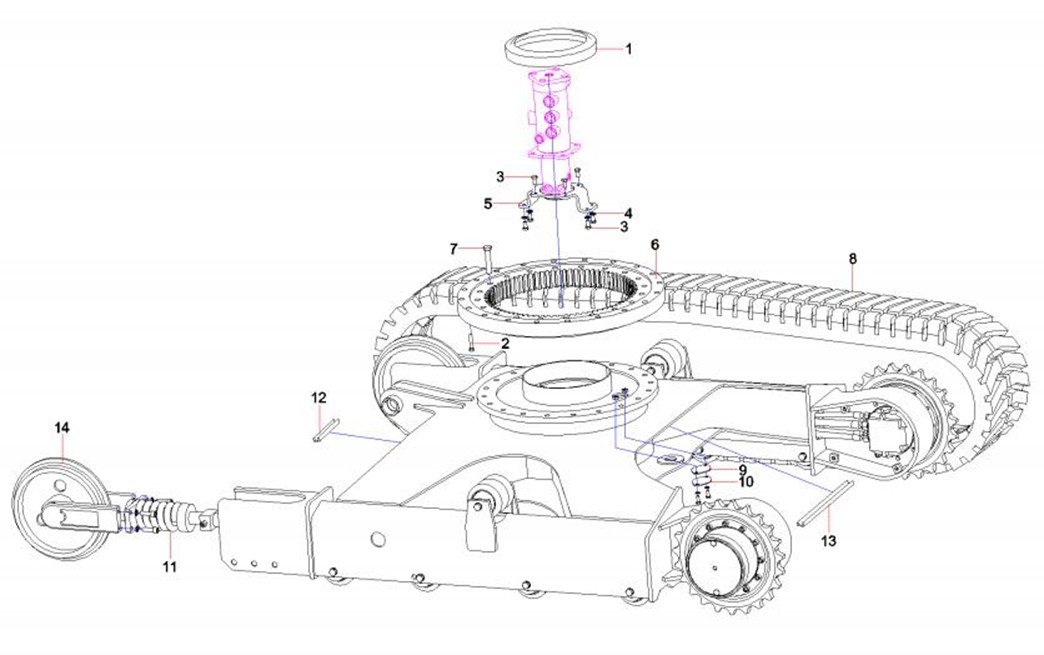

3-5-1

1

13040388

1

butter pool seal ring

3-5-2

2

A210110000281

20

Bolt M16×70GB5782 10.9

3-5-3

3

A210111000012

18

Bolt M10×20GB5783 10.9

3-5-4

4

A210405000011

14

Washer 10GB97.1

3-5-5

5

13035936

1

Fix board

3-5-6

6

12900566

1

Slewing Bearing

3-5-7

7

A210110000272

20

Bolt M16×80GB5782 10.9

3-5-8

8

60181277

2

Pedrail

3-5-9

9

13068305

1

Spacer

3-5-10

10

12996227

1

Cover plate

3-5-11

11

60181276

2

Tensioner

3-5-12

12

11133774

2

Sheath

3-5-13

13

11133805

2

Sheath

3-5-14

14

60181502

2

Track idler
