IC

INDEX

PART NUMBER

QTY

PART NAME

3-7-1

1

A210110000323

2

Bolt M12×90GB5782 10.9

3-7-2

2

A210307000031

8

Nut M12GB6170 10

3-7-3

3

13036961

2

Lock pin

3-7-4

4

60176725

4

Dust Ring

3-7-5

5

13036982

2

Shaft Sleeve

3-7-6

6

13036922

2

Lock pin

3-7-7

7

A210804000002

2

Cup, oil M10×1JB7940.1

3-7-8

8

10597771

1

Cover

3-7-9

9

13064631

1

Bulldozing shovel

3-7-10

10

A210110000014

2

Bolt M12×80GB5782 10.9

3-7-11

11

13085812

8

Spacer

3-7-12

12

13063804

8

Spacer

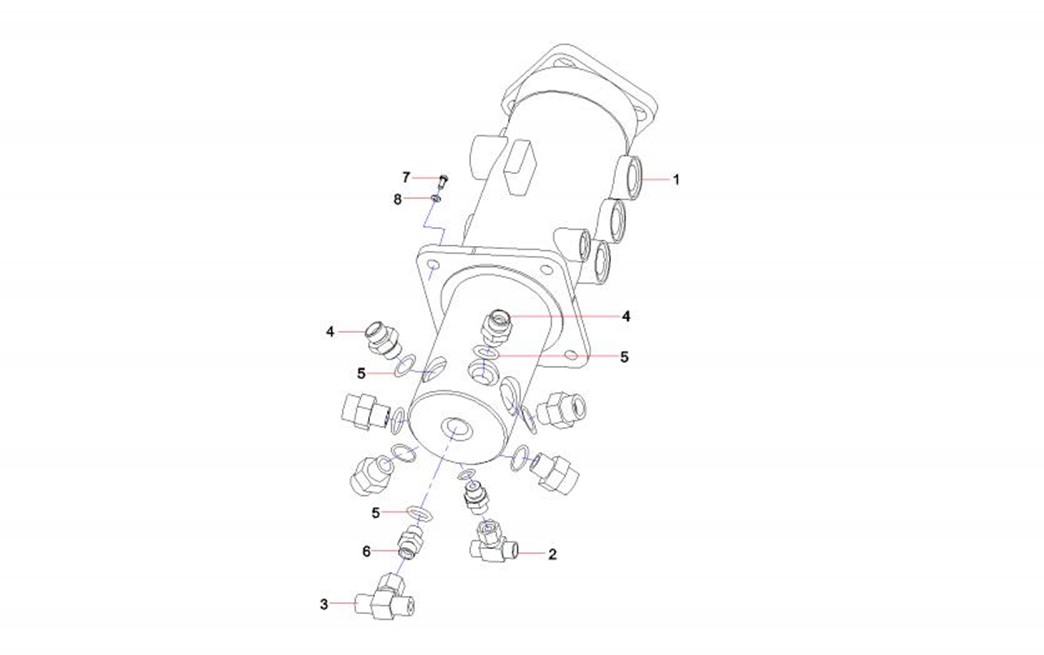

IC

INDEX

PART NUMBER

QTY

PART NAME

3-9-1

1

60167638

1

centerswiveljoint

3-9-2

2

B210780000172

1

Connector, pipe

3-9-3

3

B210780000631

1

Connector, pipe

3-9-4

4

A820205002389

2

Connector

3-9-5

5

B230101000049

4

O-ring 13.8×2.4JISB2401

3-9-6

6

11287446

1

Joint

3-9-7

7

A210111000197

4

Bolt M10×25GB5783 10.9

3-9-8

8

24000637

4

Washer

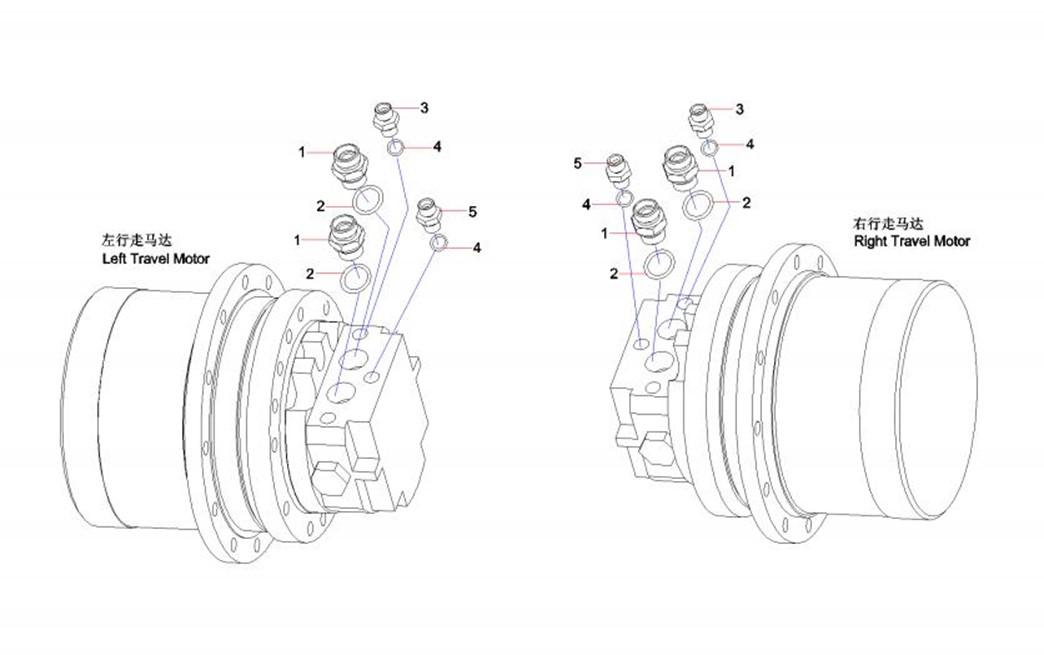

IC

INDEX

PART NUMBER

QTY

PART NAME

3-11-1

1

A820205002535

8

Connector

3-11-2

2

B230101000090

8

O-ring 17.8×2.4JISB2401

3-11-3

3

A820205002445

2

Connector

3-11-4

4

B230101000047

5

O-ring

3-11-5

5

A820205000844

3

Connector

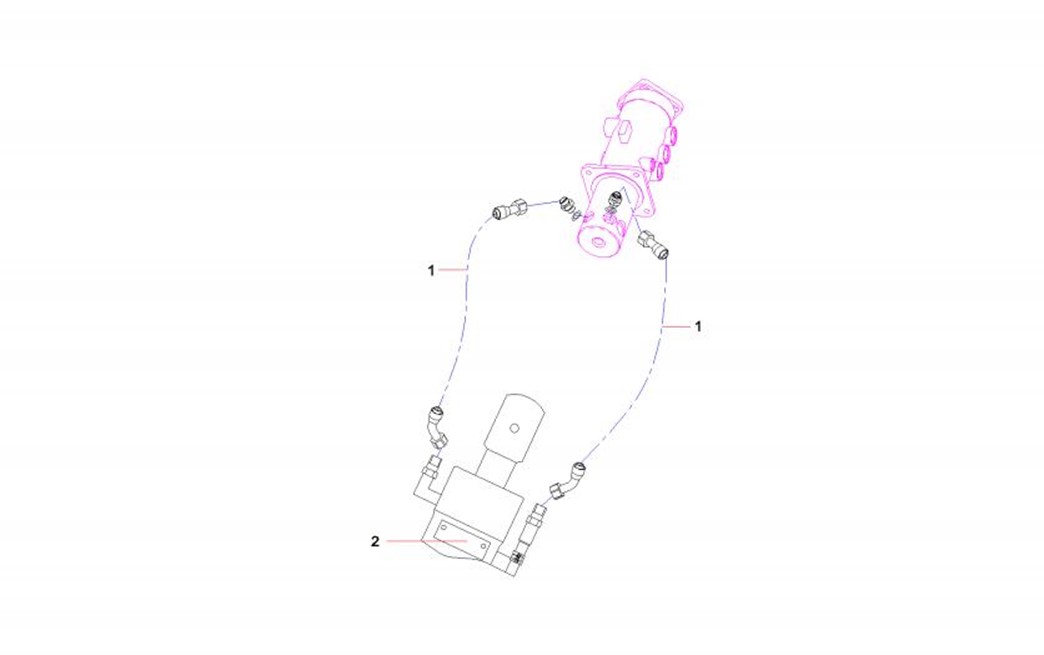

IC

INDEX

PART NUMBER

QTY

PART NAME

3-13-1

1

60259909

2

rubber hose

3-13-2

2

13239088

1

Bulldozing shovel oil cylinder

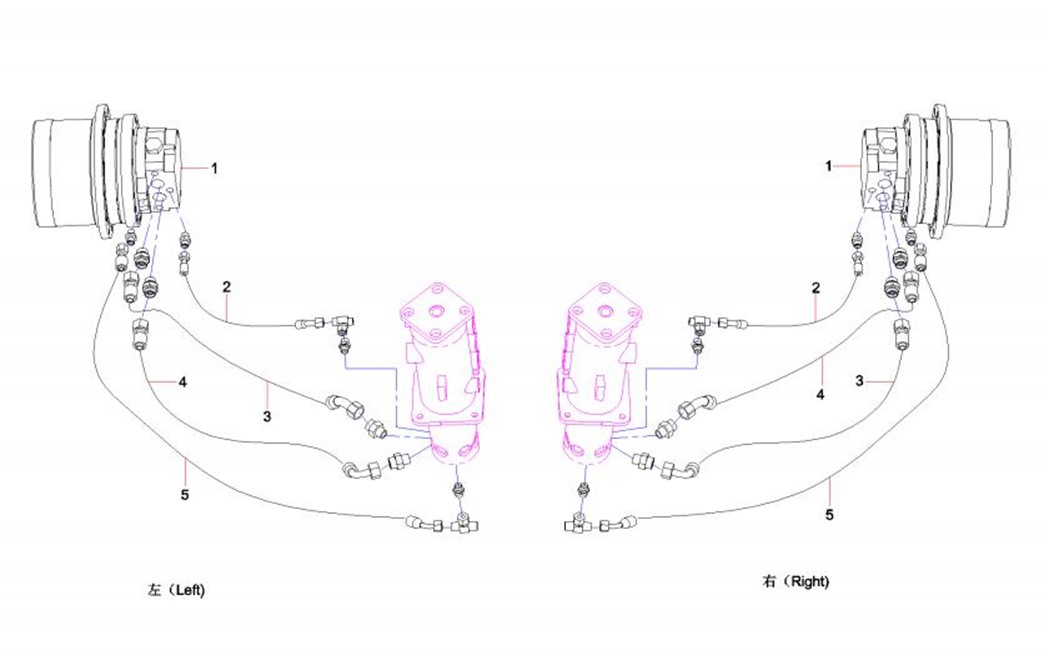

IC

INDEX

PART NUMBER

QTY

PART NAME

3-15-1

1

60167753

2

Reducerassembly

3-15-2

2

60240243

2

rubber hose

3-15-3

3

B230103000158

2

Hose, rubber

3-15-4

4

60243800

2

Hose, rubber

3-15-5

5

60240244

2

rubber hose
